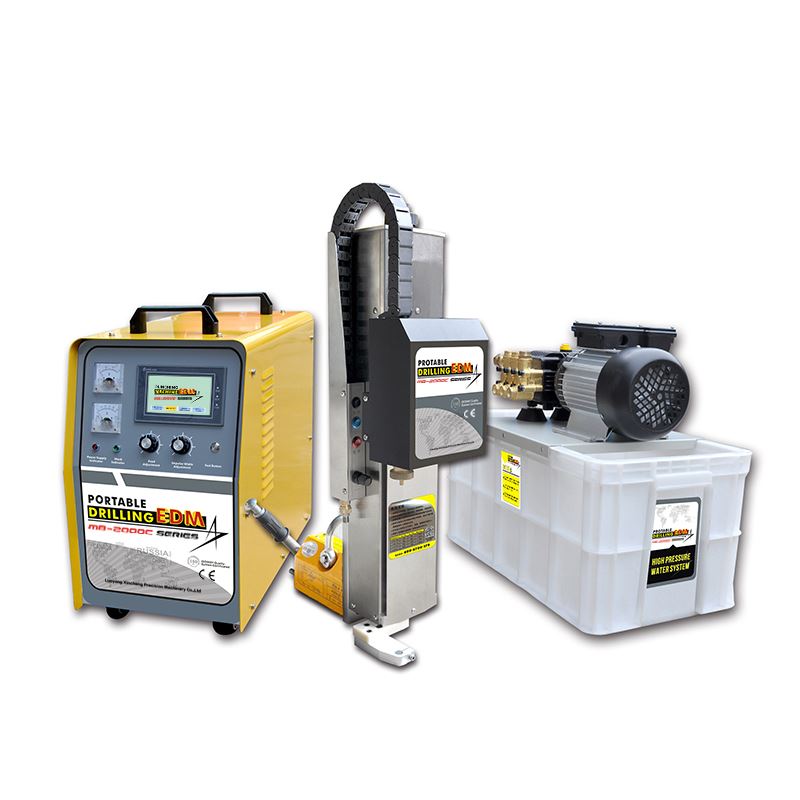

US STOCK MB-2000C EDM Drilling Machine Depth Setting Φ0.5-3mm(Φ0.02''-0.12'')1500W Portable EDM Driller Mircro Hole EDM Punching Machine

The MB-2000C EDM Drilling Machine is designed for high-precision drilling on conductive materials like stainless steel, hardened steel, hard alloys, copper, and aluminum. Equipped with advanced high-pressure water cooling, this machine offers enhanced erosion speed, allowing it to achieve high-depth-to-diameter ratios (up to 300:1). It excels in creating deep and small holes on workpieces of any size or shape, making it ideal for intricate applications such as wire-cutting holes, filter plates, and sieve plates.

Parameters

• Power Box Input Voltage: AC 110V 60Hz / AC 220V 50Hz
• Max Coolant Pressure: 8 MPa
• Max Processing Depth: 300mm (for φ1mm)
• Processing Diameter Range: 0.5-3mm
• Spindle Travel: 300mm
• Base Manual Travel: 300mm
• Overall Size (Power Box): 540*270*500mm
• Overall Size (Work Head): 375*155*690mm
• Gross Weight: 75±0.5kg

Advantages

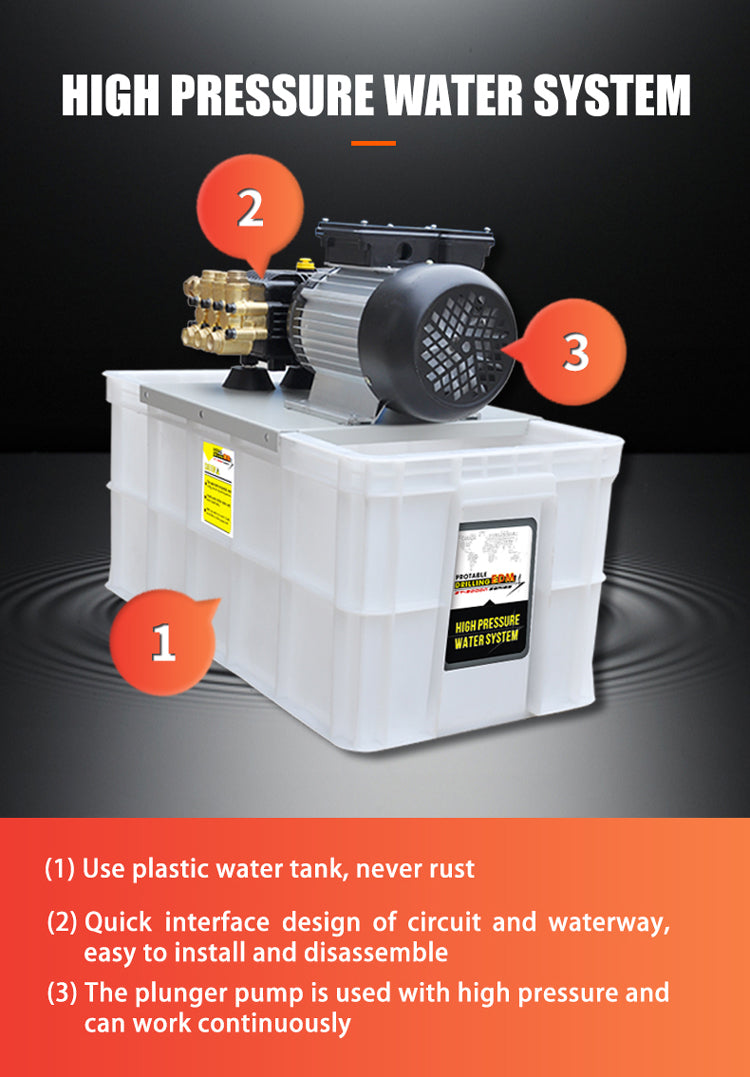

• 【High-Pressure Water Cooling System】Effectively cools the workpiece and accelerates the drilling process by discharging slag.Ensures optimal performance during continuous operation with quick connector design for easy installation and removal.
• 【Versatile Hole Processing】Capable of machining holes from inclined surfaces, curved surfaces, conical surfaces, and steps without compromising accuracy.Achieves positional accuracy by using specialized tooling devices, ensuring that the original hole or thread is not damaged.

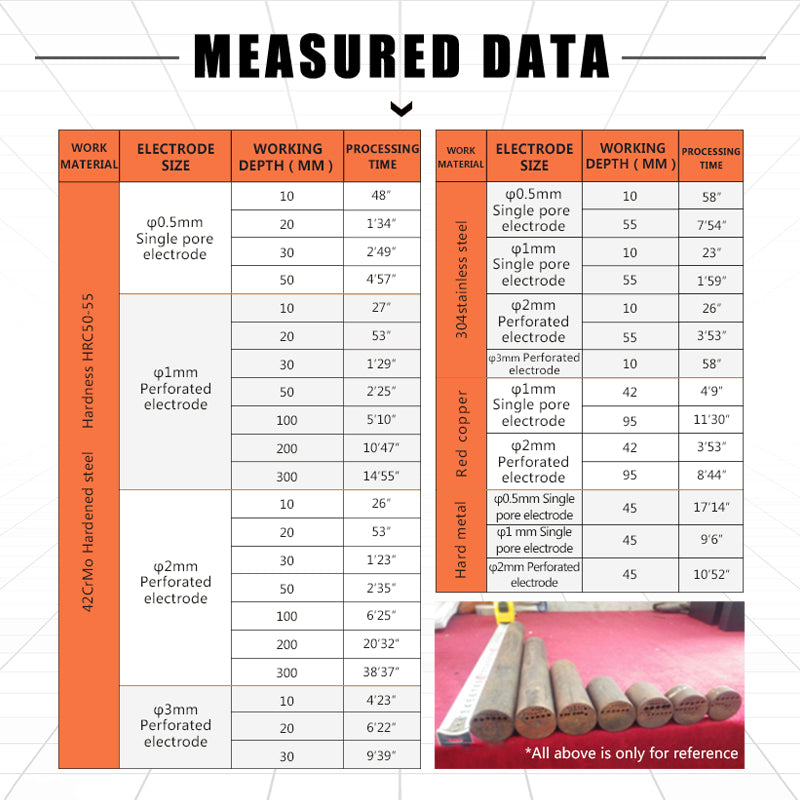

• 【Efficient Processing】Processes hole diameters from 0.5mm to 3mm with speeds ranging from 3mm/min to 10mm/min.Handles large workpieces effectively, making it suitable for a variety of industries, including manufacturing, aerospace, and automotive.

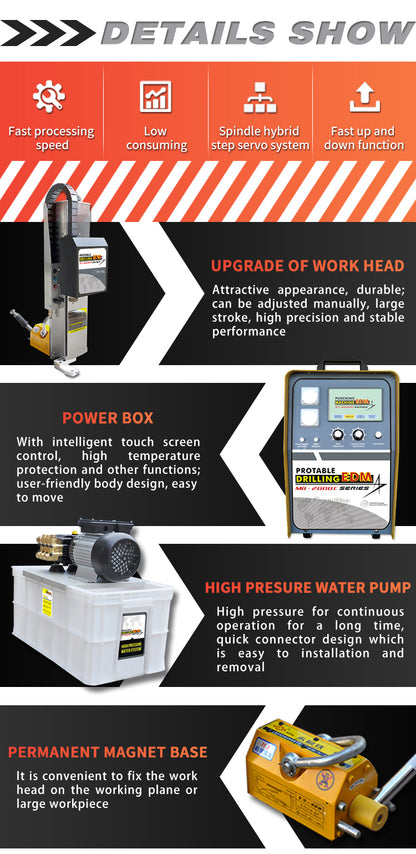

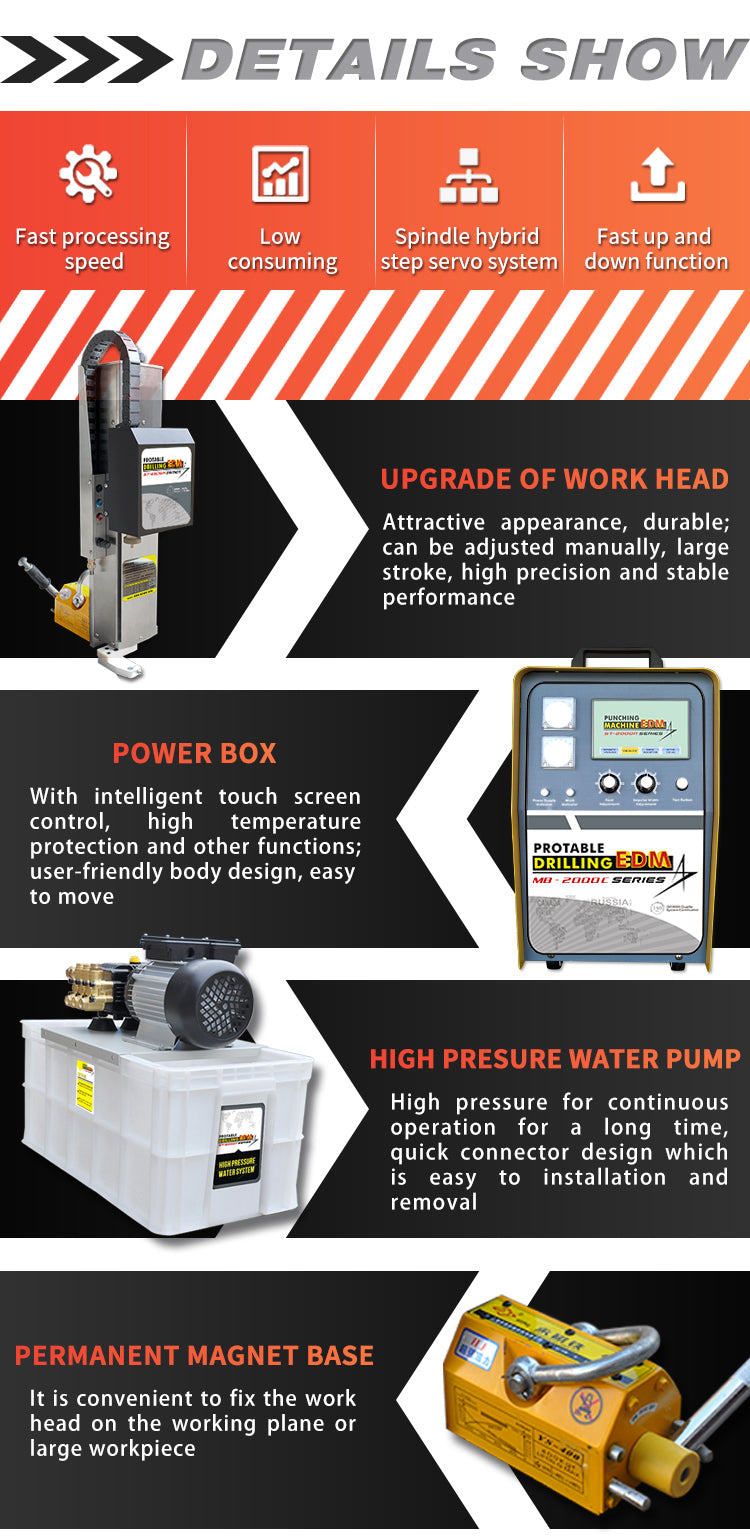

• 【Permanent Magnet Chuck】Strong, permanent magnet chuck at the spindle head ensures secure attachment to the workpiece for reliable drilling from various surfaces.The chuck allows for easy adjustment, making the process even more efficient.

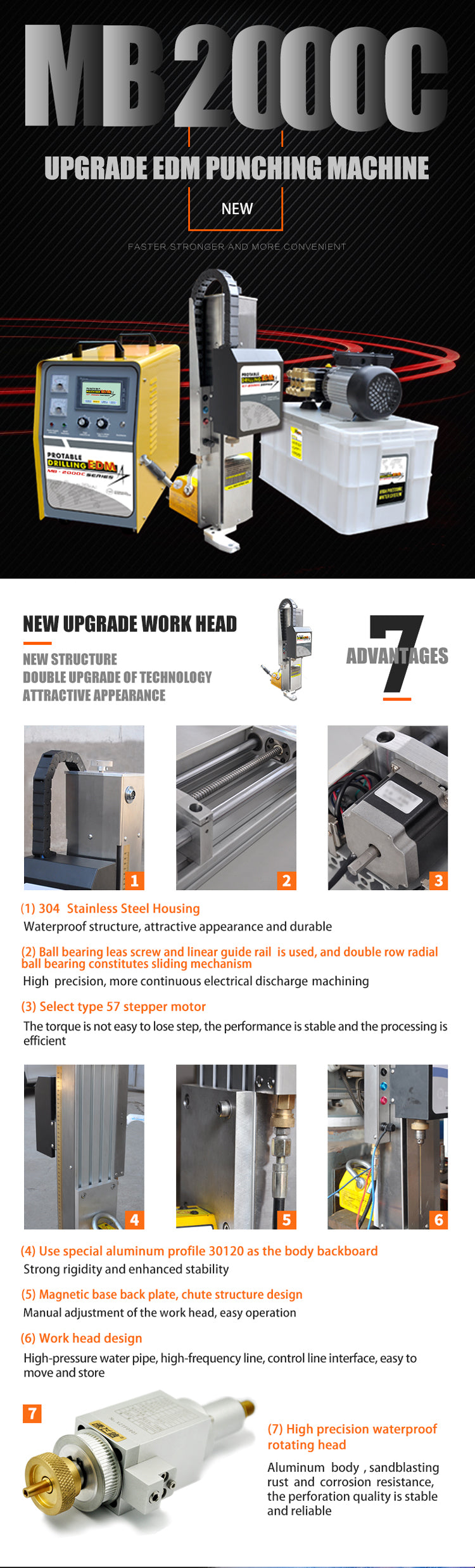

• 【Advanced Work Head Design】Constructed with durable 304 stainless steel housing for waterproof and long-lasting performance.Equipped with high-precision ball bearing lead screw and linear guide rail for smooth, continuous machining.Features a high-frequency stepper motor for stable performance with minimal loss of torque.

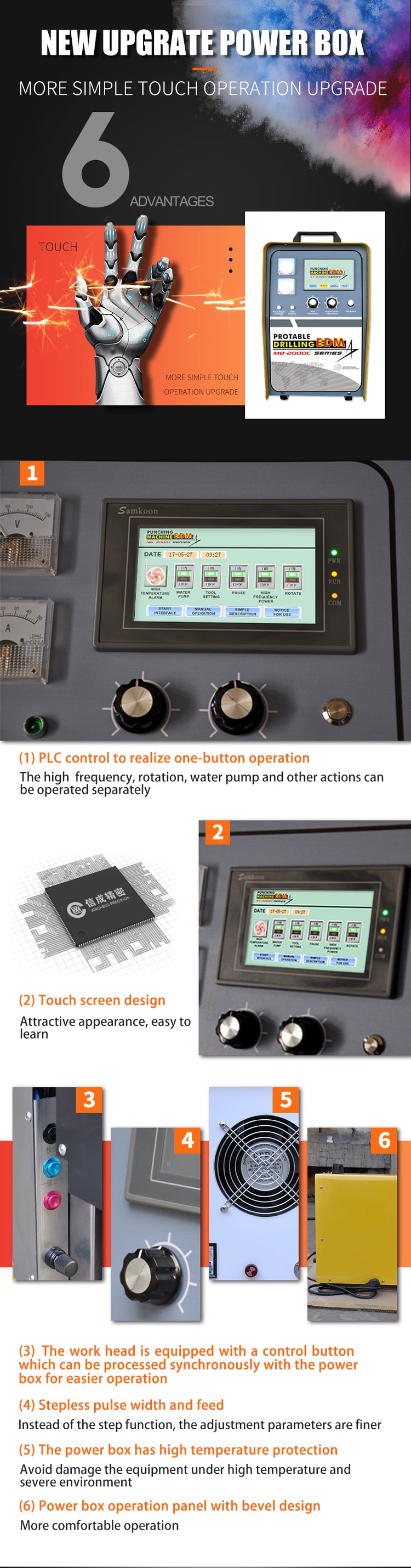

• 【PLC Control System】One-touch operation via a user-friendly PLC system, allowing for easy control over drilling functions, including high frequency, rotation, and water pump operation.Equipped with a touch screen for intuitive control and quick setup.
• 【High Temperature Protection】Prevents equipment damage in high-temperature environments, ensuring durability and reliability over time.
• 【Easy Setup】Includes a high-pressure water system for fast installation and seamless integration into your workspace. The system is designed to operate continuously with minimal downtime, ensuring efficiency.

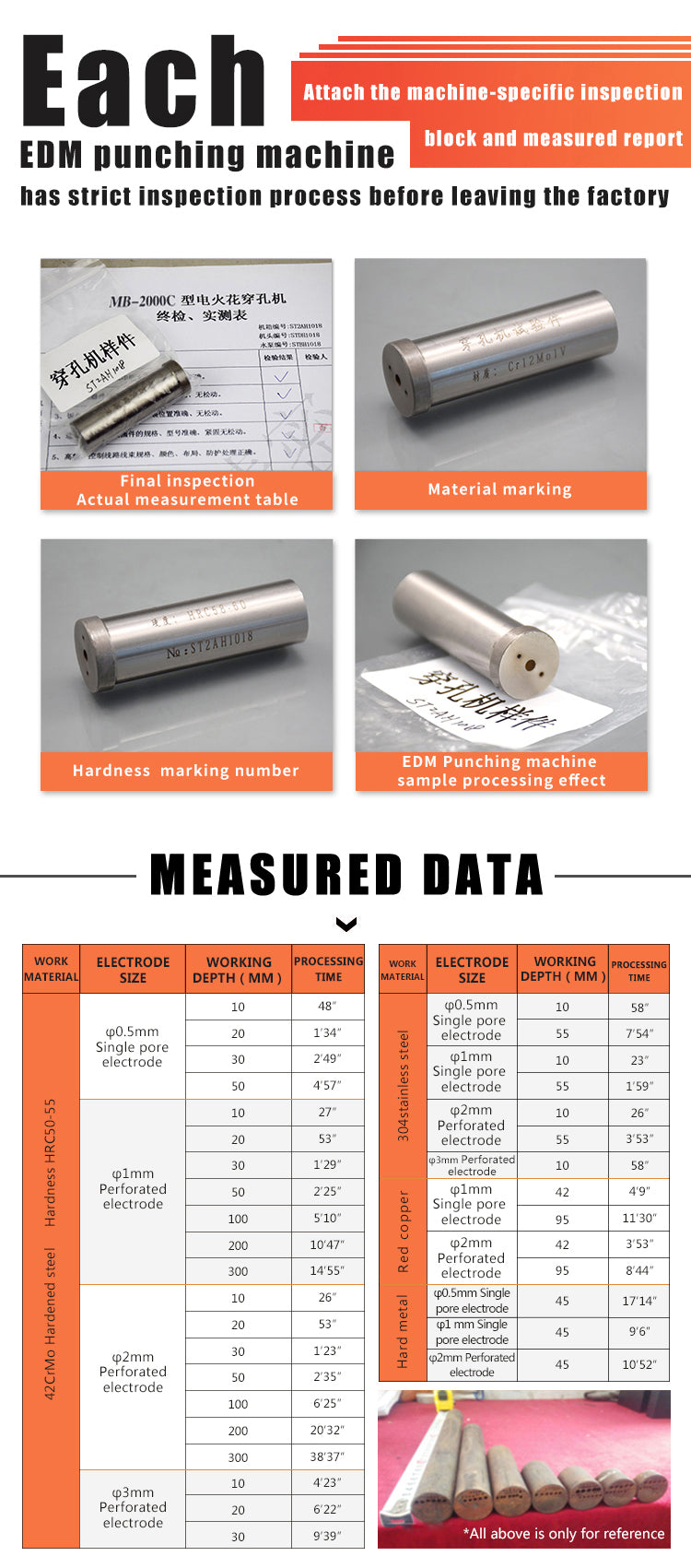

• 【Strict Quality Control】Each machine undergoes a strict inspection process before leaving the factory to ensure it meets the highest standards of quality and performance.

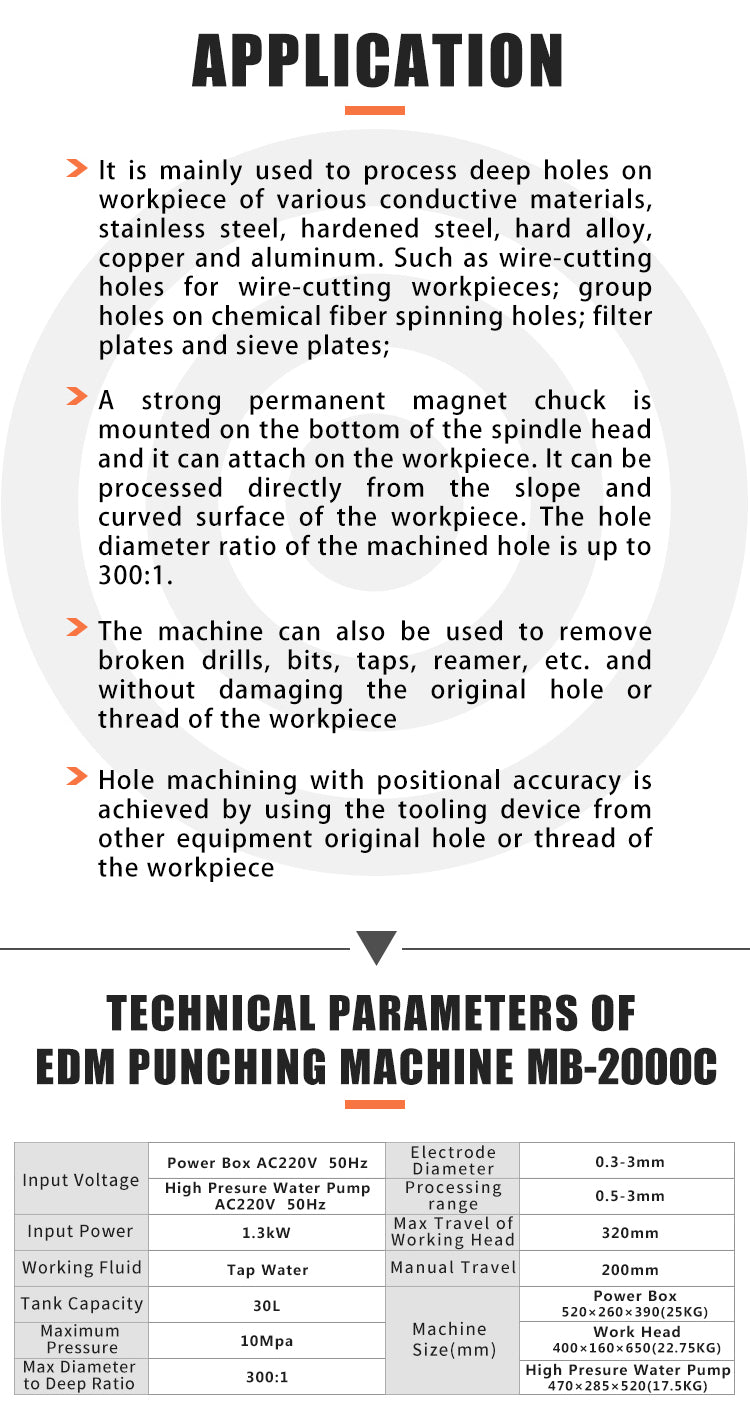

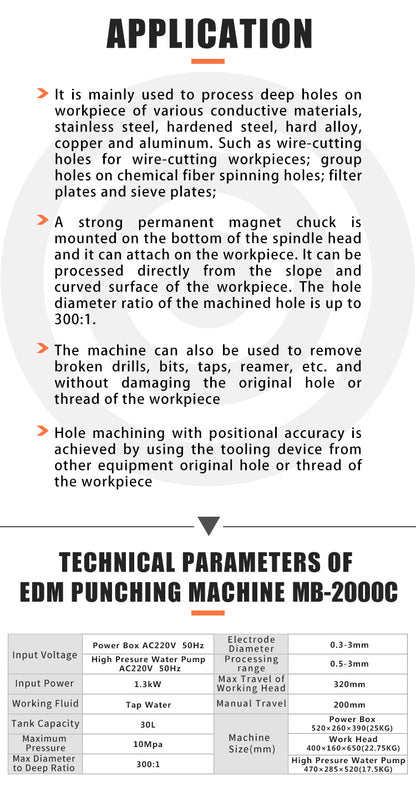

Application

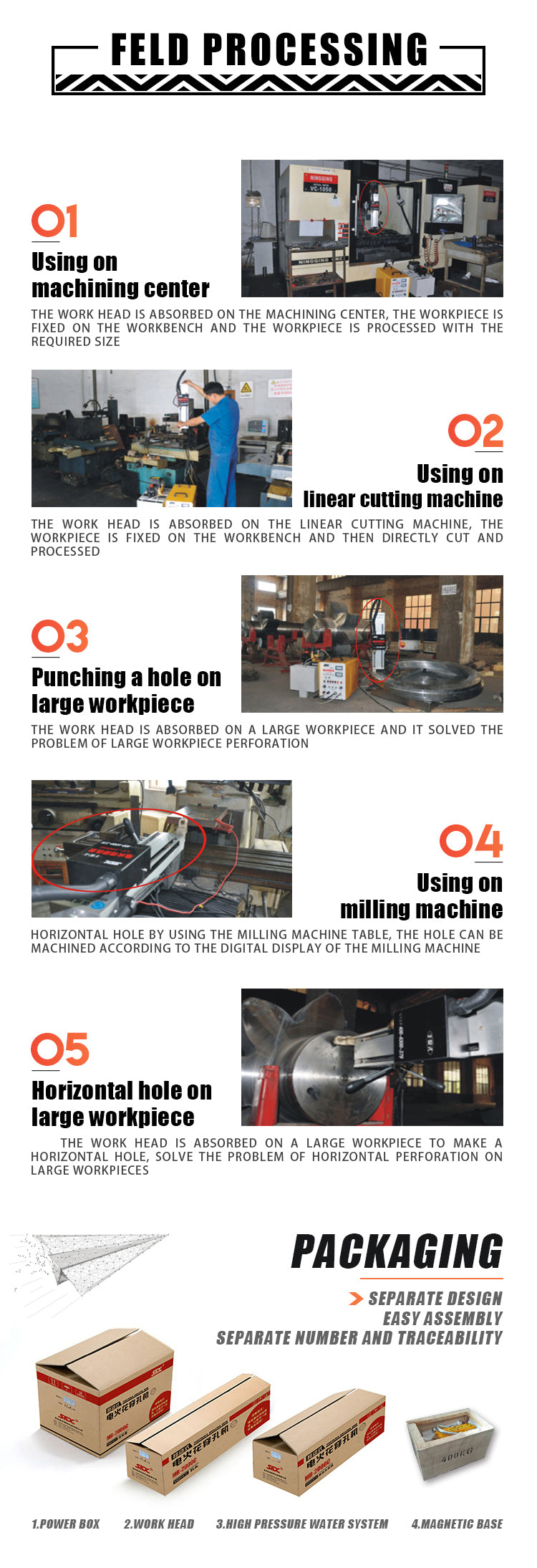

• Machining Centers: Attach the work head to machining centers to process workpieces with precise hole sizes.
• Linear Cutting Machines: Use the work head to cut and process workpieces directly.
• Large Workpieces: Solve large perforation challenges with ease, handling horizontal and vertical hole machining on substantial workpieces.
• Milling Machines: Attach to milling machines to create horizontal holes with the precision of digital displays.

Warranty

• 1 Year Warranty for the Whole Machine,The period (Not man-made damage) is usually around one year and within this time frame, if there are any technical problems, we would repair them for free including the new parts that needed for the repair.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Air to Door Around 5 to 7 Days. CA,KY, Local Warehouse,No Import Duty for American Customers.
