JPT Fiber Laser Engraver Advantages
Metal Deep Engraving
Metal Surface Processing
High Frequency Line Processing

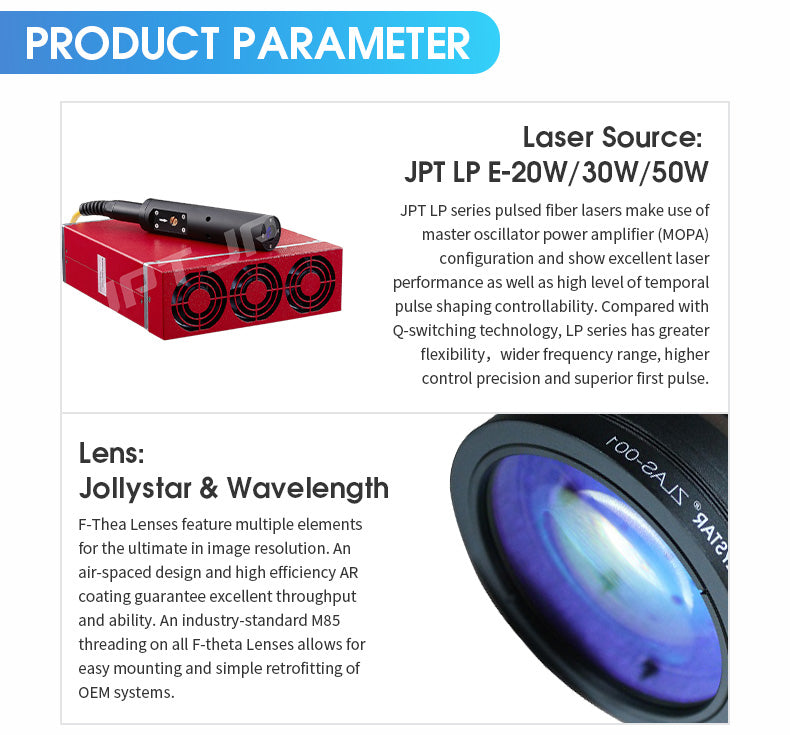

F-theta Scan Lens.typically Distortion Less Than 1%, Air-spaced Design and High Efficiency Ar Coatings Excellent Throughput and Durability.
EZCAD 2 Stable Performance and High Reliability,ensuring Higher Stability and Shield-utilizing Part of Complex Functions. Compatible with Windows XP/Vista/7/8/10.
Quickly Find the Focal Length Without Using a Ruler, Just to See if the Red Dots and Red Lines Overlap on the Surface of the Product Which You Want to Mark.
Customer and Technical Support. Easy Operation, English User Manual and Video.
Parameter
Laser Source: 20W/30W/50W JPT LP-E
Adjustable Frequency Range: 1-600kHz
Pulse Width: 200ns
Marking Speed:≤7m/s(275.6in/s)
Laser Wavelength:1064nm
Output Power Adjustment Range: 10%-100%
Electrical Requirements: 110V-240V/50Hz-60Hz
Power Consumption: 500W/800W/1000W
Rotary Axis: D69/D80/D100/D125mm Optional
Software:EZCAD2 (Lightburn Compatible) / EZCAD3
Communication Mode for Automation: TCP/IP, IO, RS232
Marking Content: Barcodes, Serial Numbers, Text, Vector, Logos
Marking Interface: USB Connection. Compatible with Windows XP/Vista/7/8/10/11
Re-position Precision: 0.002mm; High-Rate of Electrical-Optical Conversion: 70%
Minimum Line Width 0.01mm(0.004in); Minimum Character 0.02mm(0.008in)
Maximum Material Thickness: 110*110mm:300mm(11.8in)/150*150mm:250mm(9.8in)/175*175mm:206mm(8.1in)
[Versatile Applications and Compatibility]The Machine Can Be Compatible with Software Files Such As Coreldraw, Autocad, Photoshop;plt, Pcx, Dxf, Bmp,etc Supported.the Machine Can Directly Use Shx,itf Fonts; Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode or Code, Automatic Jump Number, Etc,supported.

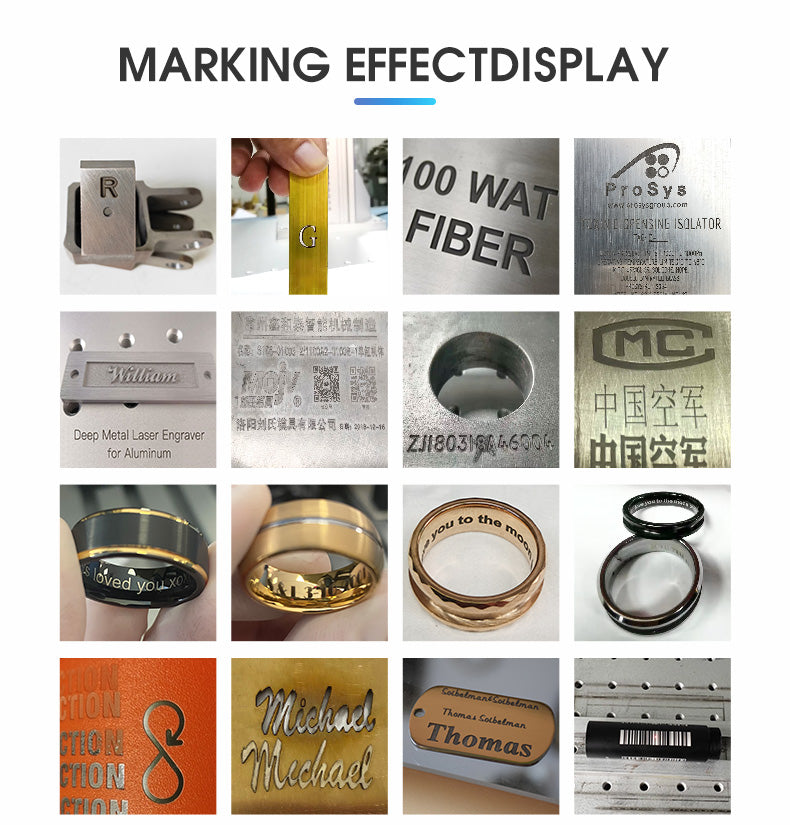

Applicable Material.Aluminum,stainless Steel, Brass, Copper Etc.also Some of Nonmetal Such As Nylon ,Light button, ABS,PVC,PES etc.
2 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
Free Shipping by Air to Door Around 5 to 10 Days. No Import Duty for American Customers.
Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video.
