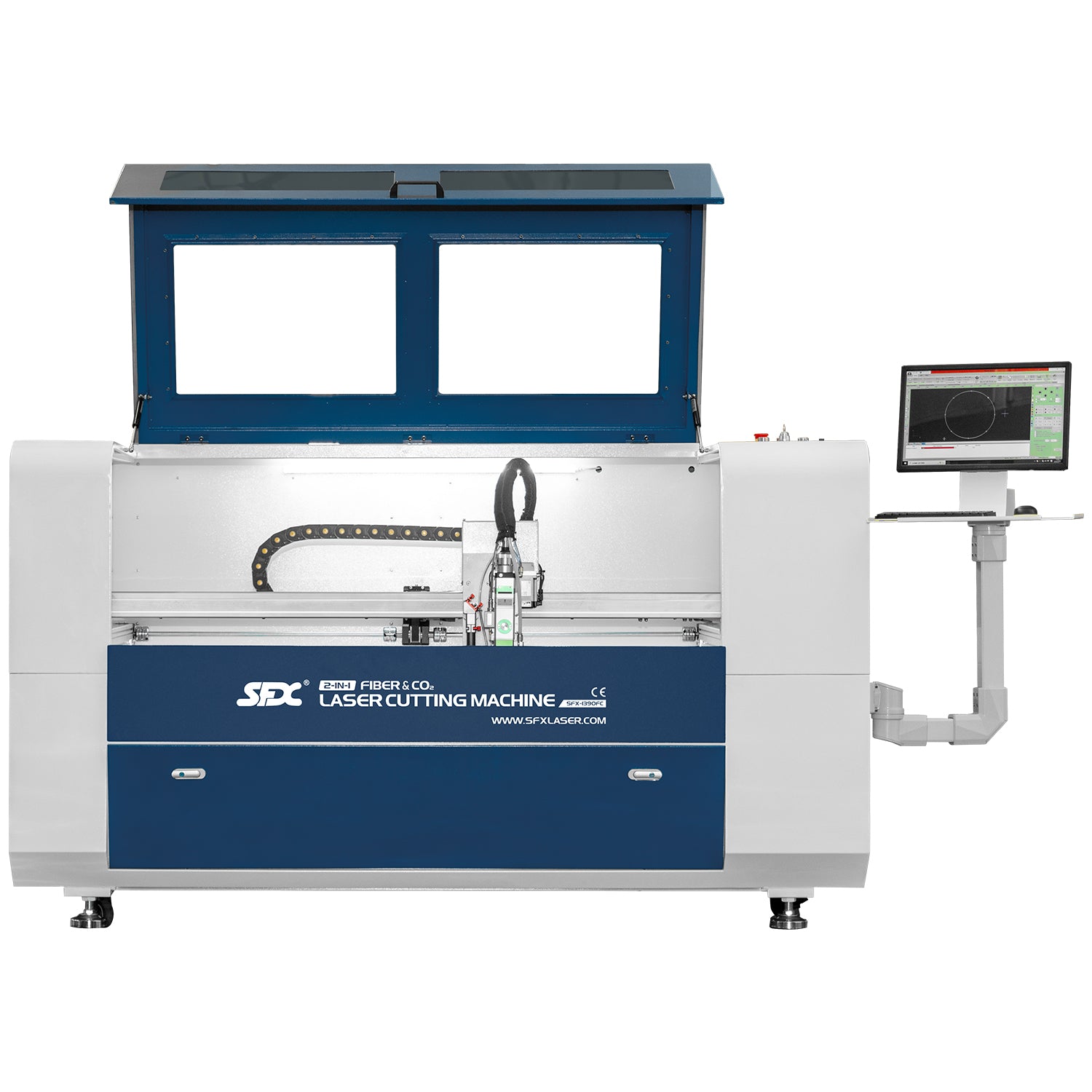

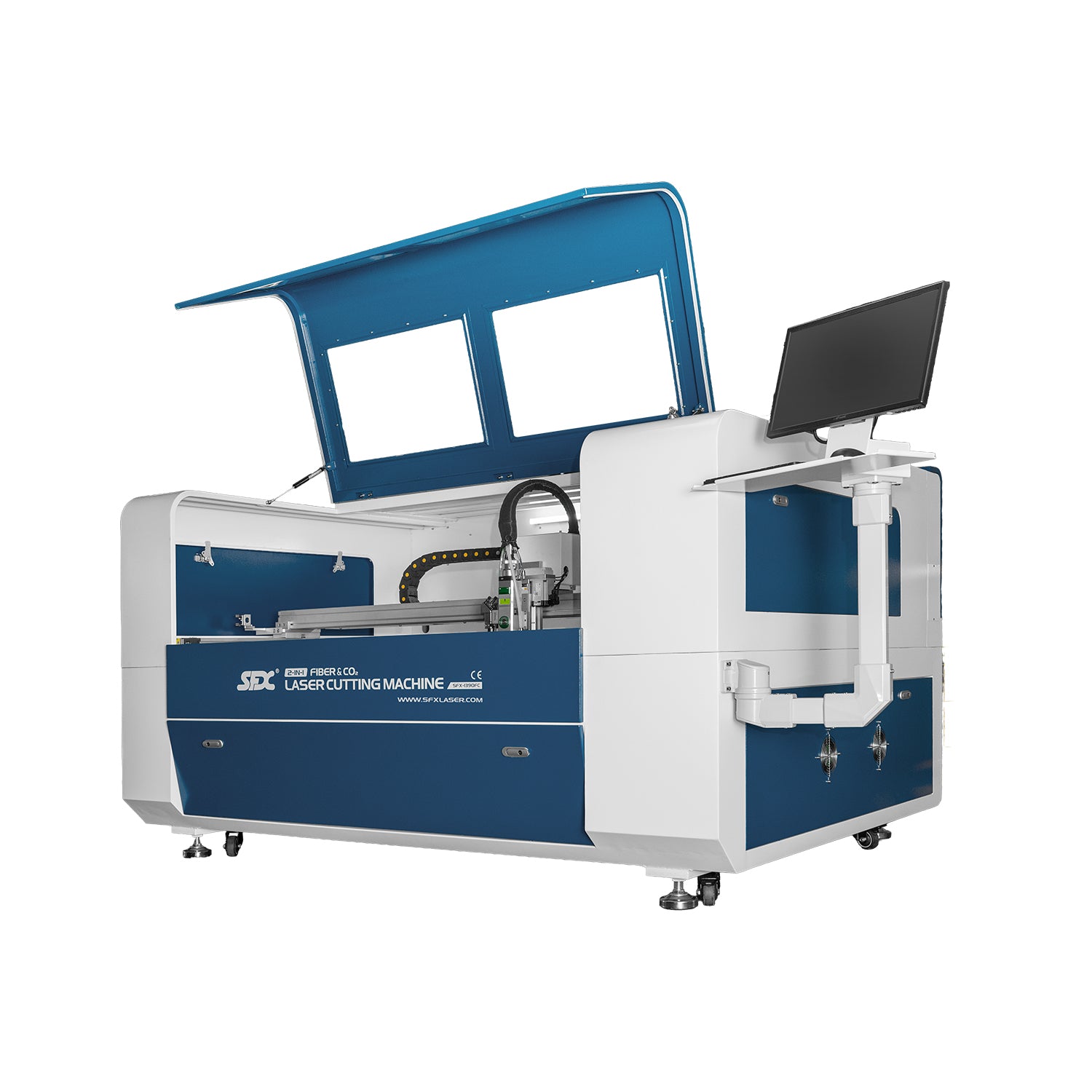

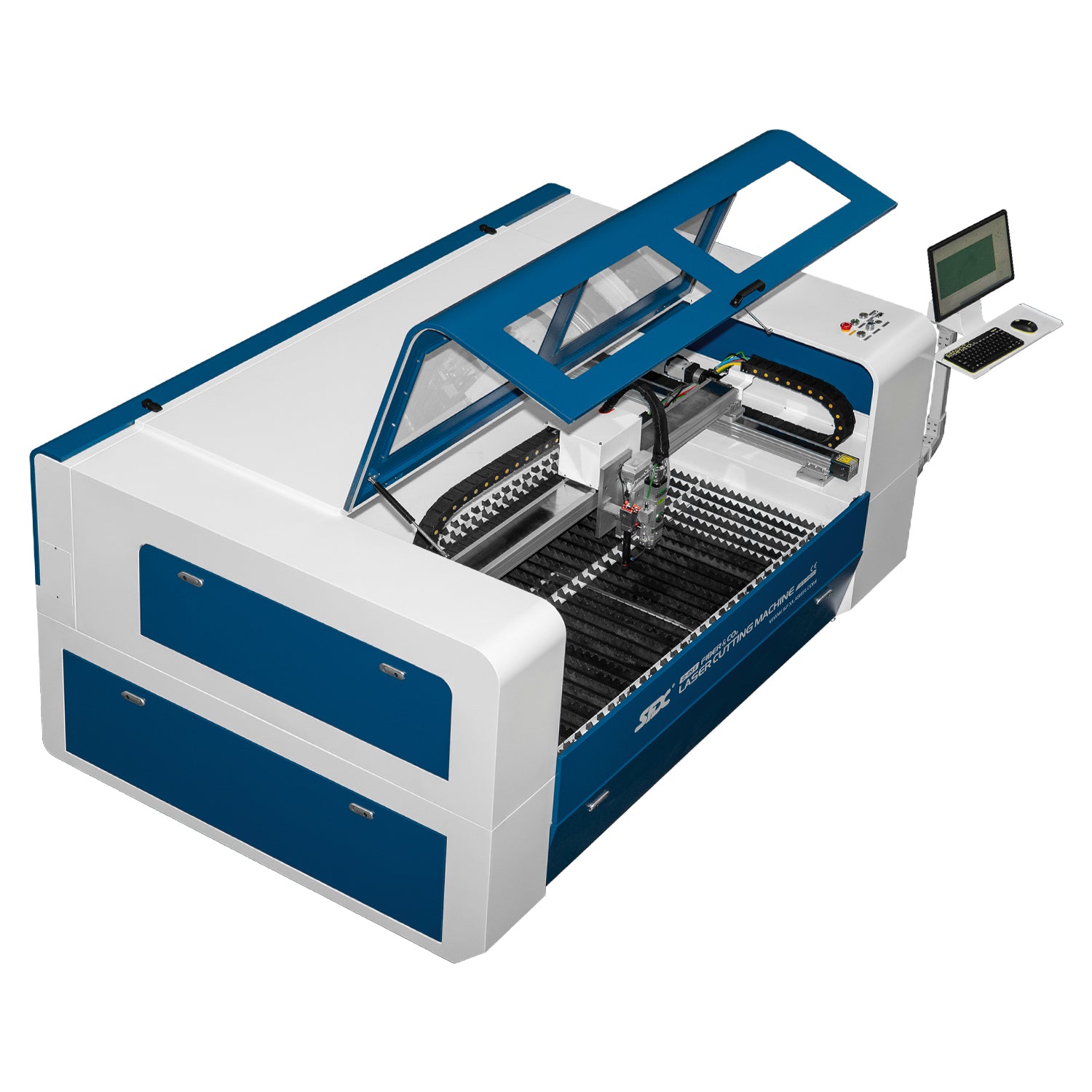

Fiber/CO2 Integrated Cutting Machine

The Fiber & CO₂ Laser Cutting Machine Offers A Large 1300×900mm Working Area For Precise And Efficient Cutting And Engraving. Equipped With A 1500W Fiber Laser And Optional CO₂ Laser (130W/150W/180W), It Delivers High-Speed Processing With Excellent Accuracy, Making It Ideal For Metal And Non-Metal Materials. This Industrial Laser Cutting Machine Provides Stable Performance, High Efficiency, And Versatile Applications.

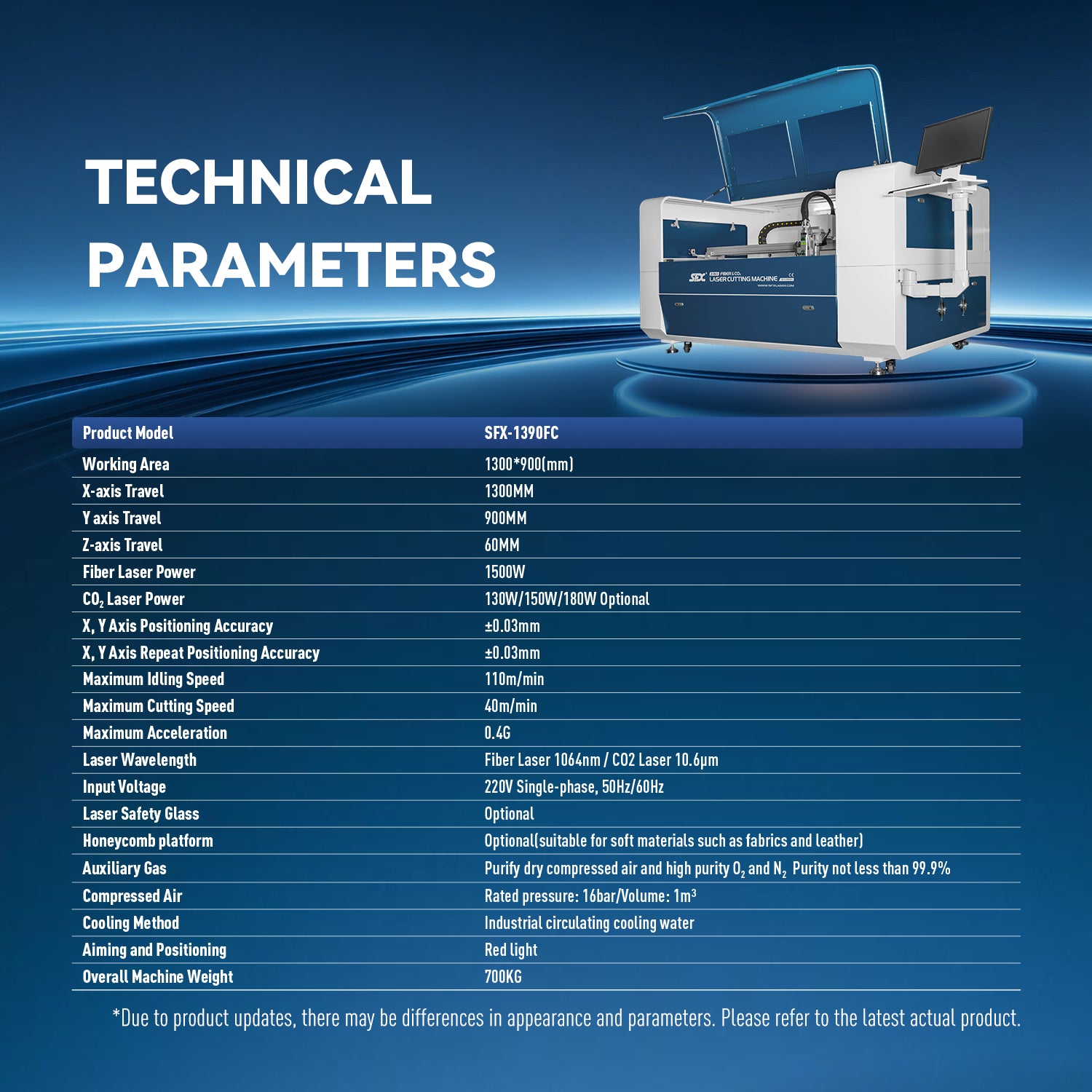

Parameters

Product Model: SFX-1390FC

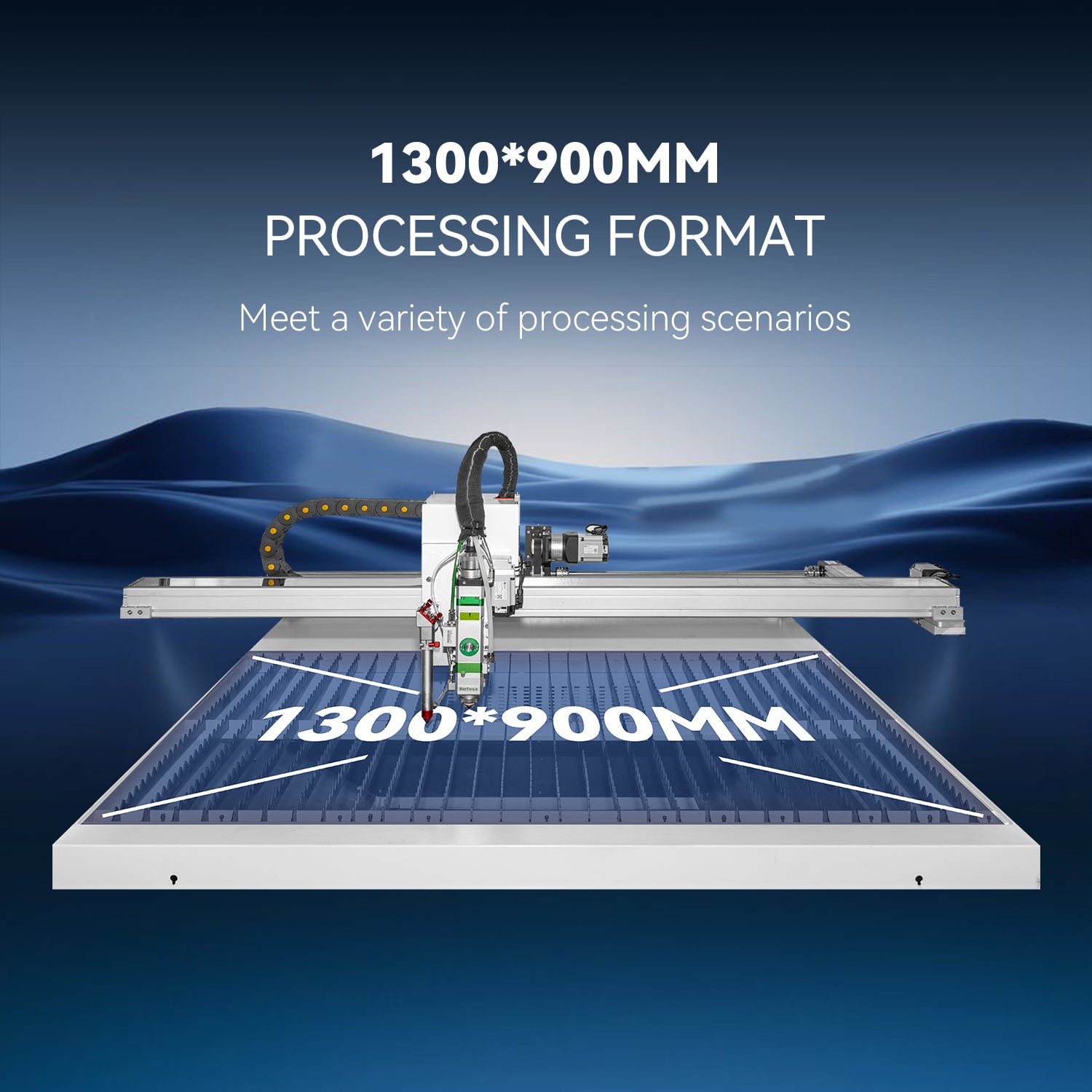

Working Area: 1300×900mm
X-axis Travel: 1300mm
Y-axis Travel: 900mm
Z-axis Travel: 60mm
Fiber Laser Power: 1500W
CO₂ Laser Power: 130W / 150W / 180W (Optional)
Positioning Accuracy (X, Y): ±0.03mm
Repeat Positioning Accuracy (X, Y): ±0.03mm
Maximum Idling Speed: 110m/min
Maximum Cutting Speed: 40m/min
Maximum Acceleration: 0.4G
Laser Wavelength: Fiber 1064nm / CO₂ 10.6μm
Input Voltage: 220V Single-phase, 50/60Hz

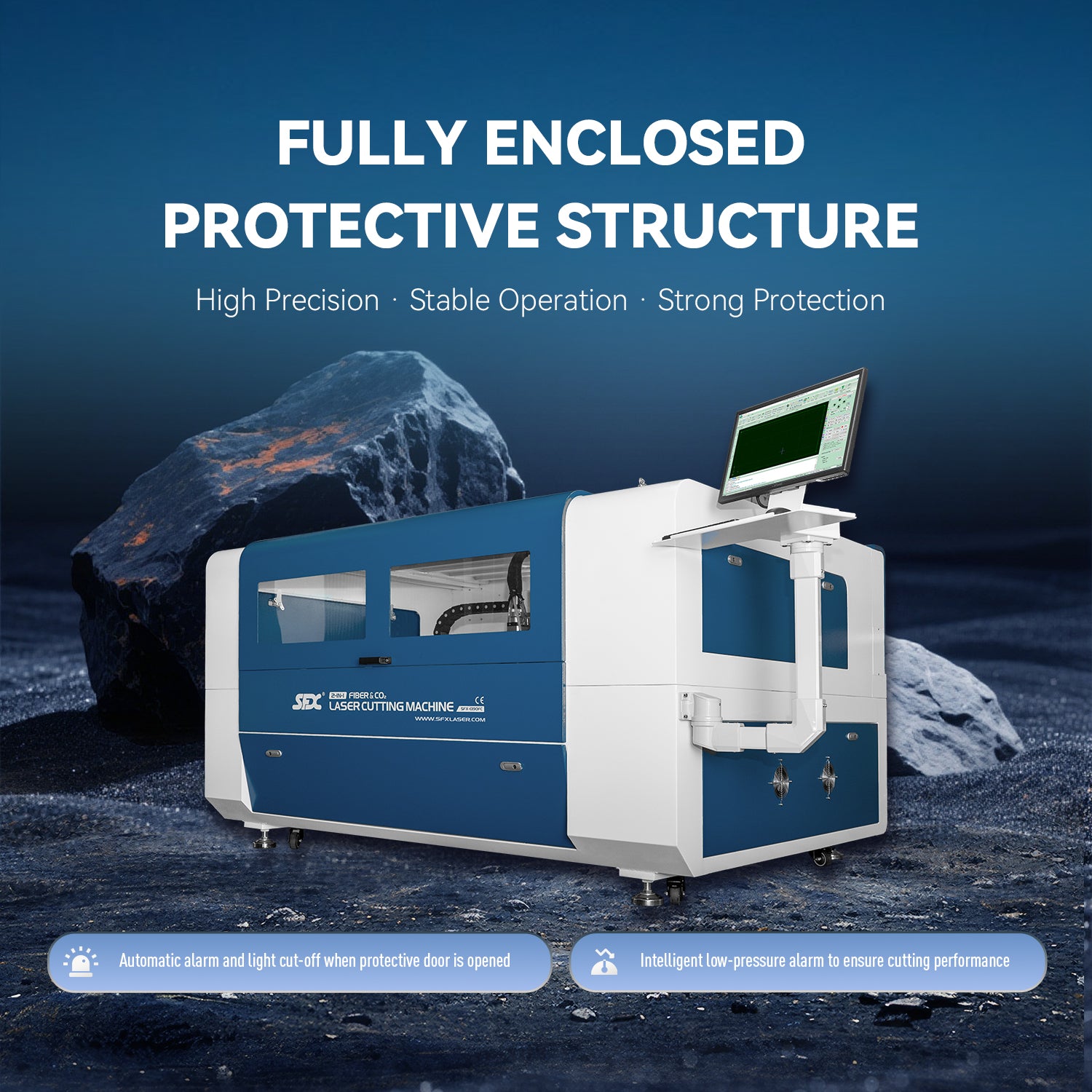

Laser Safety Glass: Optional
Honeycomb Platform: Optional (for soft materials like fabric and leather)
Auxiliary Gas: Dry compressed air / O₂ / N₂ (≥99.7% purity)
Compressed Air Pressure: 16bar / Volume: 1m³
Cooling Method: Industrial circulating water cooling
Aiming Method: Red light positioning
Machine Weight: 700kg

Features

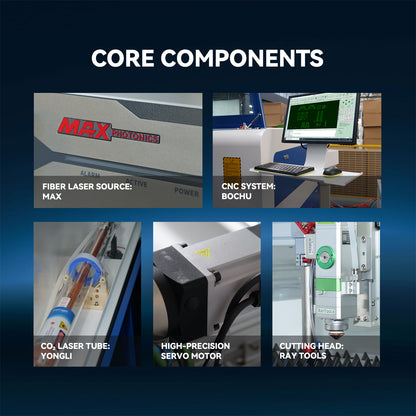

【Dual Laser System for Versatile Applications】 This laser cutting machine combines a powerful 1500W fiber laser for metal cutting with an optional CO₂ laser for non-metal materials such as wood, acrylic, fabric, and leather, providing a highly flexible solution for diverse industrial needs.

【High-Speed Performance & Precision】 With a maximum cutting speed of 40m/min and positioning accuracy of ±0.03mm, this machine ensures fast production while maintaining exceptional cutting precision, ideal for detailed designs and mass production.

【Large Working Area & Stable Structure】 The spacious 1300×900mm working table accommodates larger materials, while the robust machine structure and 0.4G acceleration ensure stable operation and consistent cutting quality.

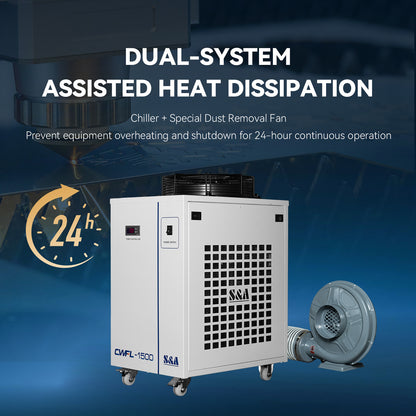

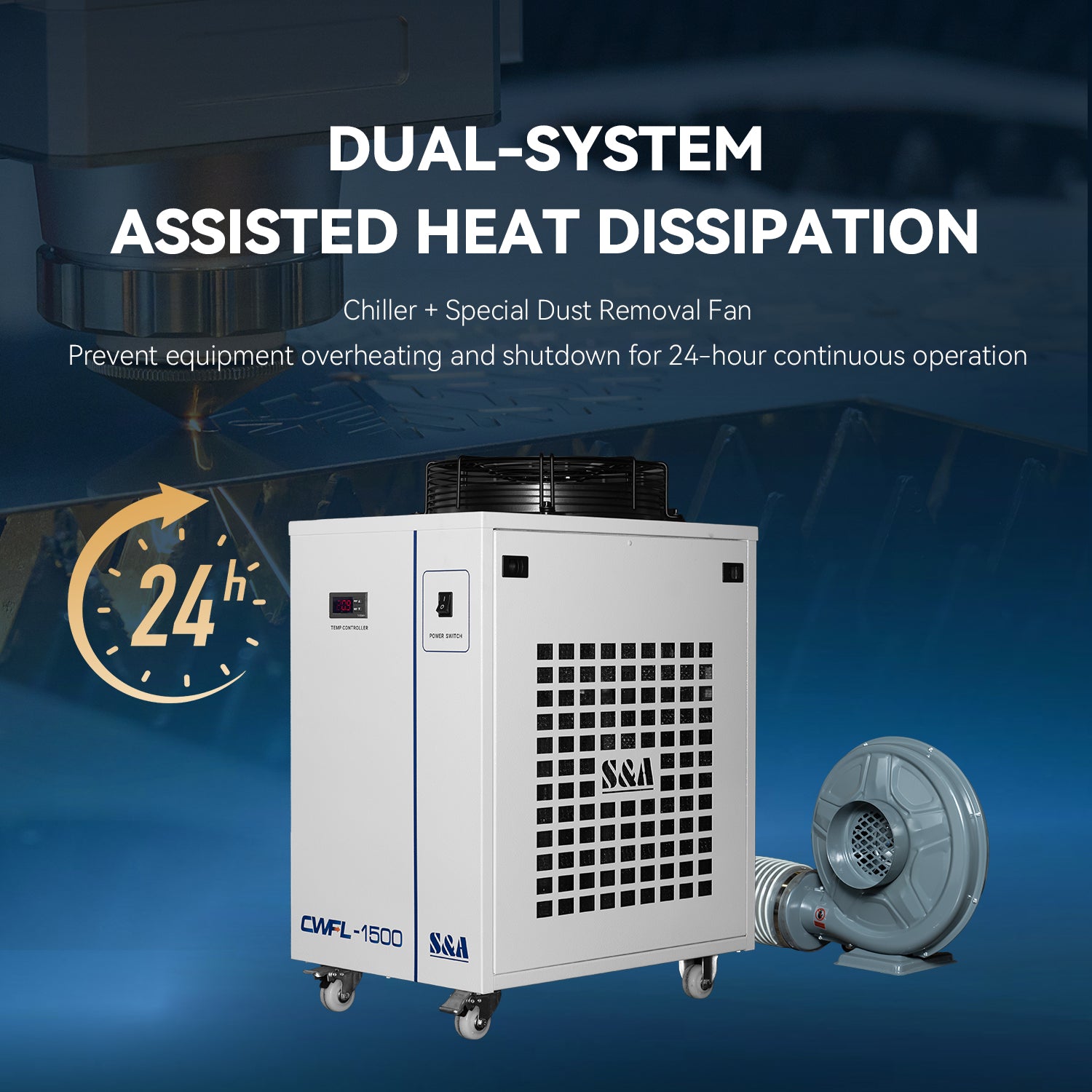

【Advanced Cooling & Industrial Durability】 Equipped with an industrial circulating water cooling system, this machine maintains optimal temperature control for long-term stable performance, extending the lifespan of key components.

【Flexible Configuration & Easy Operation】 Optional honeycomb platform and safety glass, combined with red light positioning and compatibility with multiple auxiliary gases, make this machine user-friendly and adaptable to various cutting environments and materials.
