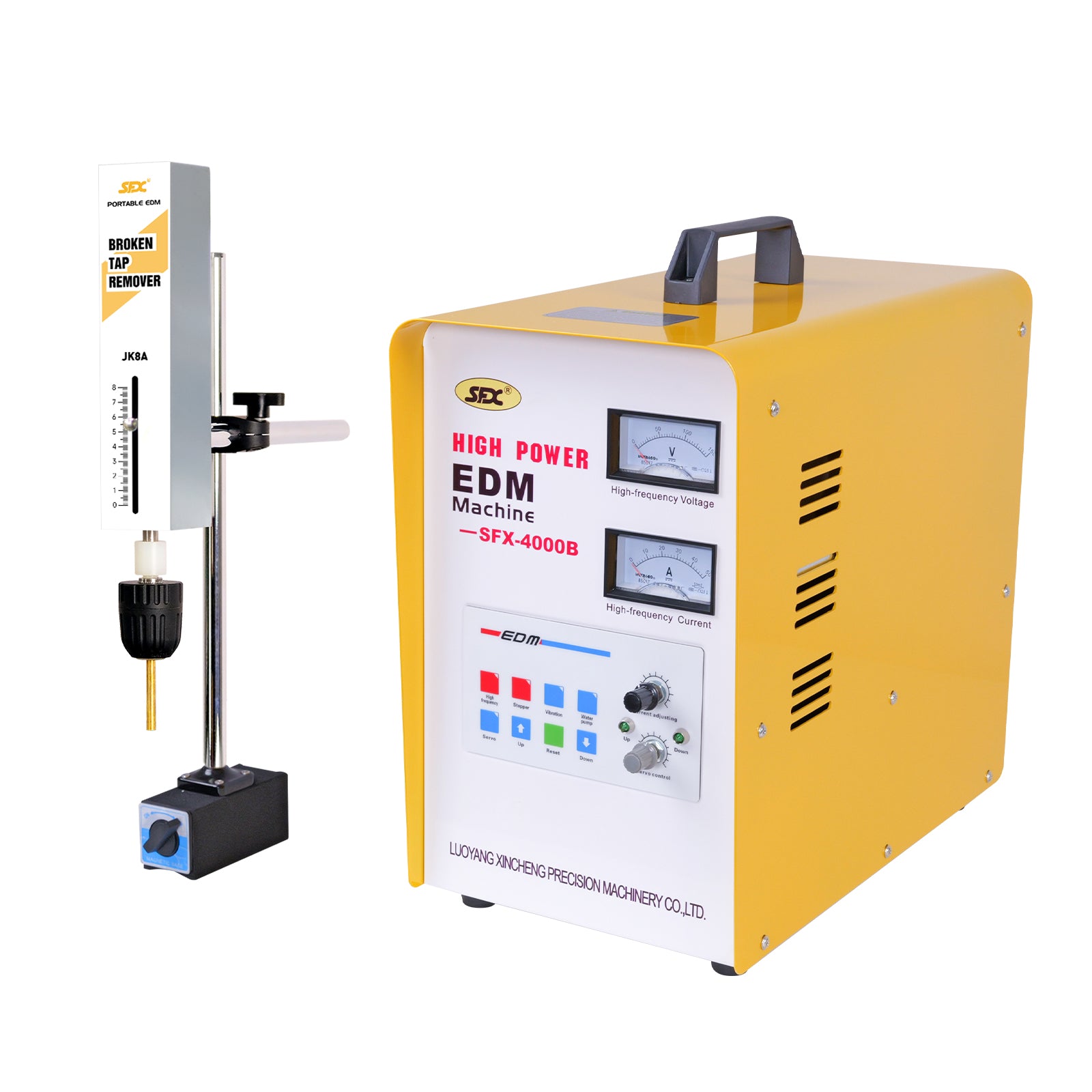

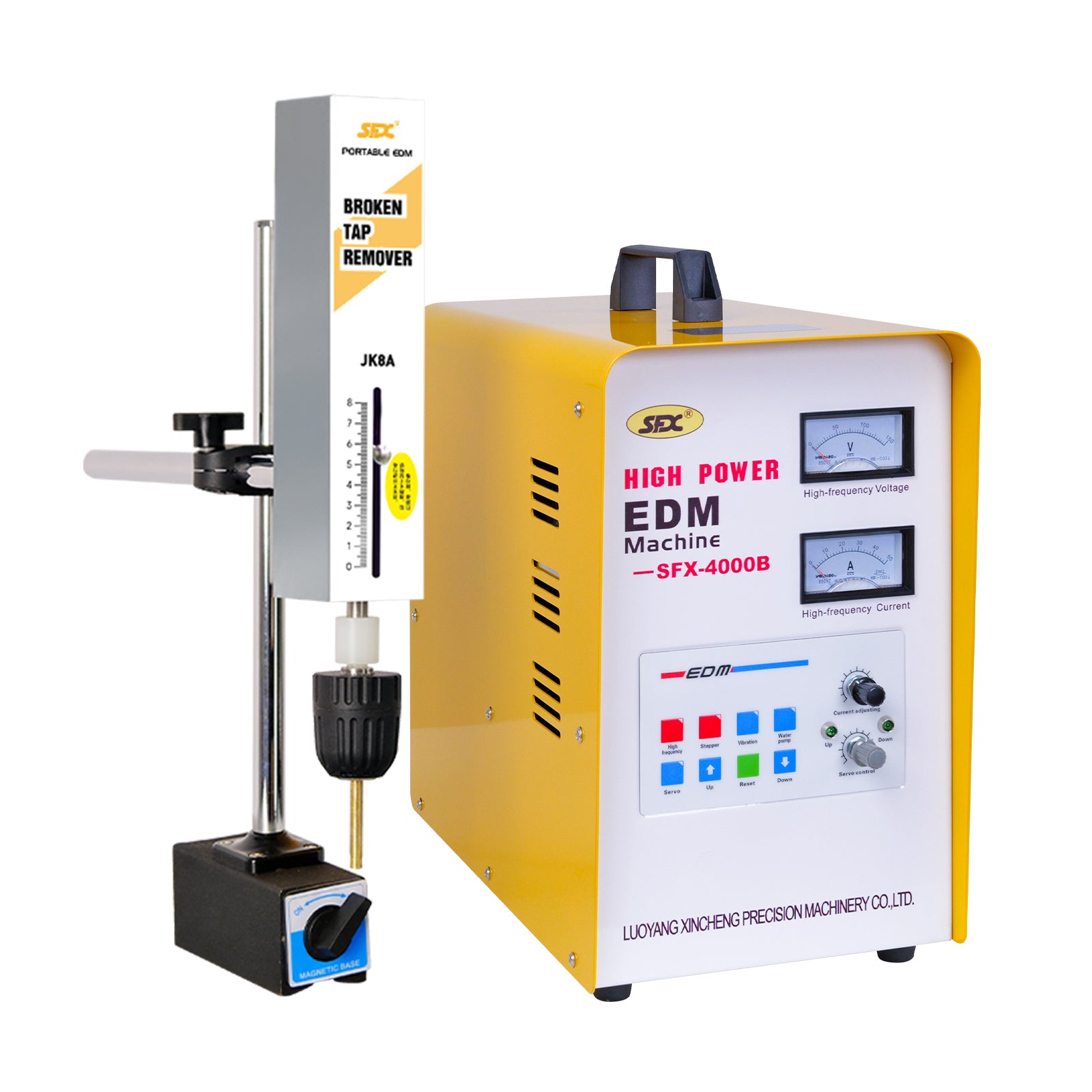

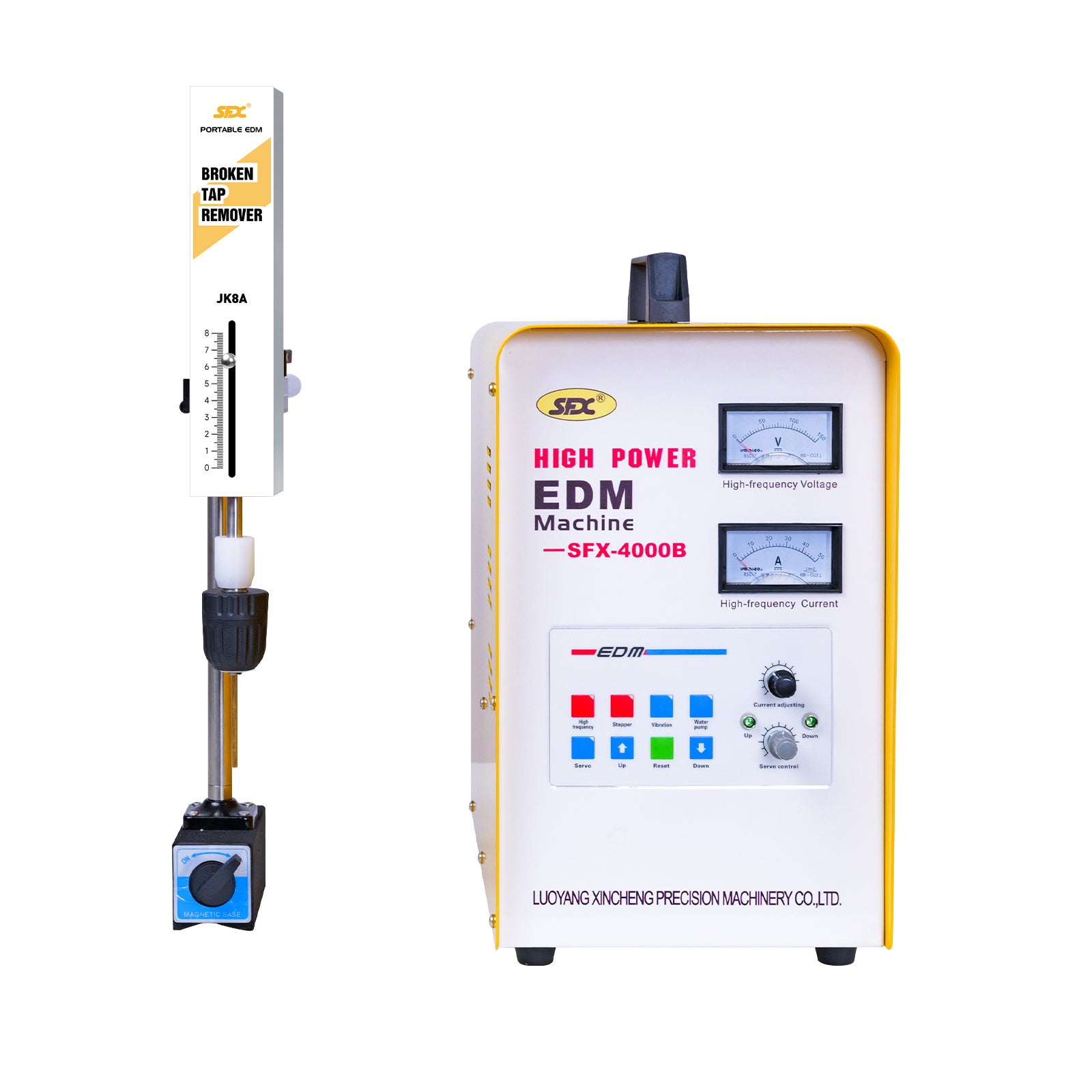

Portable EDM Tap Burner 3000W,110V Remove M2 to M48(Dia. 0.07in to 2 in) broken Screw,drills,taps, bolts from Blind Hole,Depth Setting

The Broken Taps Mchine can fast remove broken taps, drill, drift, screw, plug gauge etc., without damaging to the work piece, easily process on work pieces at any size, especially effective for large machine tools. The integral construction of the machine left a space for storage at the bottom of the power box which is convenient for managing the attachments. With a high efficiency in processing, it could remove broken tap, screw and is especially good at processing mark.

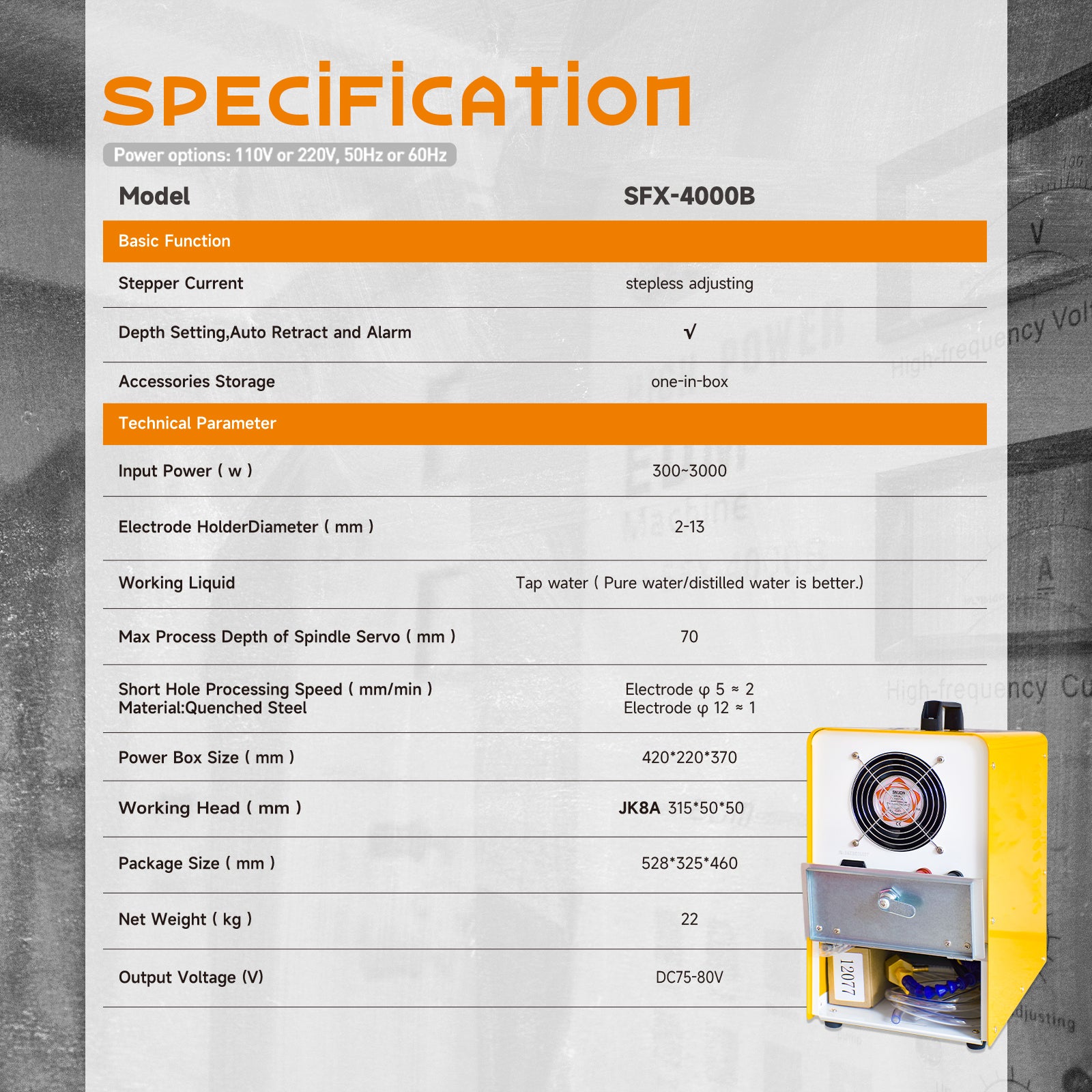

Parameters

• Laser Power: 3000W
• Tappping RangeM2 to M48(Dia. 0.07in to 2 in) for SFX-4000B
• Input Voltage (V):AC110/220V 50/ 60HZ
• Secondary Output Voltage (V): 10-70
• Electrode Diameter Range:2-13mm for SFX-4000B
• Max Travel of working head (mm)- 70mm
• Max Processing Speed-1mm/min
• Working Liquid:Tap water

Advantages

• 【Spark Erosion Principle】The broken tap remover uses the spark erosion principle, ensuring no direct contact and no external force or damage to the workpiece. This makes it ideal for removing broken taps, bolts, and screws from aluminum and steel, ensuring safe and efficient extraction.
• 【Excellent Structure】With a small size and light weight, the portable EDM tap remover is perfect for large or heavy workpieces. The working head is separated from the machine and can rotate in any direction, aiding in complex machining tasks. This makes it a versatile tap extractor tool.
• 【Vibrate Work Head】The vibrating electrode greatly improves processing efficiency, making it an excellent choice for fast and efficient removal of broken taps, screws, and bolts. This feature enhances its performance as a bolt remover and extractor.

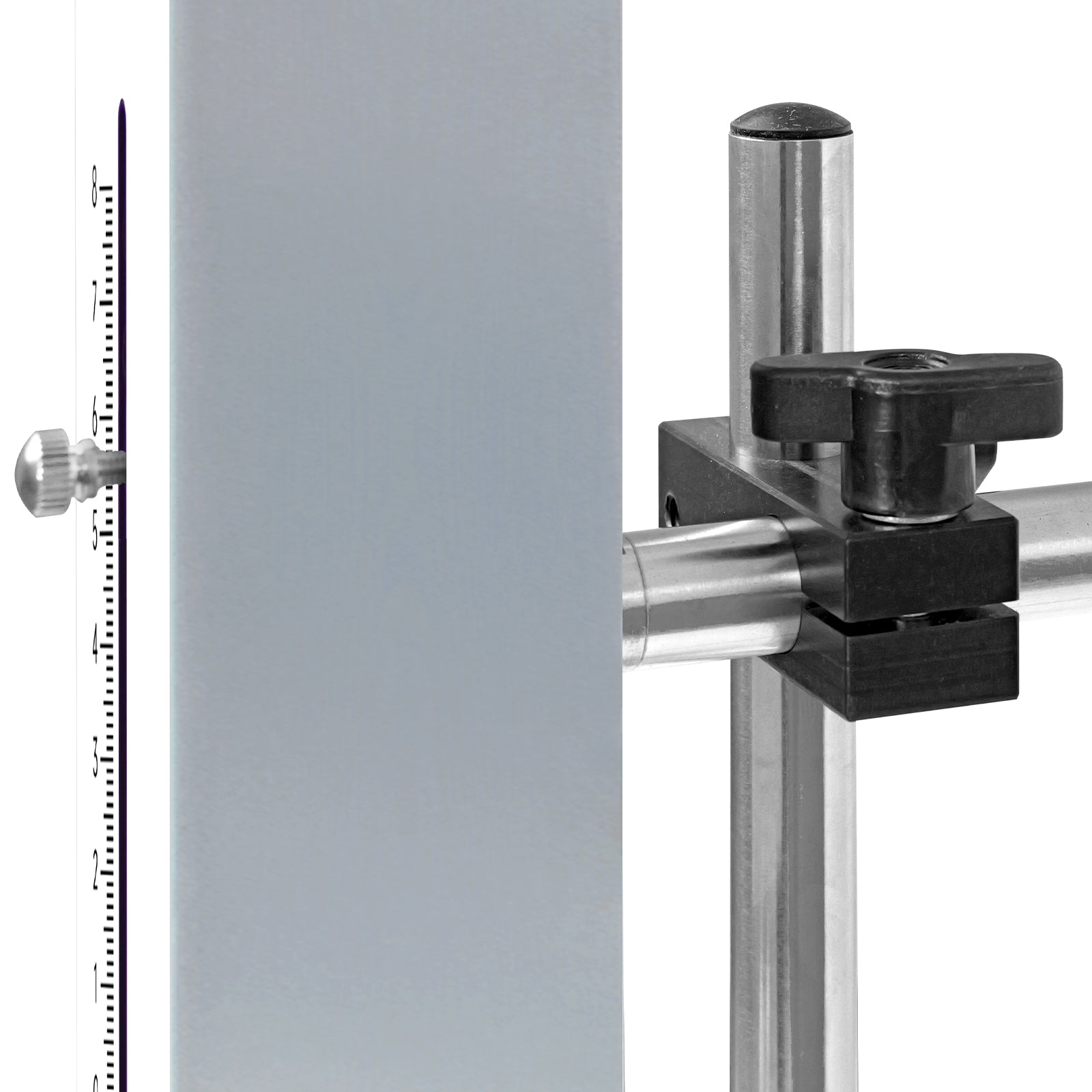

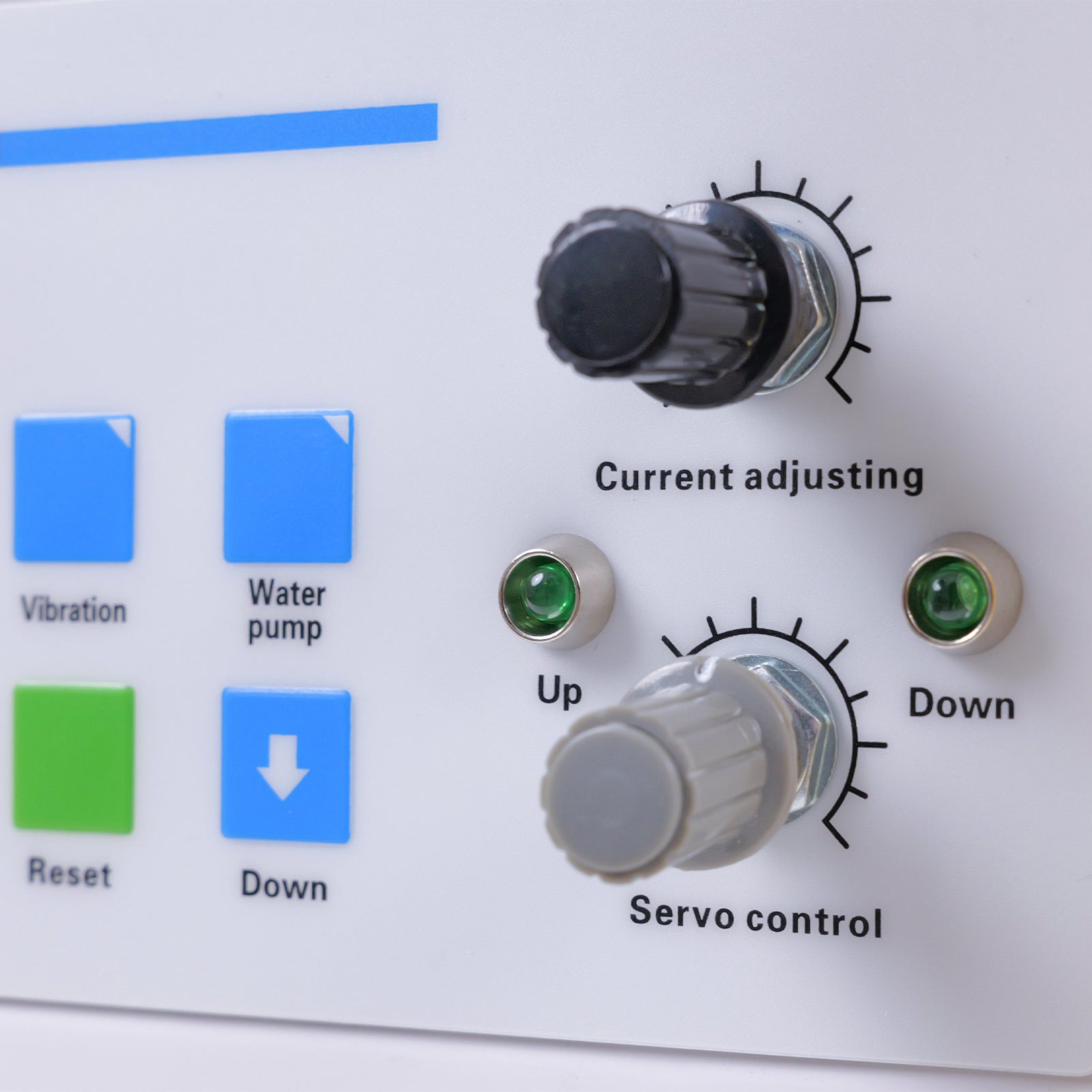

• 【Automation Features】The machine offers depth setting for blind holes, auto-retract, and an alarm system. It also includes a reset button for a stuck spindle, making it a highly automated and user-friendly EDM tap remover suitable for various industrial applications.
• 【Economical and Convenient】The EDM drilling machine uses ordinary tap water as the working liquid and has moderate power consumption. The detachable inlet pipe adds to its practicality, making it an economical choice for tap removal services. Additionally, the product is shipped quickly from US warehouses with no customs duties, ensuring a hassle-free purchase experience.

Application

Capable of processing broken taps and drills (conductive material) above 2mm, the broken tap burner is suitable for a range of applications, including removing broken taps from blind holes. The cooling fan ensures long working times, making it perfect for continuous use in spark erosion and EDM tap removal tasks.

Warranty

• 1 Year Warranty for the Whole Machine,The period (Not man-made damage) is usually around one year and within this time frame, if there are any technical problems, we would repair them for free including the new parts that needed for the repair.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Air to Door Around 5 to 7 Days. CA,KY, Local Warehouse,No Import Duty for American Customers.
