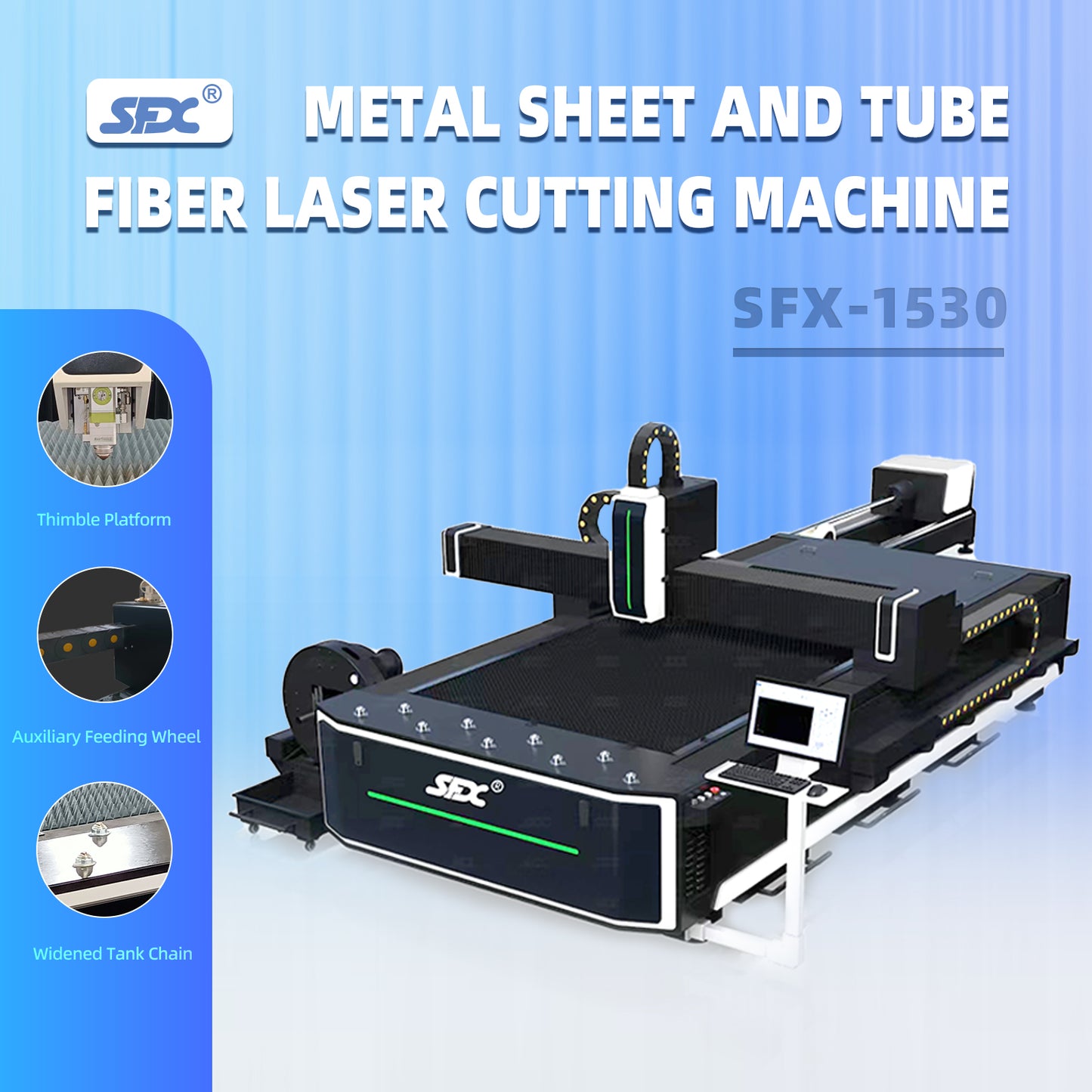

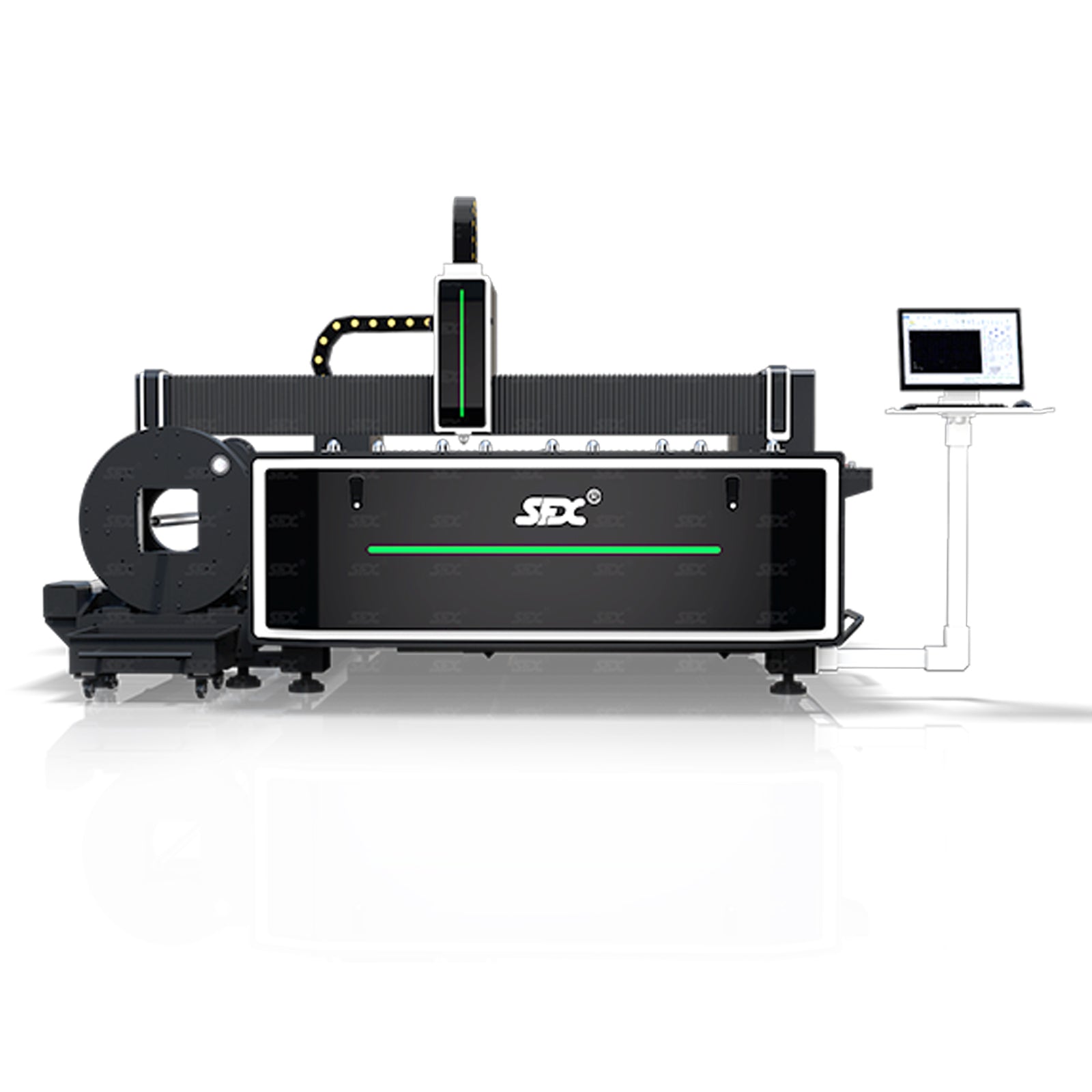

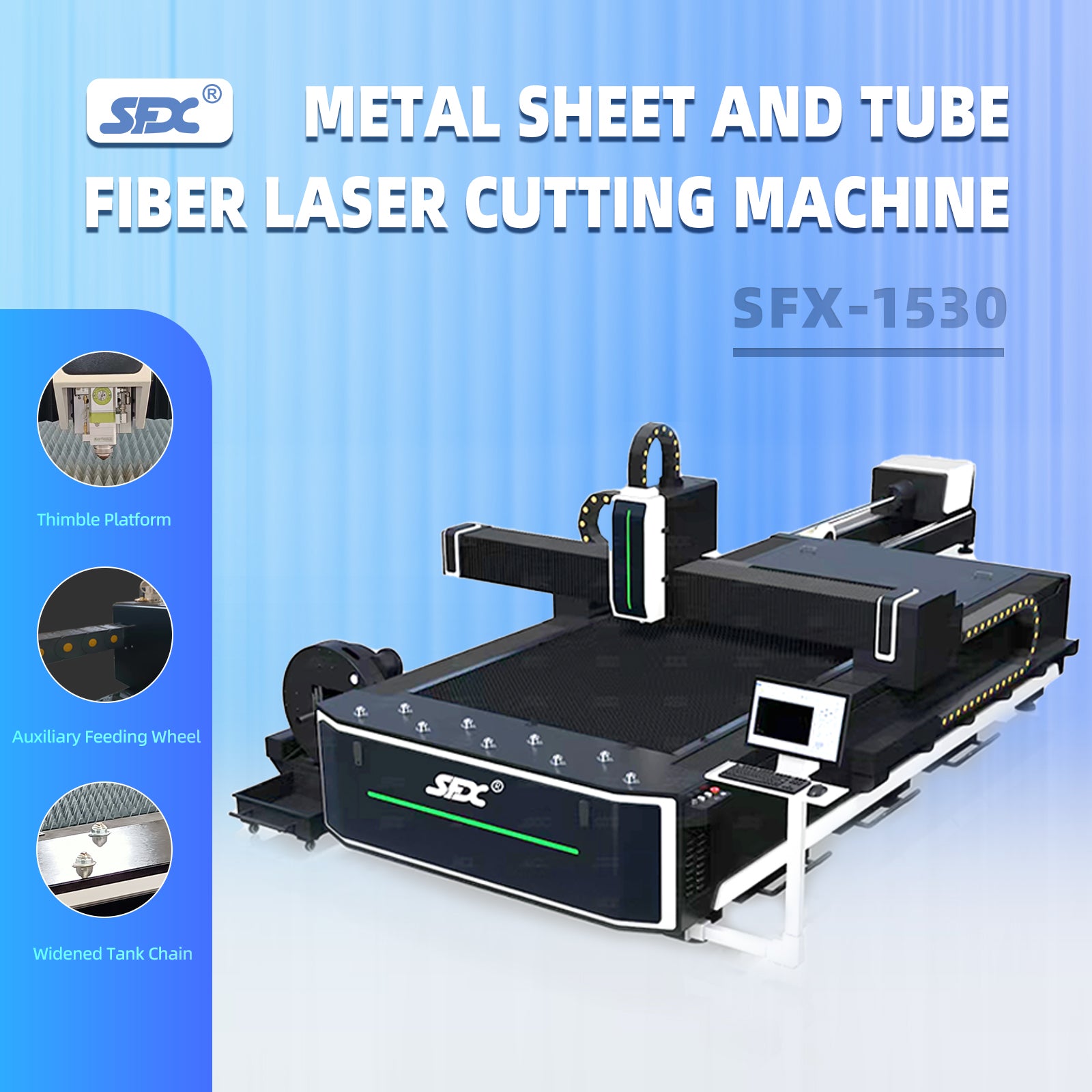

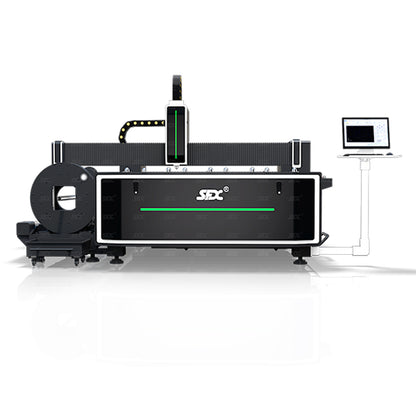

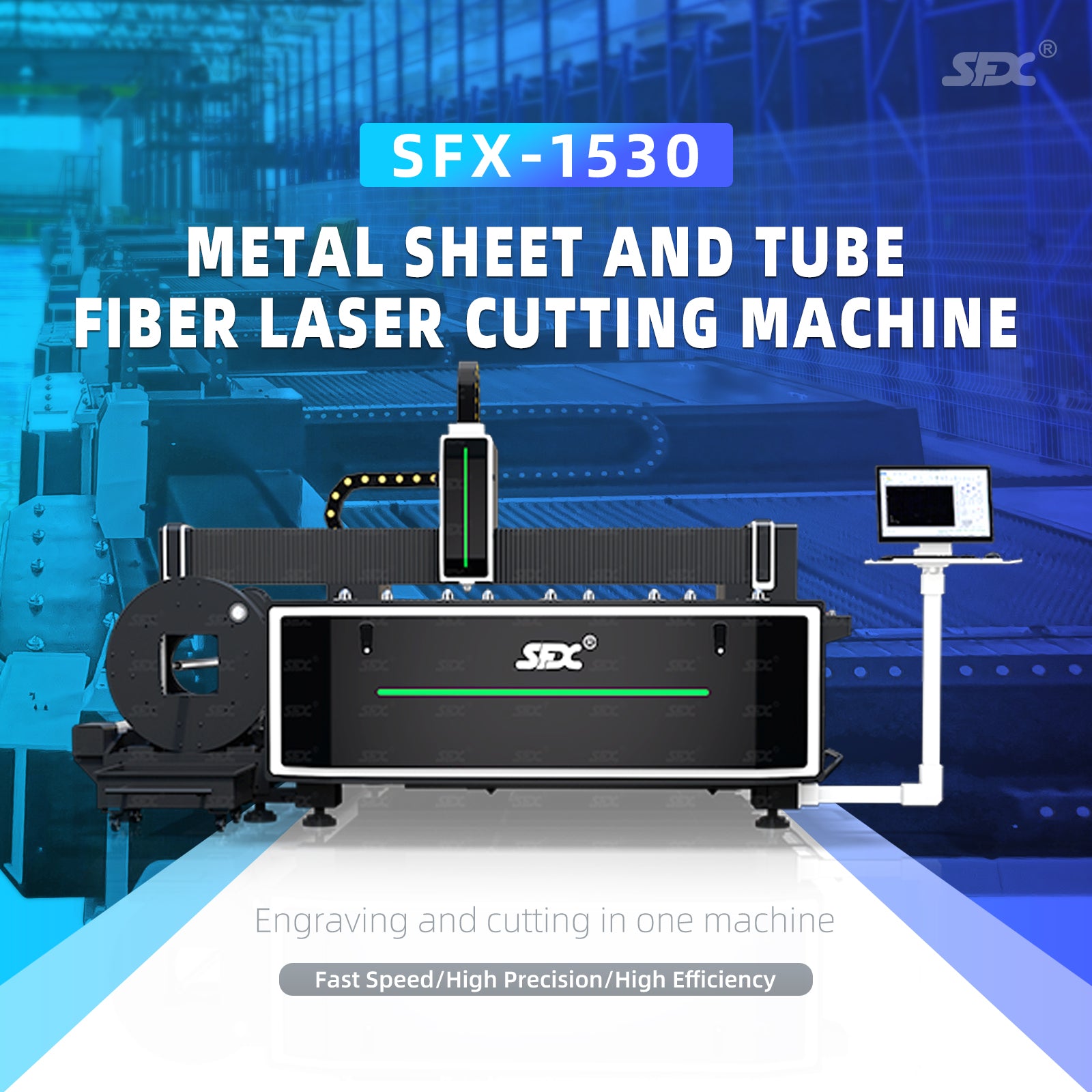

Plate and Tube Fiber cutting machine 2000/3000/6000W Fiber Laser Cutter Metal sheet and tube sheet 1500x3000mm tube 220mm diamters x6m engraving and cutting in one

Advantages:

• We can customize the configuration of the machine according to the customers requirements and design the most suitable machine for customers.
• After the production of the customers machine is completed,we will provide pictures and trial processing video.We will only arrange transportation after the customer is satisfied.After the machine is delivered,we will also provide customers online one-on-one guidance to install and operate the machine.

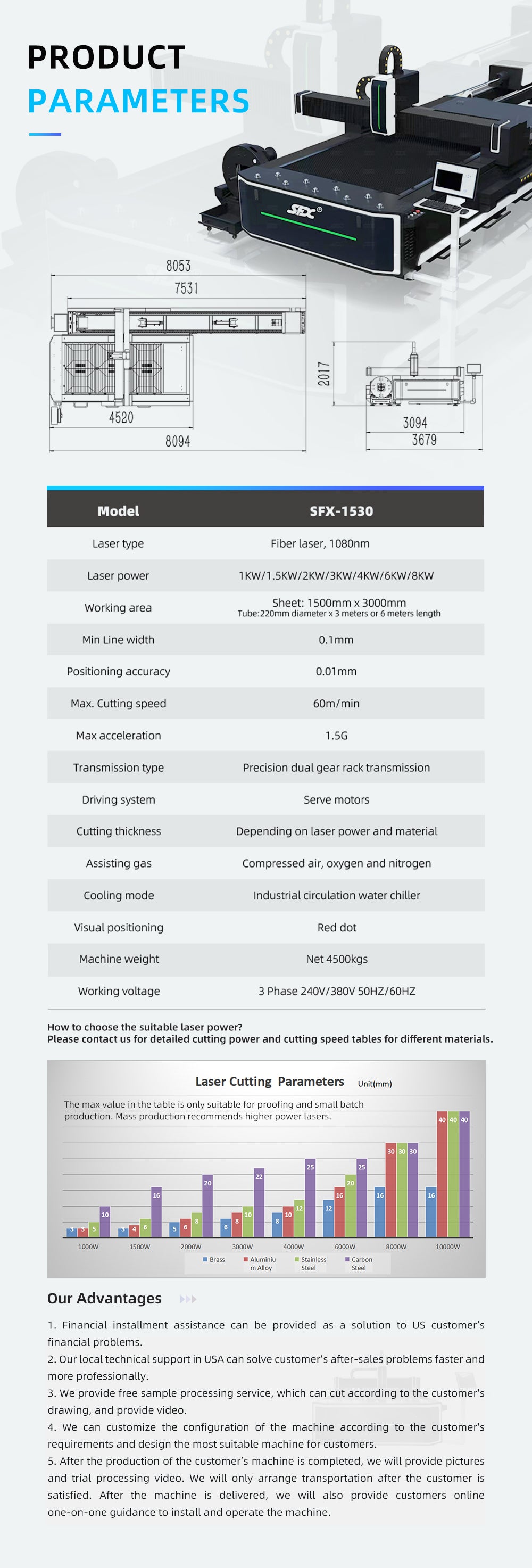

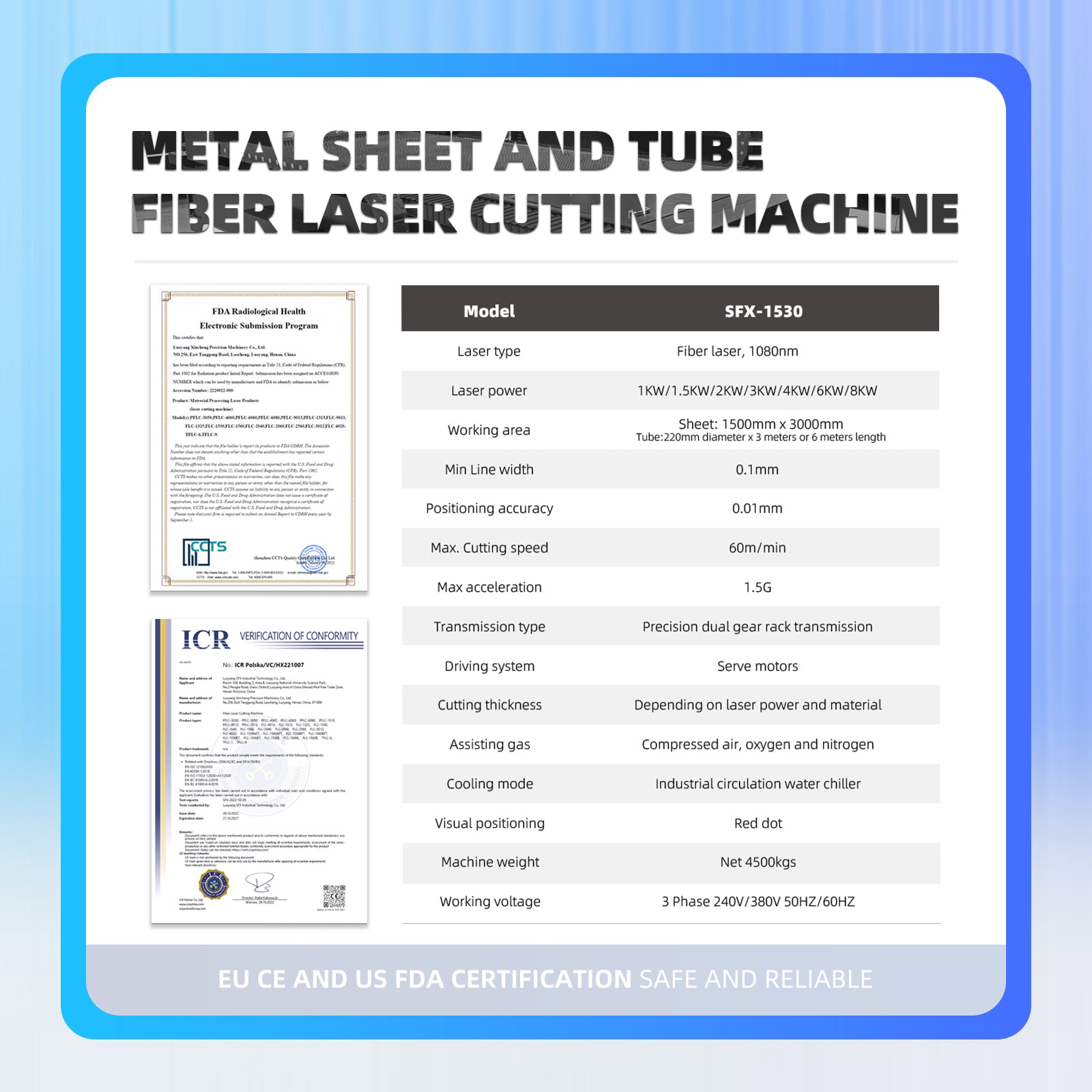

Parameters:

• Model:SFX-1530
• Laser type:Fiber Laser,1080nm
• Laser Power:2000W/3000W/6000W
• Working Area:Sheet 1500x3000mm,Tube 220mm diameter x6 meters length
• Min Line Width 0.1mm
• Positioning accuracy 0.01mm
• Max cutting speed 60m/min
• Max acceleration:1.5G
• Transmission type Precision dual gear rack transmission
• Driving system: Servo motors
• Cutting thickness:Depending on laser power and material
• Assisting gas: Compressed air,oxygen and nitrogen
• Cooling Modes:Industrial circulation water chiller
• Visual Positioning :Red Dot
• Machine Weight:Net 4500kgs
• Working Voltage:3 Phase 240V/380V/50HZ/60HZ

Features:

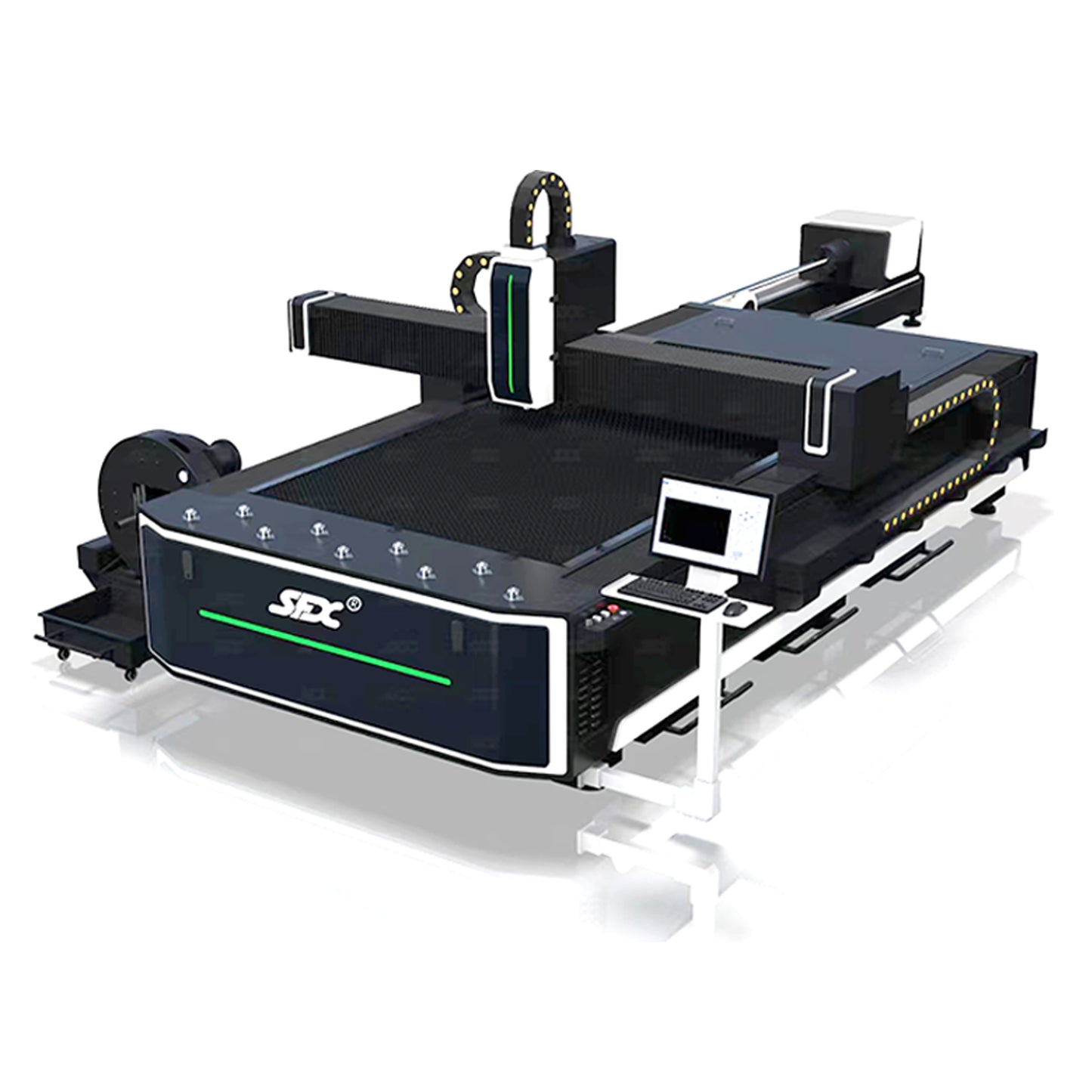

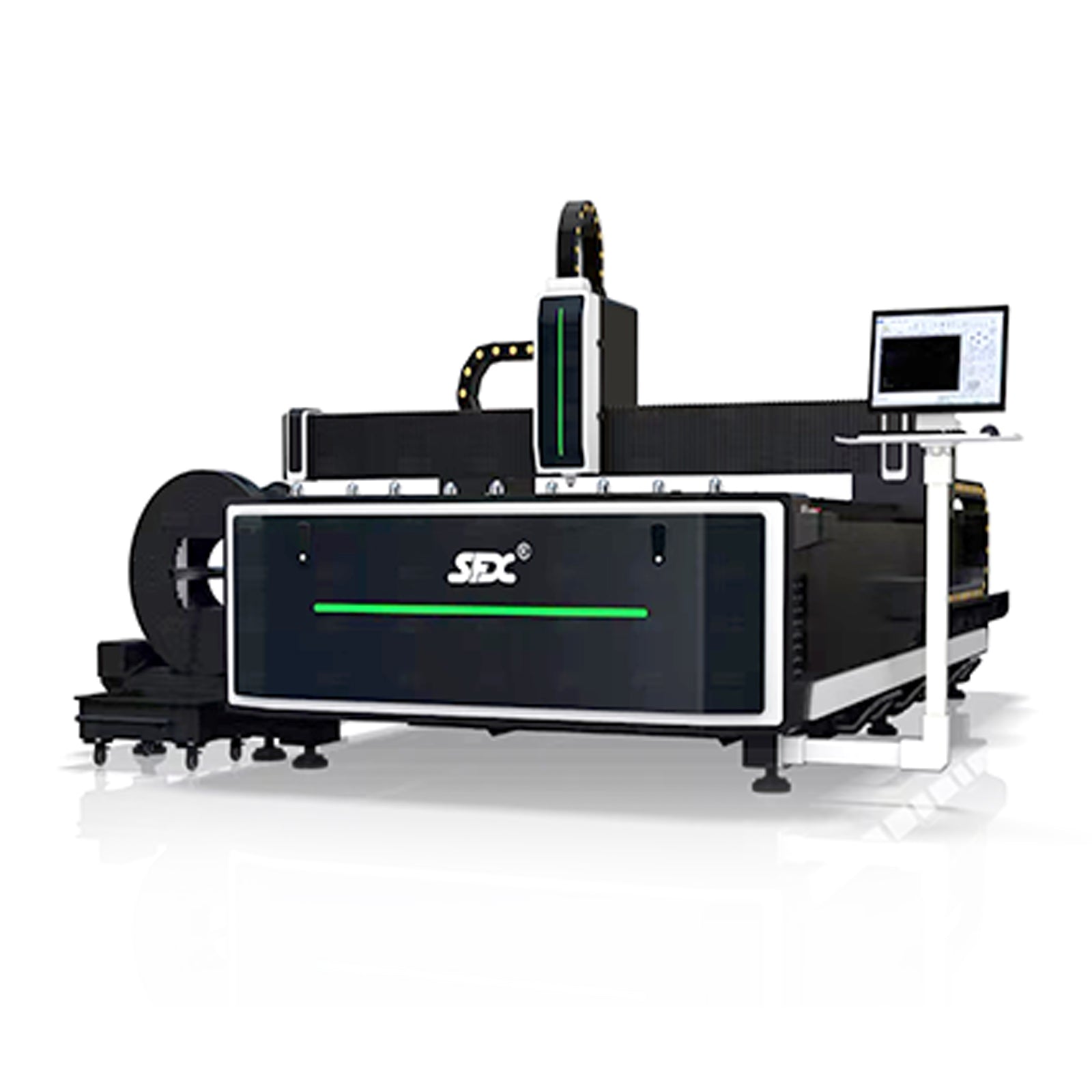

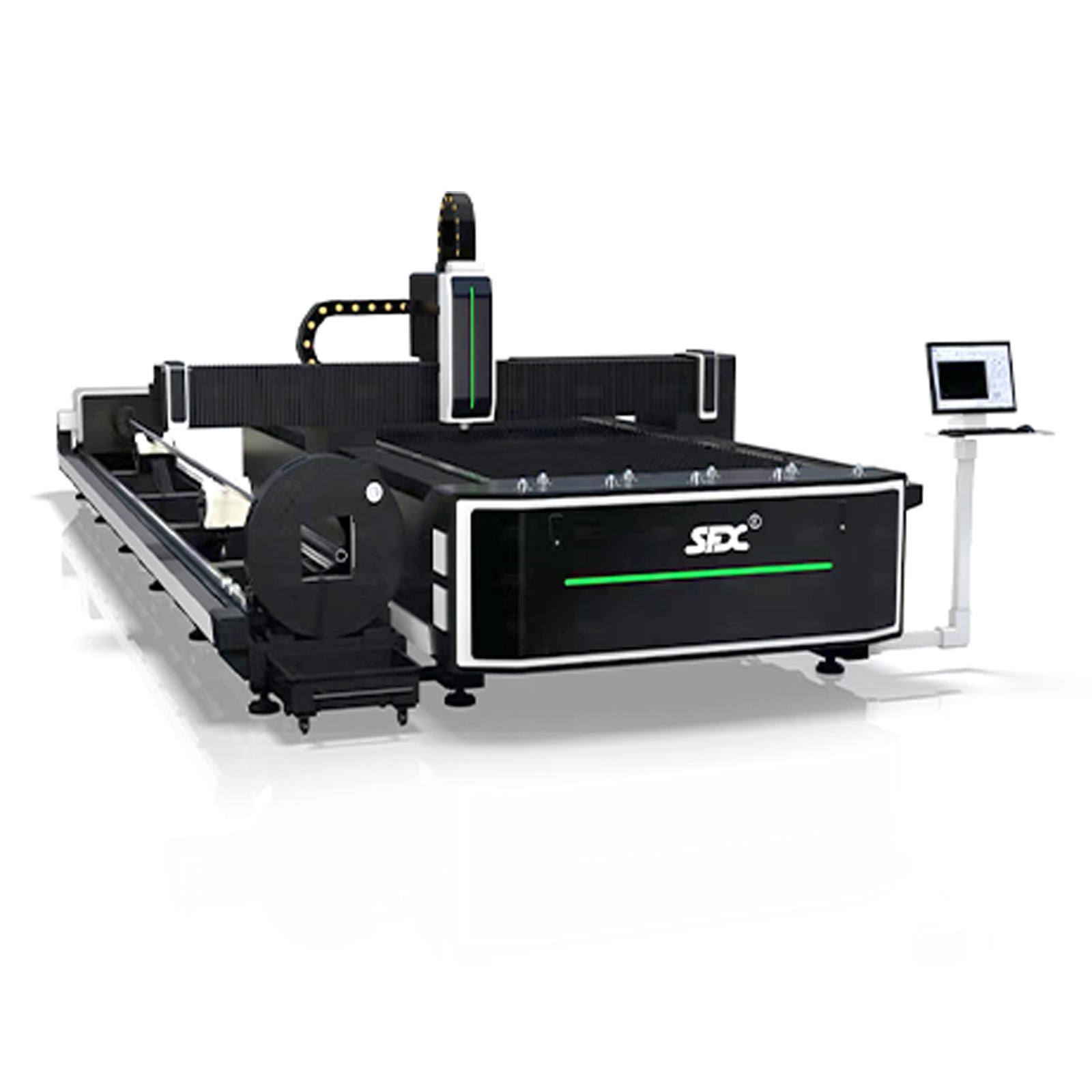

[Plate and Tube All in One]The plate and tube integrated laser cutting machine is equipped with dual plate and tube cutting platforms, realize dual cutting functions of plate and tube. Reduce the area occupied by the equipment, reduce the cost investment of the equipment.
[High Precision and stable structure]Professional laser cutting control system with super anti-interference ability and superior stability.Aviation industry extruded aluminum beam, light weight, good rigidity, high precision, stable structure, not easy to deform.Smooth Surface without burrs.Engraving and cutting in one machine.Fast Speed .High Efficiency.High Precision.Equip with Professional parts.

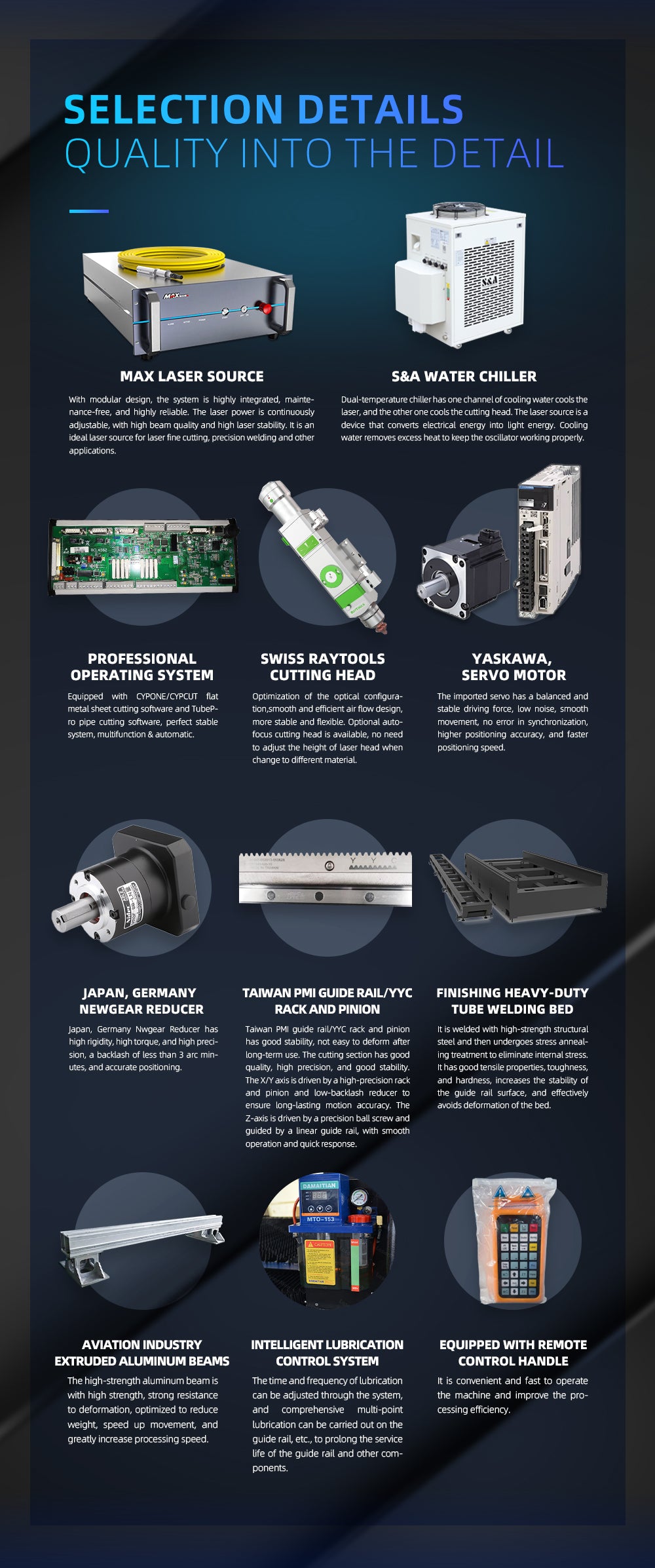

[Professional Software]Max Laser Source,S&A Water Chiller,Cypcut/Cypone flat metal sheet cutting software,Swiss Raytools Cutting Head,Yaskawa,nidec servo motor ect,strictly selected professional equipment to keep product quality.
Application

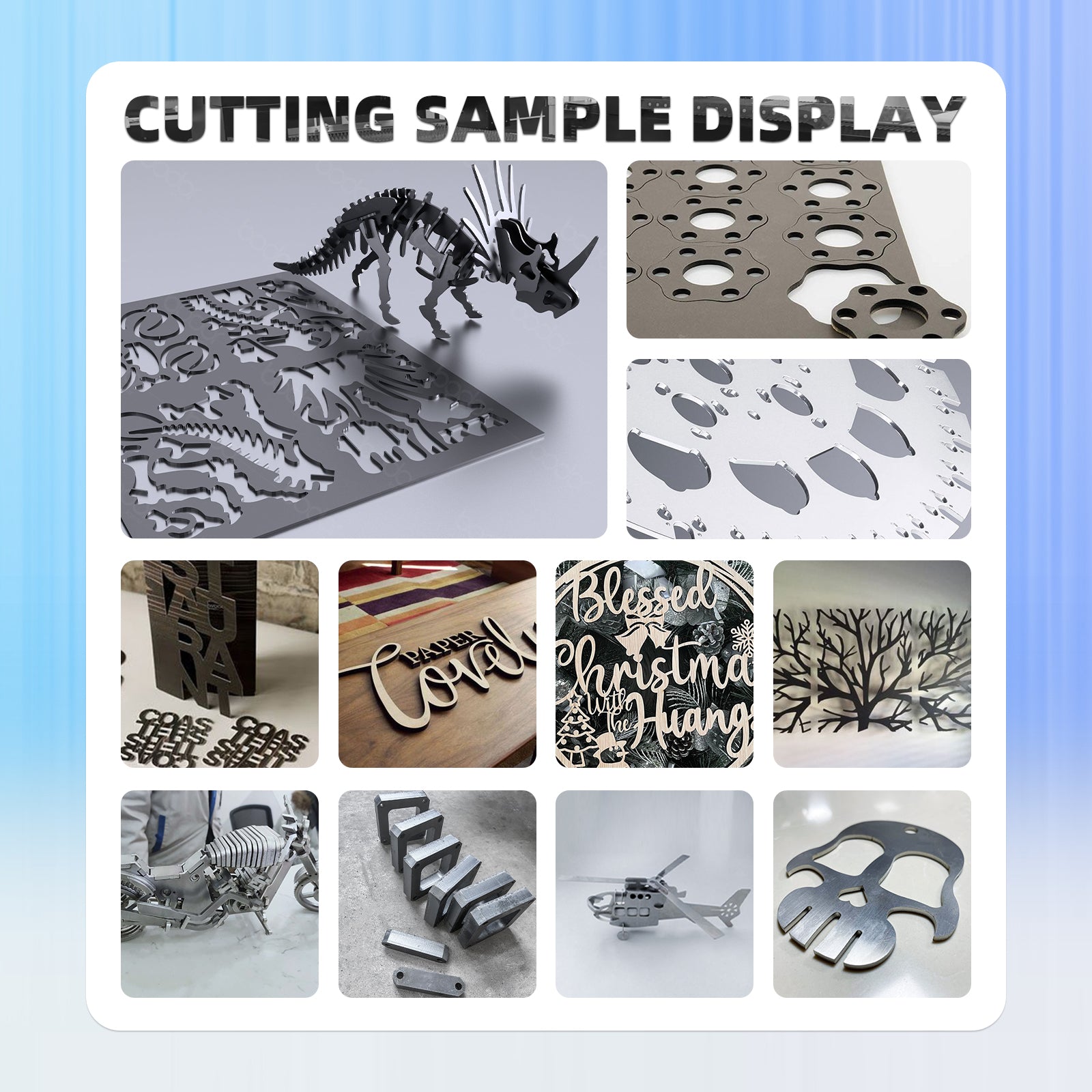

Carbon steel ,Manganese Steel,Stainless Steel, Color steel plate,Foliate Lamina Aluminum Plate, Aluminum Alloy,Brass,Copper,Titanium Plate,Tube

Warranty and Services

• 1 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Sea&Truck to Door Around 50 to 70 Days. No Import Duty for American Customers.
• Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video.
