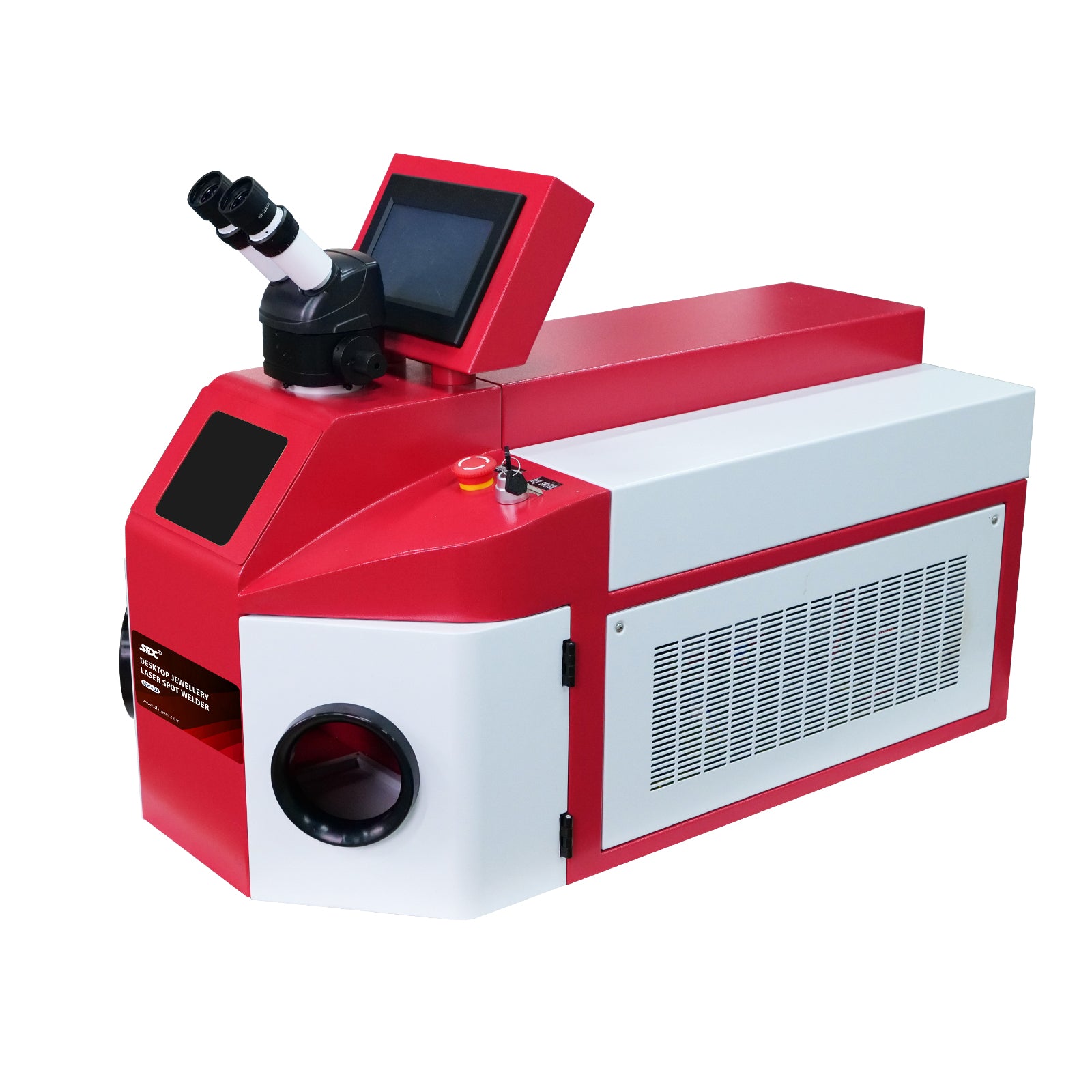

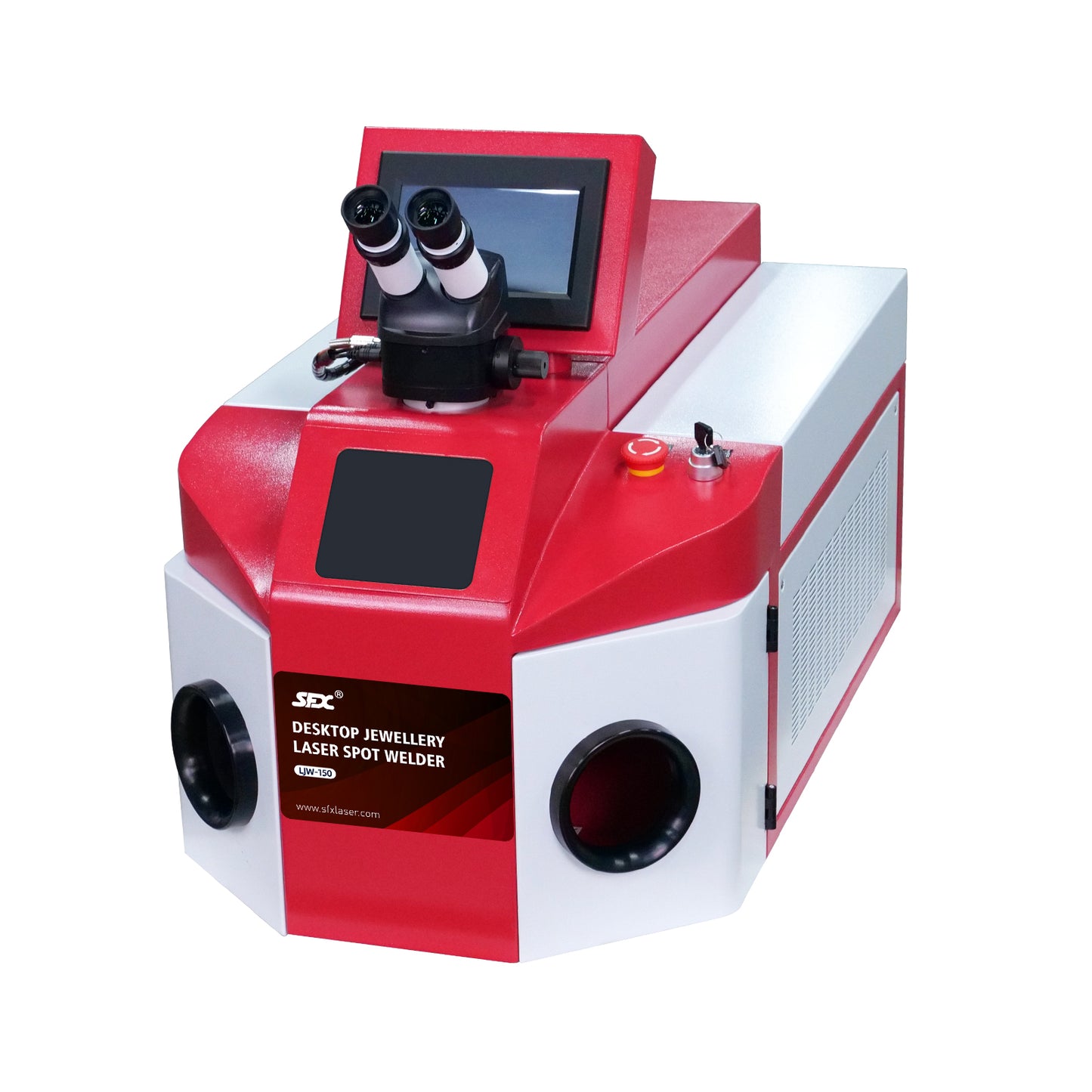

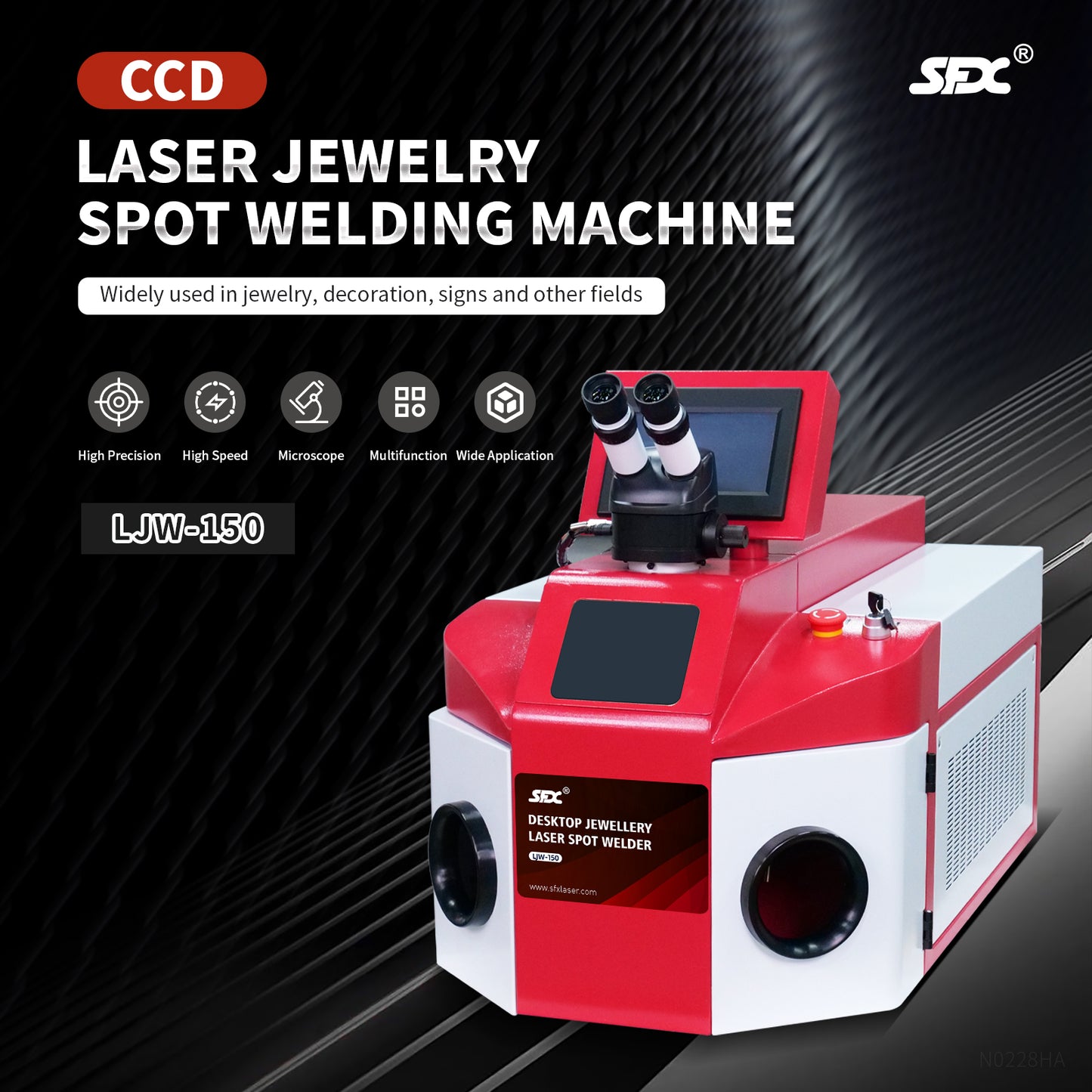

Laser Jewelry Spot Welder Jewelry Welding Machine 40 Joules 150W With CCD Pulse welder for jewelry Countertop Gold Silver 220V 1 Phase Desktop Jewelry Repair Tool for Platinum Bracelets 24K Gold

The Jewelry Laser Welder Machine Offers A 0.3-2.0mm Spot Size For Precise Welding, Making It Ideal for Intricate Tasks In Gold, Silver, And Platinum. High-Speed Laser Welding at up to 20hz Ensures Efficiency For Both Small And Large Jewelry Projects. This Laser Welding Machine For Metal And Spot Welding Machine Provides Exceptional Accuracy And Performance.

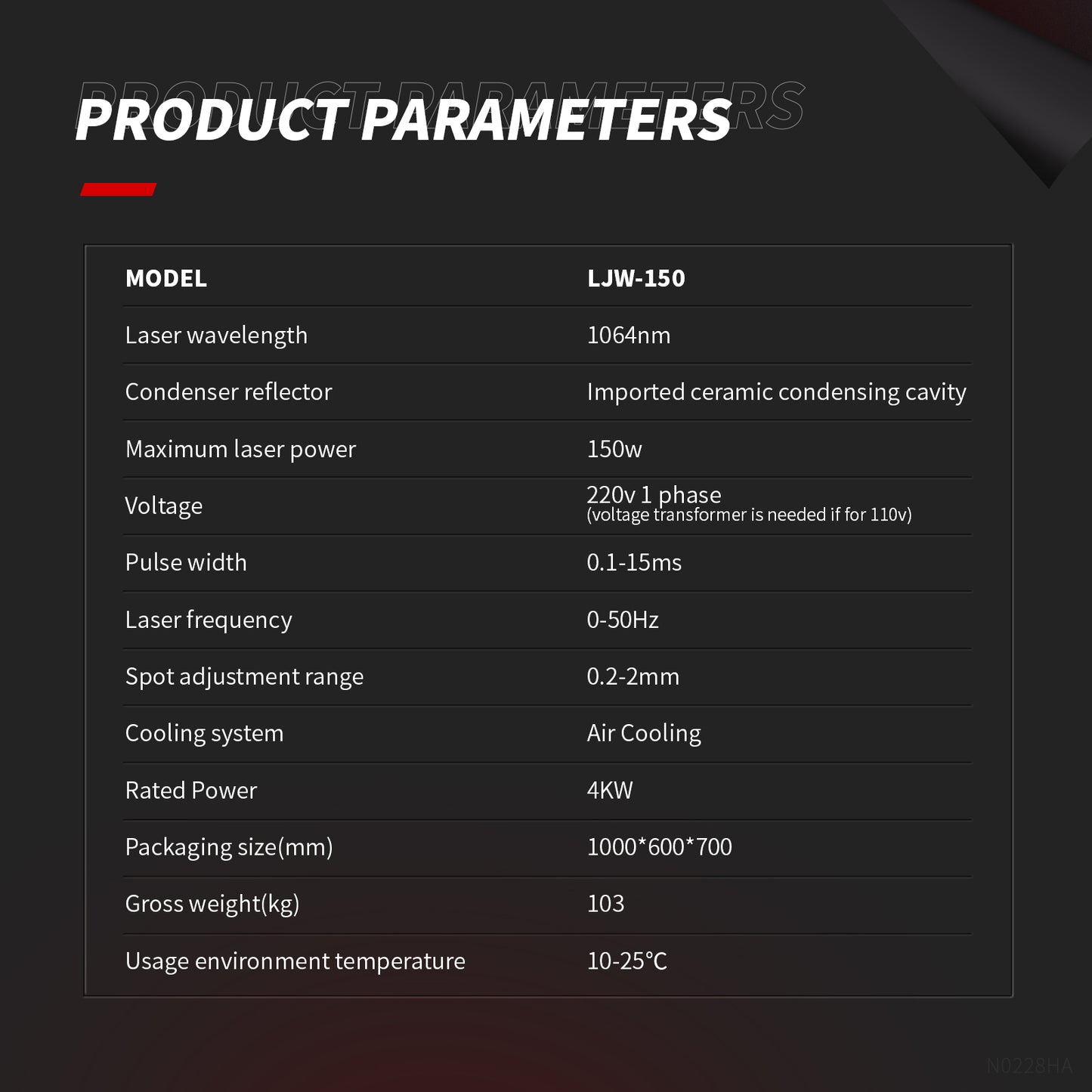

Parameters

• Laser Power: 150W
• Energy:40J
• Laser Wavelength: 1064nm
• Pulse Width: 0.1-15ms
• Spot Size:0.3-2.0mm
• Laser Frequency: 0-50Hz
• Spot Adjustment Range: 0.2-2mm.
• Voltage:220V 1 Phase(Voltage Transformer is needed if 110V)

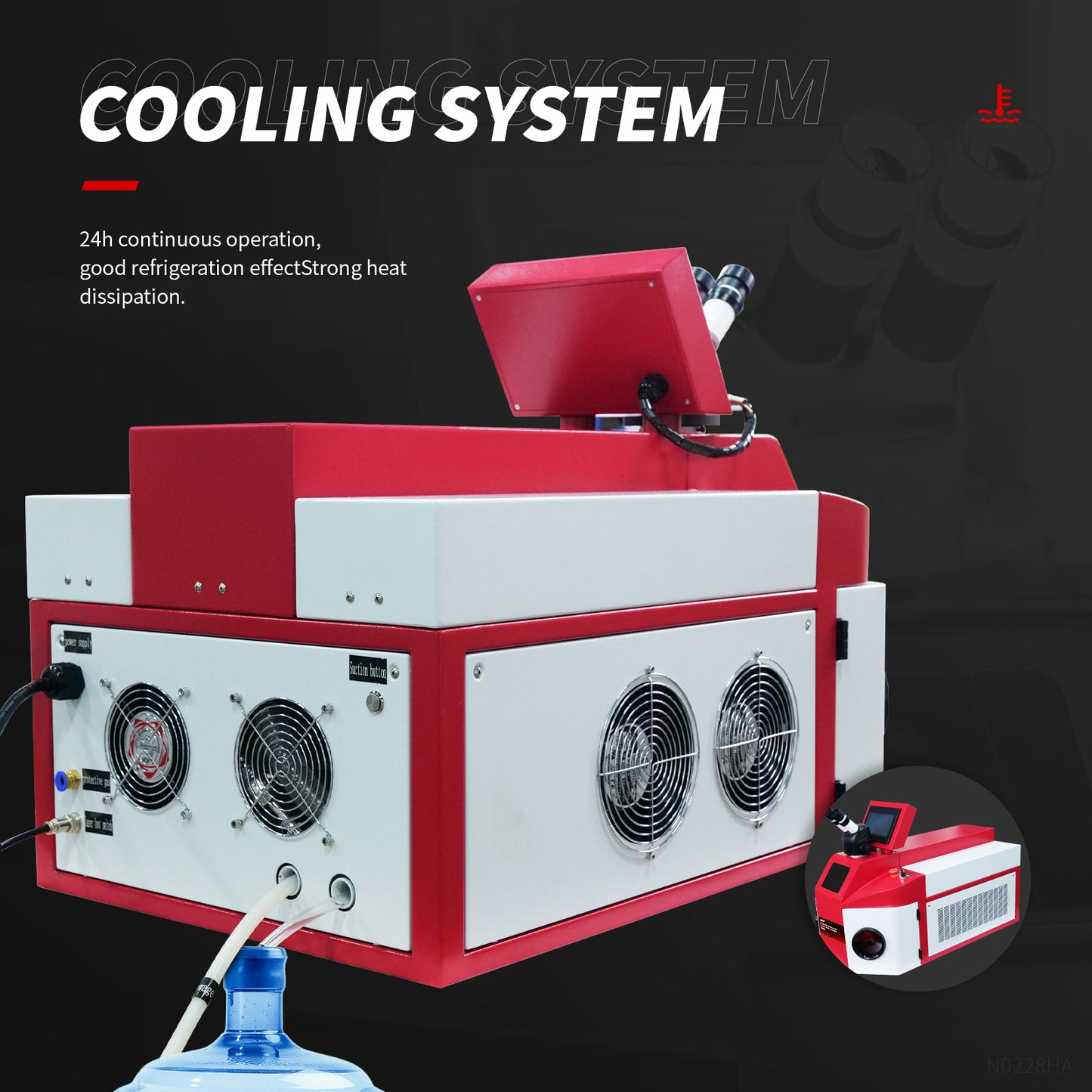

• Cooling System:Air Cooling
• Rated Power :4KW
• Packaging Size:1130*630*1290mm

Features

• [High Precision Performance]Accurate Welding, The jewelry laser welder machine offers a 0.3-2.0mm spot size for precise welding, making it ideal for intricate tasks in gold, silver, and platinum. High-speed laser welding at up to 20Hz ensures efficiency for both small and large jewelry projects, providing exceptional accuracy and performance.
• [Advanced Capabilities]The LJW-150W jewelry laser welder with CCD offers 150W max power and operates on 220V. With a 1064nm laser wavelength and 0.3-2.0 mm spot range, it ensures noiseless and efficient welding, ideal as a micro precision laser soldering machine.
• [User-Friendly]Featuring an ergonomic design, the jewelry laser welder has a spacious workspace for easy tool setup. The HD binocular microscope provides clear observation, while adjustable LED lights ensure precision and clarity, improving user comfort and efficiency.

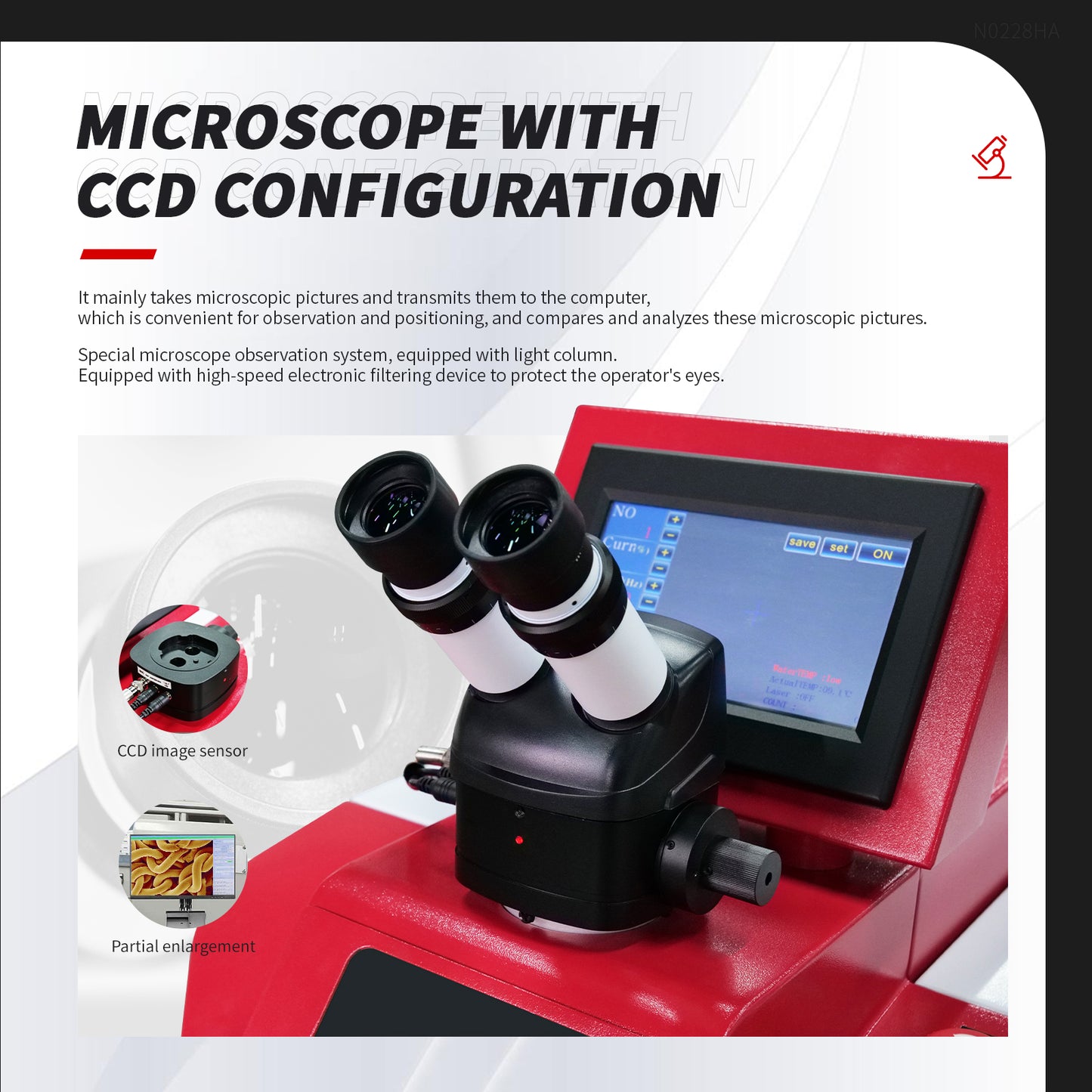

• [Advanced CCD Configuration] Featuring a state-of-the-art CCD configuration, this jewelry laser welder captures microscopic images and transmits them to a computer for easy observation and positioning. This advanced feature enhances precision and efficiency, making it an essential tool for tasks requiring detailed comparison and analysis.
• [High-Quality Results] This laser welding machine for jewelry provides high-quality results, ensuring efficient and precise welding for various projects.

Application

• Wide Range of Applications: Widely used in mobile communications and arts and crafts, this jewelry laser welder meets high precision standards. Perfect for welding dental pieces, sporting goods, golf heads, and medical equipment.

• Permanent Jewelry Welding: It serves as a welder for permanent jewelry and a robust permanent jewelry welder machine for diverse industrial applications, ensuring high precision and reliability.

Warranty

• 1 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Air to Door Around 7 to 10 Days. No Import Duty for American Customers.
