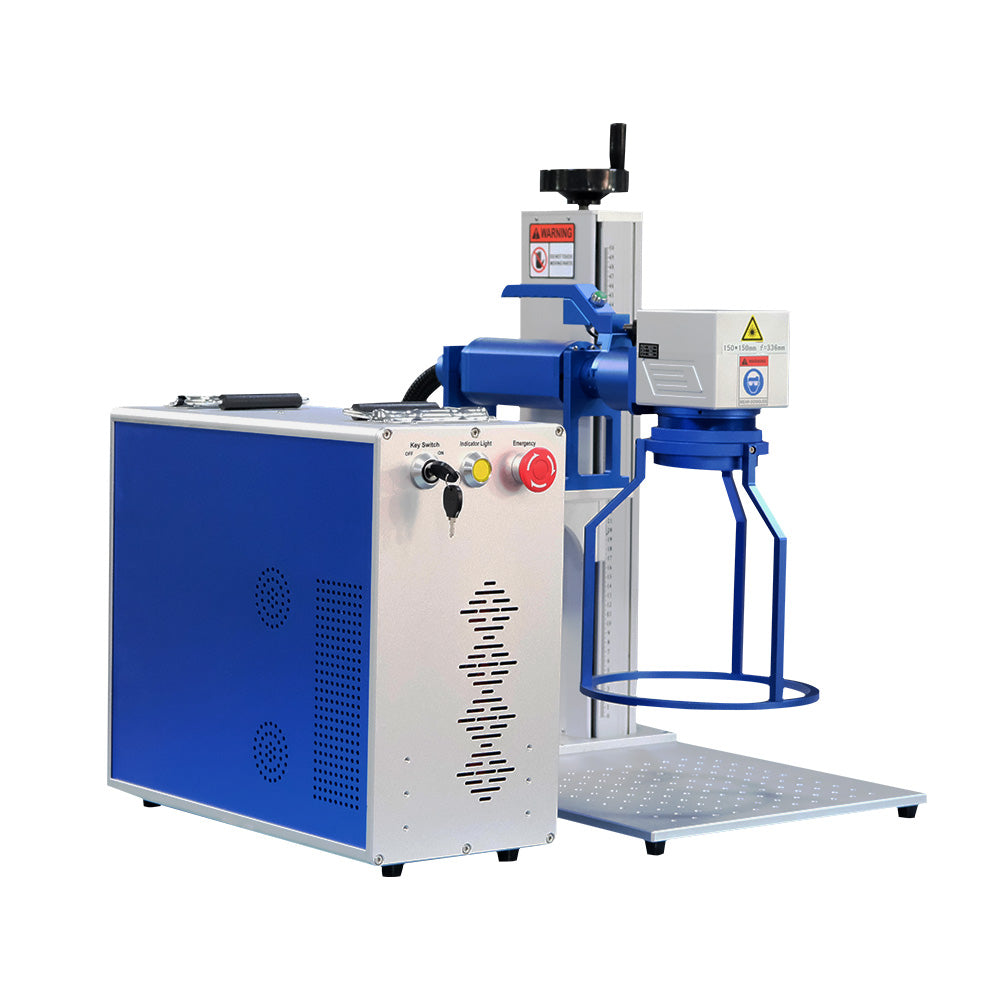

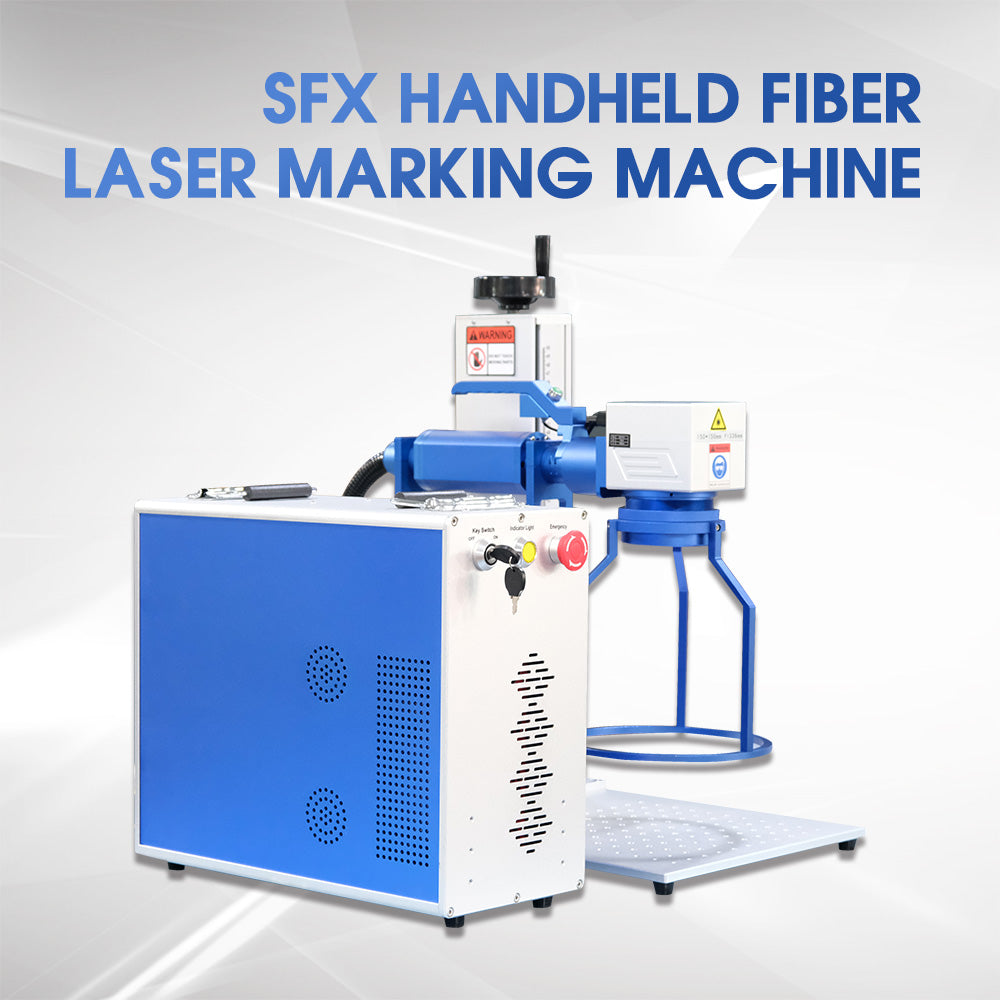

Handheld Fiber Laser Engraver 20/30/50/60W Fiber Laser Marking Machine Compitable with EZCAD2.0

Handheld Fiber Laser Engraver Advantages

• Double-purpose Laser Head.---Not Restricted by Space
• Handheld Laser Marking Machine: With Ideal marking effect but smart and convenient,it is no restricted by space.
• Easy to move:Engraving for Different Angles. Work from different angles,the part of the handheld is removable,it can engrave on the big work-pieces,improve the efficiency of marking.
• Precise&Clear ：Good at intricate patterns
• Great Flexibility and Easy to Carry:Small Size &Light Weight,good at marking on Large and Heavy-duty Equipment ,beyond space limitation.
• Integrated modular design:Start Button,start marking at any time;Pulsed fiber laser excellent beam quality.
• Maintenance-free: No need for huge water cooling system just simple air cooling.It can work normally under certain harsh environment such as shock,vibration,high temperature or dust.
• Ideal Marking Effect.Clear and Fine Marking Characters,low energy consumption,can mark various fine and complex patterns on the surface of various materials.

Application.Can Engrave metal and a variety of non-metallic materials.More Suitable for the processing of some products requiring fine and high precision.Stainless steel materials,mobile phone keys,plastic shells ,body ,frame,mechanical parts,precision equipment,molds,sanitary ware,jewelry,high hardness alloys,oxides,electroplating,coating,ABS,Epoxy,ink,ect.

Applicable Industry: Hardware industry ,wrenches ,measuring tools ,sanitary ware,stainless steel ,medical equipment,luggage,gifts,table bottom,glasses frames,instruments.

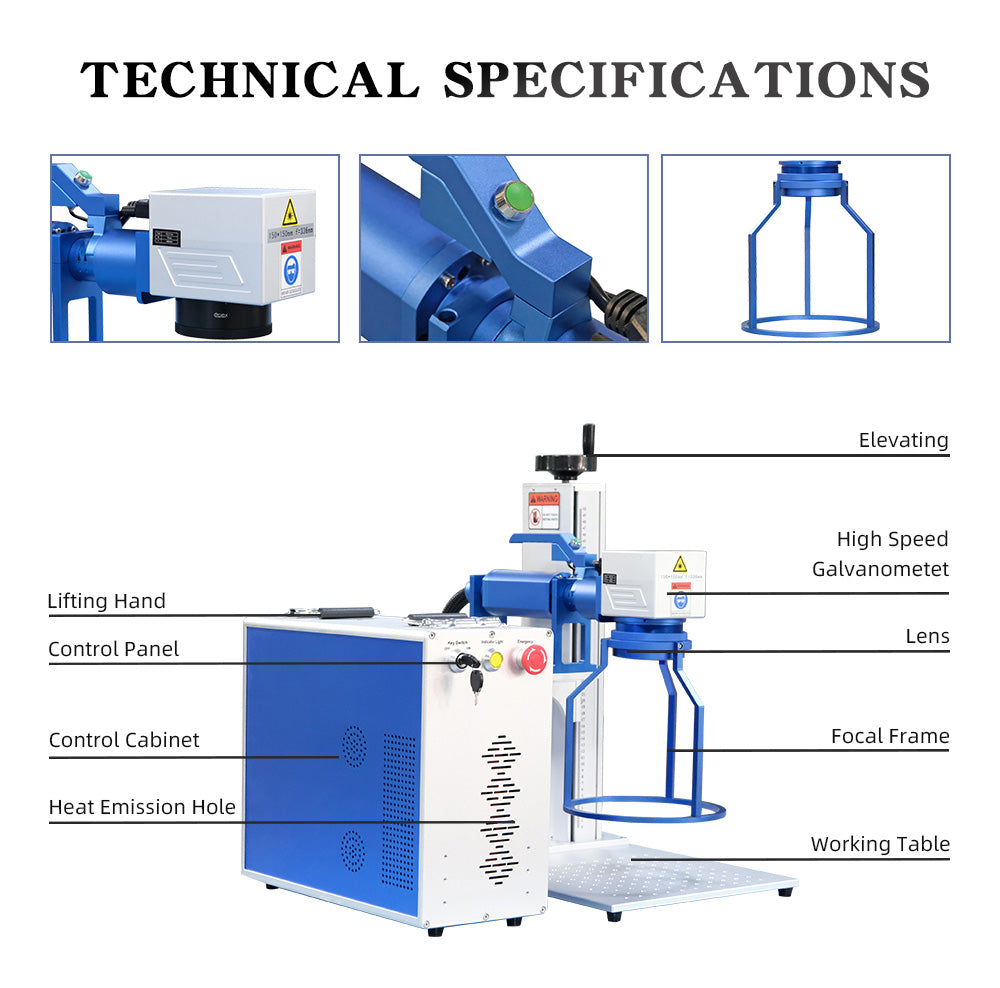

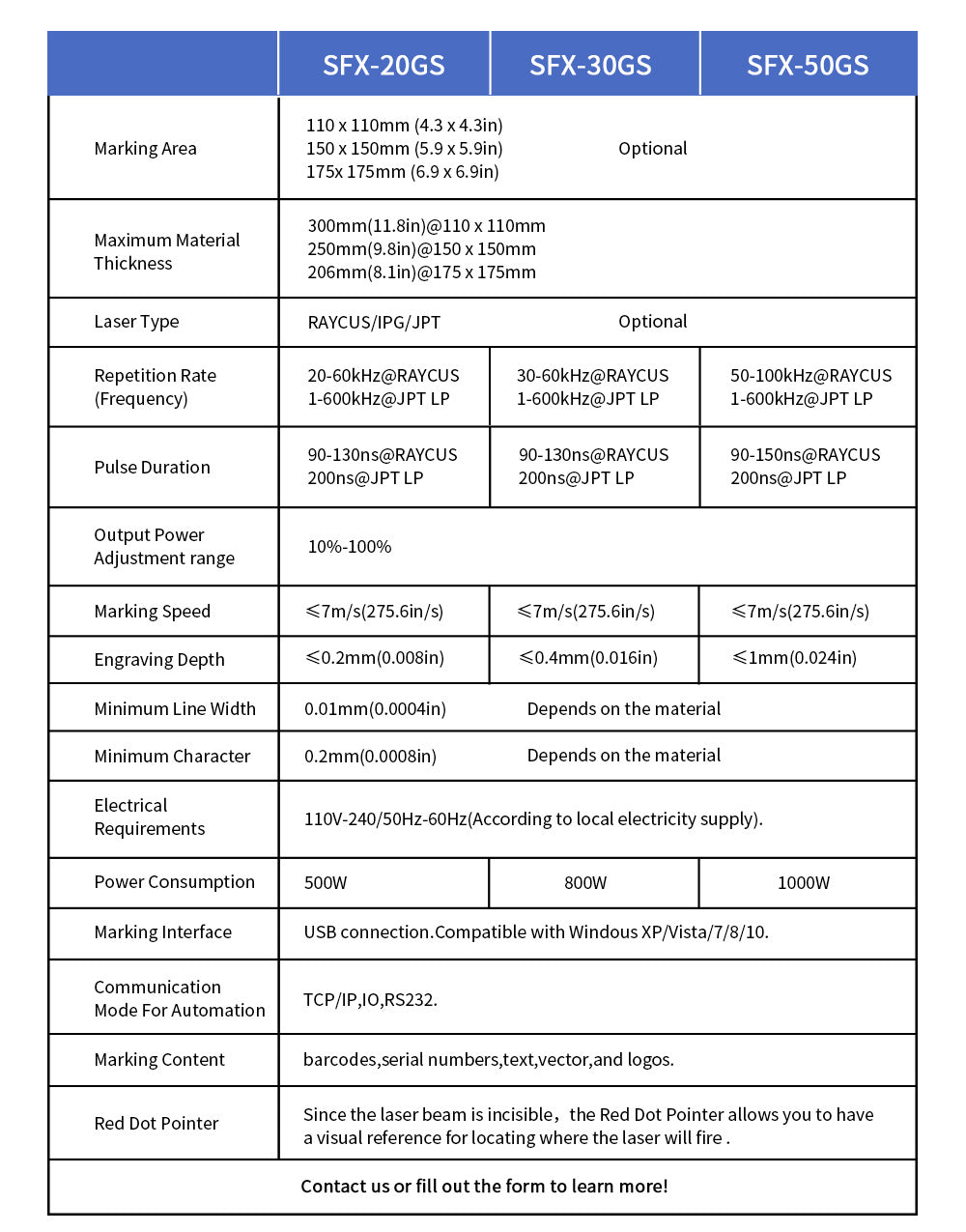

Parameter

• Marking Area: 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)175*175mm(6.9*6.9in)
• Maximum Material Thickness: 300m(11.8in)@110*110mm/250mm(9.8in)@150*150mm/206mm(8.1in)@175*175mm
• Laser Type/Pulse Duration: JPT/200ns
• Repetition Rate(Frequency): 1-600kHz@JPT LP
• Output Power Adjustment Range: 10%-100%
• Marking Speed: ≤7m/s(275.6in/s)
• Engraving Depth: ≤0.2mm(0.008in)/≤0.4mm(0.016in)/≤1mm(0.024in)
• Minimum Line Width: 0.01mm(0.0004in) depends on the material
• Minimum Character: 0.2mm(0.0008in) depends on the material
• Electrical Requirements: 110V-240V/50Hz-60Hz(According to local electricity supply)
• Power Consumption: 500W/800W/1000W
• Marking Interface: USB connection. Compatible with Windows XP/Visa/7/8/10/11
• Automated Communication: TCP/IP, IO, RS232
• Marking Content: barcodes, serial numbers, text, vector, and logos.
• Red Dot Pointer: Since the laser beam is invisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.

JPT Laser Source

• High Precision Marking: Adjustable pulse width within a wide frequency range of 1-600KHZ.
• Cost-Efficient Operation: Zero power coupling loss reduces operating costs.Long Lifespan: Maintenance-free for 100,000 hours, no consumables required.
• Robust Design: Fully sealed to resist dust and moisture.

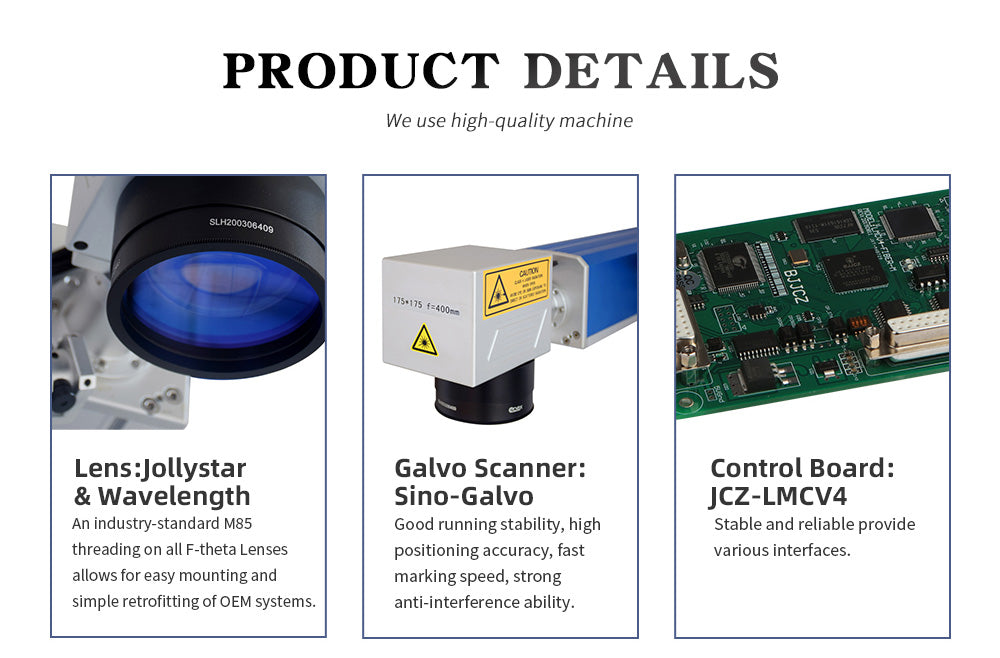

Galvanometer

• Reliable Performance: Stable operation with high accuracy and speed up to 7000MM/S.
• Excellent Interference Resistance: Ensures consistent marking on flat surfaces.

Focal Frame

• Flexible Application: Removable frame for easy handling of large workpieces.
• Compact and Lightweight: Enables marking without space limitations.

Ease of Use

• Intuitive Operation: One-button start and compatibility with popular design software.
• Comprehensive Marking Options: Supports various file formats and automatic encoding.

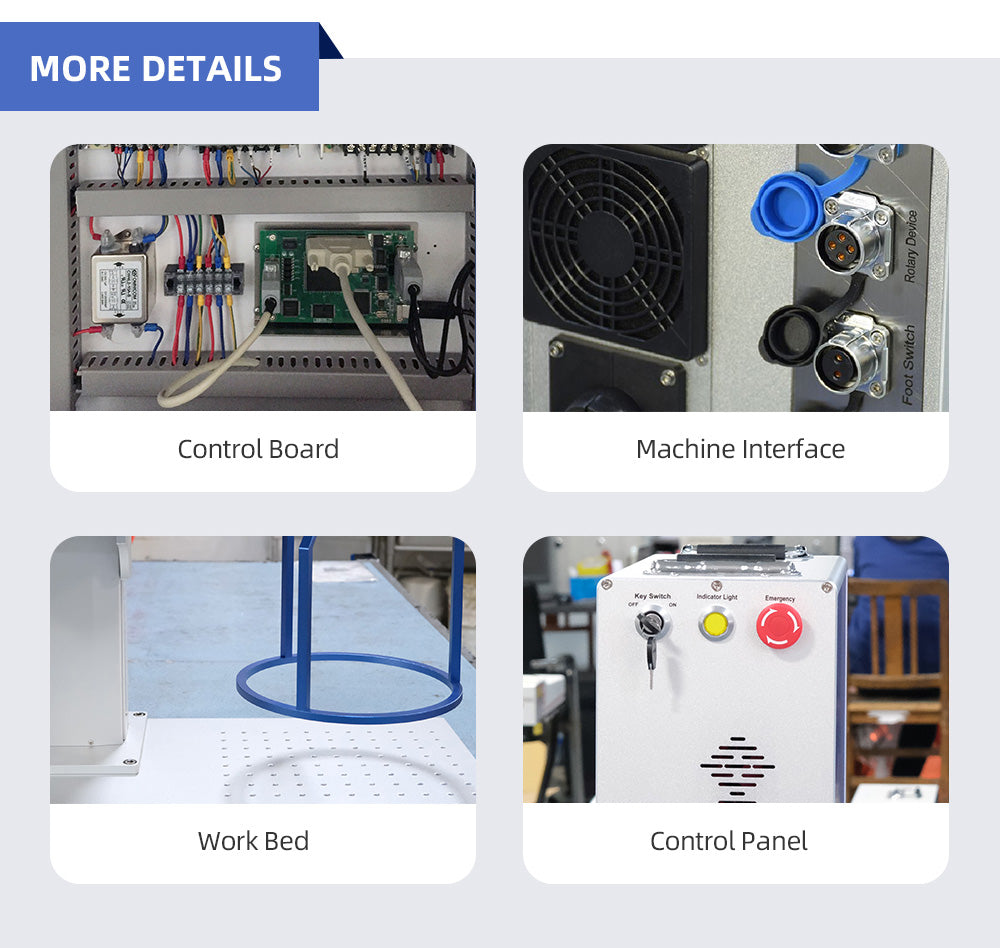

Safety Features

• Secure Operation: Key switch for control and emergency button for user safety.
• Durable Construction: High-quality materials ensure reliable performance.

Warranty and Delivery

• 1 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Air to Door Around 5 to 10 Days. No Import Duty for American Customers.
• Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video.
