Fully Enclosed Platform Automatic Dual-station 4 Axis Laser Welder DLW Precision Fiber Welding Machine automatic Customizable on-line welding for metal

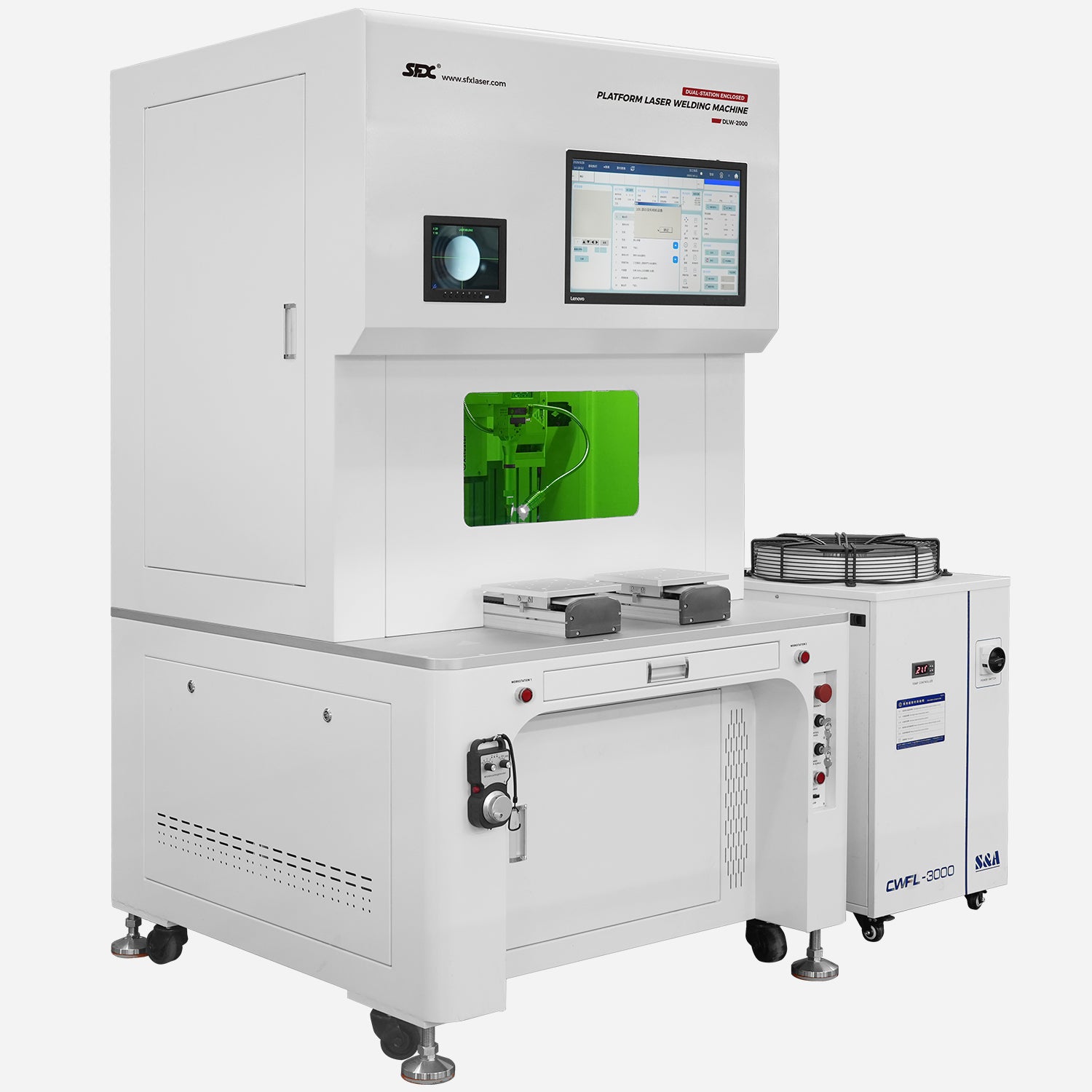

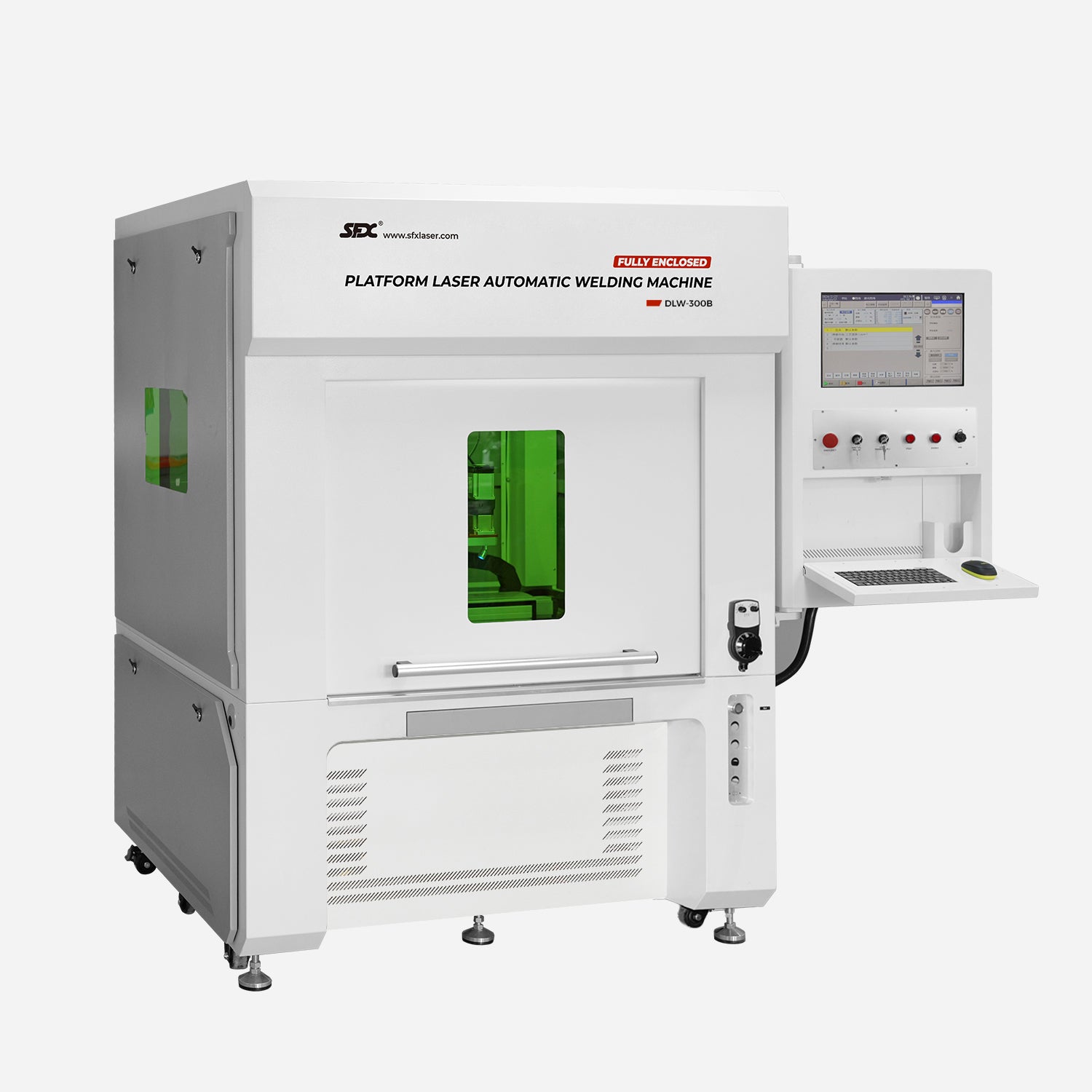

The Dual-Station EnclosedLaser Welding Machine is an advanced industrial solution engineered for precision welding, safety, and efficiency. Designed with a sealed enclosure and intelligent control system, it ensures stable performance and operator safety in demanding manufacturing environments.

Parameters

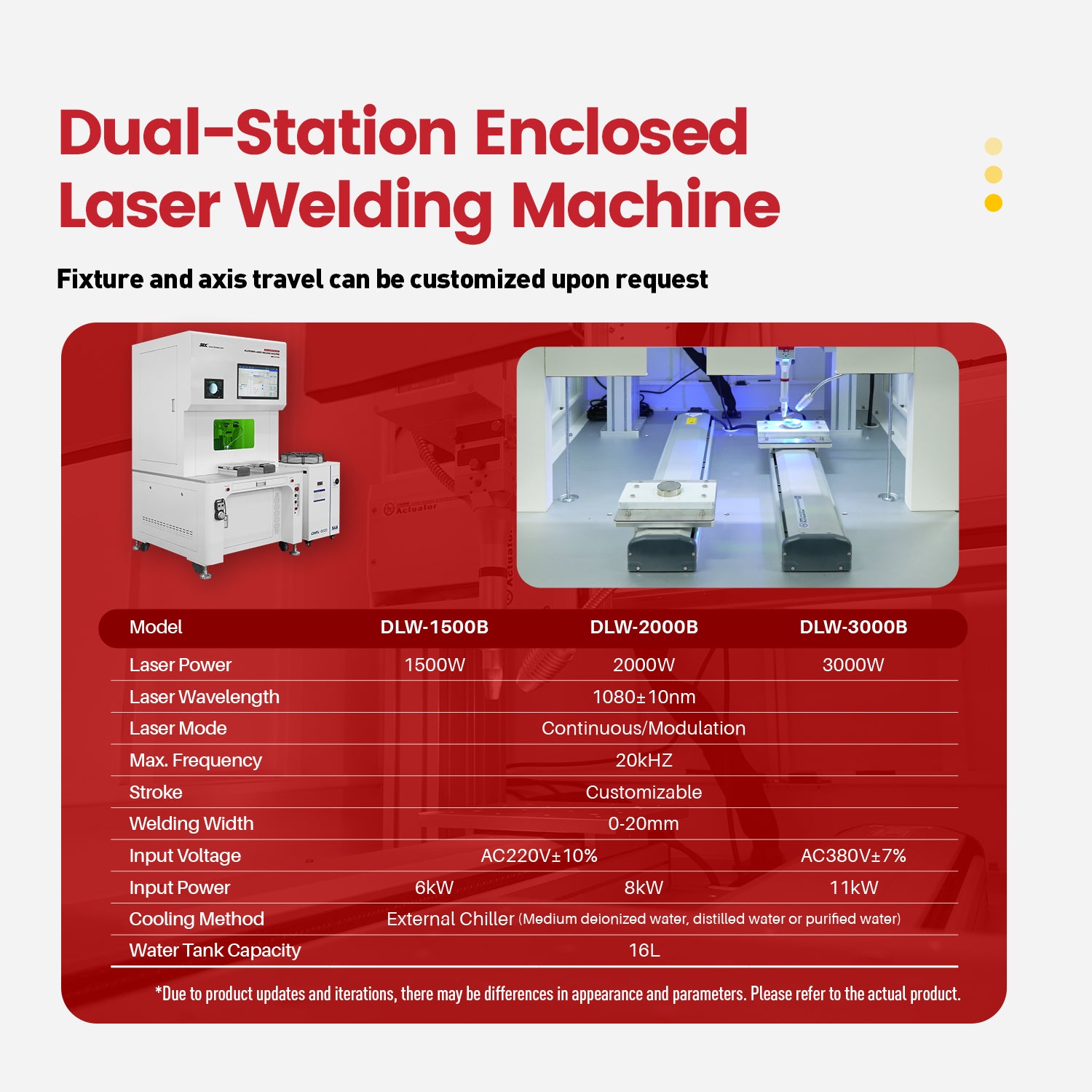

DLW-1500B/2000B/3000B

• Laser Power 1500/2000/3000W;
• Laser Wavelength 1080±10nm;
• Power Consumption 6KW for DLW-1500B,8KW for DLW-2000B,11KW for DLW-3000B;

• Input voltage:AC220V±10% for DLW-1500B/DLW-2000B; AC380V±7% for DLW-3000B;
• Cooling method:Water-cooled;
• Water tank capacity:16L;

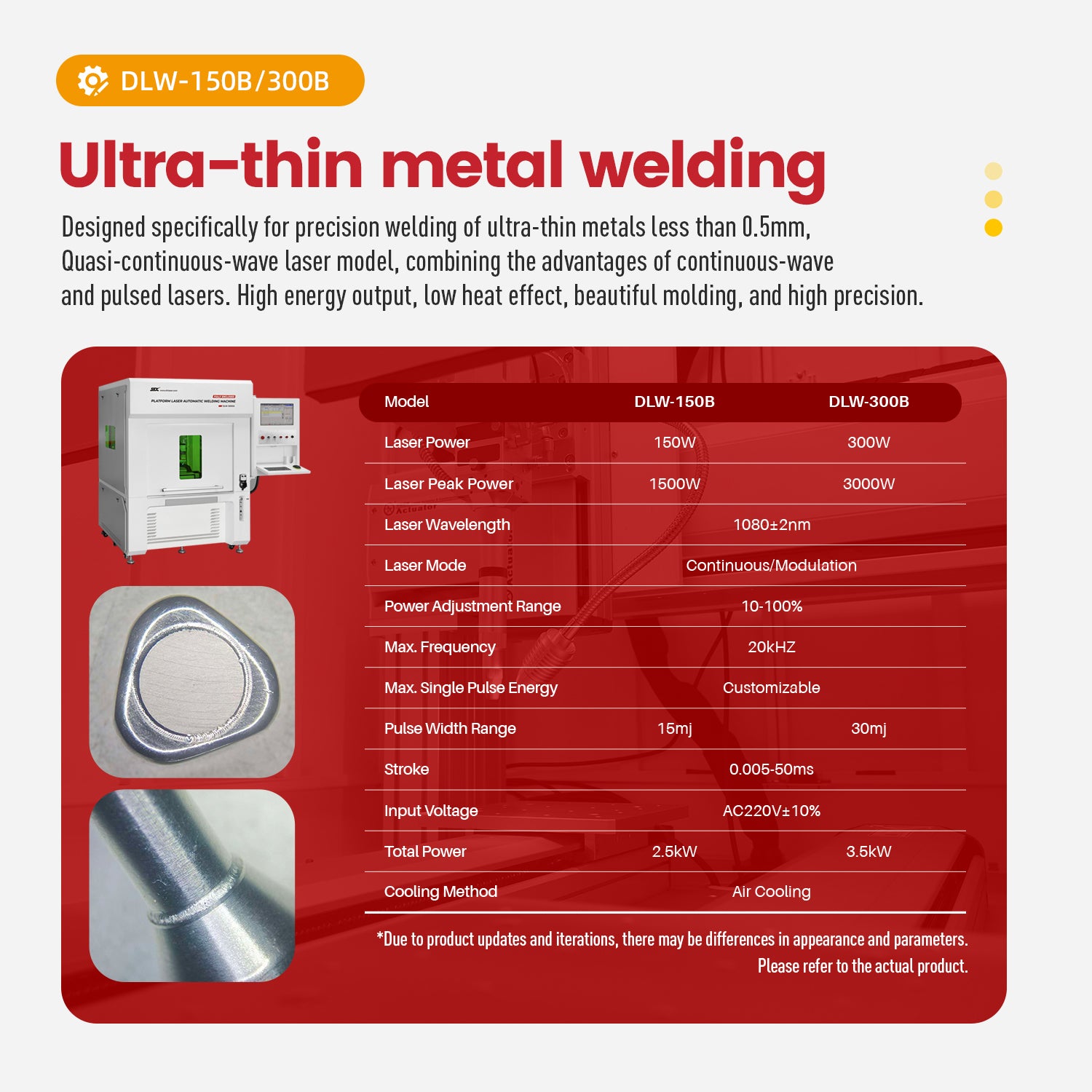

DLW-150B/300B：

• Laser Power: 150/300W;
• Laser Wavelength: 1080±2nm;
• Laser Peak Power: 1500W/3000W
• Laser Mode: Continuous/Modulation
• Max. Frequency: 20kHZ;

• Input voltage:AC220V±10%；

• Cooling Method: Air Cooling;

Advantages：
Equipped with a high-efficiency 4-axis dual-station enclosed platform welding system, enabling a fully automated workflow of feeding + welding + unloading, significantly improving overall production efficiency.

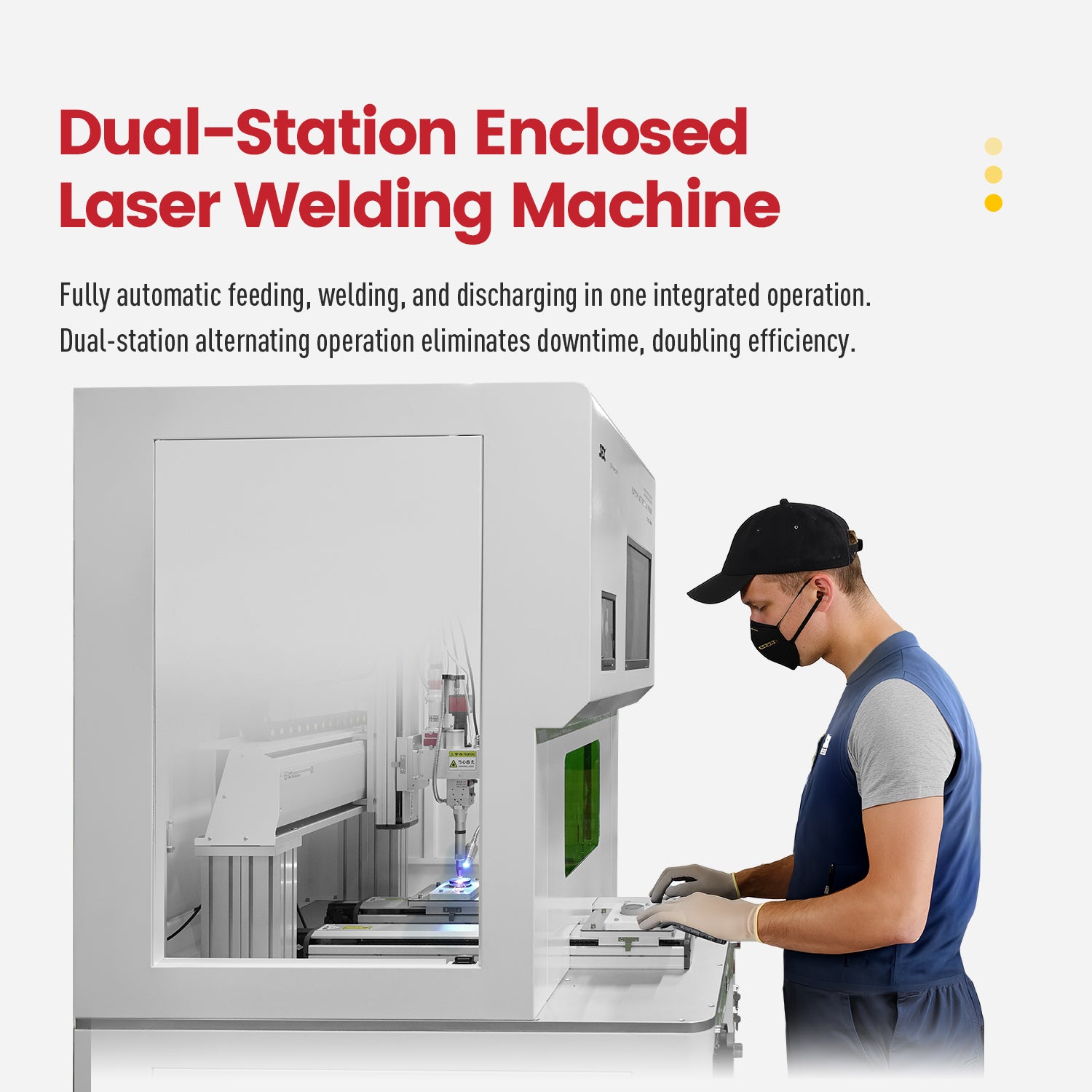

The external loading design allows operators to load/unload workpieces outside the machine while welding is in progress inside, effectively enhancing operational safety and reducing risk exposure.

Features：

[Fully Automatic Feeding + Welding + Unloading]
The 4-axis dual-station platform welding machine integrates automatic feeding, welding, and unloading into a continuous process. While one station is welding, the other station can simultaneously complete loading/unloading, achieving seamless cycle operation and greatly improving productivity. This design is ideal for batch production of small to medium-sized workpieces.

[Dual-Station Alternating Operation for High Efficiency]
The dual-station configuration enables uninterrupted production by alternating between two work positions. This reduces idle time and maximizes equipment utilization, delivering a substantial increase in output efficiency compared to single-station systems.

[4-Axis Precision Control]
With a stable 4-axis motion control system, the machine ensures accurate positioning and consistent welding quality. The optimized motion trajectory provides reliable performance for standard and moderately complex welding tasks.

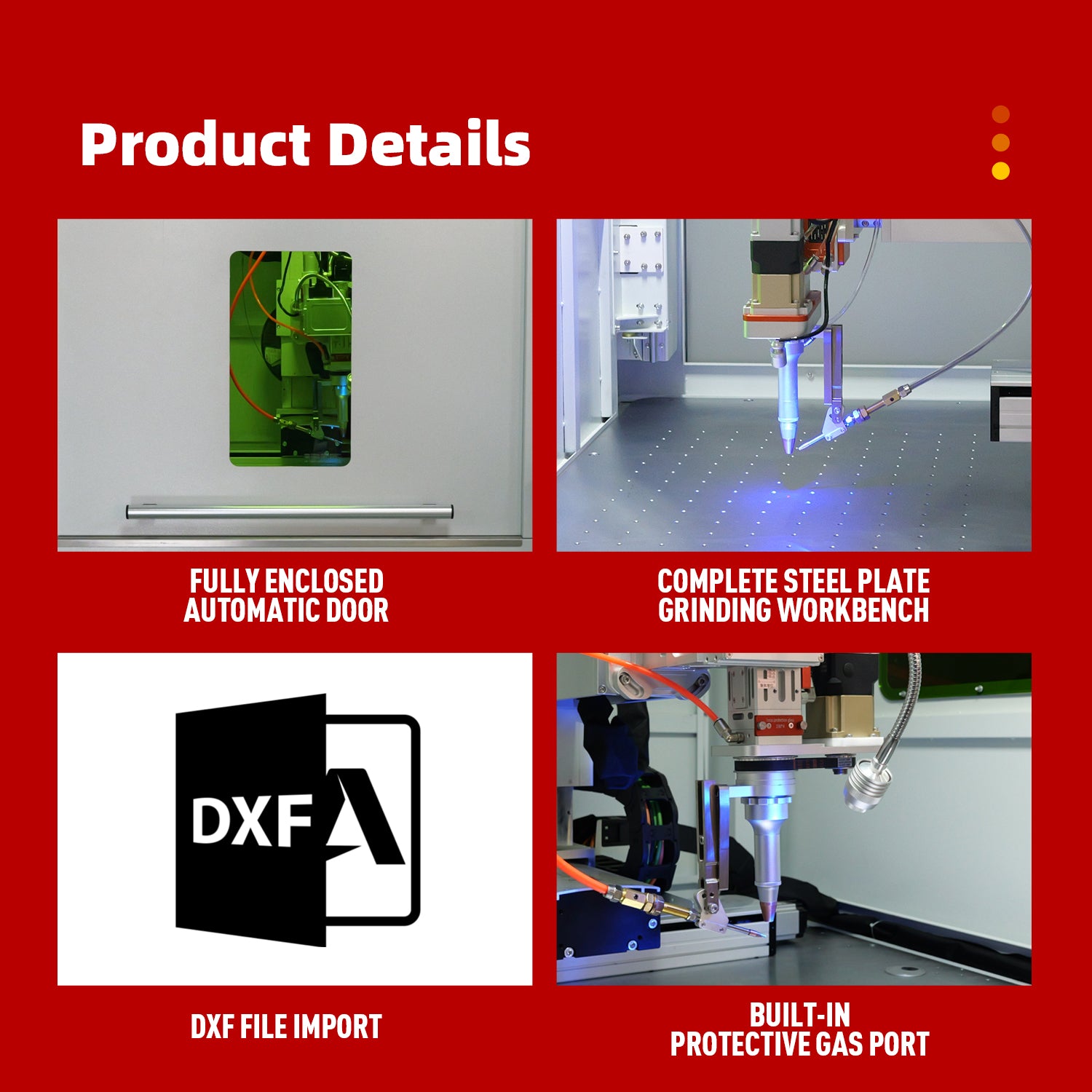

[Enclosed Structure for Enhanced Safety]
The fully enclosed platform design effectively isolates the welding area, protecting operators from arc light, sparks, and fumes. The external loading mechanism allows operators to handle materials without entering the welding zone, significantly improving workplace safety.

[User-Friendly Operation & Stable Performance]

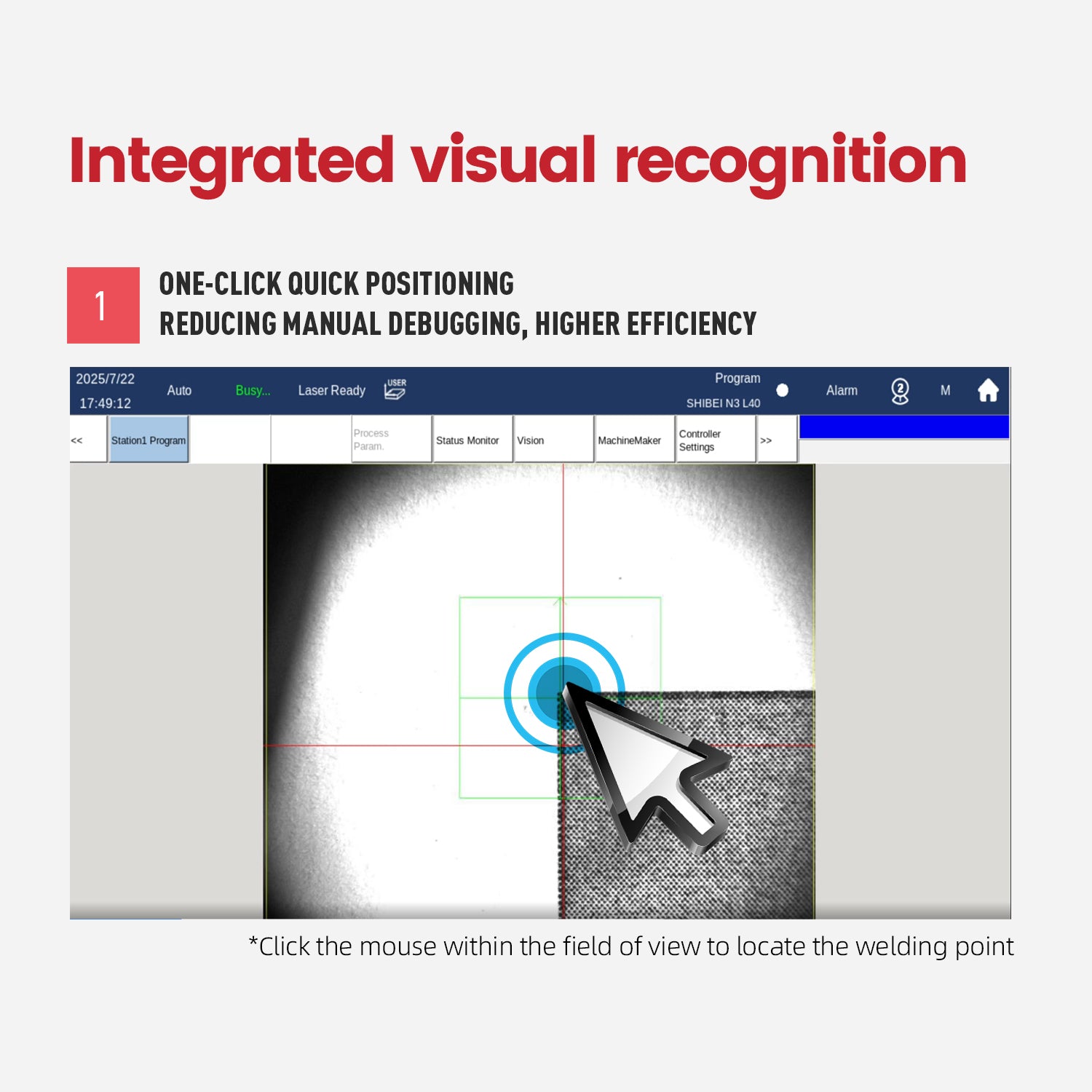

Equipped with an intuitive control system and teach-in programming, the machine allows quick setup and easy operation. Once parameters are configured, they can be reused directly, ensuring stable and repeatable welding results.

[Robust Structure & Practical Design]
The heavy-duty welded frame and precision workbench provide excellent stability and durability. The system supports continuous operation under demanding industrial conditions while maintaining consistent performance.
