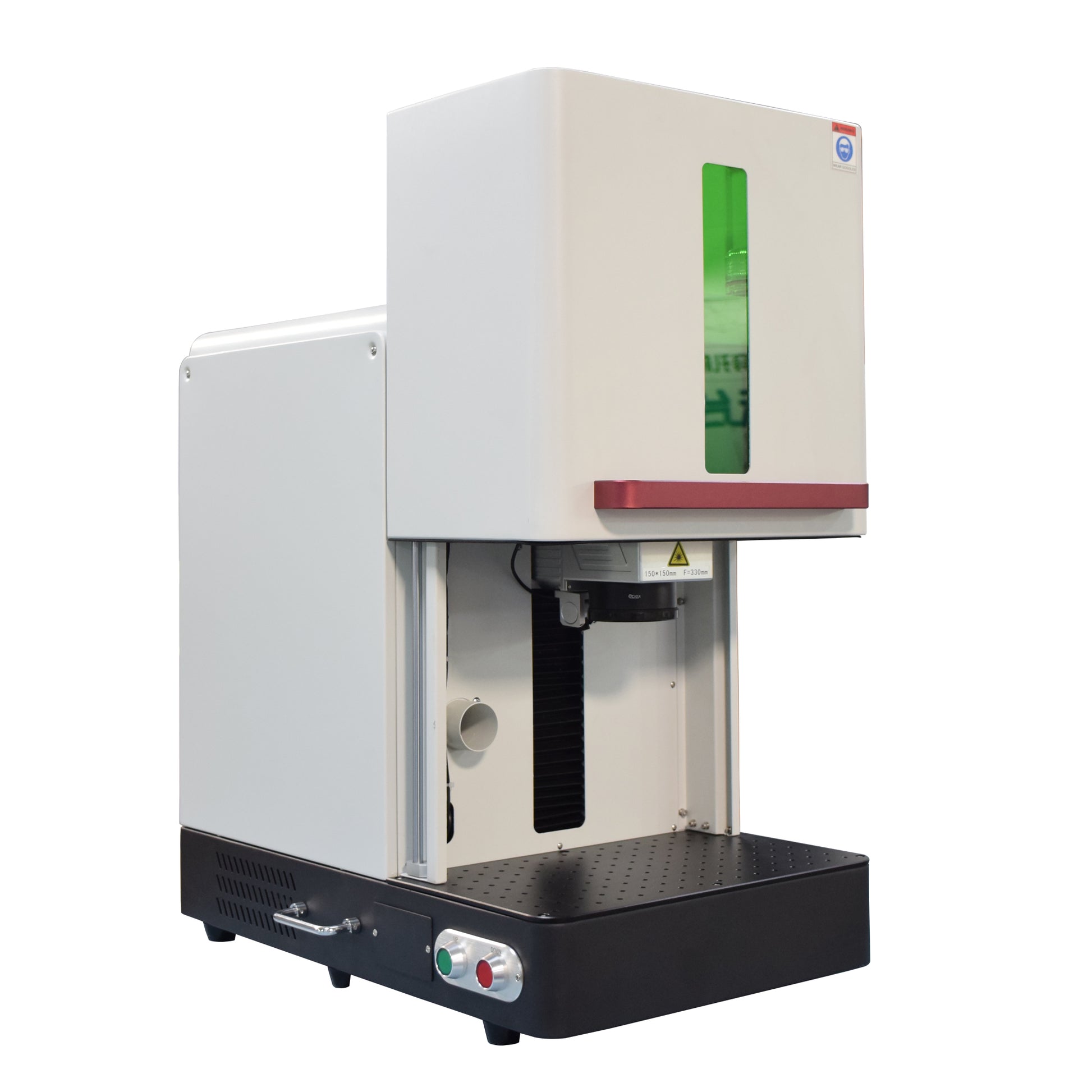

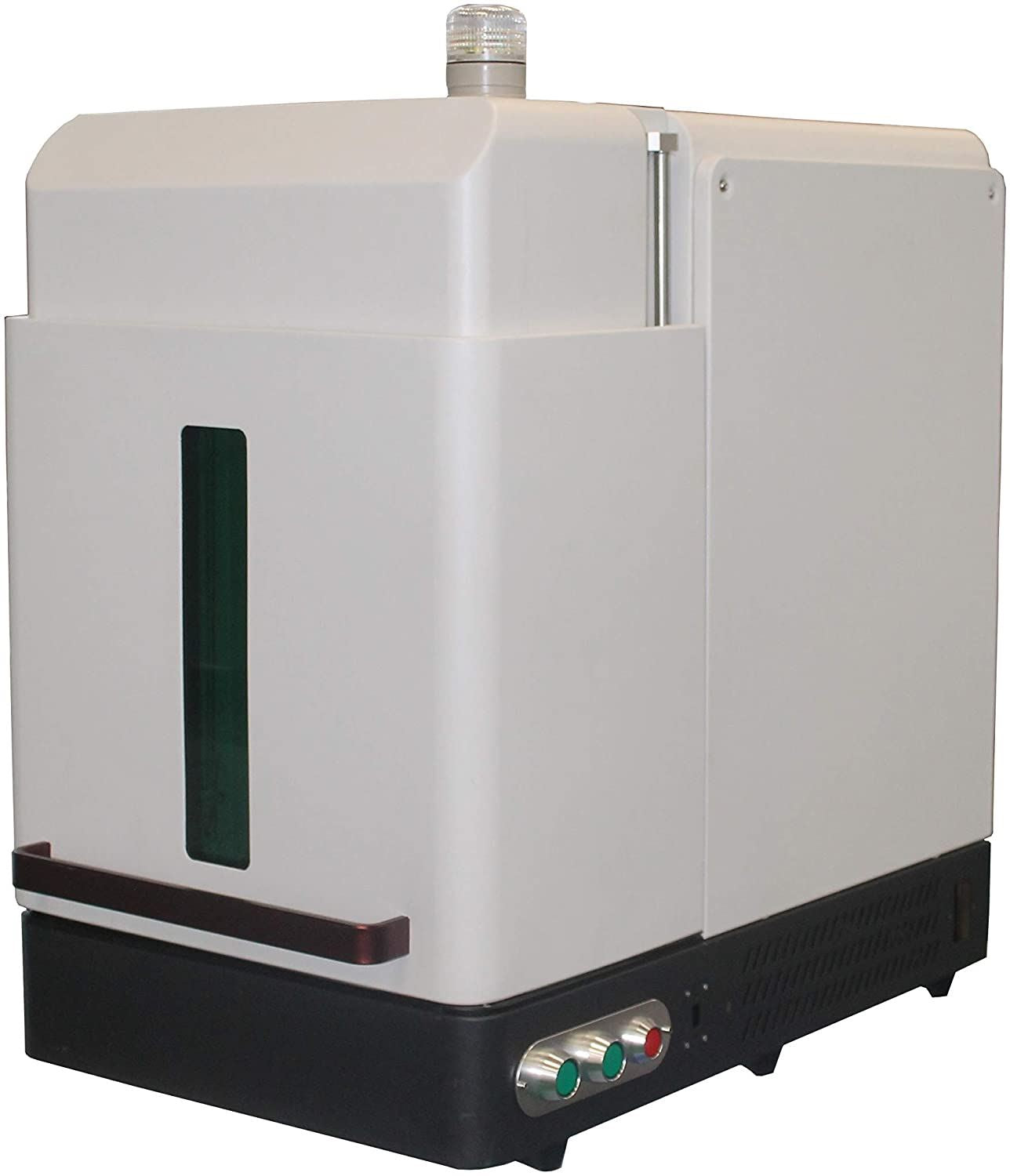

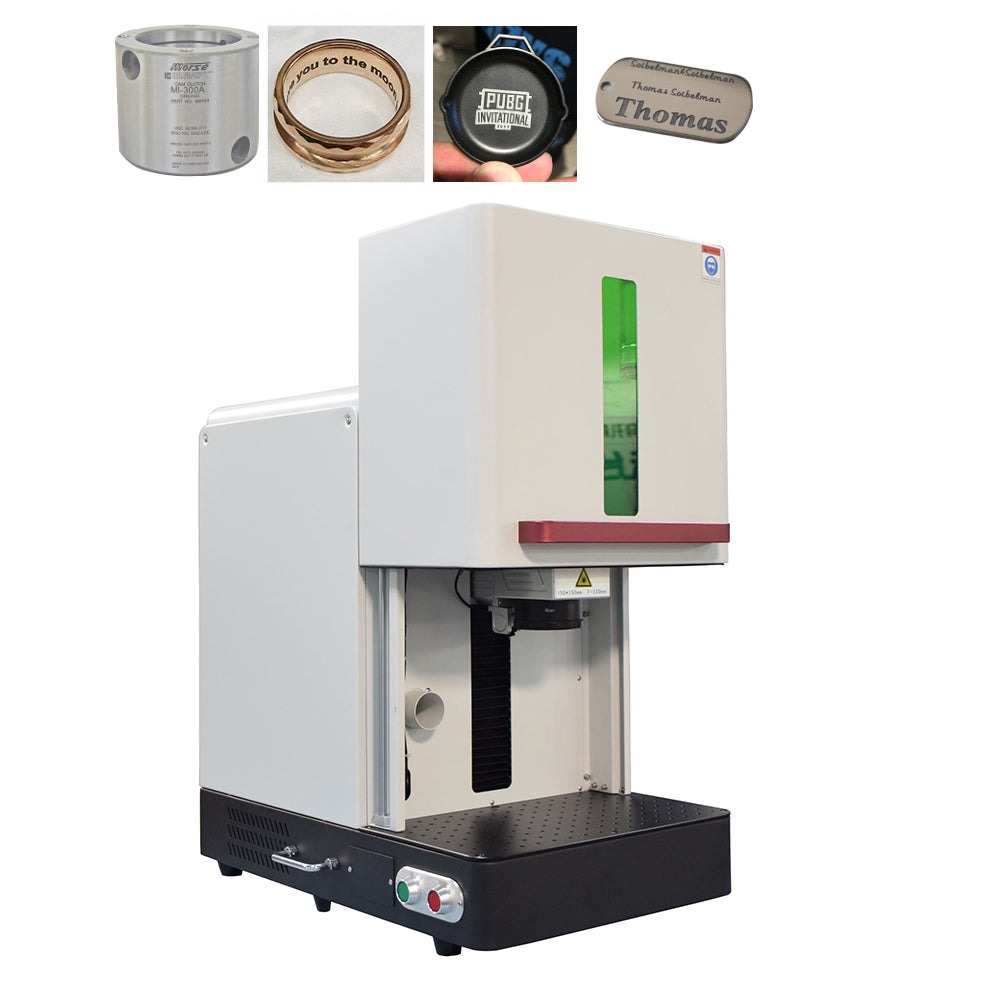

Enclosed Fiber Laser Engraver 20/30/60/80/100W JPT Mopa Laser Marking Machine for metal Engraving

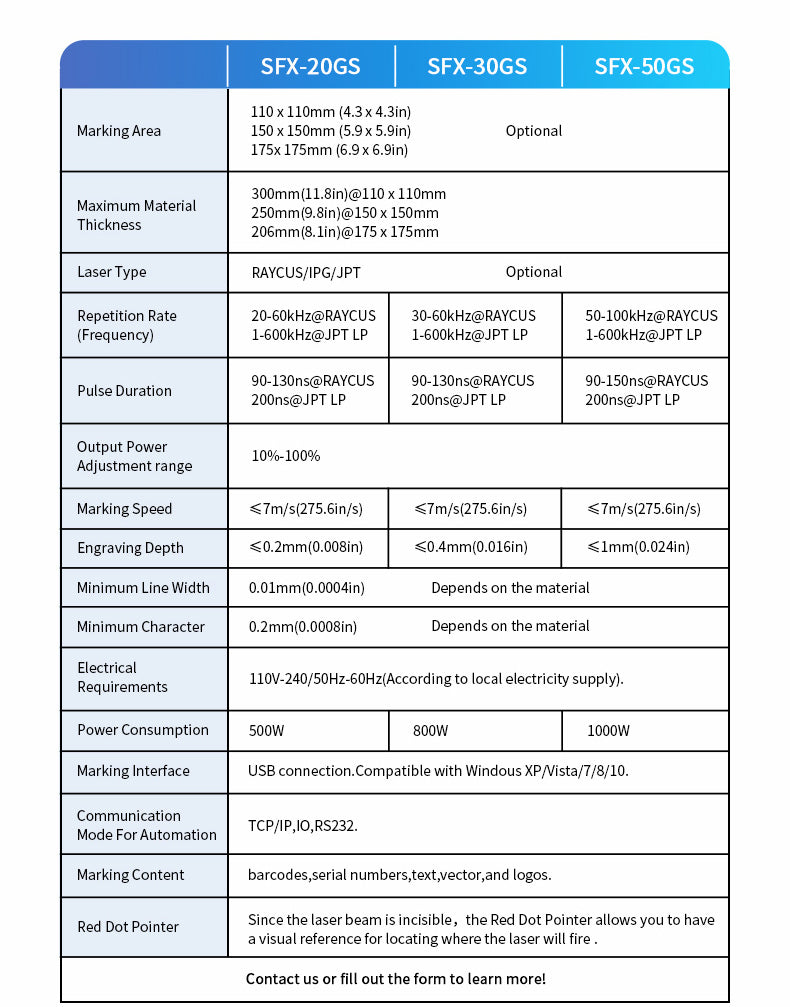

Parameters

• Laser Source: 20W/30W/50W/60W/80W/100W YDFLP-M7-M-R JPT MOPA M7
• Adjustable Frequency Range: 1-4000kHz
• Pulse Width: 2-350ns for 20W 30W ,2-500ns for 60W 80W 100W
• Marking Speed:≤7m/s(275.6in/s)
• Single Pulse Energy:0.8mj for 20W and 30W Fiber Laser Engraver,1.5mj for 60W 80W 100W Fiber Laser Engraver
• Output Power Adjustment Range: 10%-100%
• Electrical Requirements: 110V-240V/50Hz-60Hz
• Power Consumption: 500W/800W/1000W

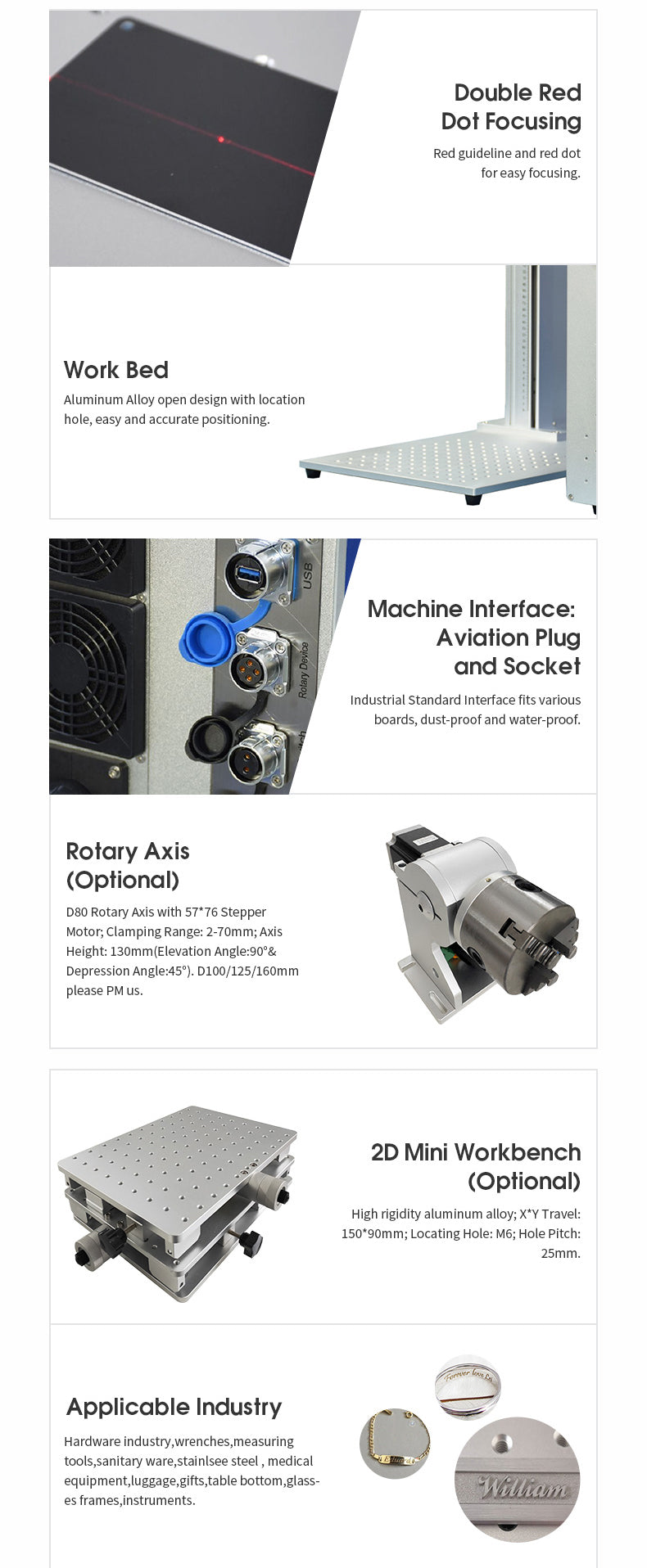

• Rotary Axis: D69/D80/D100/D125mm Optional
• Software:EZCAD2 (Lightburn Compatible) / EZCAD3
• Communication Mode for Automation: TCP/IP, IO, RS232
• Marking Content: Barcodes, Serial Numbers, Text, Vector, Logos
• Marking Interface: USB Connection. Compatible with Windows XP/Vista/7/8/10/11
• Re-position Precision: 0.002mm; High-Rate of Electrical-Optical Conversion: 70%
• Minimum Line Width 0.01mm(0.004in); Minimum Character 0.02mm(0.008in)
• Engraving Depth: 20W≤0.2mm(0.008in)/ 30W≤0.4mm(0.016in)/ 50W≤1mm(0.039in)
• Marking Area(Lens): 70*70mm()110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)
• Maximum Material Thickness: 300mm/250mm/206mm

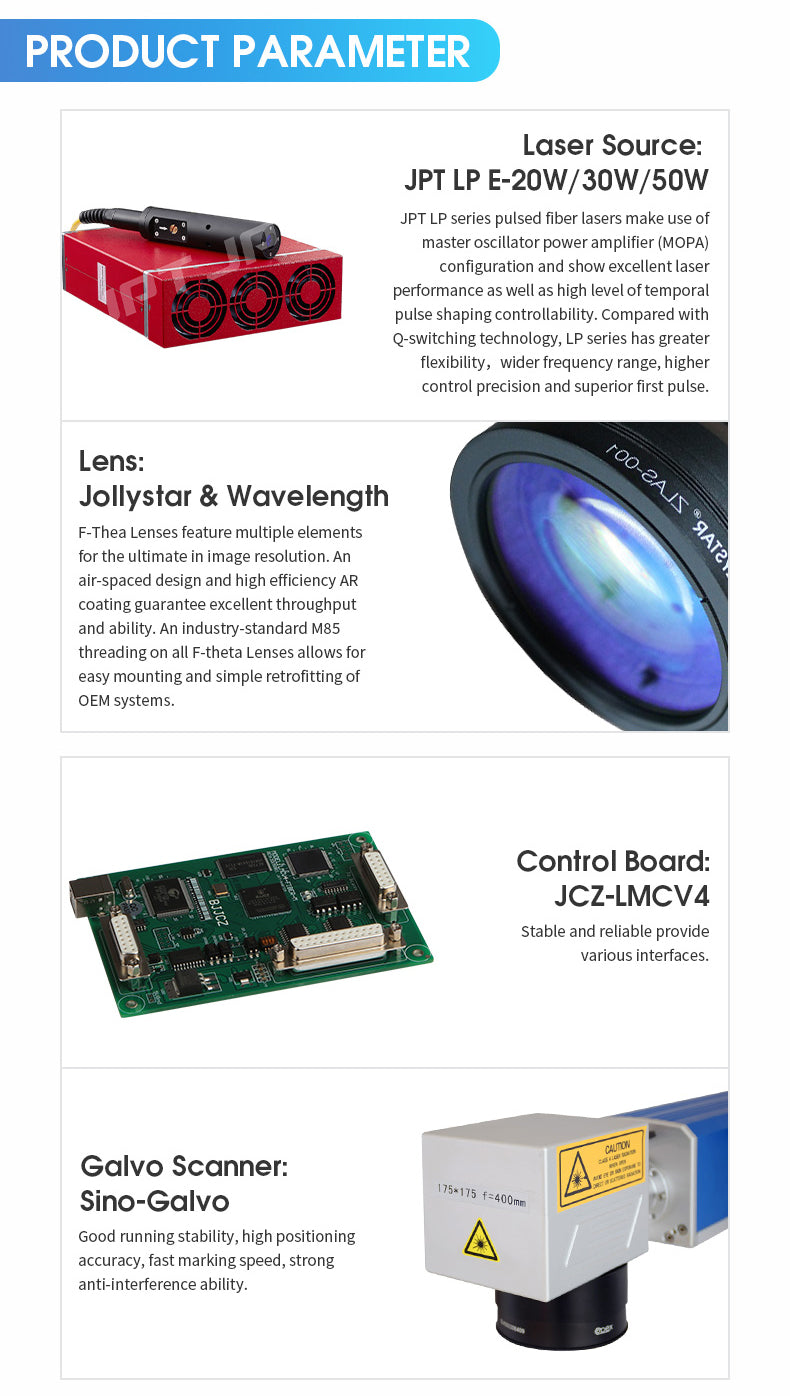

Lens

• Thea Lenses feature multiple elements for the ultimate in image resolution.
•  An air-spaced design and high efficlency AR coating guarantee excellent throughput and ability.
•  An lndustry-standard M85 threading on F-theta Lenses allows for easy mounting and simple retrofitting of OEM systems

Laser source

• J PT MOPA M7,JPT LP series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration and ShOW excellent laser performance as well as high level of temporal pulse shaping controllabillty
• Compared with Q-switching technology, LP series has greater flexibility, wider frequency range, higher control preclsion and superior first pulse.

Applicable Material.Aluminum,stainless Steel, Brass, Copper Etc.also Some of Nonmetal Such As Nylon ,Light button, ABS,PVC,PES etc.

Applicable Industry:Hardware Industry,Wrenches,Measuring Tools,Jewelry,Stainlsee Steel,Luggagegifts,Table Bottom, Glasses Frames.

Warranty and Delivery

• 2 Years Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Air to Door Around 5 to 10 Days. No Import Duty for American Customers.
• Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video.
