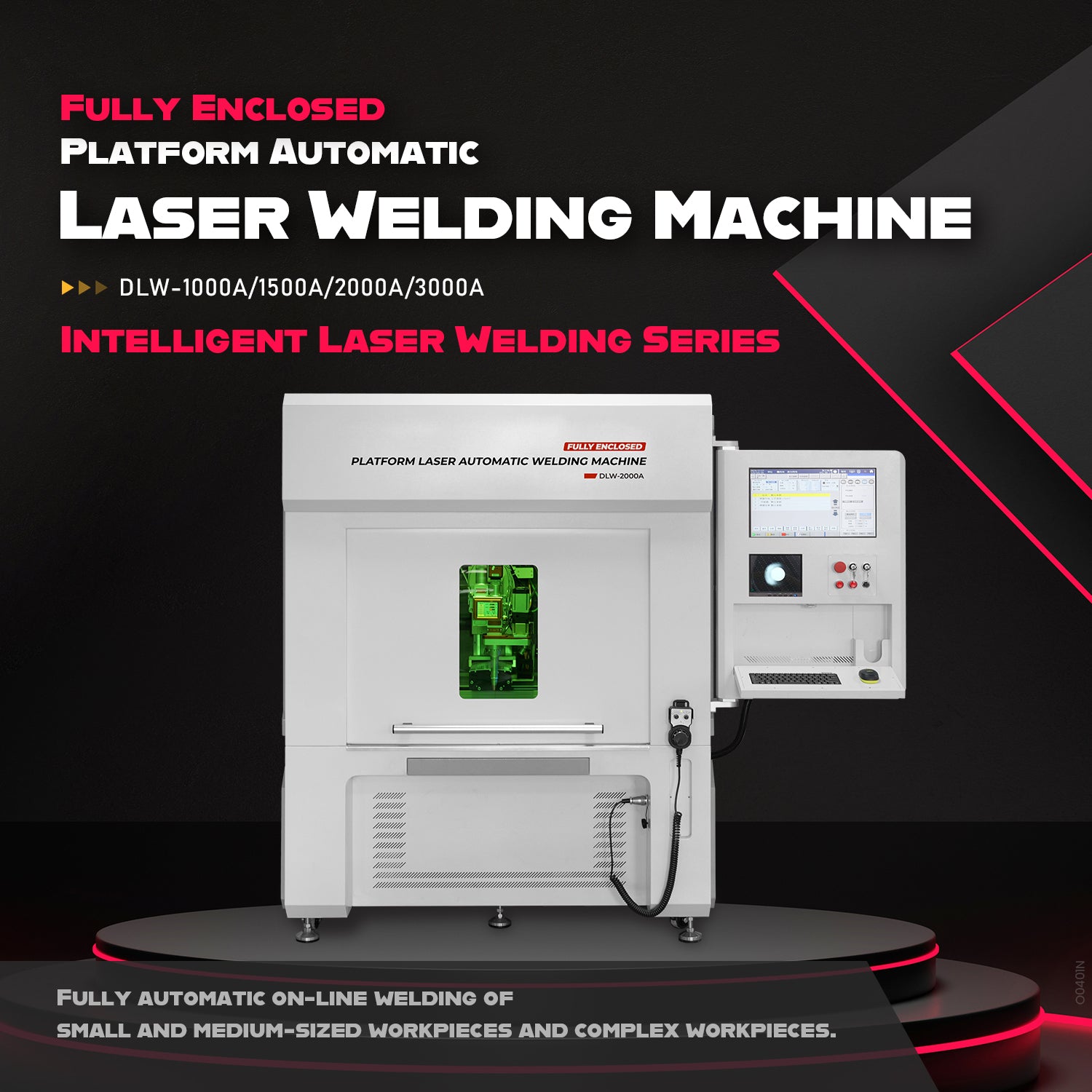

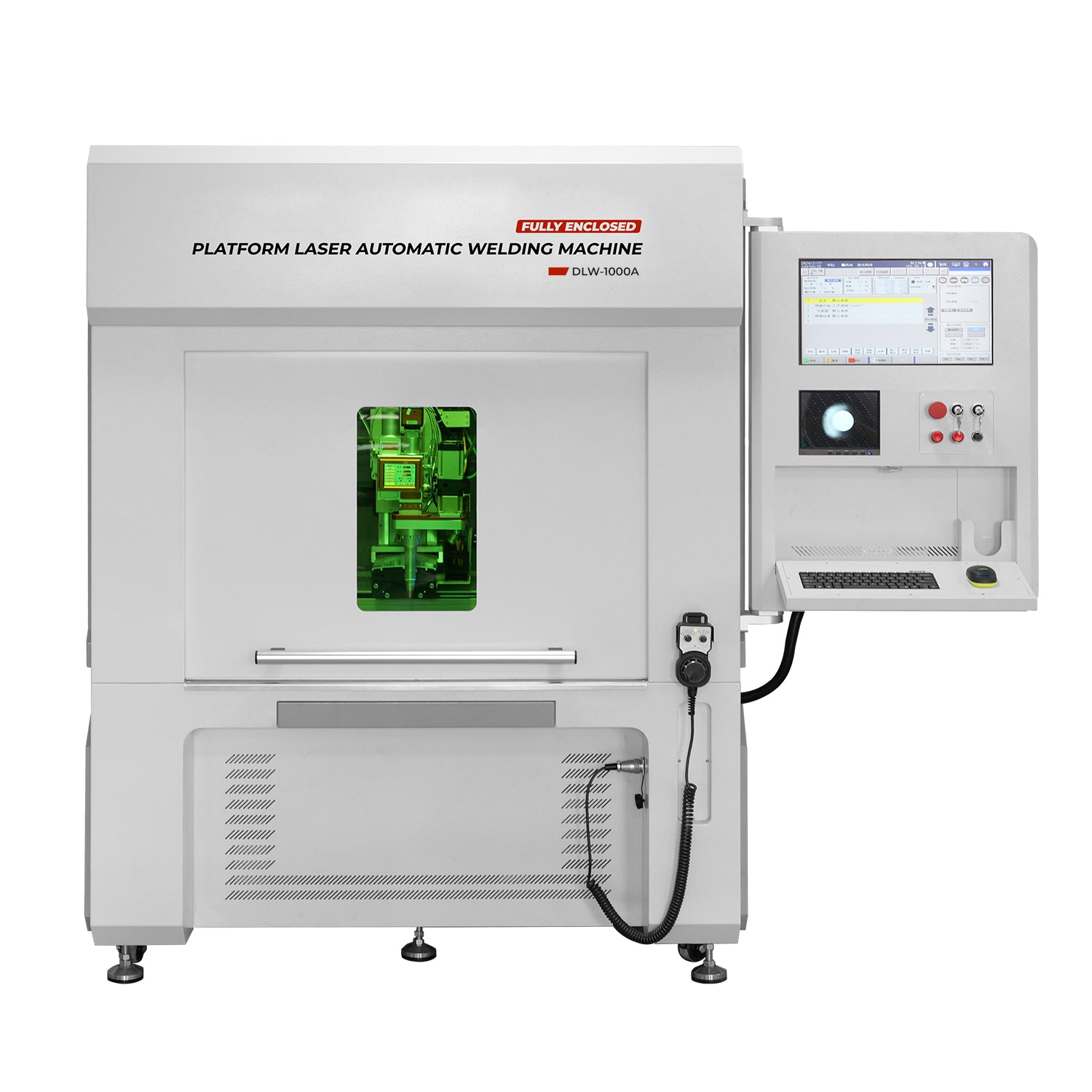

Fully Enclosed Platform Automatic Laser welder 1000/1500/2000/3000W 7Axis Linkage laser Welding machine Automatic fiber laser welder for metal

Fully enclosed platform laser welding machine,with 7 axis for youtr choice,has a wide application range, making it suitable for small and medium-sized workpieces as well as complex workpieces.

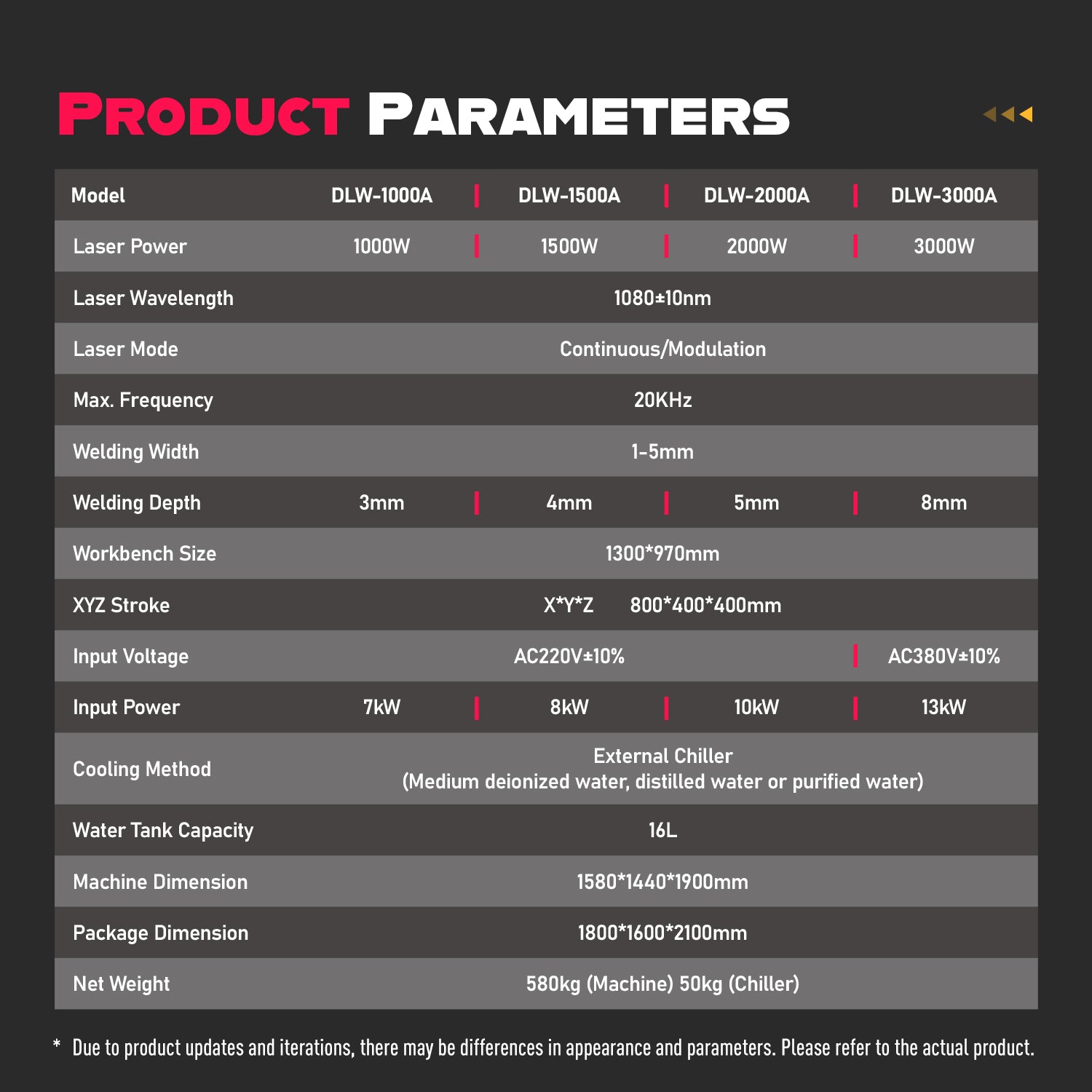

Parameters:

• Laser power 1000/1500/2000/3000W
• Laser wavelength:1064±10nm
• Laser mode:continuous/modulation
• pulse width:10-500ns
• Max frequency20khz
• Welding width 1-5mm
• Welding depth 3mm for 1000W,4mm for 1500W,5mm for 2000W,8mm for 3000W;
• Input power:7kw for DLW-1000A,8kw for DLW-1500A,10kw for DLW-2000A,13kw for DLW-3000A
• Workbench size 1300*970mm
• XYZ stroke:800*400*400mm
• Input voltage:AC220V±10%
• Cooling method:External chiller
• Water tank capacity 16L
• Machine dimension:1800*1600*2100mm
• Net weight:580kg(machine),50kg(chiller)

Advantages:

• Equipped with a highly efficient fully automatic on-line welding system, allowing for seamless and efficient welding processes.
• Featuring intelligent motion trajectory and seven-axis linkage, our automatic welding machine provides unparalleled flexibility in adapting to various complex working conditions.
• Accurate Positioning Focus Batch Welding,Featuring intelligent motion trajectory and seven-axis linkage, our automatic welding machine provides unparalleled flexibility in adapting to various complex working conditions

Features:

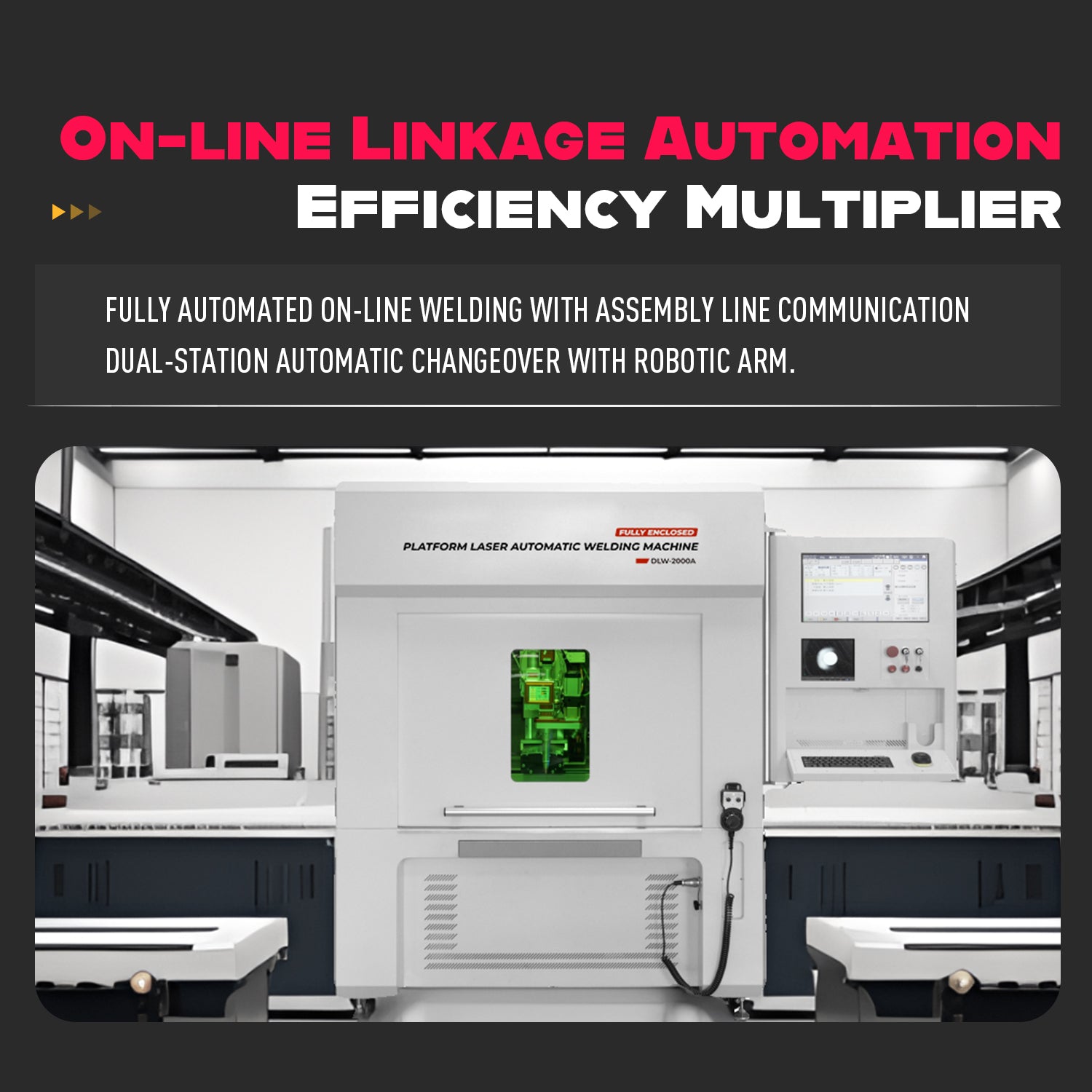

[Fully Automatic On-line Welding]Our platform welding machine is equipped with a highly efficient fully automatic on-line welding system, allowing for seamless and efficient welding processes. With on-line linkage automation and assembly line communication, this machine offers a significant boost in productivity. The dual-station automatic changeover with robotic arm ensures smooth and uninterrupted operation,has a wide application range, making it suitable for small and medium-sized workpieces as well as complex workpieces.

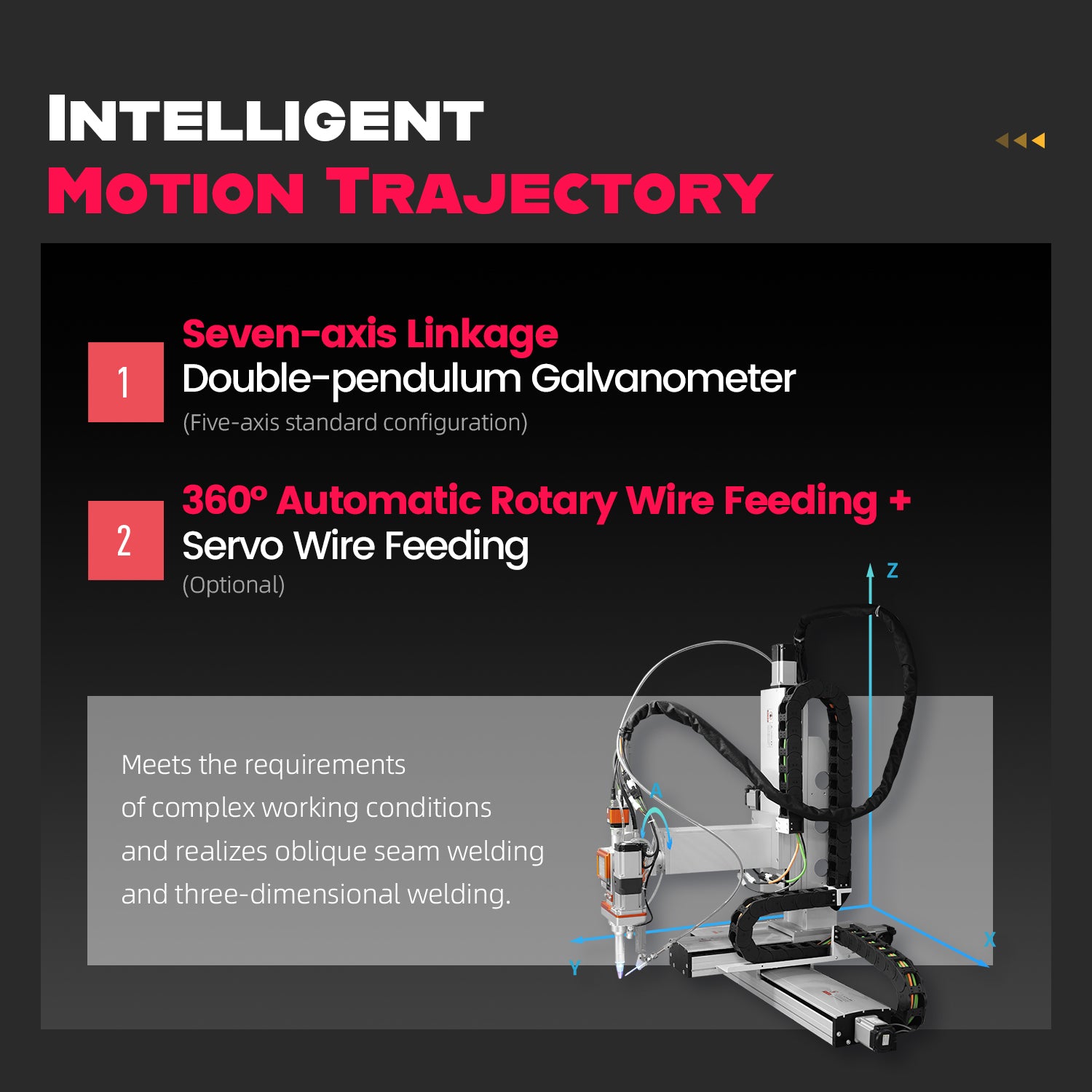

[Seven-Axis Linkage Flexible Operation]Featuring intelligent motion trajectory and seven-axis linkage, our automatic welding machine provides unparalleled flexibility in adapting to various complex working conditions. The double-pendulum galvanometer and 360° automatic rotary wire feeding enable precise and versatile operation. With servo wire feeding, this machine guarantees accurate and reliable results.

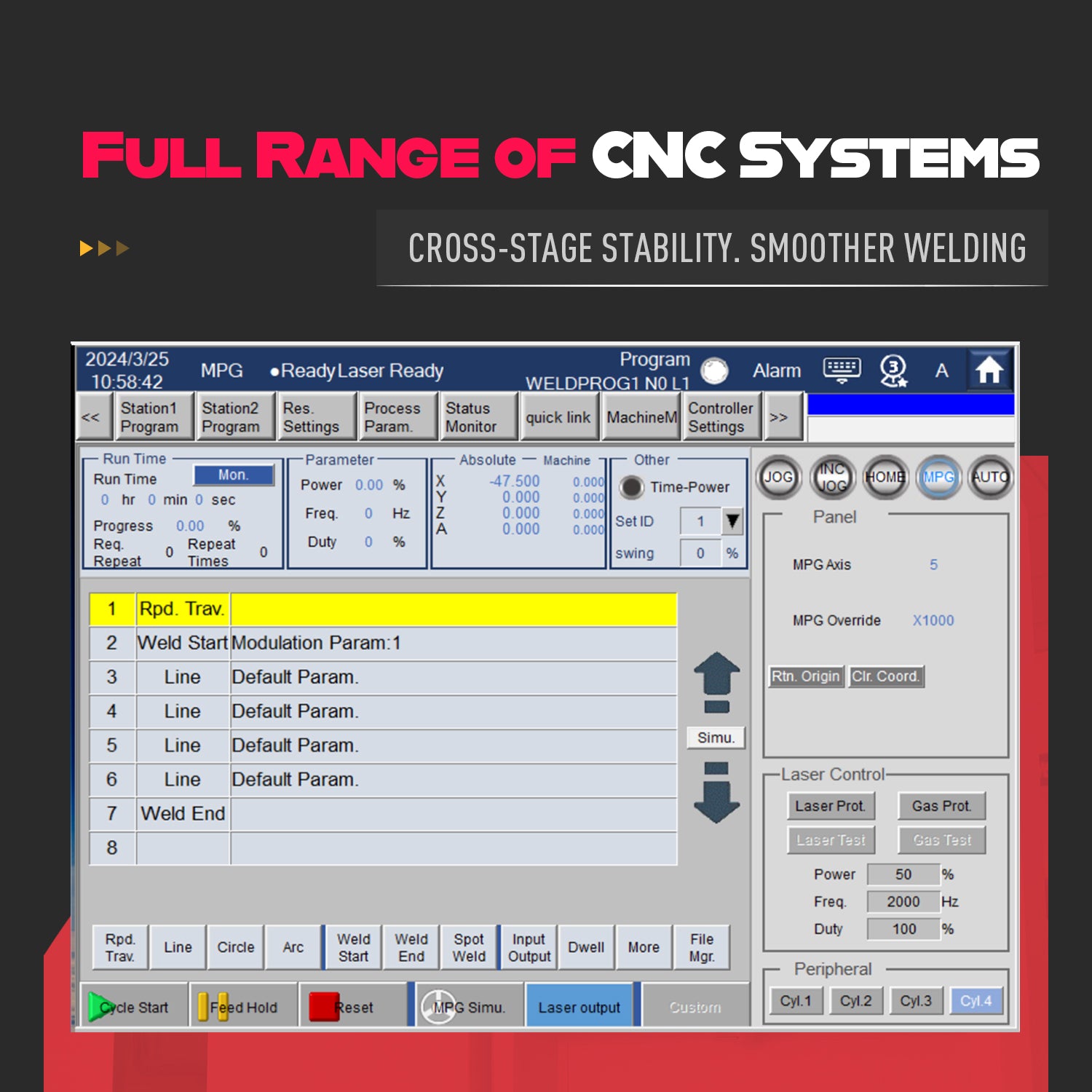

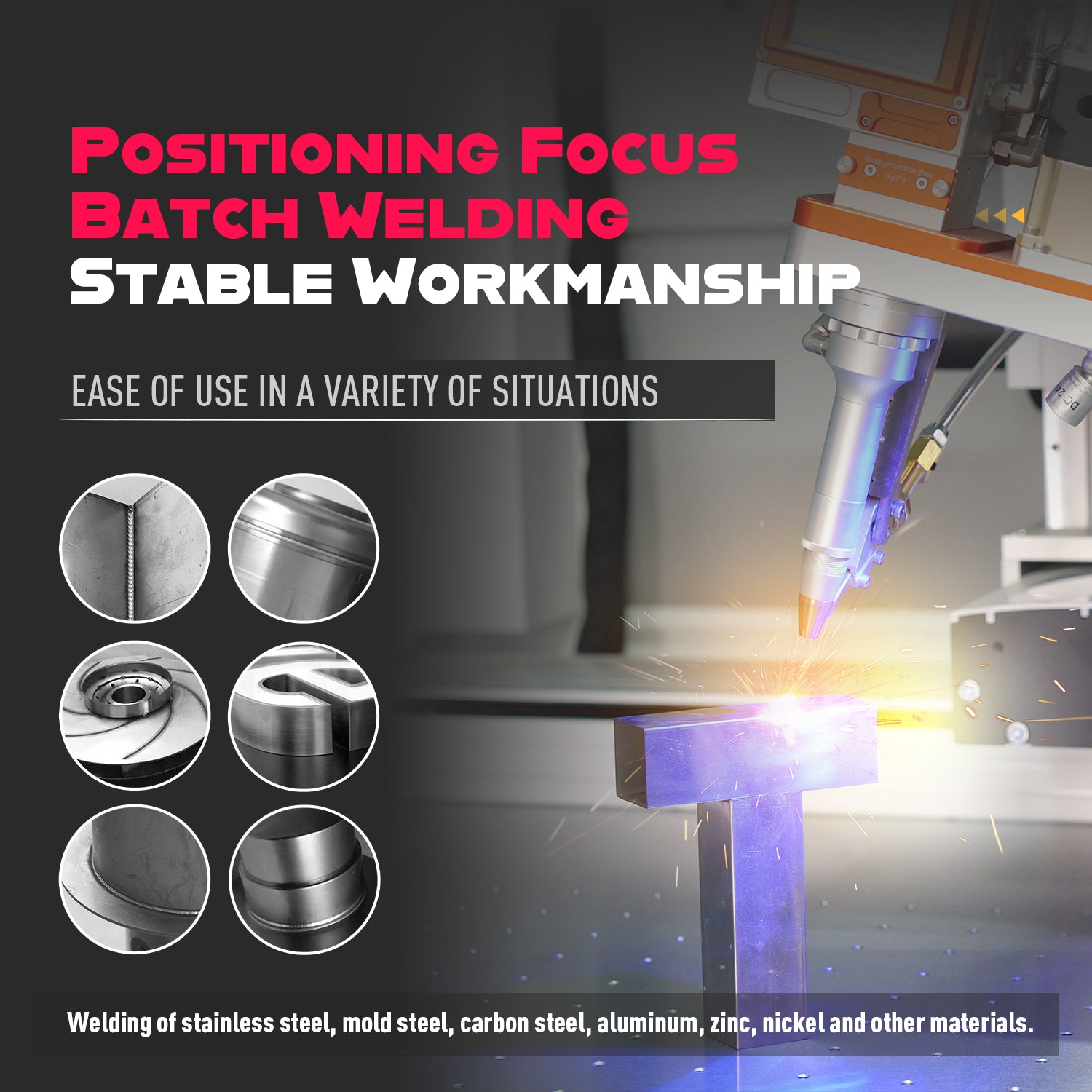

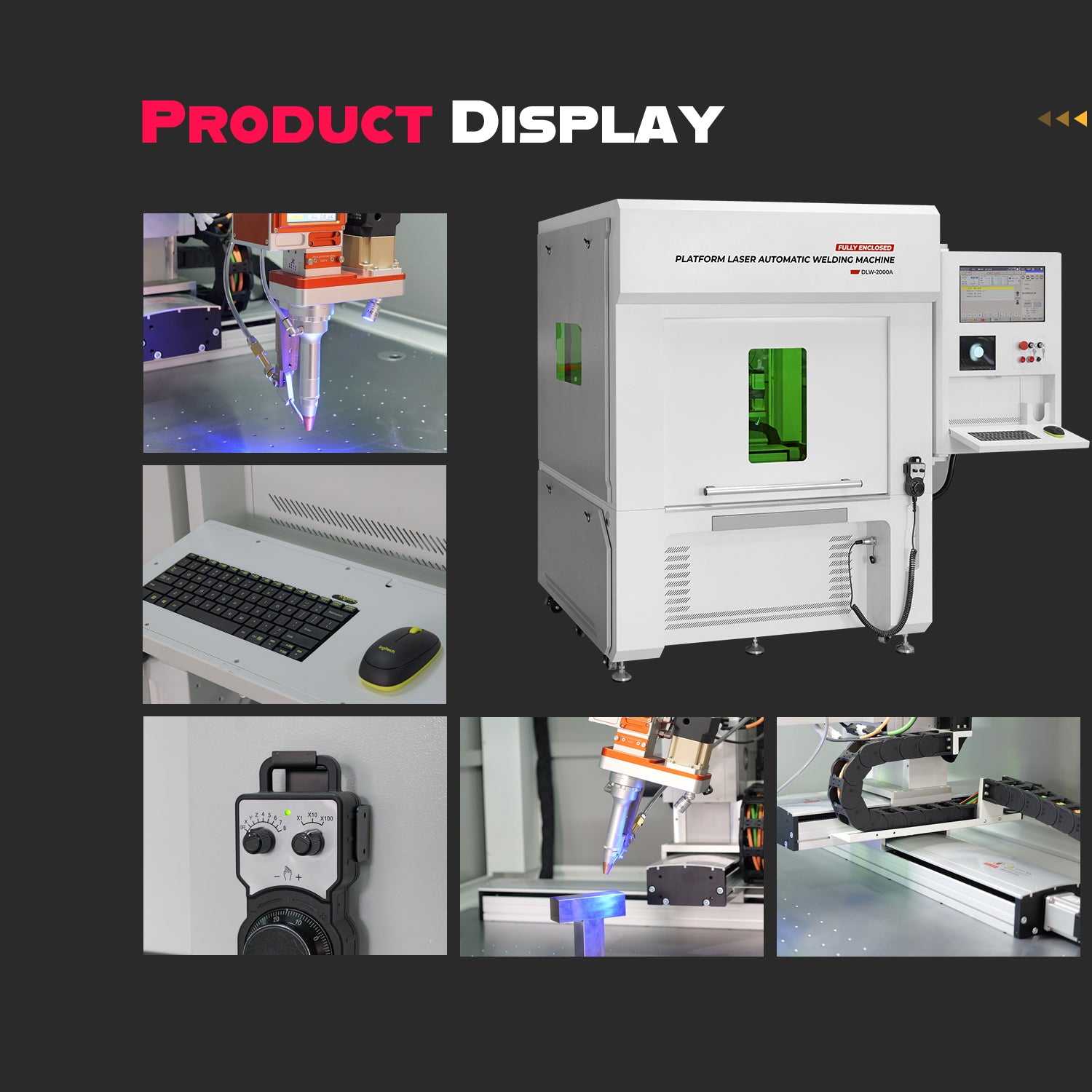

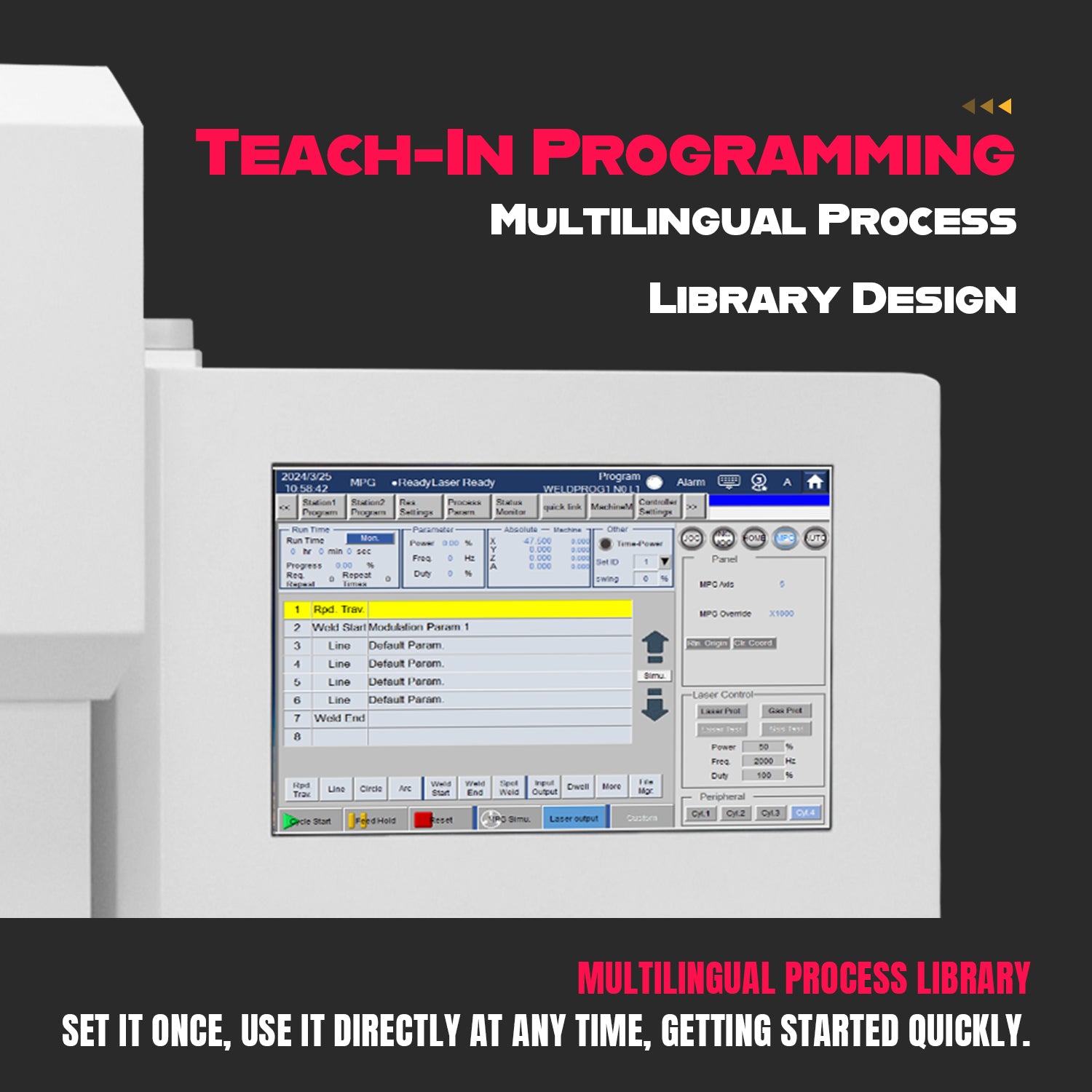

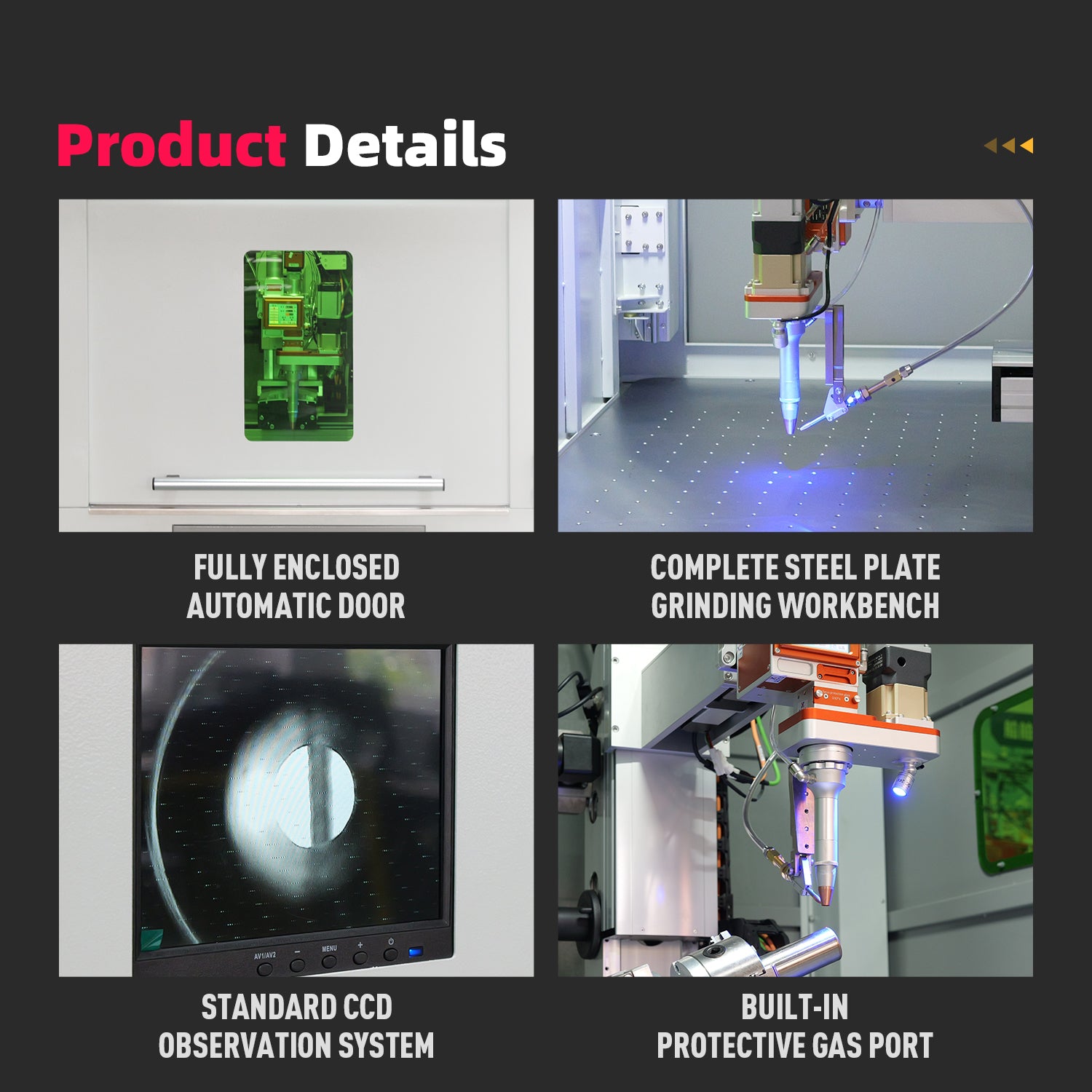

[Accurate Positioning Focus Batch Welding]Our platform welding machine excels in accuracy and ease of use. It is designed for stable workmanship in a variety of situations. The full range of CNC systems and cross-stage stability ensure smooth and precise welding. The teach-in programming and multilingual process library design allow for easy setup and quick start. Once set, the parameters can be used directly at any time.[Perfect Details]Safety and security are paramount in our platform welding machine. The fully enclosed automatic door ensures maximum protection during operation. The complete steel plate grinding workbench provides a sturdy and long-lasting structure. The standard CCD observation system allows for real-time welding effect observation. Additionally, the built-in protective gas port enables automatic outgassing, preventing any damage to the lenses.

Warranty

• 1 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Sea&Truck to Door Around 45 to 60 Days. No Import Duty for American Customers.
• Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video.
