5 Axis Fiber Laser Cleaning Machine 300/500W Robot Automatic Multi mode 300*300mm Automatic fiber laser cleaner for Industrial Use Fiber Laser Metal Rust Removal Cleaning Machine

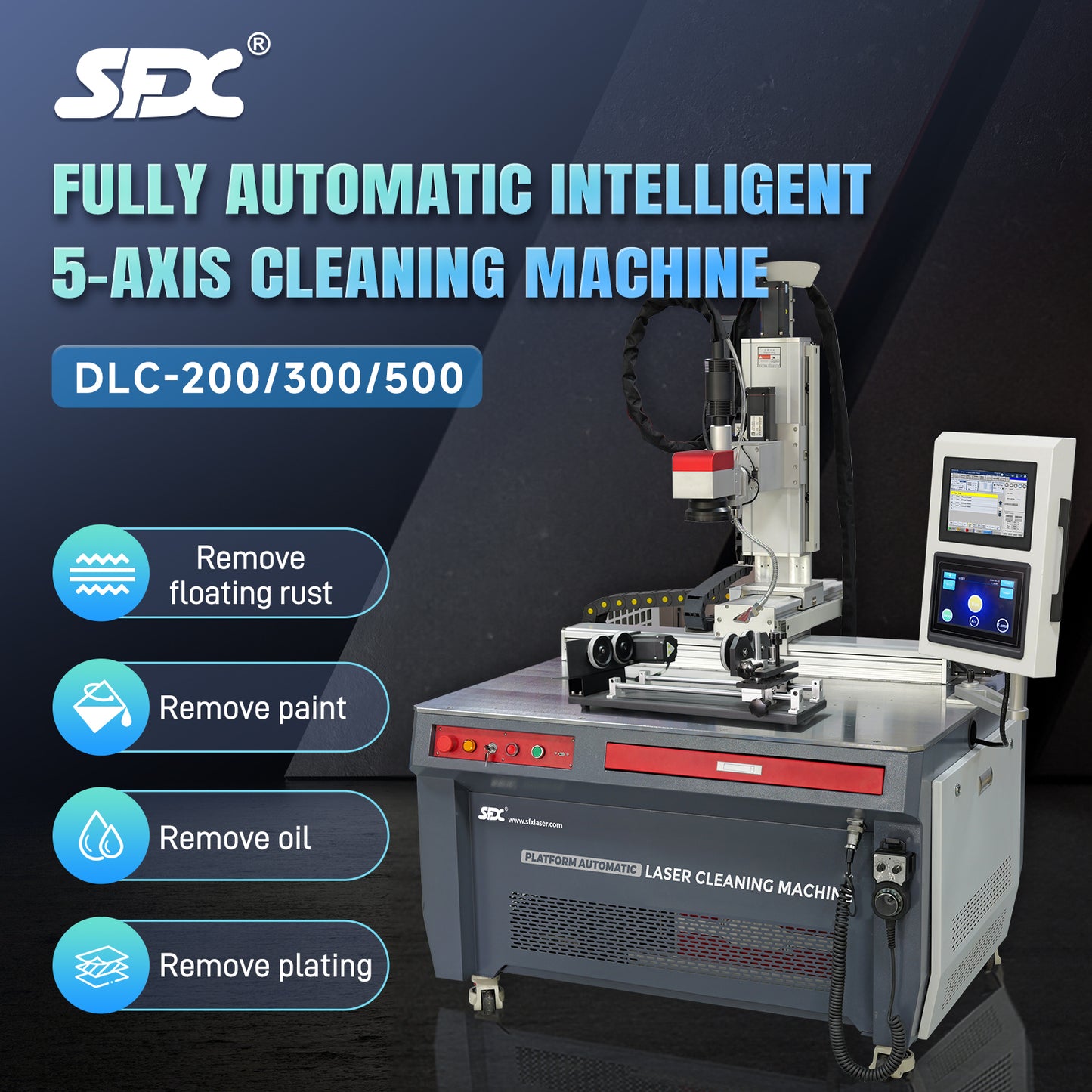

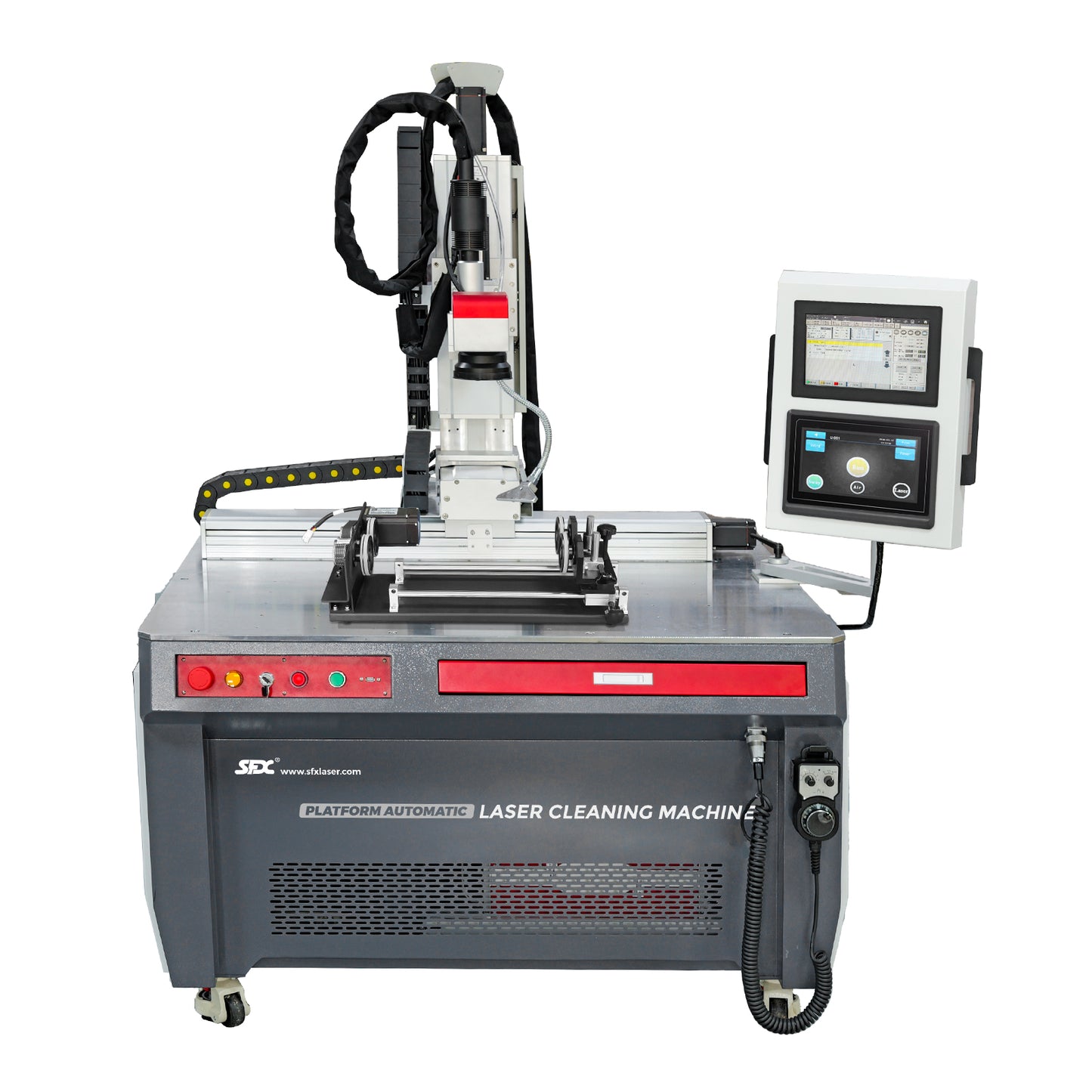

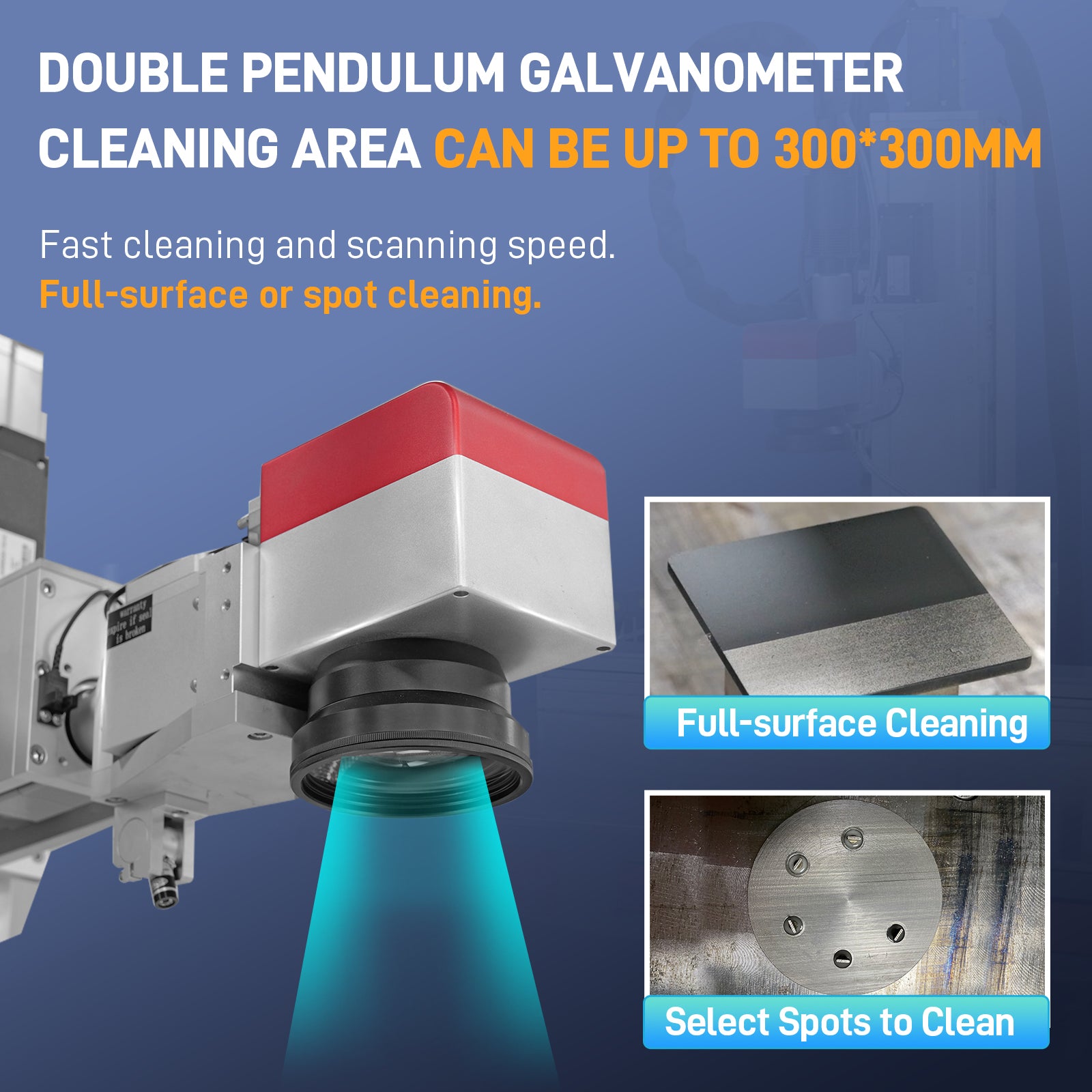

The fully automatic intelligent 5-axis laser cleaning machine. Achieve a uniform cleaning effect and a high glossy finish with this advanced equipment. Featuring a High-Speed Galvanometer system, capable of scanning widths up to 300*300mm with fast scan speeds. Enjoy consistent energy with automatic focus control for stable operation and uniform cleaning results. The machine adopts a modular design for easy teaching programming.

• Laser Power 300/500W;
• Laser Wavelength 1064±10nm;
• Pulse Width 10-500ns;
• Modulation Frequency 1-1000kHZ;
• Cleaning Area 10-250mm/Standard with 330mm lens (optional size 10-175mm/254mm lens,size 10-300mm/420mm lens);
• Table size:1200*1000mm;
• XYZ stroke 800*300*300mm;
• Input voltage:AC220V±10%;
• Input power 3.5kw for DLC-300,5kw for DLC-500;
• Cooling method:Air-cooled/Water-cooled for DLC-300,Water-cooled for DLC500;
• Water tank capacity:16L(need to add water 14-15L);
• Machine size:1200*1000*1700mm;
• Packing size:1800*1400*1900mm;
• Net weight:460kg

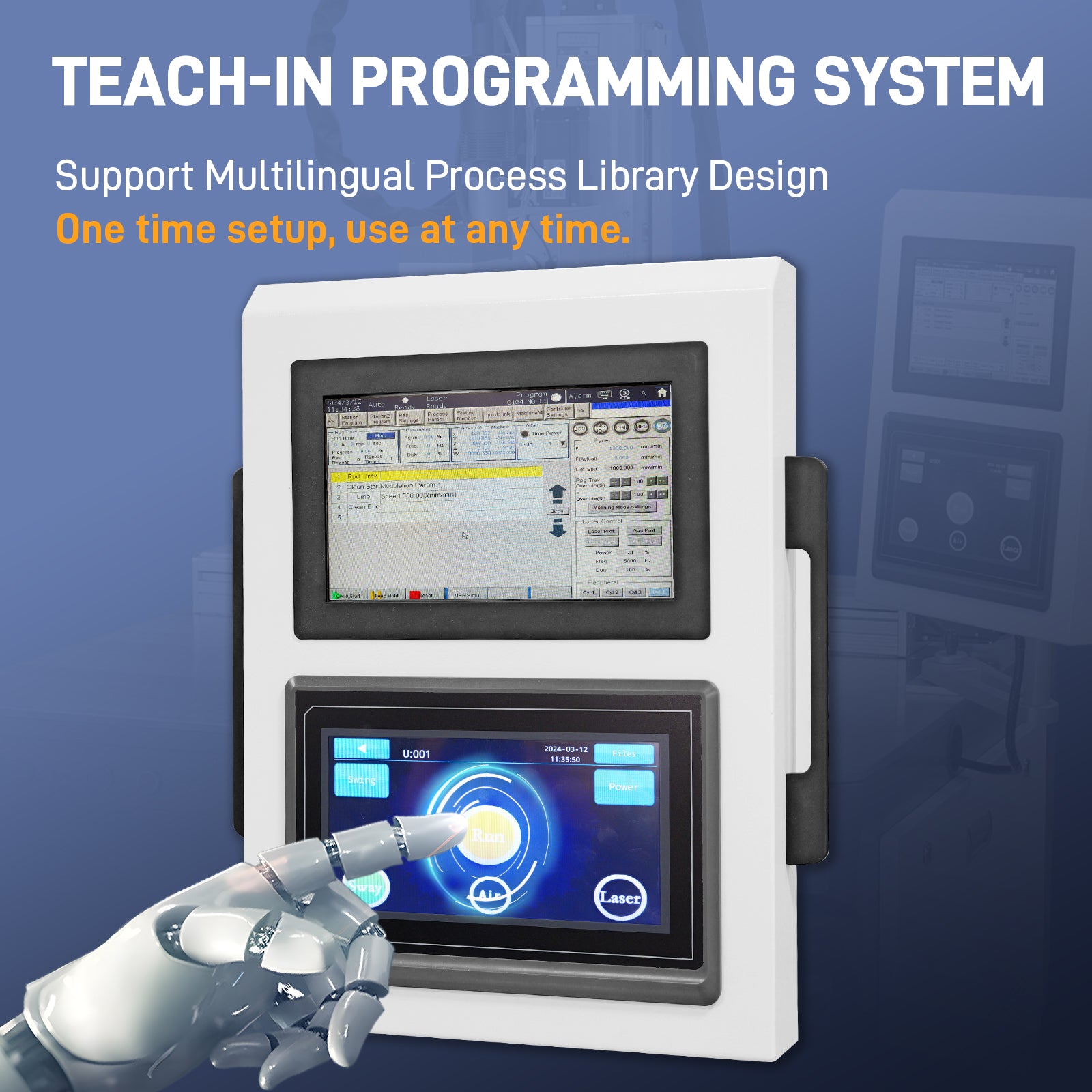

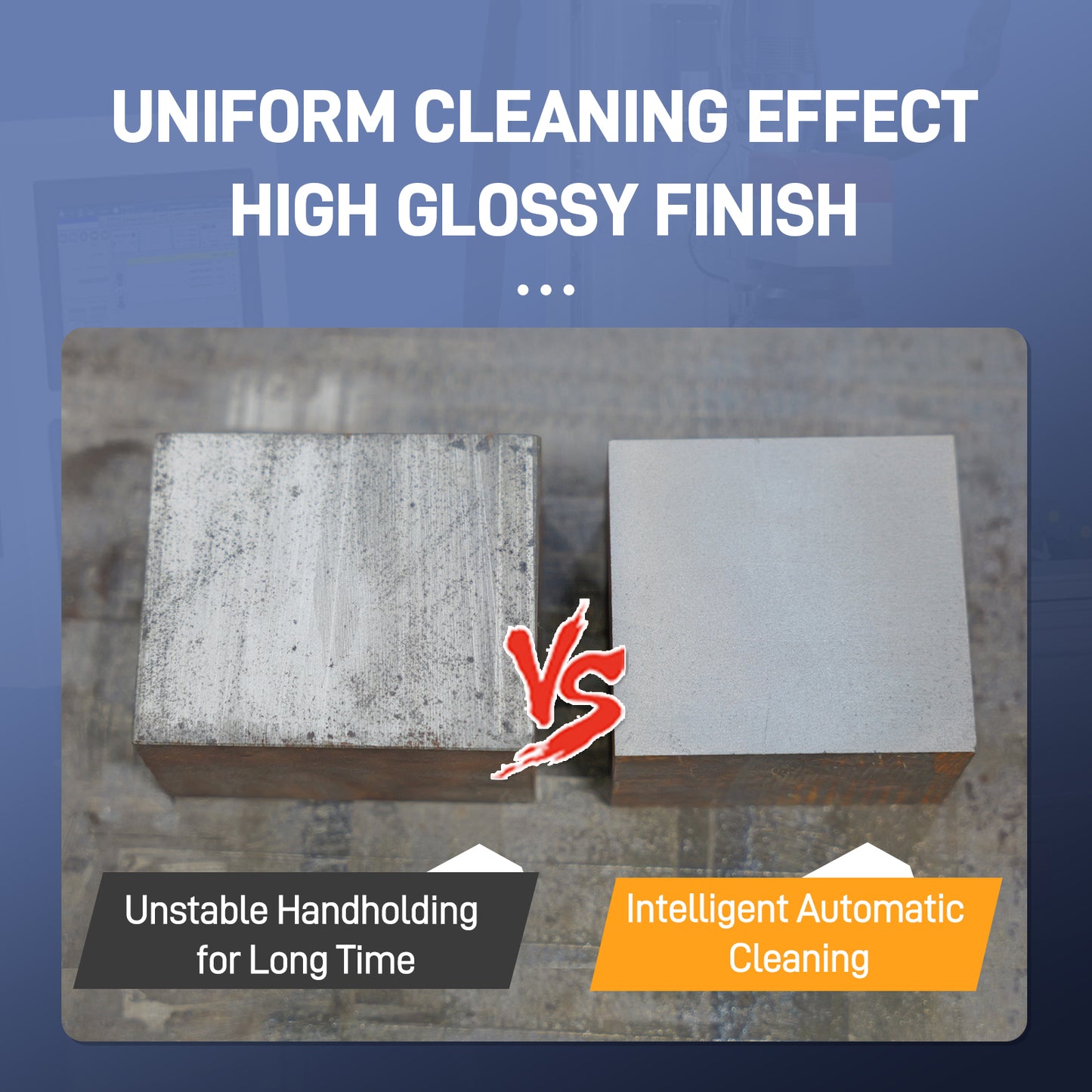

[Uniform cleaning effect high glossy finish]High Speed Galvanometer system,Width up to 300*300mm Fast Scan Speed,Uniform Energy,Consistent energy with automatic focus control,Stable operation,uniform cleaning and high gloss,adopts modular design,Teaching programming easy to operate.

[Stable performance and easy maintenance]High Safety,10 Safety protection and early warning systems,Automated Application,safe and stable;An Instantaneous fuse is installed on the output side,Equipment safety;Integrated thickened sheet metal,All-Round Protection,Good Heat Dissipation

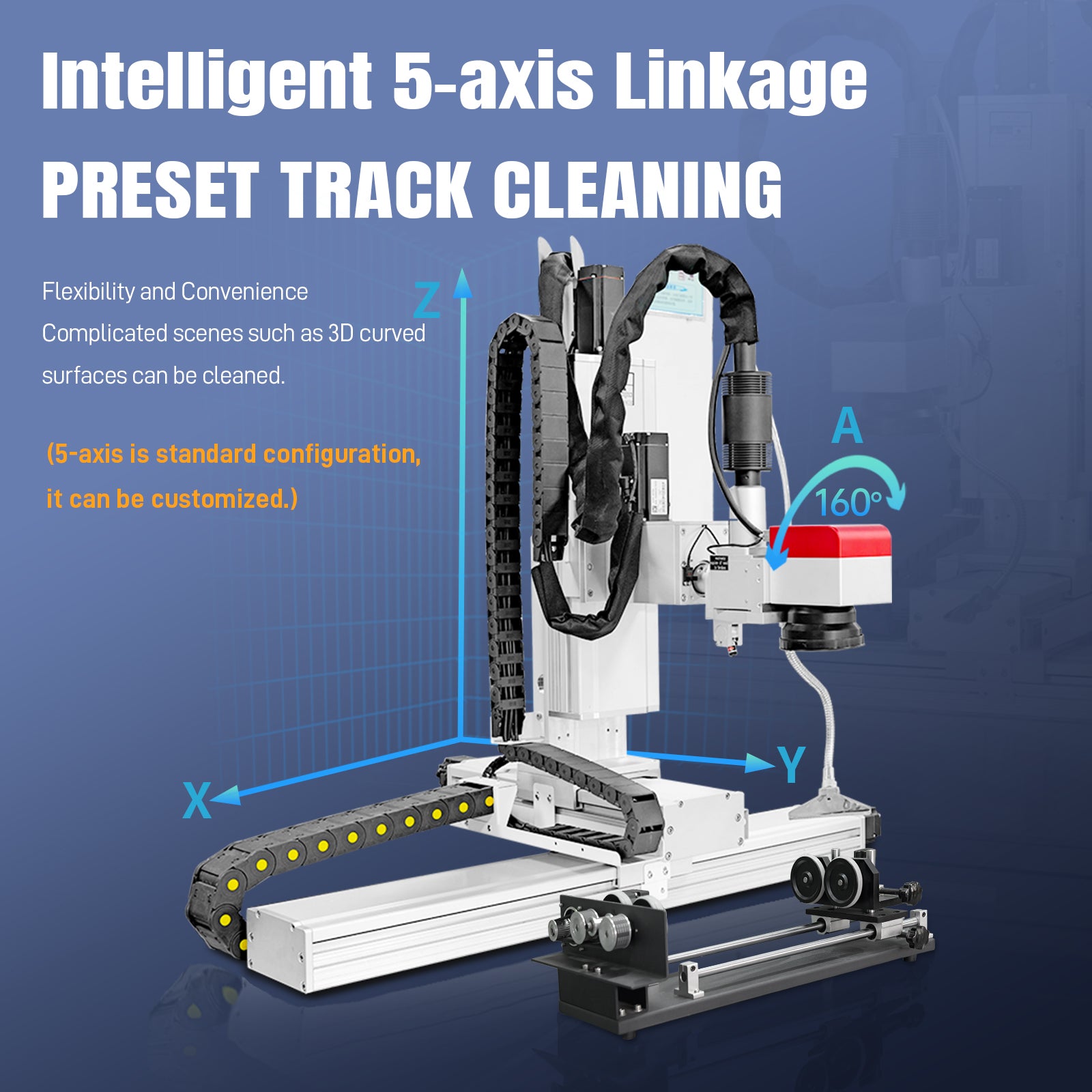

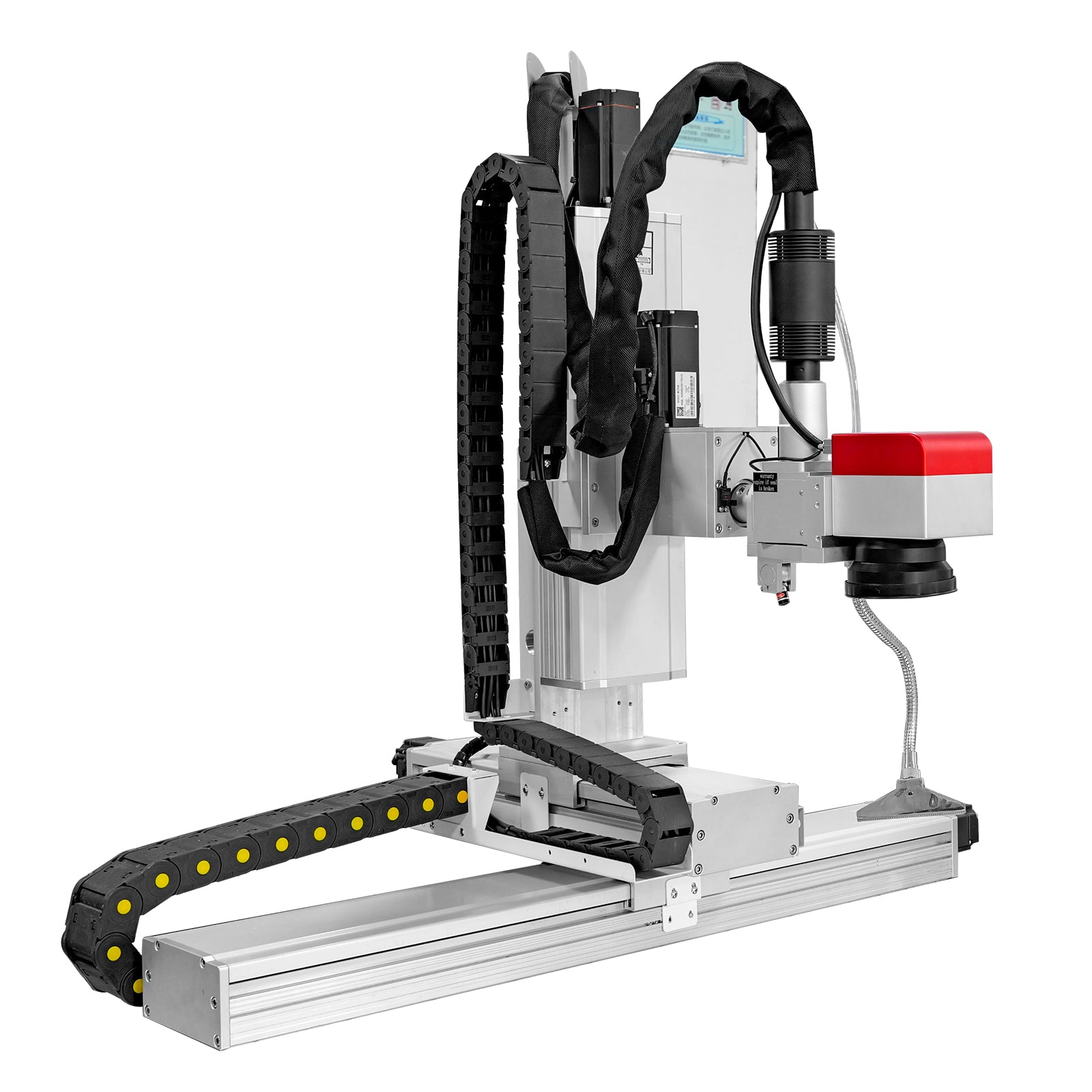

[Intelligent 5 axis linkage preset track cleaning]Digital Matching Cleaning,The Laser Frequency,galvanometer,and axial speed are matched,resulting in a high level of efficiency and no blind spot;Digital Laser Control,Eight difference graphics to choose from to meet complex cleaning conditions;Intelligent three-axis linkage,(Customizable five-axis),Flexible and Convenient for complex cleaning scenes such as three-dimensional curved surface cleaning.

Widely used in metal surface rust removal,rubber residue removal,grease stain removal,cultural artifacts restoration,remove plating coating,pre-treatment of welded painted surfaces,paint removal and stripping,tire mold residue cleaning.

• 1 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Sea&Truck to Door Around 35 to 50 Days. No Import Duty for American Customers.
• 30% advance payment,70% paid before shipment.
• Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video.
