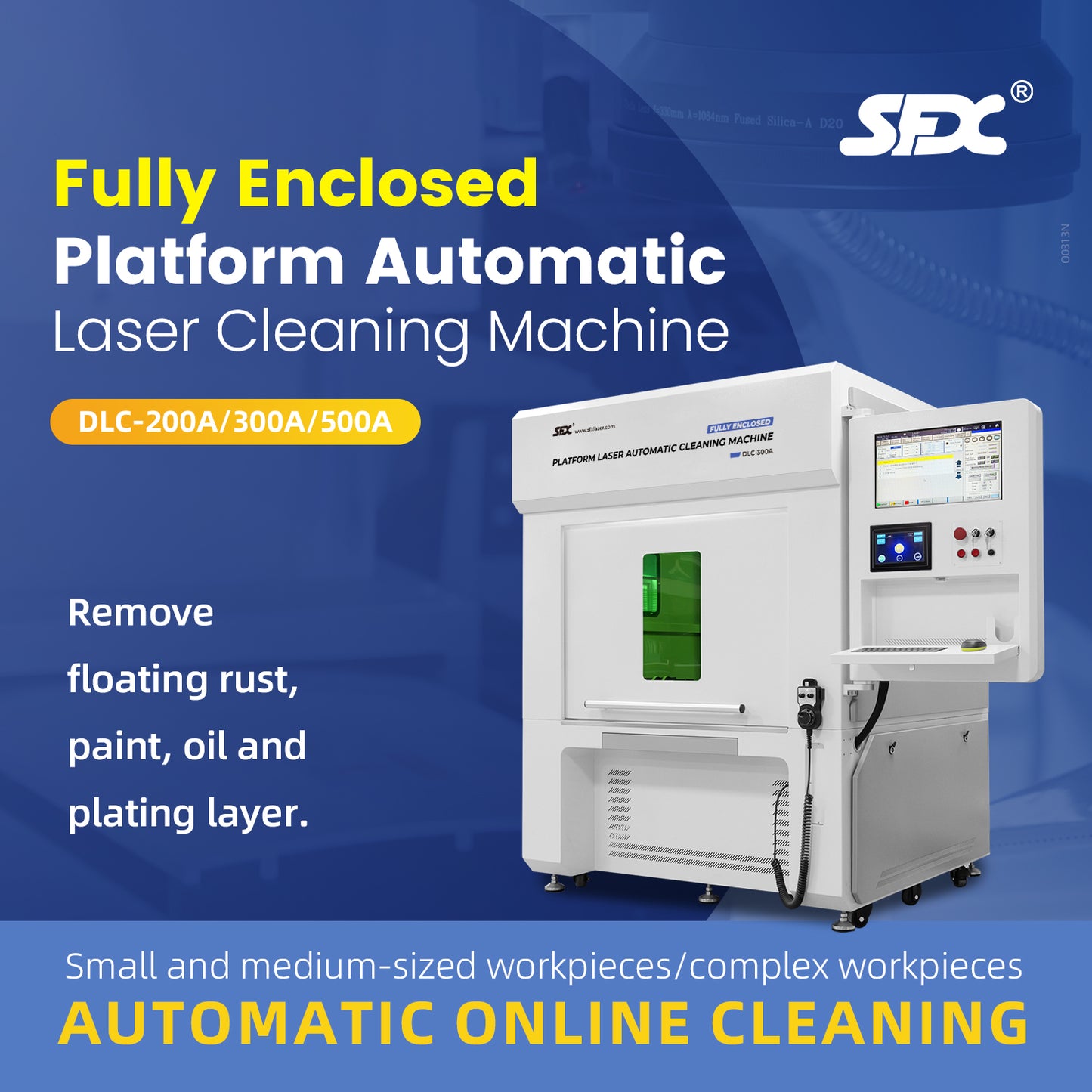

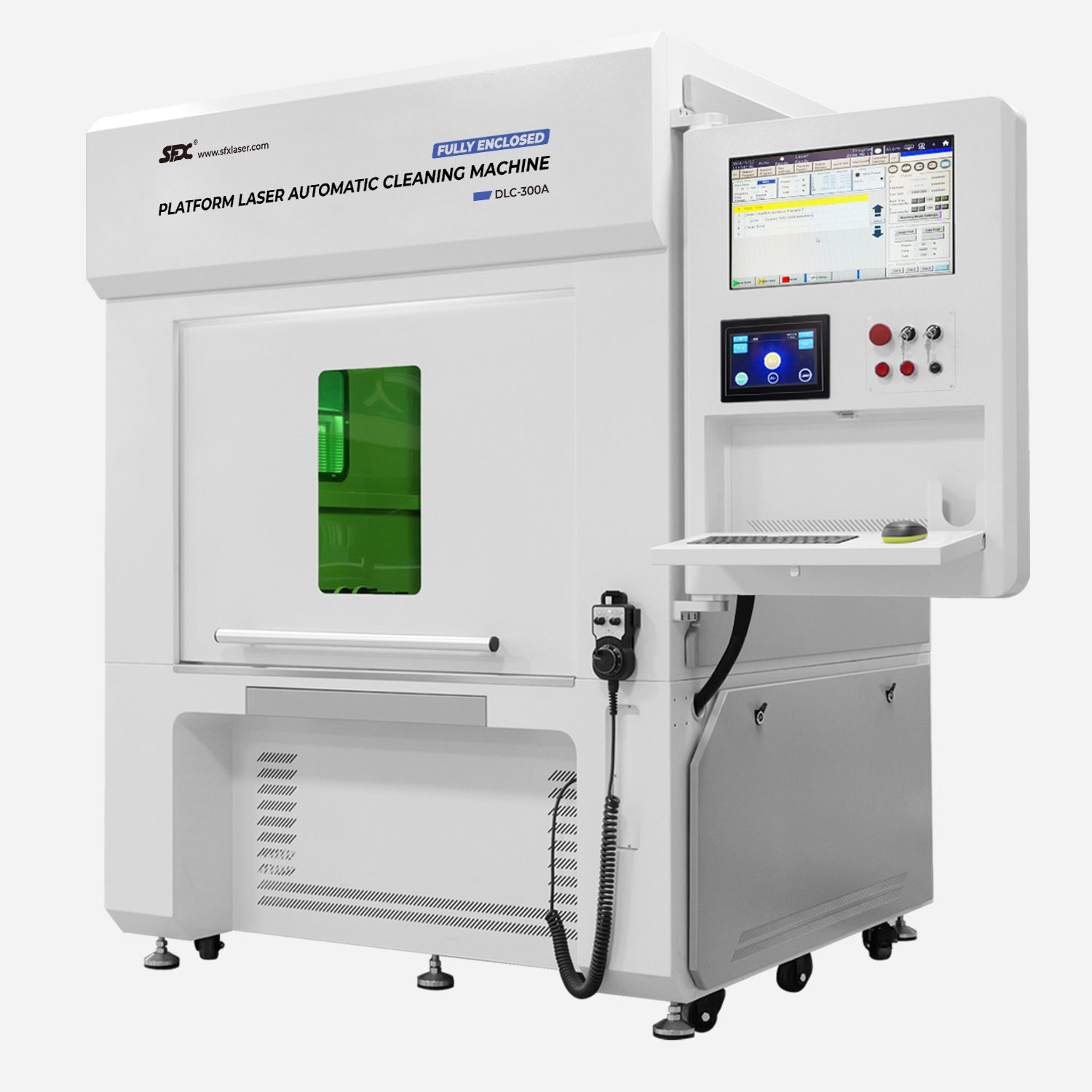

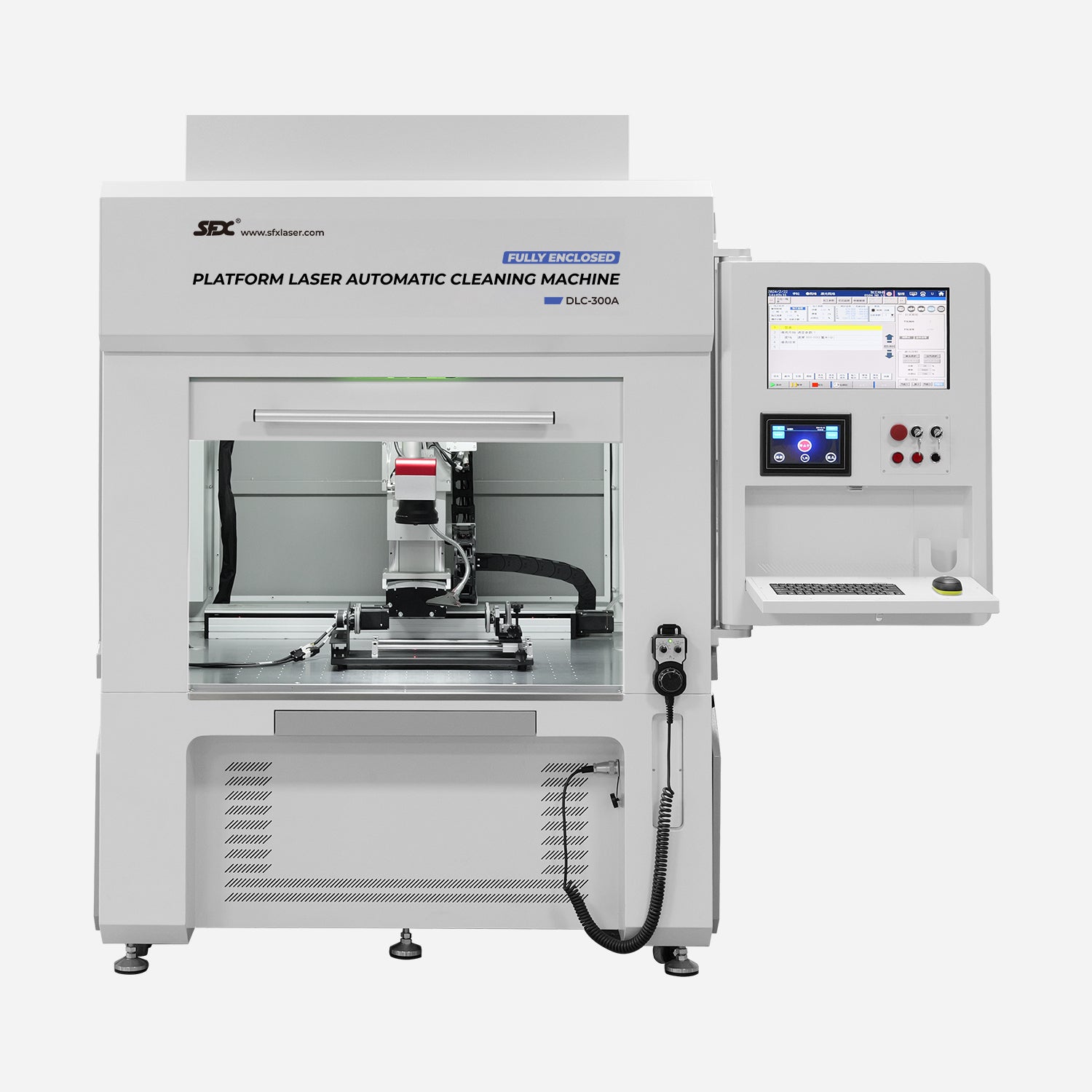

Automatic Fiber Laser Cleaner - 300/500W Fully Enclosed Platform, Single/Multi Mode, 300*300mm, 3 Axis Linkage - Industrial Grade Laser Tool for Removing Paint, Rust, Oil, and Coating

The Enclosed Fully Automatic Laser Cleaning Machine, a cutting-edge solution for precise and efficient cleaning operations.
Advantages:

• Featuring a state-of-the-art fully automatic online cleaning system, this machine is equipped with a communication system and a robotic arm, enabling seamless double-station automatic changeover. Say goodbye to interruptions during cleaning processes with this innovative design that ensures continuous and hassle-free operations.
• Equipped with a 360° rotary axis as a standard configuration, our platform automatic cleaning machine offers unparalleled flexibility to tackle various complex working conditions. With the ability to handle workpieces of up to 800(L)*400(W)*400(H)mm, this machine opens up a wide array of cleaning possibilities.
• Achieve flawless surface finishes with the precise spot cleaning capabilities of our laser cleaning machine. Utilizing the unique double-pendulum galvan multiple light patterns static cleaning technology, it enables both whole surface cleaning and accurate positioning. Enjoy thorough cleaning with a maximum cleaning size of up to 300*300mm.
• Experience the future of cleaning technology with our Enclosed Fully Automatic Laser Cleaning Machine - the ultimate solution for your cleaning needs.

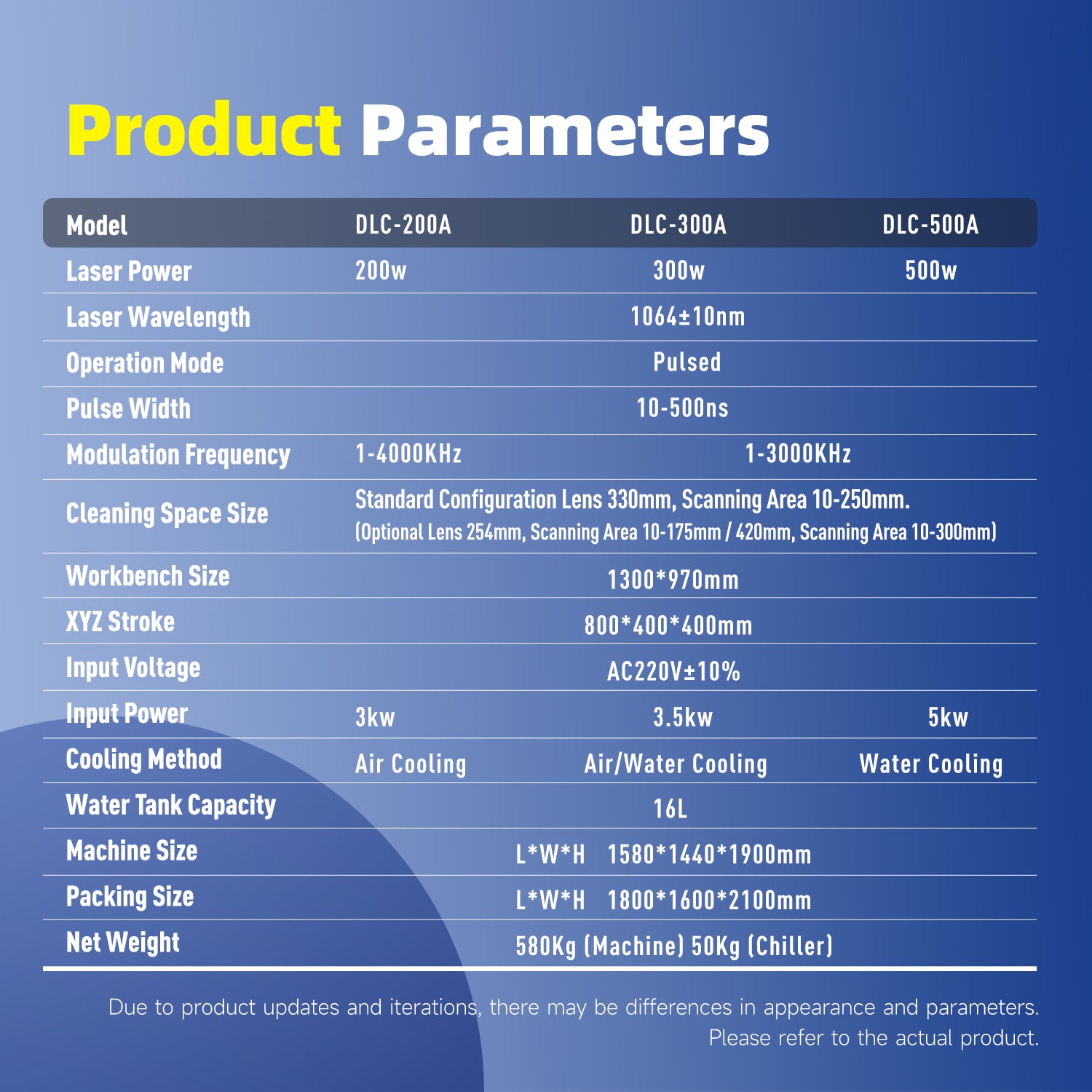

Parameters

• Model:DLC300/500A
• Laser Power 300/500W
• Laser Wavelength:1064±10nm
• Operation Mode:Pulsed
• Pulse Width:10-500ns
• Modulation Frequency 1-3000khz
• Cleaning Space Size:Standard Configuration Lens 330mm,Scanning Area 10-250mm(Optional Lens 254mm,Scanning Area 10-175mm/420mm,Scanning Area 10-300mm)
• Workbench Size 1300*970mm,XYZ Stroke:800*400*400mm.
• Input Voltage:Ac220v±10%
• Input Power 3.5kw/5kw
• Cooling Method,Air/Water Cooling/Water Cooling
• Water Tank Capacity 16L
• Machine Seize L*W*H 1580*1440*1990mm
• Packing Size L*W*H 1800*1600*2100mm,Net Weight 580kg(Machine),560kg(Chiller).

Features:

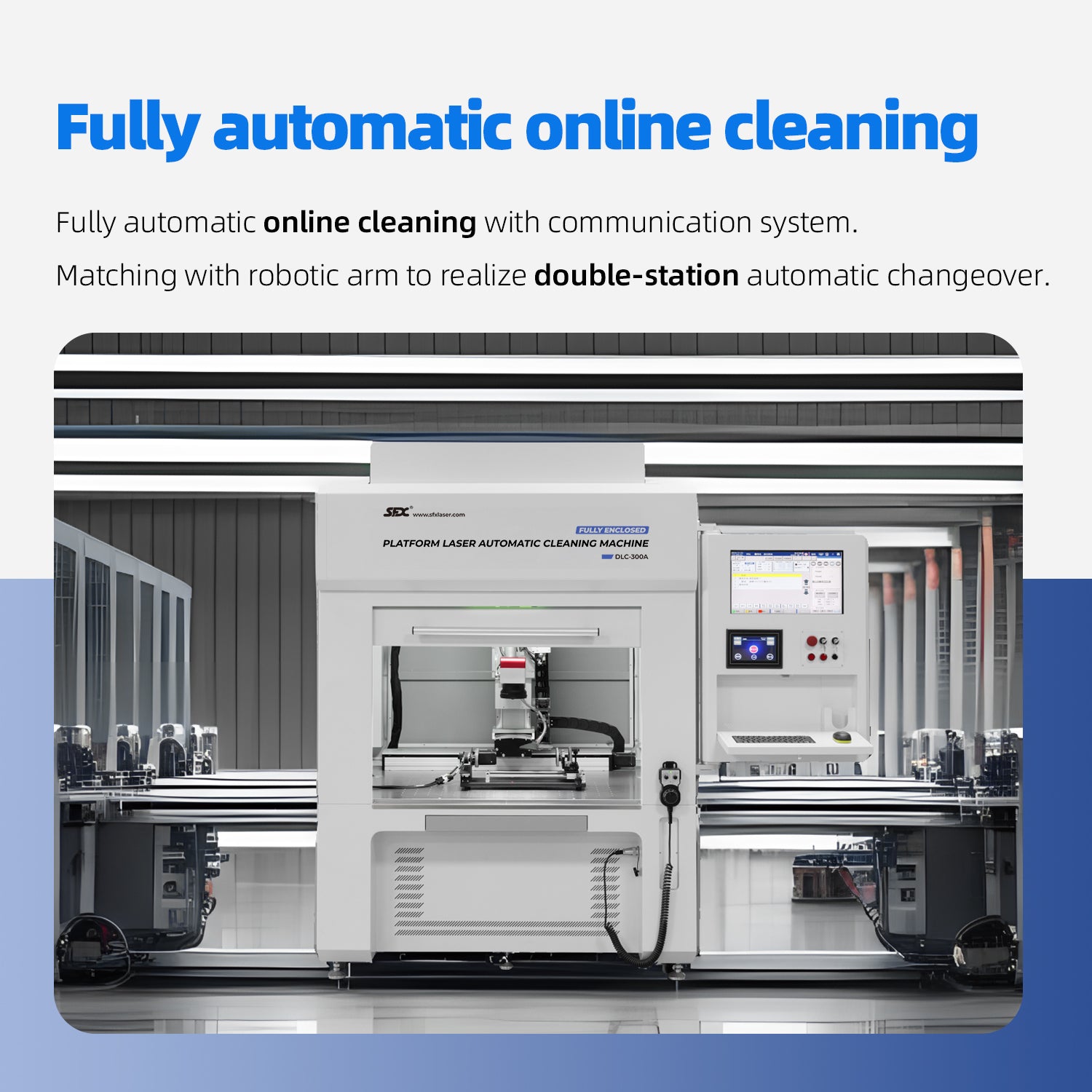

[Fully Automatic Online Cleaning] The laser cleaning machine features a highly efficient fully automatic online cleaning system, equipped with a communication system and a robotic arm. This innovative design allows for a seamless double-station automatic changeover, ensuring continuous and hassle-free cleaning operations.

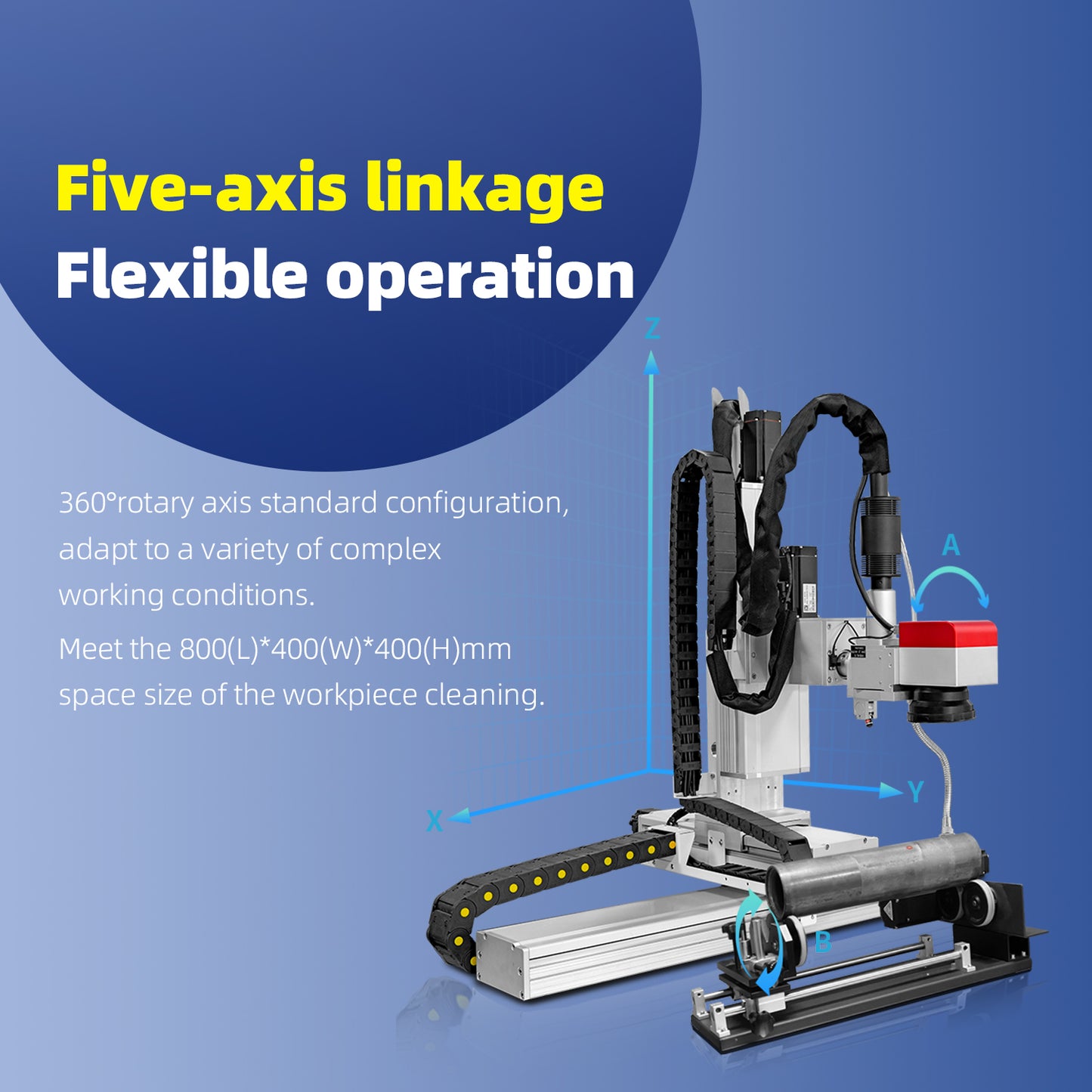

[Three-Axis Linkage Flexible Operation] With a 360° rotary axis as a standard configuration, our platform automatic cleaning machine offers exceptional flexibility to adapt to various complex working conditions. It can accommodate workpieces with dimensions of up to 800(L)*400(W)*400(H)mm, providing a wide range of cleaning possibilities.

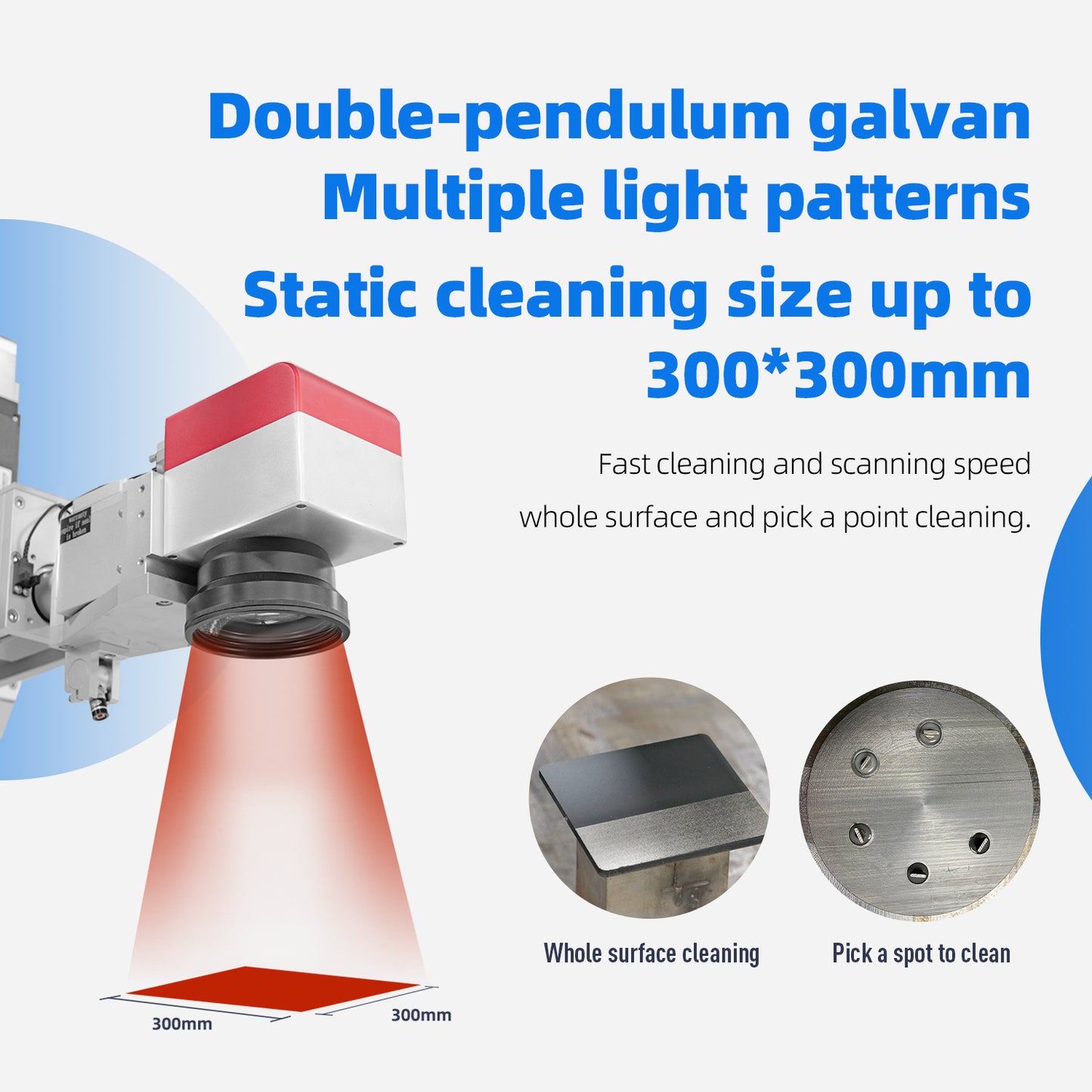

[Accurate Positioning Uniform Cleaning] Achieve impeccable surface finish with our laser cleaning machine. It enables whole surface cleaning and precise spot cleaning, thanks to the unique double-pendulum galvan multiple light patterns static cleaning technology. The cleaning size can reach up to 300*300mm, ensuring thorough and uniform results.

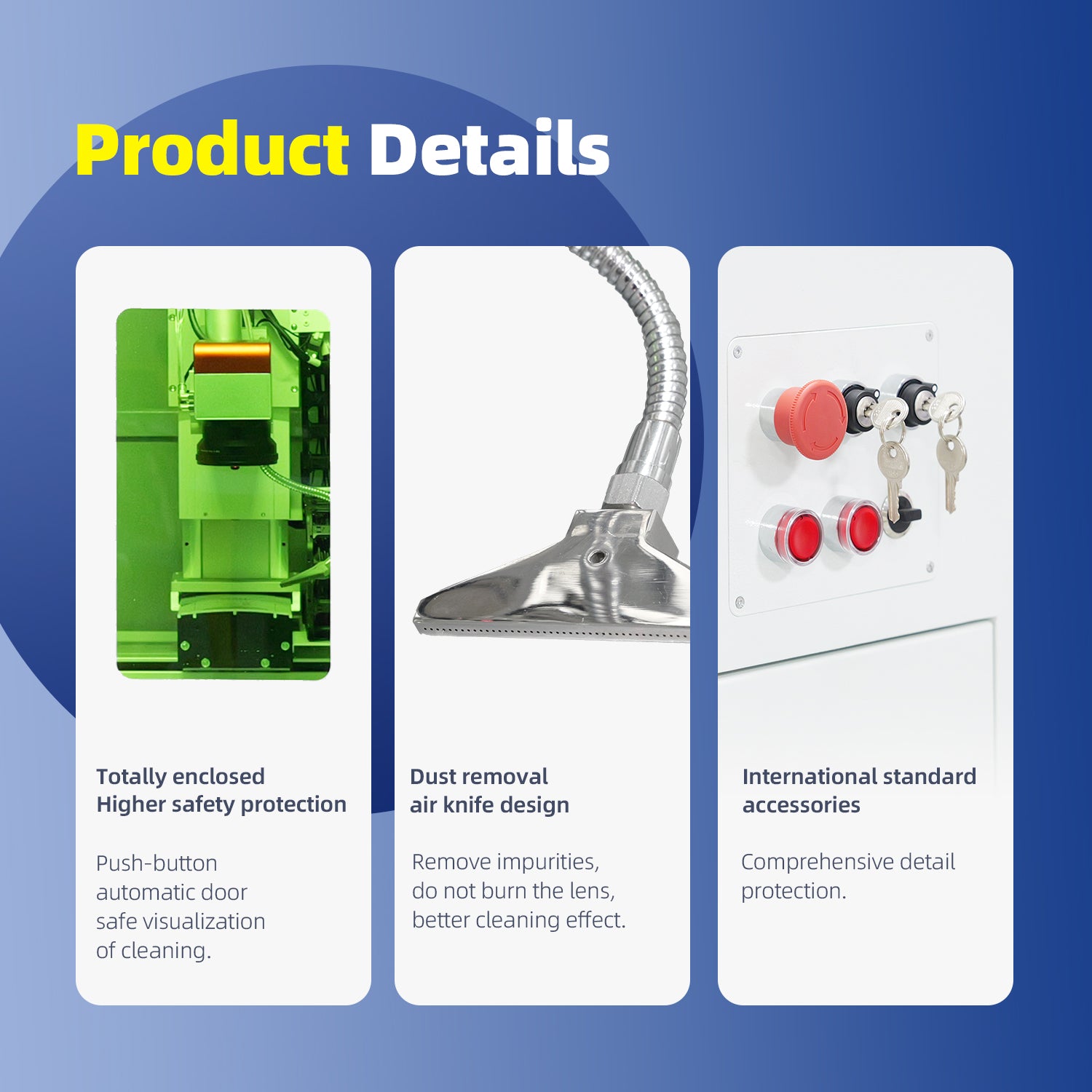

[High Safety Protection]Your safety is our utmost priority. Our laser cleaning machine is designed with total enclosure and push-button automatic door for safe visualization of the cleaning process. Additionally, the dust removal air knife effectively eliminates impurities without damaging the lens, guaranteeing a better and safer cleaning experience. We also provide international standard accessories for comprehensive detail protection.
Application

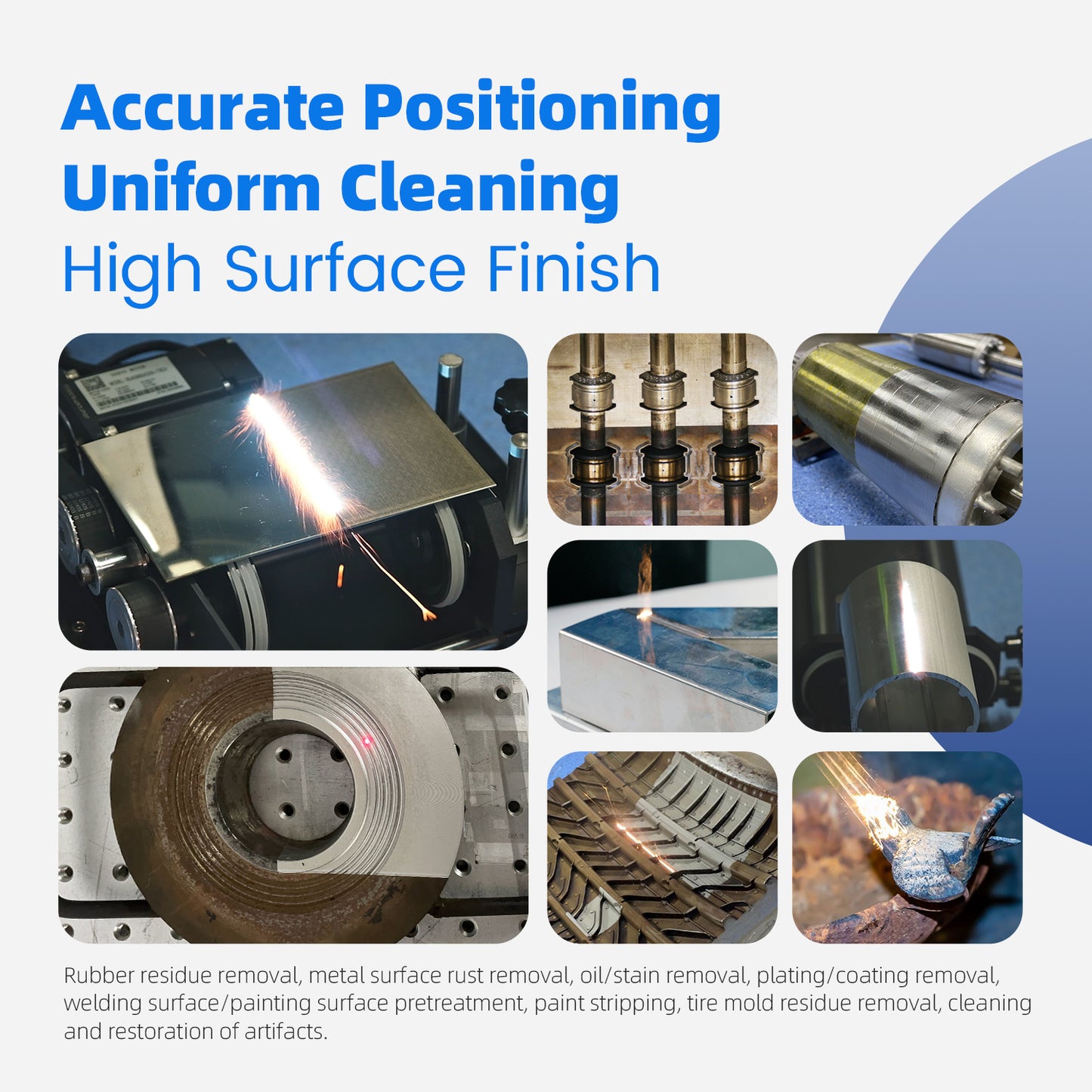

The platform automatic cleaning machine finds its applications in various industries, including aerospace, marine, electromechanical, rubber molds, auto parts, equipment manufacturing, and food processing. It is suitable for a wide range of cleaning tasks such as residue removal, rust removal, oil/stain removal, plating/coating removal, welding surface/painting surface pretreatment, paint stripping, tire mold residue removal, as well as cleaning and restoration of artifacts.
Warranty

• 1 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Sea&Truck to Door Around 35 to 50 Days. No Import Duty for American Customers.
• 30% advance payment,70% paid before shipment.
• Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video
