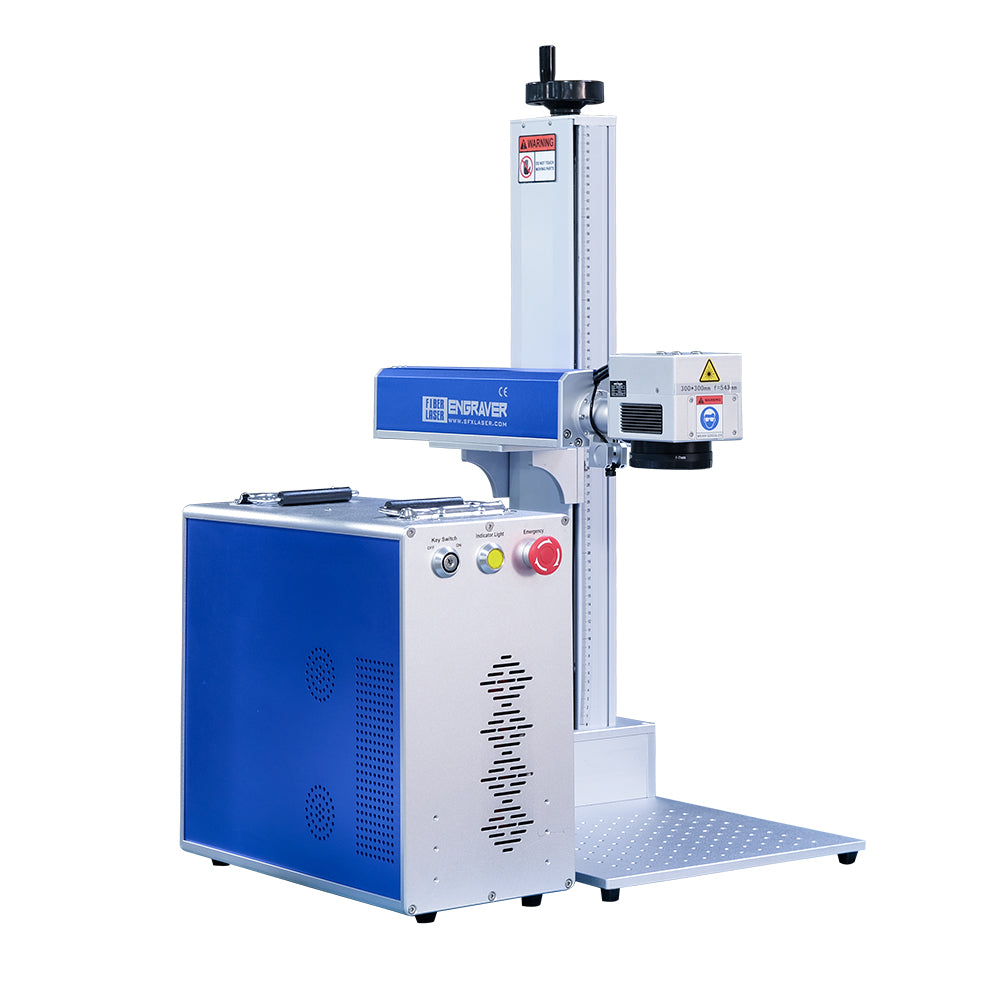

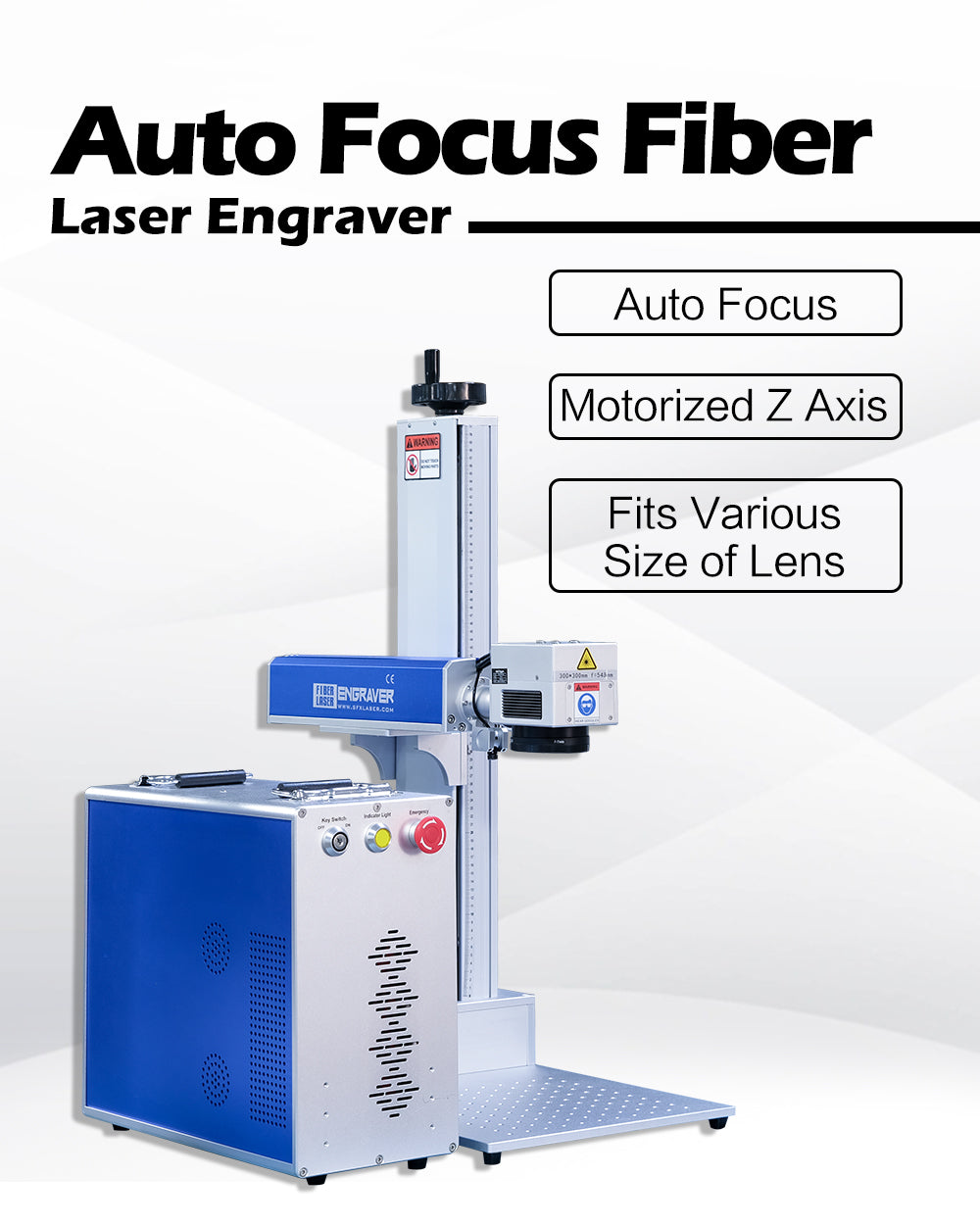

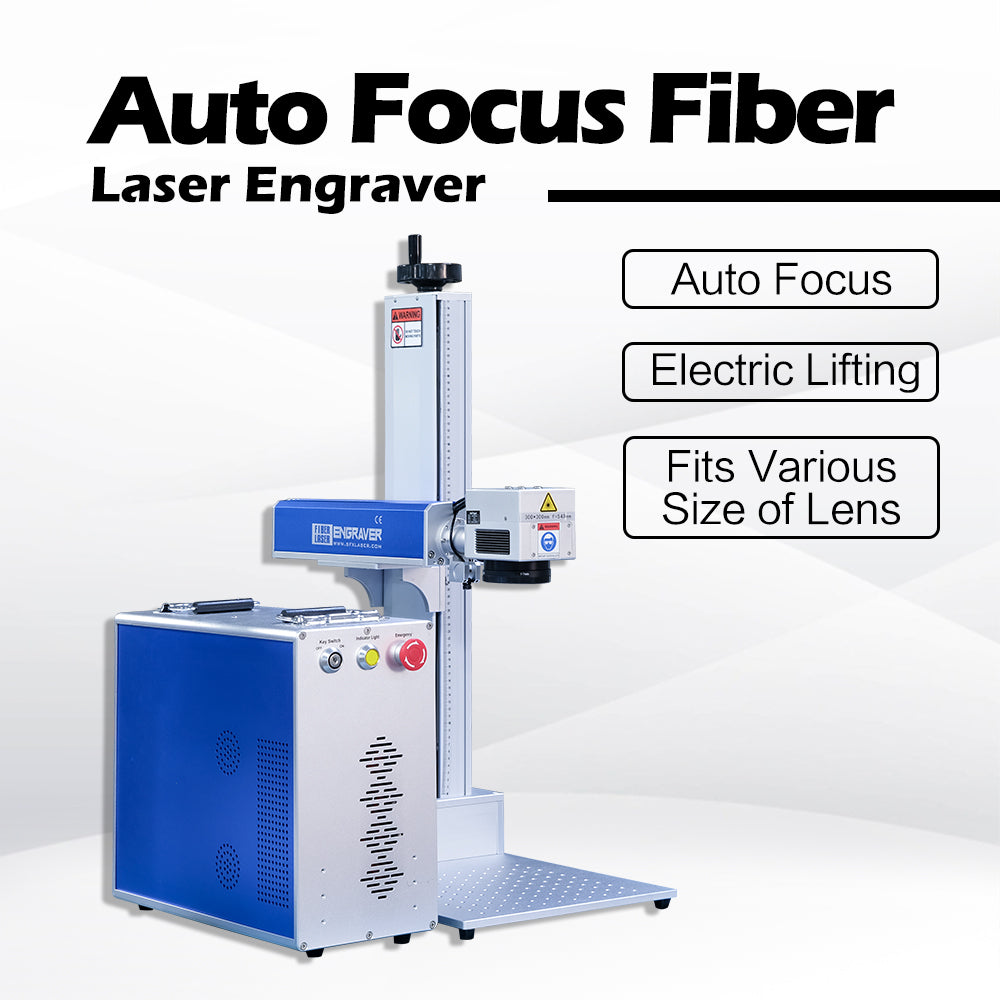

Auto Focus Fiber Laser Engraver 20/30/50W JPT Fiber Laser Marking Machine Engraving Lens

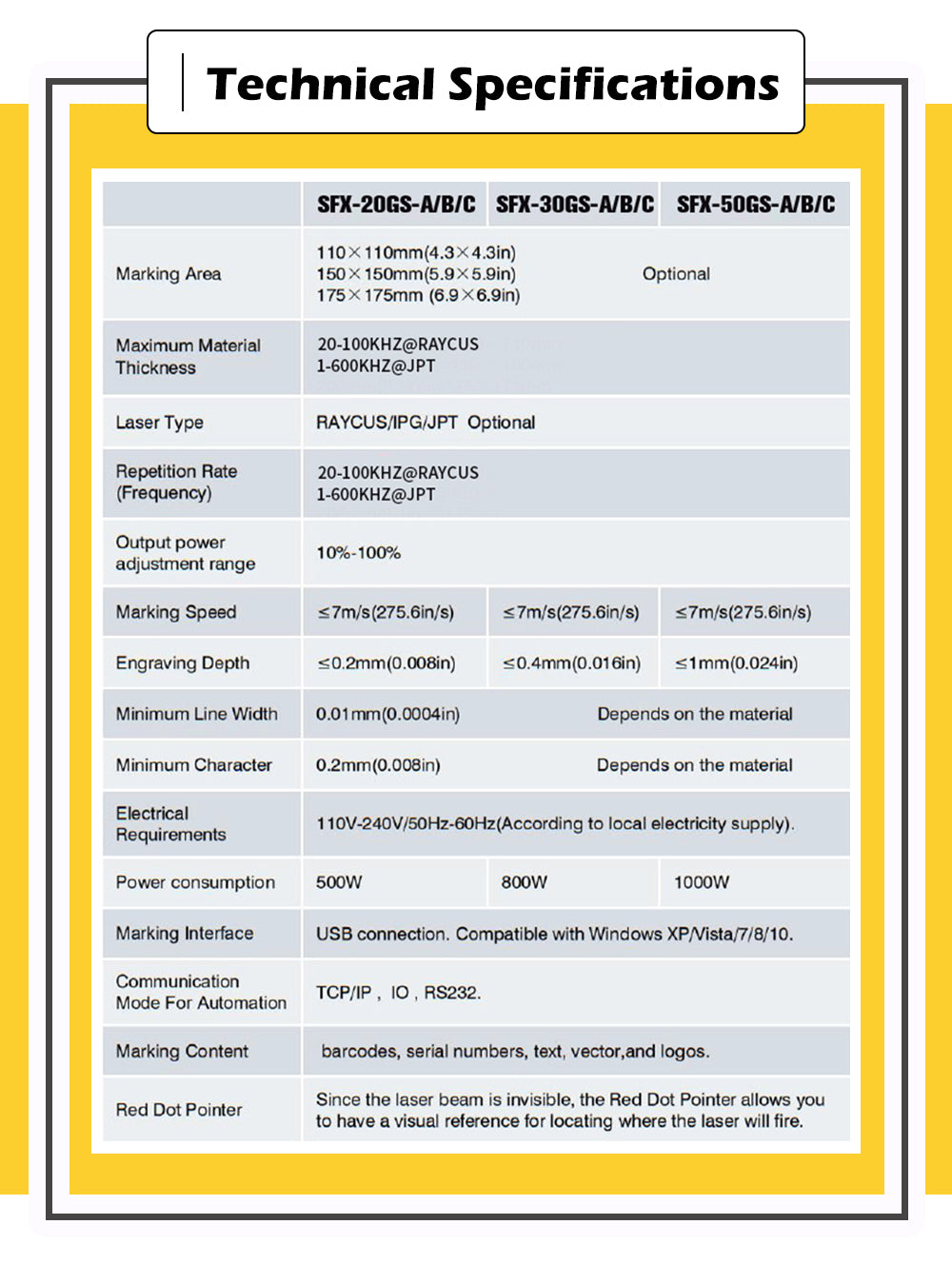

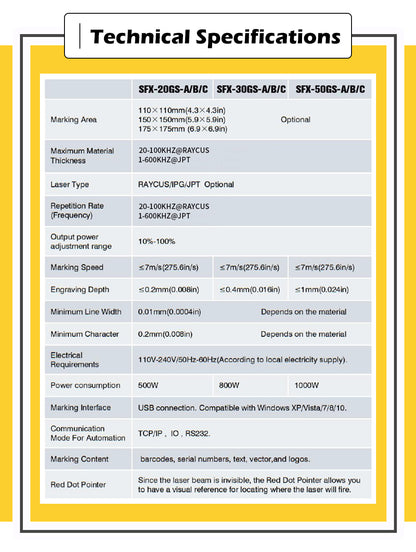

Parameters

• Laser Source: 20W/30W/50W JPT LP-E
• Adjustable Frequency Range: 1-600kHz
• Pulse Width: 200ns
• Marking Speed:≤7m/s(275.6in/s)
• Output Power Adjustment Range: 10%-100%
• Electrical Requirements: 110V-240V/50Hz-60Hz
• Power Consumption: 500W/800W/1000W
• Rotary Axis: D69/D80/D100/D125mm Optional
• Software:EZCAD2 (Lightburn Compatible) / EZCAD3
• Communication Mode for Automation: TCP/IP, IO, RS232
• Marking Content: Barcodes, Serial Numbers, Text, Vector, Logos
• Marking Interface: USB Connection. Compatible with Windows XP/Vista/7/8/10/11
• Re-position Precision: 0.002mm; High-Rate of Electrical-Optical Conversion: 70%
• Minimum Line Width 0.01mm(0.004in); Minimum Character 0.02mm(0.008in)
• Engraving Depth: 20W≤0.2mm(0.008in)/ 30W≤0.4mm(0.016in)/ 50W≤1mm(0.039in)
• Marking Area(Lens): 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)/175*175mm(6.9*6.9in)
• Maximum Material Thickness: 110*110mm:300mm(11.8in)/150*150mm:250mm(9.8in)/175*175mm:206mm(8.1in)

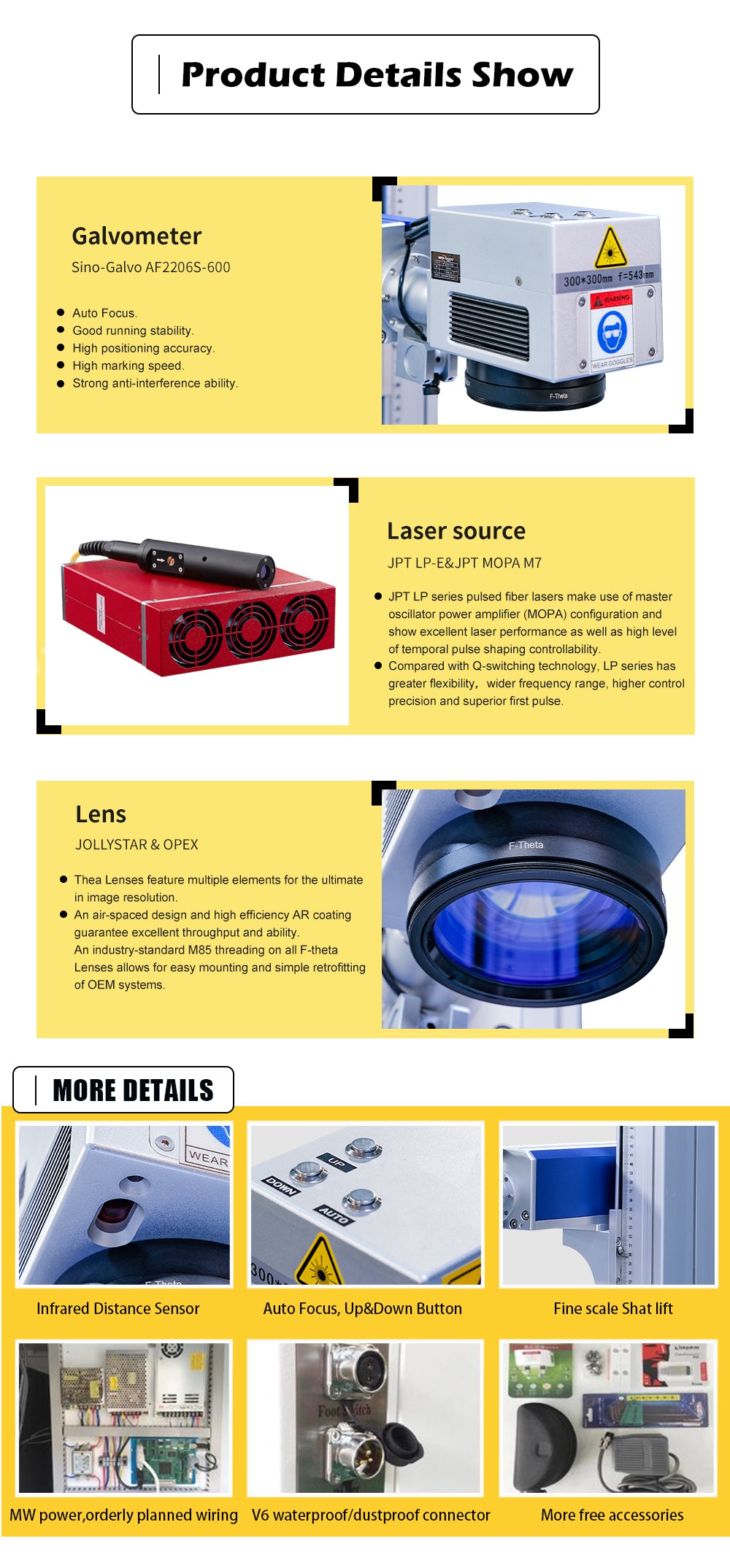

Galvometer

• Sino-Galvo AF2206S 一 600

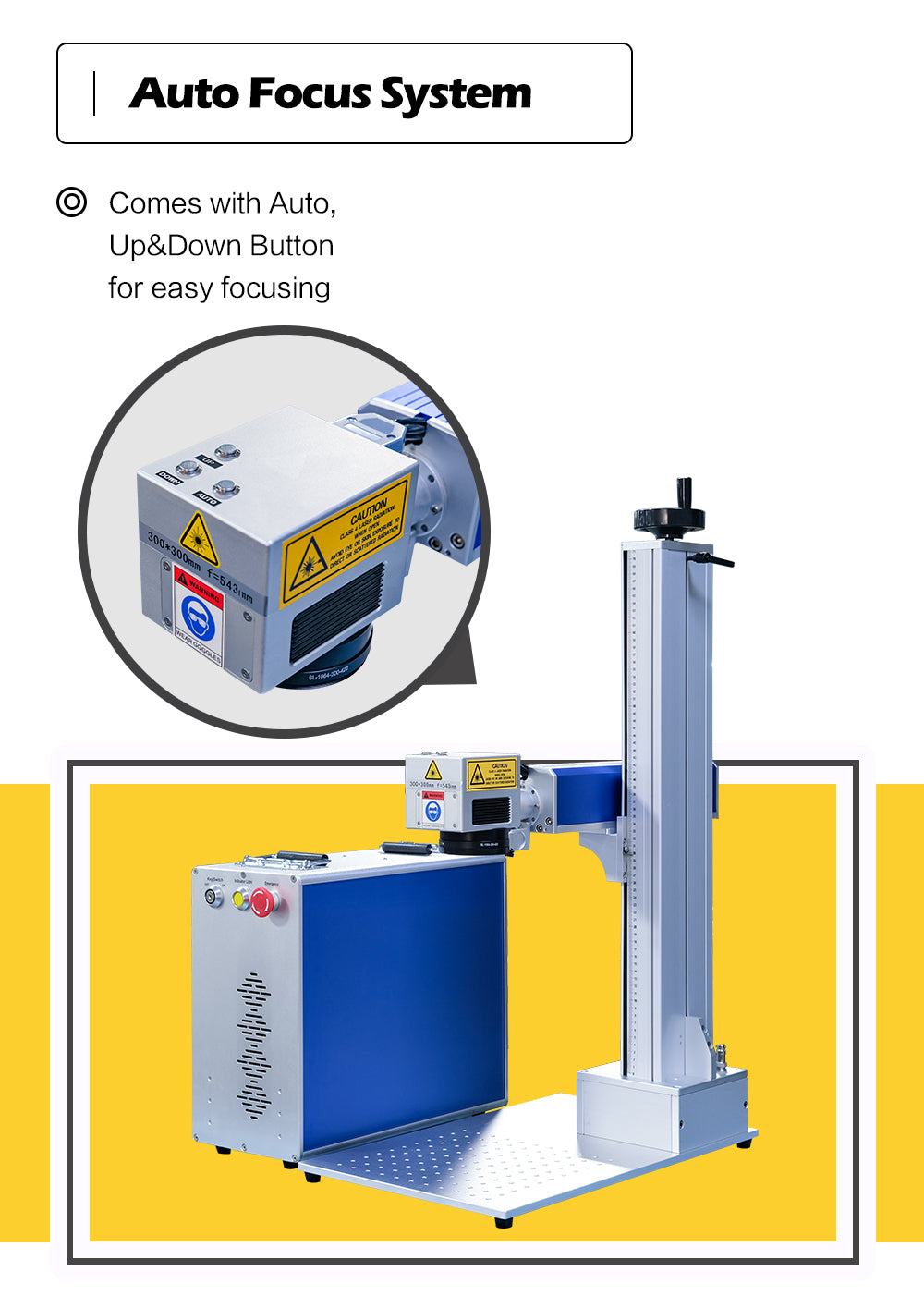

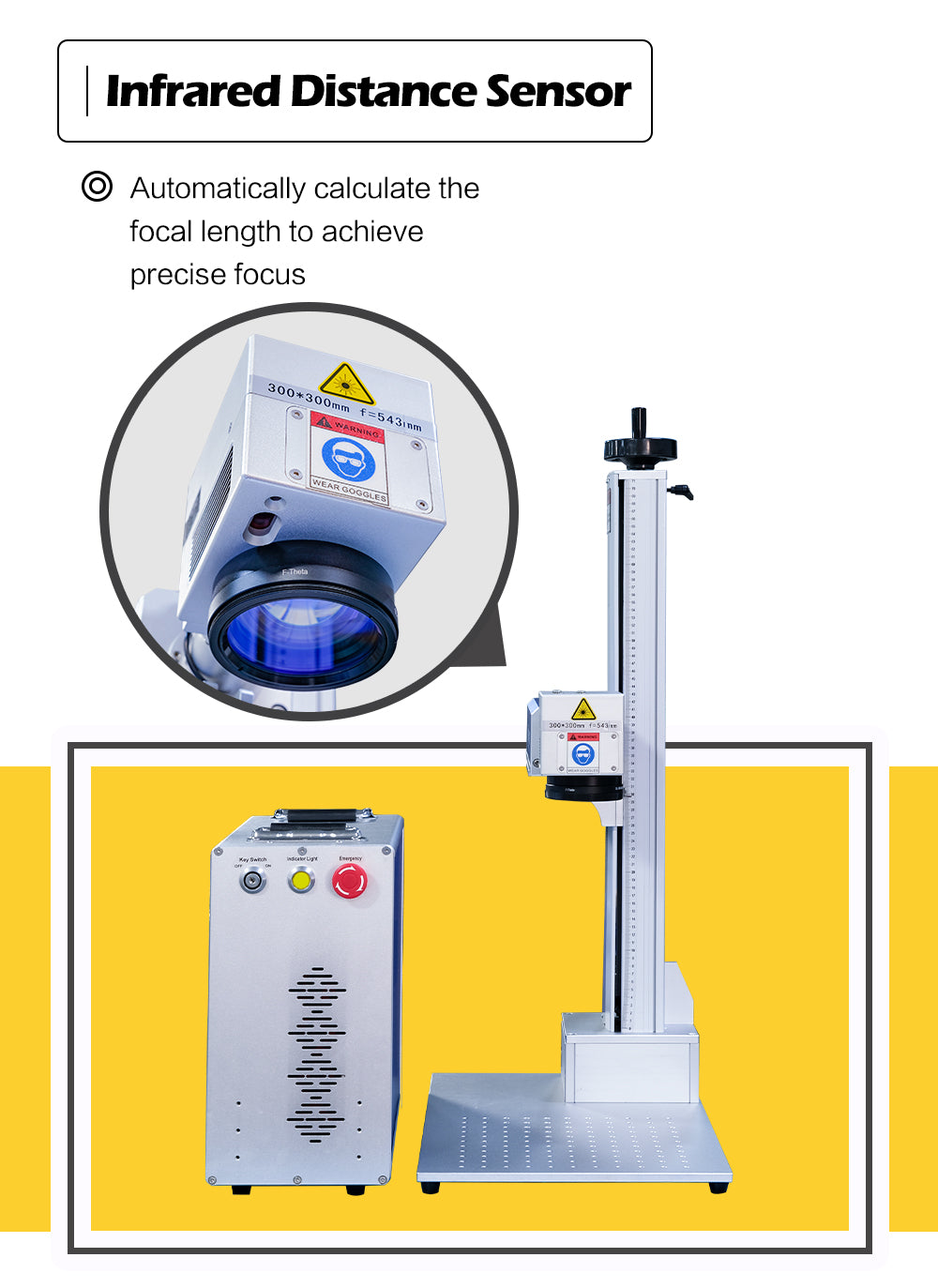

• AutO Focus.
• Good running stabllity.
• Hlgh positionlng accuracy
• High marking speed
• Strong anti-interference ability

Lens

• Thea Lenses feature multiple elements for the ultimate in image resolution.
•  An air-spaced design and high efficlency AR coating guarantee excellent throughput and ability.
•  An lndustry-standard M85 threading on F-theta Lenses allows for easy mounting and simple retrofitting of OEM systems

Laser source

• JPT LP-E&J PT MOPA M7,JPT LP series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration and ShOW excellent laser performance as well as high level of temporal pulse shaping controllabillty
• Compared with Q-switching technology, LP series has greater flexibility, wider frequency range, higher control preclsion and superior first pulse.

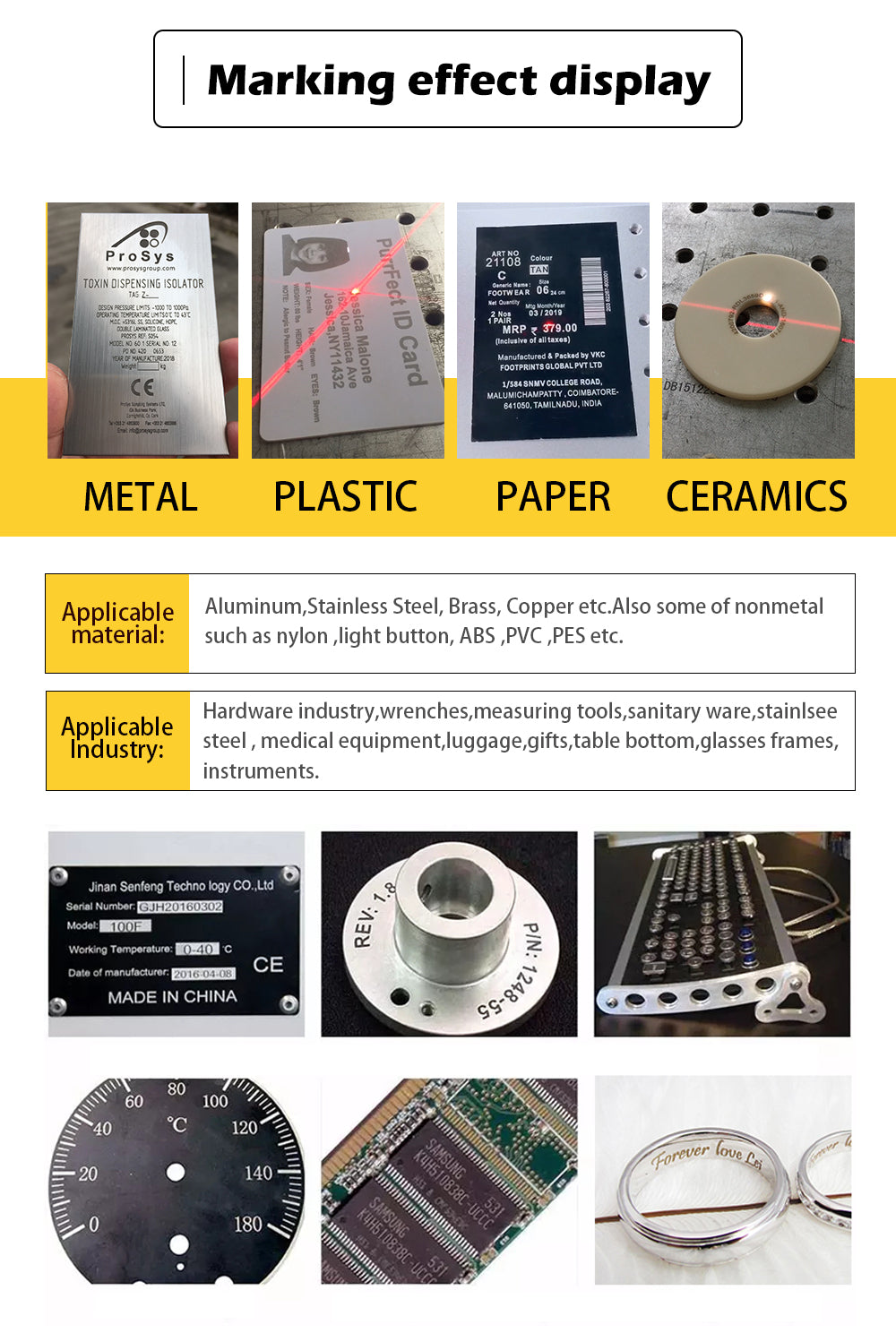

Applicable Material.Aluminum,stainless Steel, Brass, Copper Etc.also Some of Nonmetal Such As Nylon ,Light button, ABS,PVC,PES etc.

Applicable Industry:Hardware Industry,Wrenches,Measuring Tools,Jewelry,Stainlsee Steel,Luggagegifts,Table Bottom, Glasses Frames.

Warranty and Delivery

• 2 Years Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Air to Door Around 5 to 10 Days. No Import Duty for American Customers.
• Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video.
