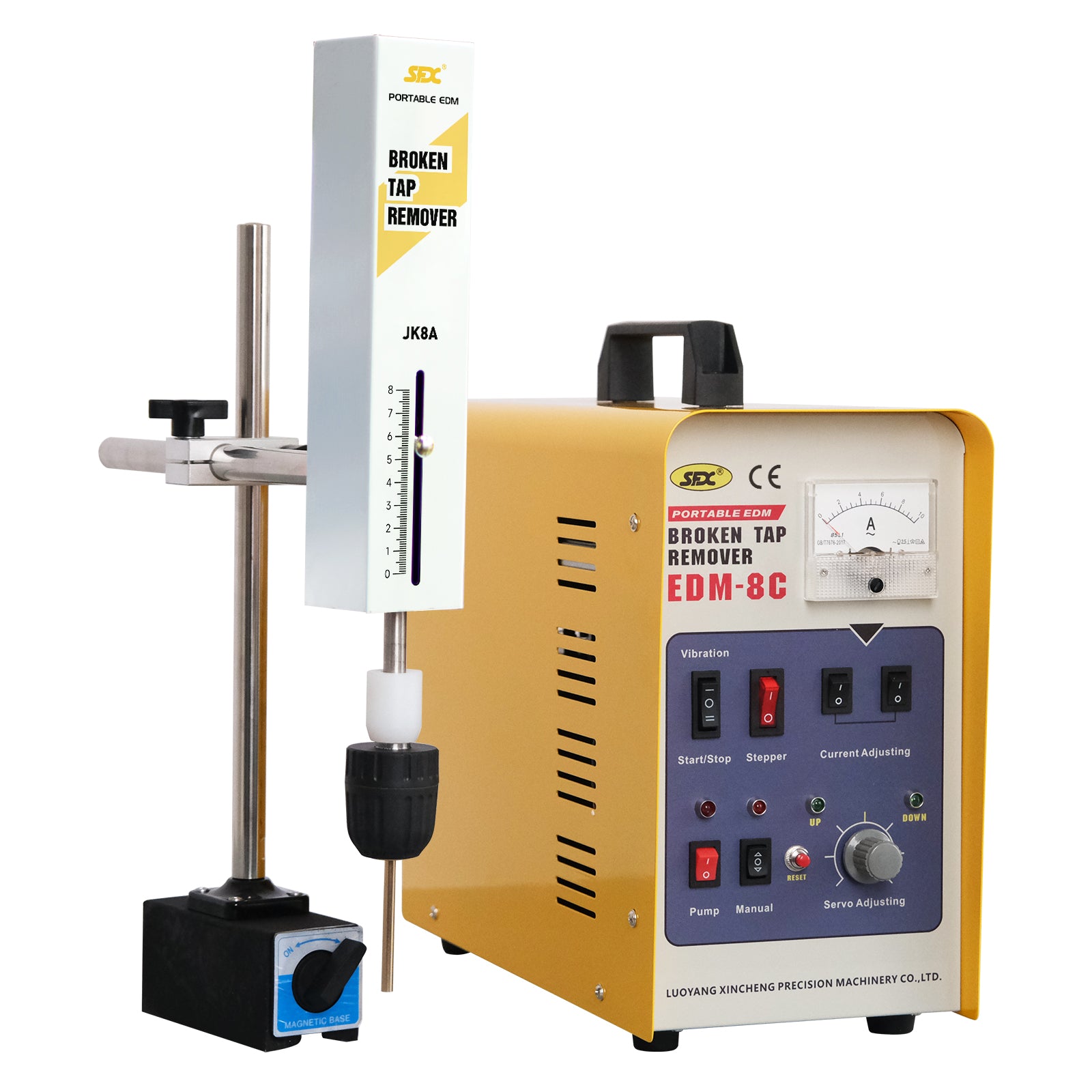

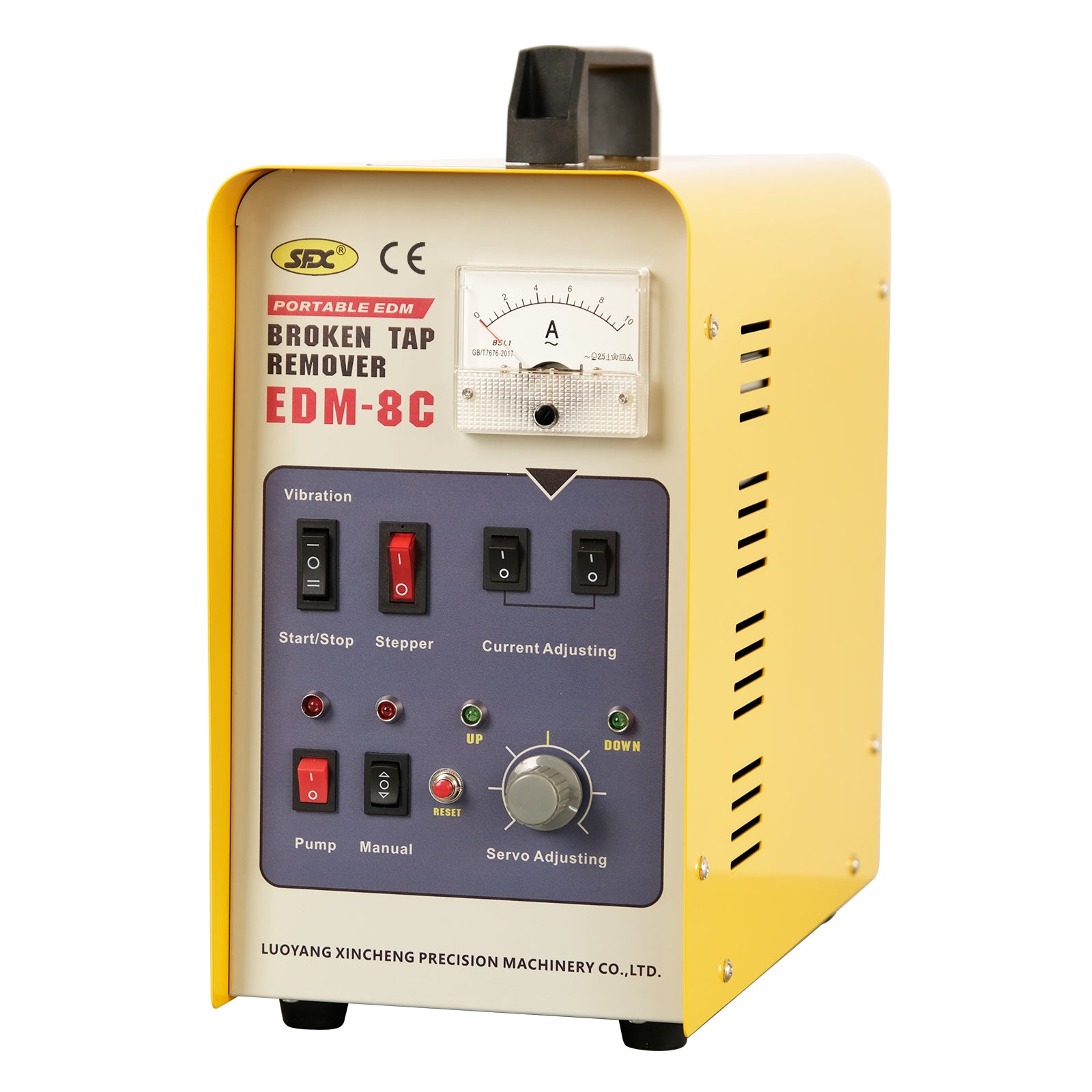

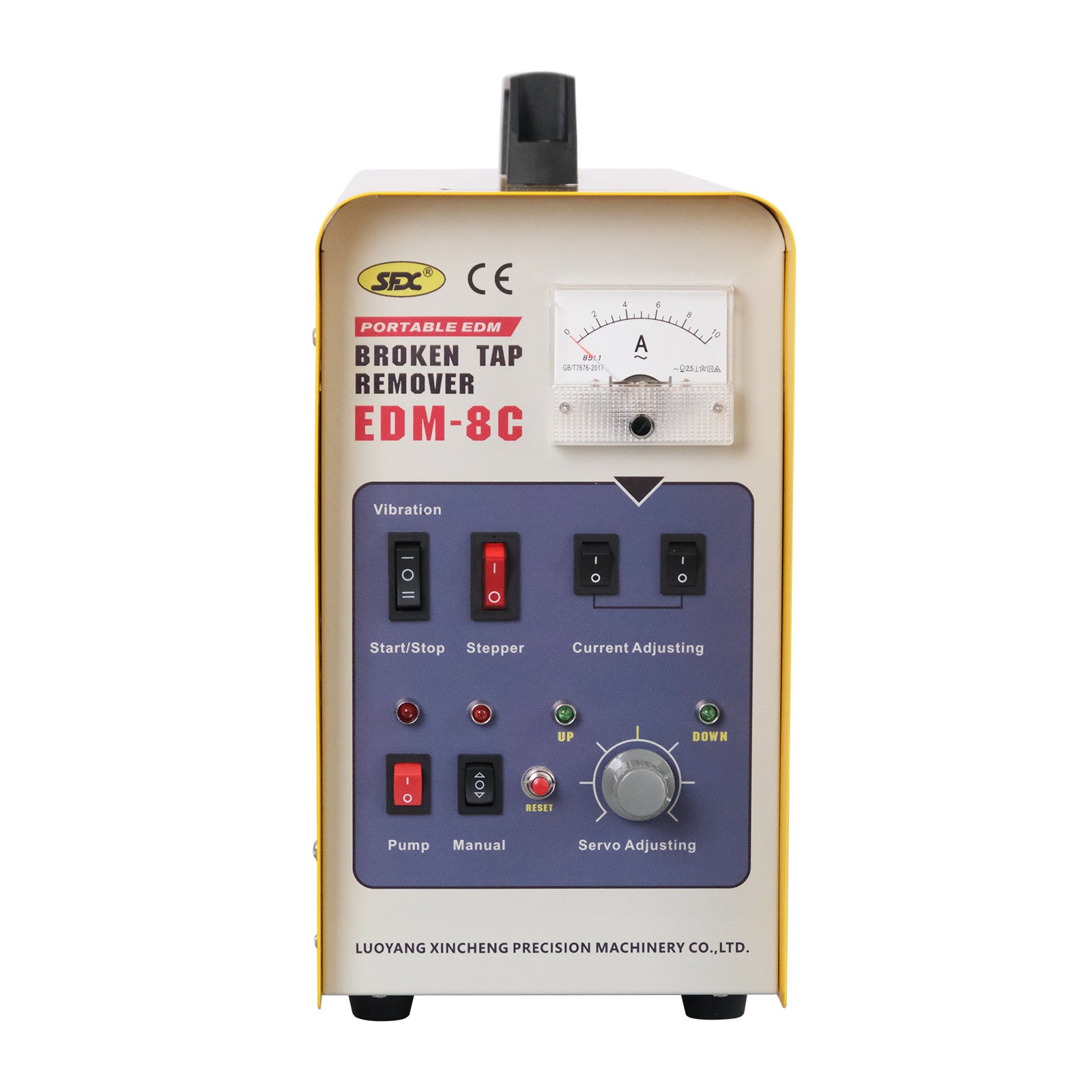

800W Broken Tap Drill Remover Machine EDM-8C Portable EDM, 110 V, Remove M2-M20 Dia. 0.07in to 0.78in (5/64'' - 25/32'') Screw, 1-20mm Drill Drifts from Blind Hole, Through Hole, Depth Setting

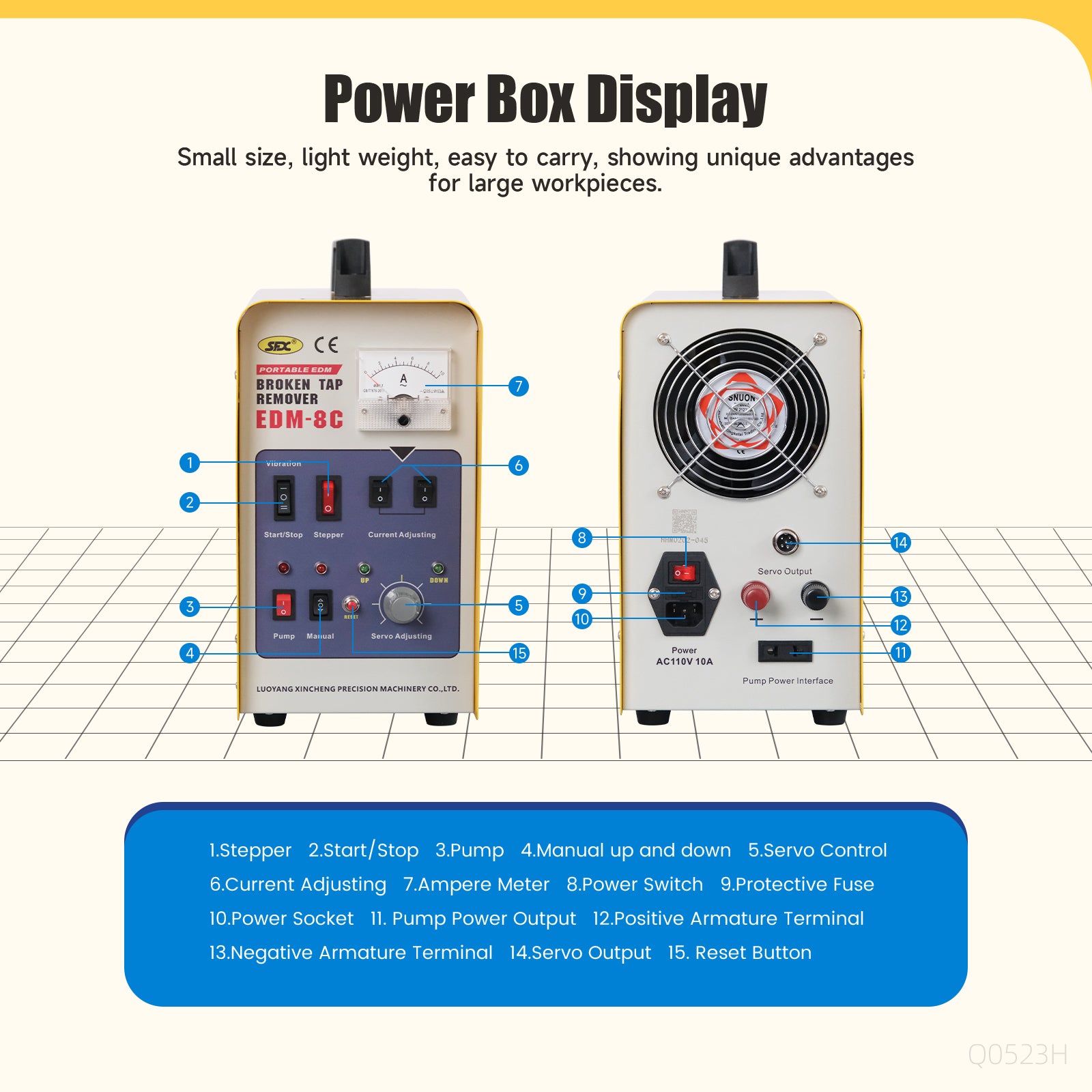

The Broken Taps Mchine can fast remove broken taps, drill, drift, screw, plug gauge etc., without damaging to the work piece, easily process on work pieces at any size, especially effective for large machine tools. The integral construction of the machine left a space for storage at the bottom of the power box which is convenient for managing the attachments. With a high efficiency in processing, it could remove broken tap, screw and is especially good at processing mark.

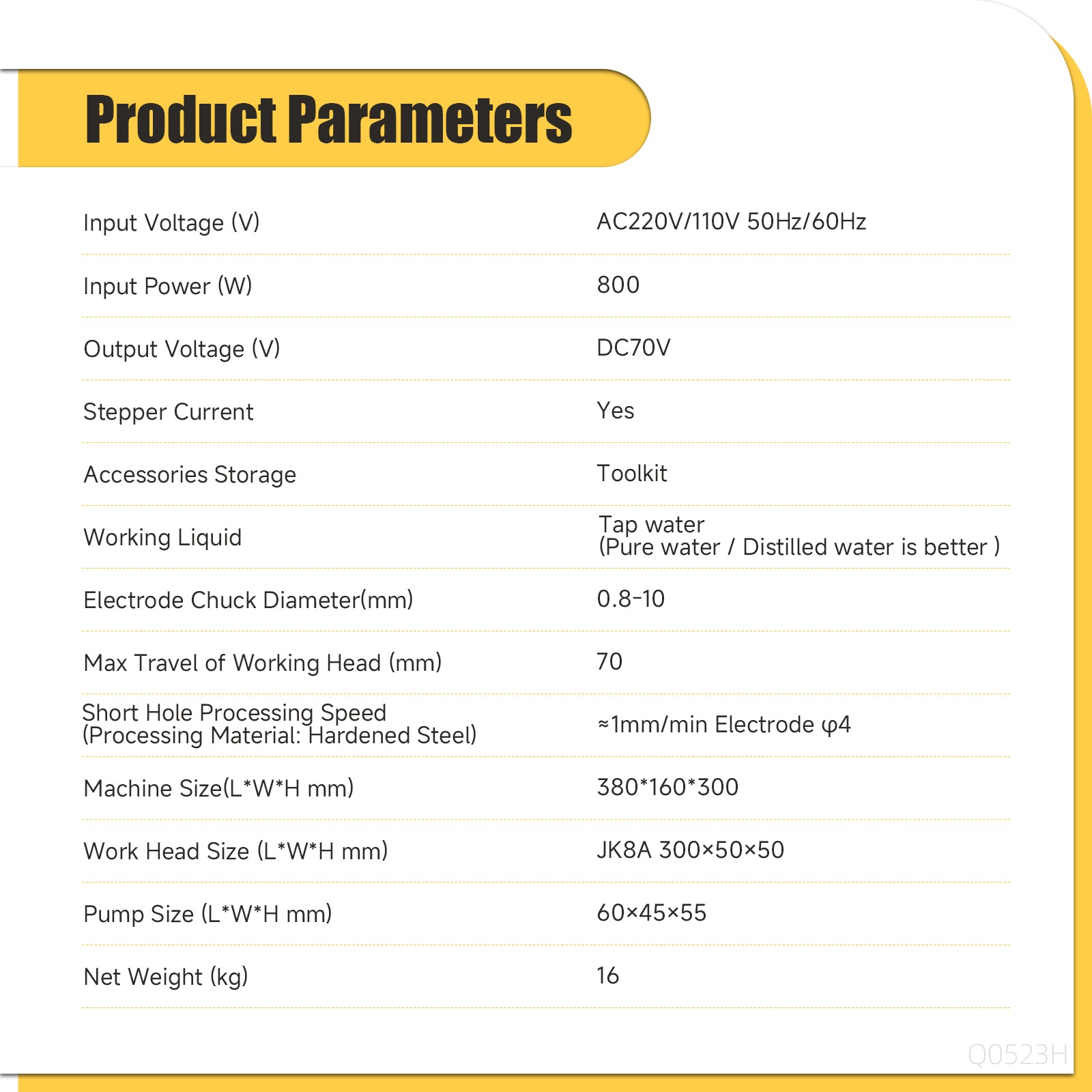

Parameters

• Laser Power: 800W
• Tappping RangeM2 to M20 for EDM-8C
• Input Voltage (V):AC110/220V 50/ 60HZ
• Secondary Output Voltage (V): 10-70
• Electrode Diameter Range:1-10mm for EDM-8C
• Max Travel of working head (mm)- 70mm
• Max Processing Speed-1mm/min
• Working Liquid:Tap water

Advantages

• 【 Powerful and Efficient】 This portable broken tap removal machine boasts 800W of power, capable of removing taps ranging from M2 to M20 (5/64'' to 25/32'') in size at a maximum processing speed of 1mm/min. Ideal for workshop production, it ensures quick and efficient removal of broken taps, drill bits, and more.
• 【Versatile and Precise】 With an electrode diameter range of 1-10mm and a maximum travel of the working head of 70mm, this EDM-8C Broken Taps Remover Machine guarantees accurate and efficient tap removal for various applications, including mold repair, machinery maintenance, and equipment servicing.

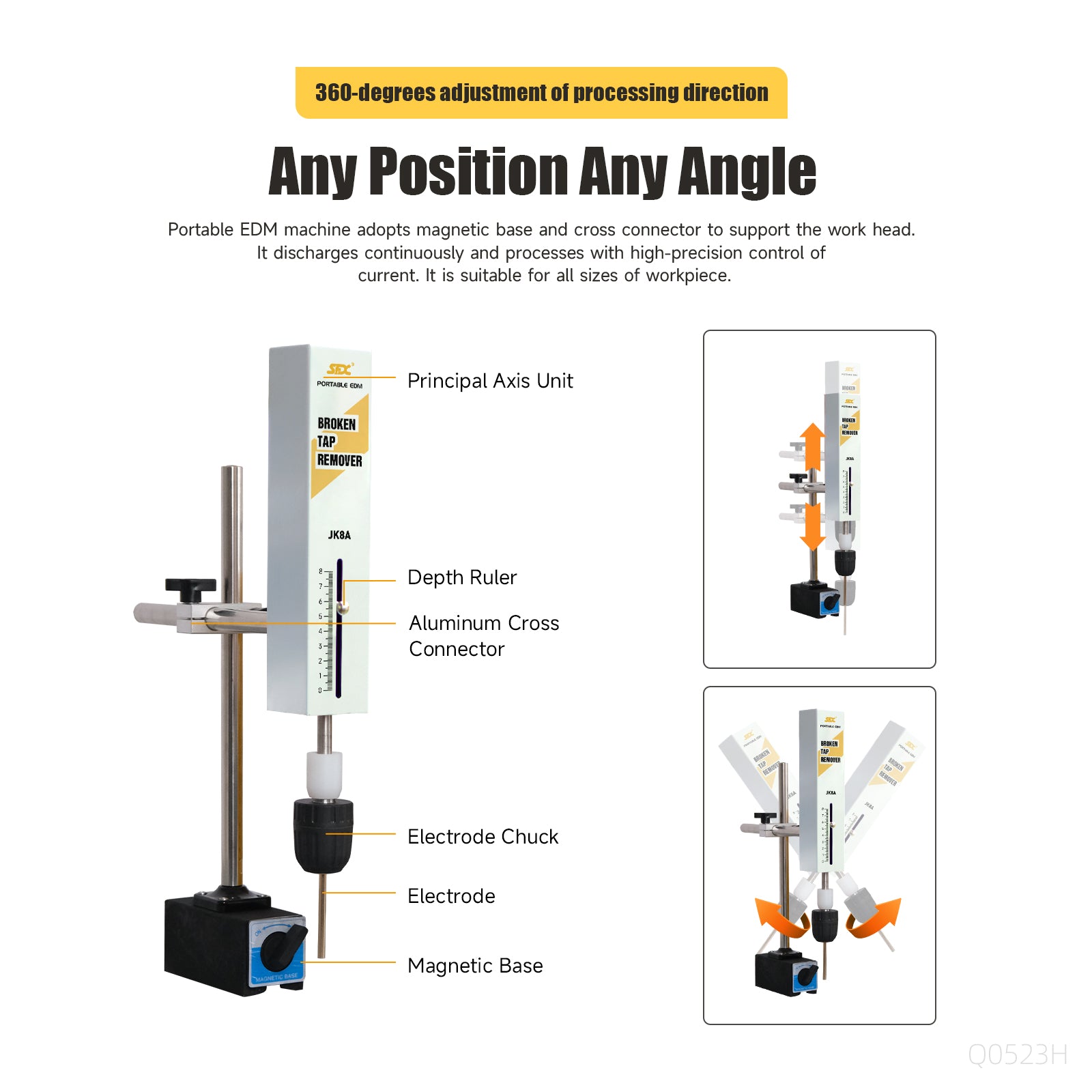

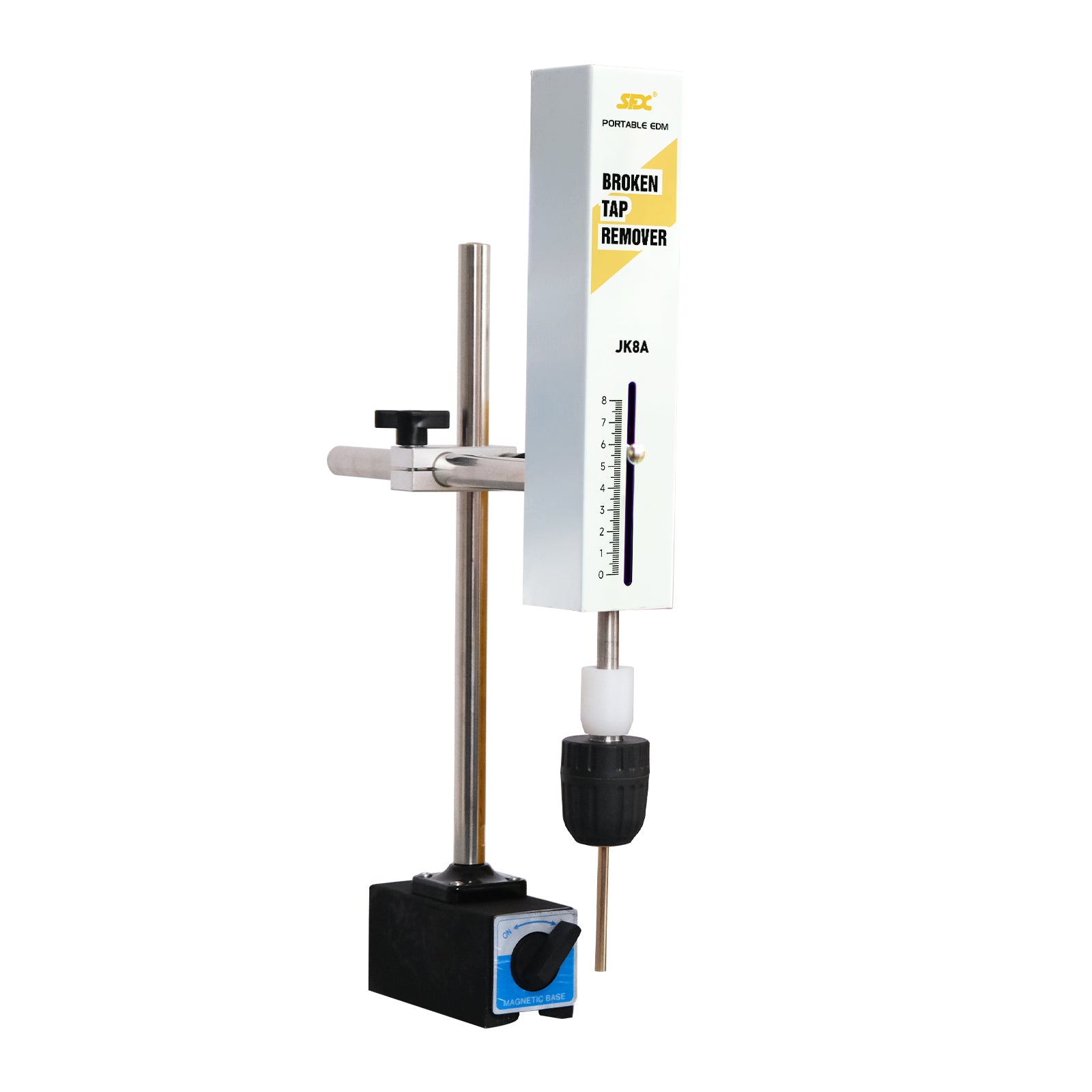

• 【Convenient Operation】 Featuring an excellent structure with a small size and lightweight design, the machine is easy to maneuver. The working head can rotate in any direction for optimal access, and the magnetic base ensures secure positioning during operation, making it perfect for on-site repairs and workshop tasks.
• 【Superior Accuracy】 Equipped with an alligator clamp for precise positioning, this portable spark erosion machine facilitates fast clamping and accurate removal of broken taps. It can be easily installed on a workbench for efficient batch processing, enhancing productivity on production lines and in repair services.
• 【 High-Quality Materials】Crafted with a brass solid rod and sheet electrode, this portable EDM drilling machine offers durability and reliability for long-term use. Powered by tap water as the working liquid, it ensures efficient tap removal without compromising performance, suitable for various industrial repair and production

Application

Capable of processing broken taps and drills (conductive material) above 2mm, the broken tap burner is suitable for a range of applications, including removing broken taps from blind holes. The cooling fan ensures long working times, making it perfect for continuous use in spark erosion and EDM tap removal tasks.

Warranty

• 1 Year Warranty for the Whole Machine,The period (Not man-made damage) is usually around one year and within this time frame, if there are any technical problems, we would repair them for free including the new parts that needed for the repair.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Air to Door Around 5 to 7 Days. CA,KY, Local Warehouse,No Import Duty for American Customer
•
