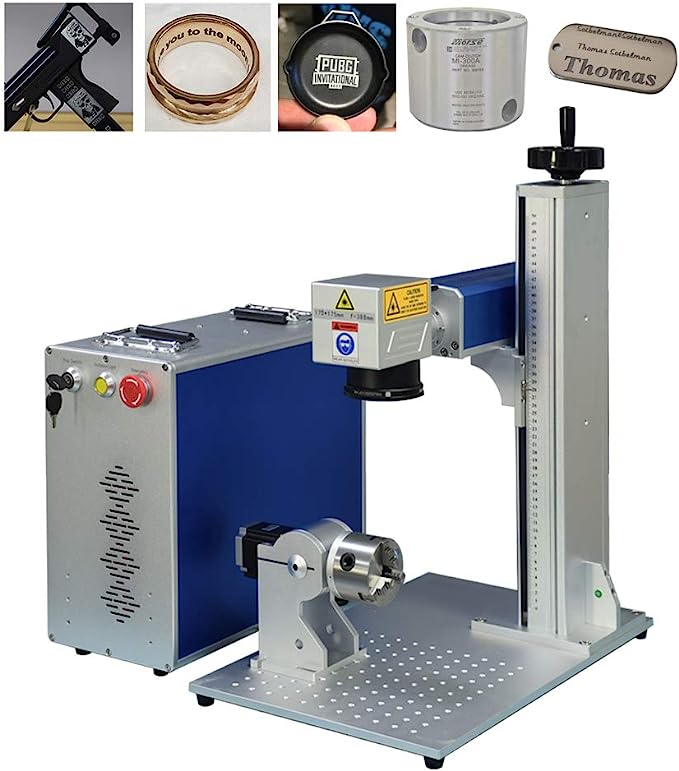

US Stock JPT MOPA E2 Fiber Laser Engraver 60W 100W 200W Fiber Laser Marking Machine Engraving Lens

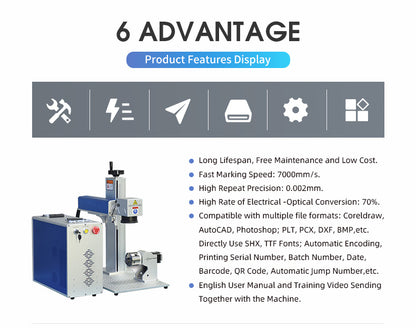

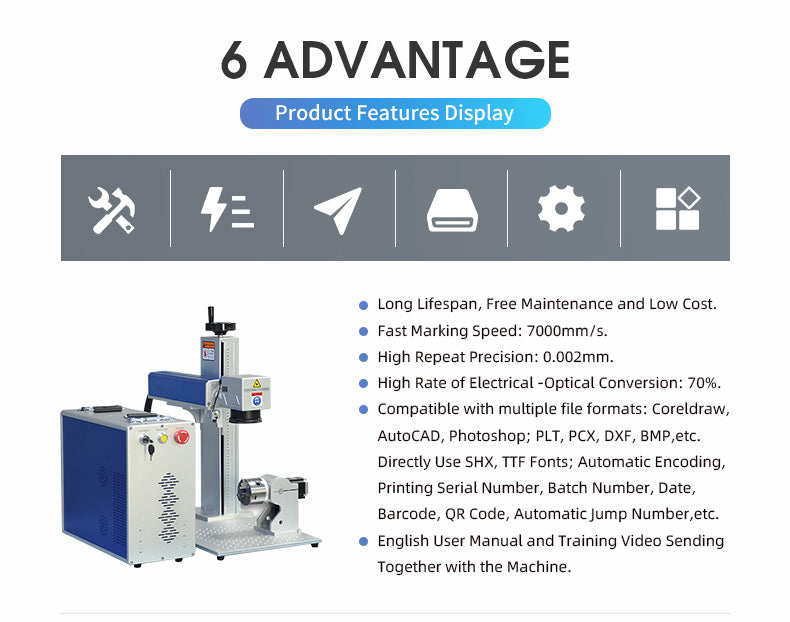

JPT MOPA E2 Fiber Laser Engraver Advantages

• Color Marking on Stainless Steel
• Metal Deep Engraving
• Metal Surface Processing
• Anodized Alumina Blackened.
• High Frequency Line Processing
• Strip the Anode from the Surface of the Thin Aluminium Oxide Plate.
• Electronic, Semiconductor, Ito Precision Processing Applications.
• F-theta Scan Lens.typically Distortion Less Than 1%, Air-spaced Design and High Efficiency Ar Coatings Excellent Throughput and Durability.
• Mopa Fiber Lasers with Excellent Laser Performance and Good Pulse Shaping Controllability.

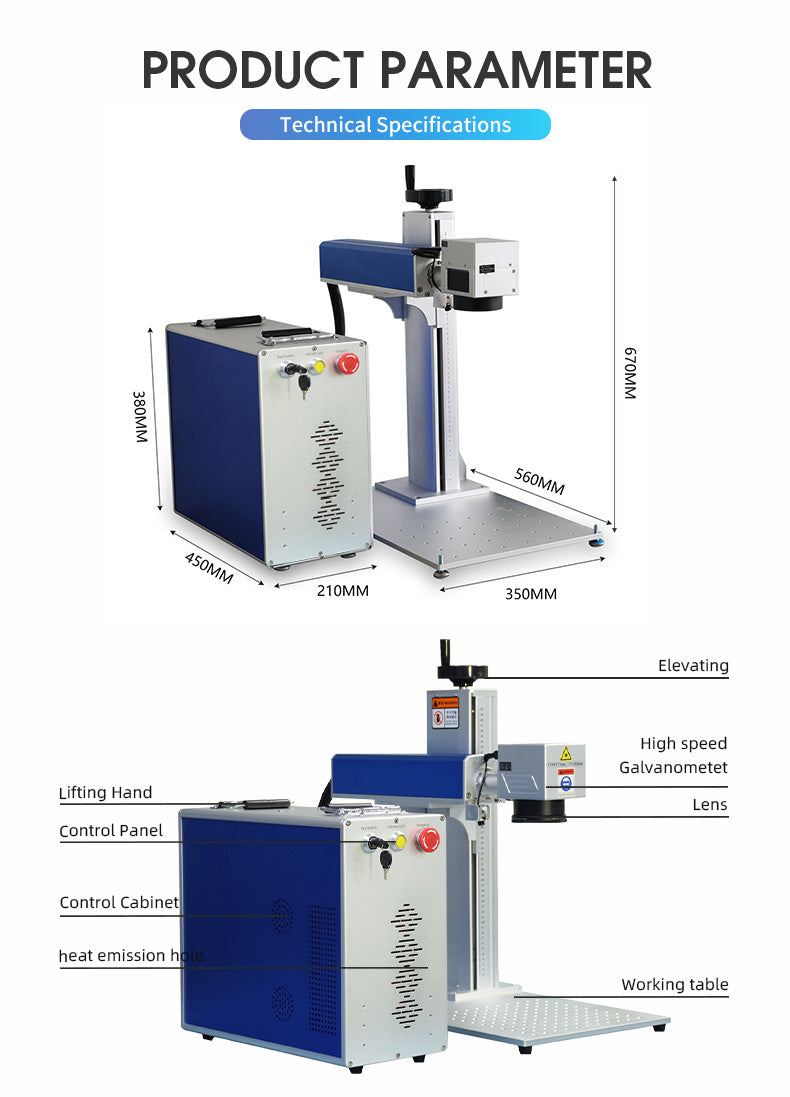

Parameter

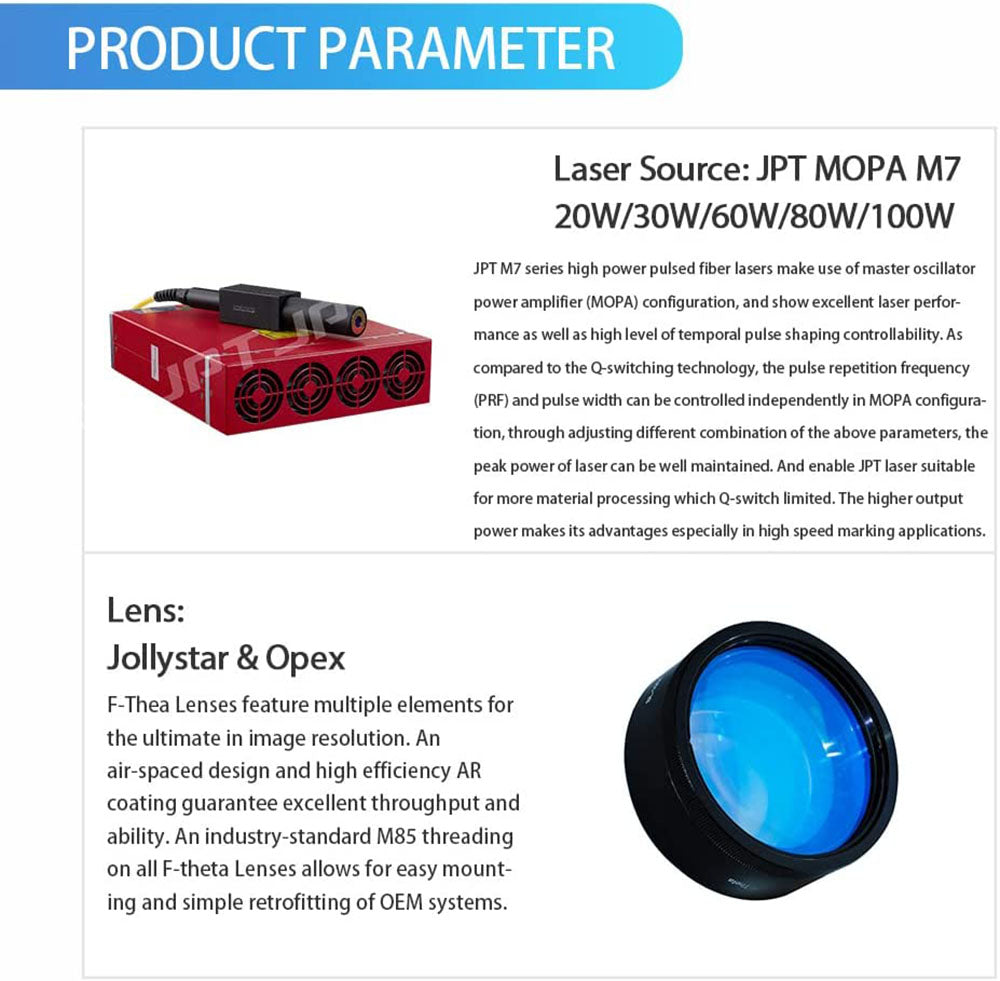

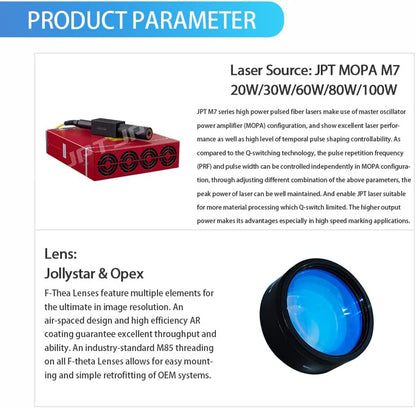

• Laser Source: 60W/100W/200W YDFLP-E-M7-M-R JPT MOPA M7 (MOPA E2 Version)
• Adjustable Pulse Width Range : 2-500ns(60W/80W/100W)
• Maximum Pulse Energy:  2mj 60W,1.5mj(80W/100W)
• Marking Speed:≤7m/s(275.6in/s)
• Output Power Adjustment Range: 10%-100%
• Electrical Requirements: 110V-240V/50Hz-60Hz
• Power Consumption: 500W/800W/1000W

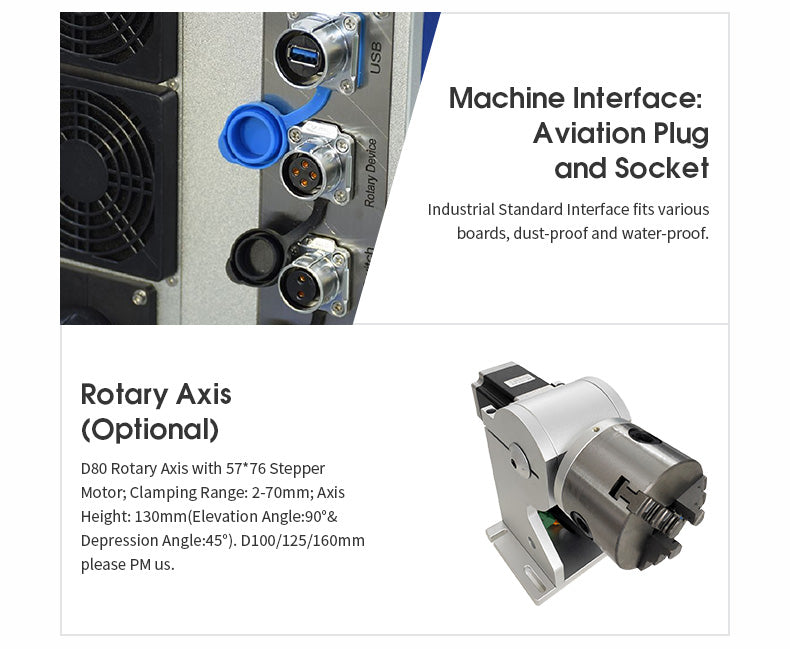

• Rotary Axis: D69/D80/D100/D125mm Optional

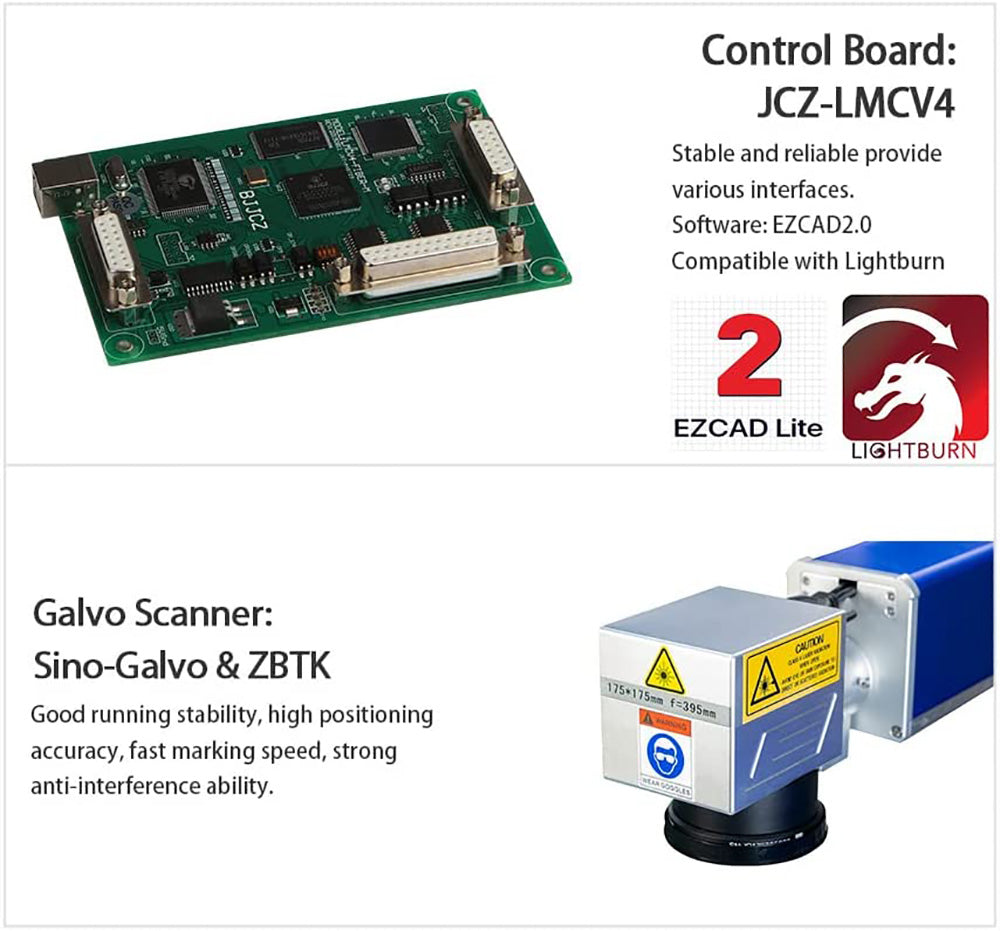

• Software:EZCAD2 (Lightburn Compatible) / EZCAD3
• Communication Mode for Automation: TCP/IP, IO, RS232
• Marking Content: Barcodes, Serial Numbers, Text, Vector, Logos
• Marking Interface: USB Connection. Compatible with Windows XP/Vista/7/8/10/11
• Re-position Precision: 0.002mm; High-Rate of Electrical-Optical Conversion: 70%
• Minimum Line Width 0.01mm(0.004in); Minimum Character 0.02mm(0.008in)
• Engraving Depth: 20W≤0.2mm(0.008in)/ 30W≤0.4mm(0.016in)/ 60W≤1.5mm(0.039in)
• Marking Area(Lens): 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)/175*175mm(6.9*6.9in)
• Maximum Material Thickness: 110*110mm:300mm(11.8in)/150*150mm:250mm(9.8in)/175*175mm:206mm(8.1in)


[Versatile Applications and Compatibility]The Machine Can Be Compatible with Software Files Such As Coreldraw, Autocad, Photoshop;plt, Pcx, Dxf, Bmp,etc Supported.the Machine Can Directly Use Shx,itf Fonts; Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode or Code, Automatic Jump Number, Etc,supported.

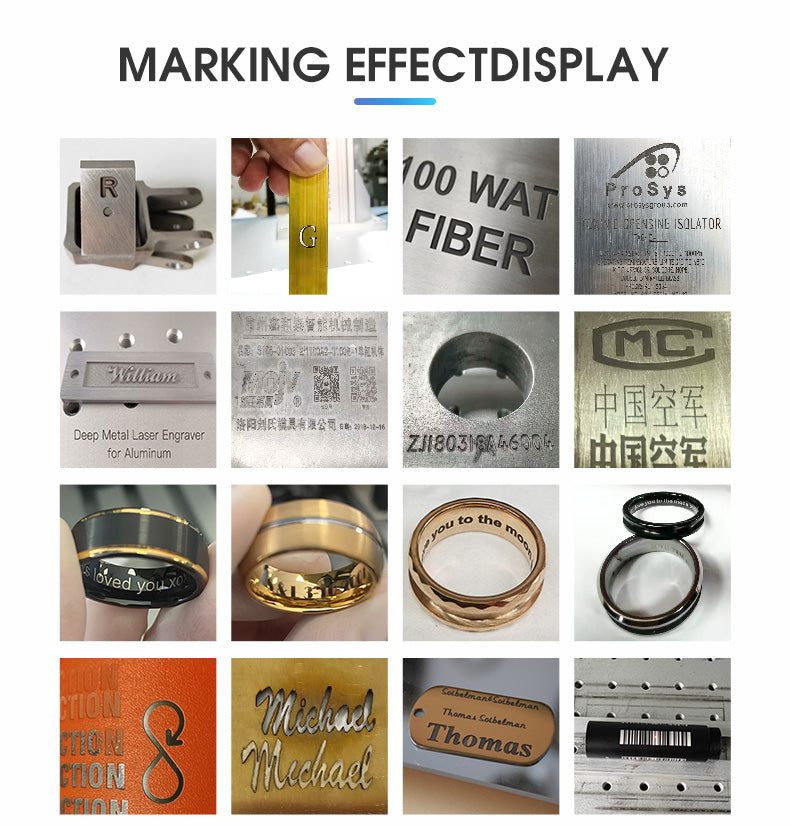

Applicable Material.Aluminum,stainless Steel, Brass, Copper Etc.also Some of Nonmetal Such As Nylon ,Light button, ABS,PVC,PES etc.

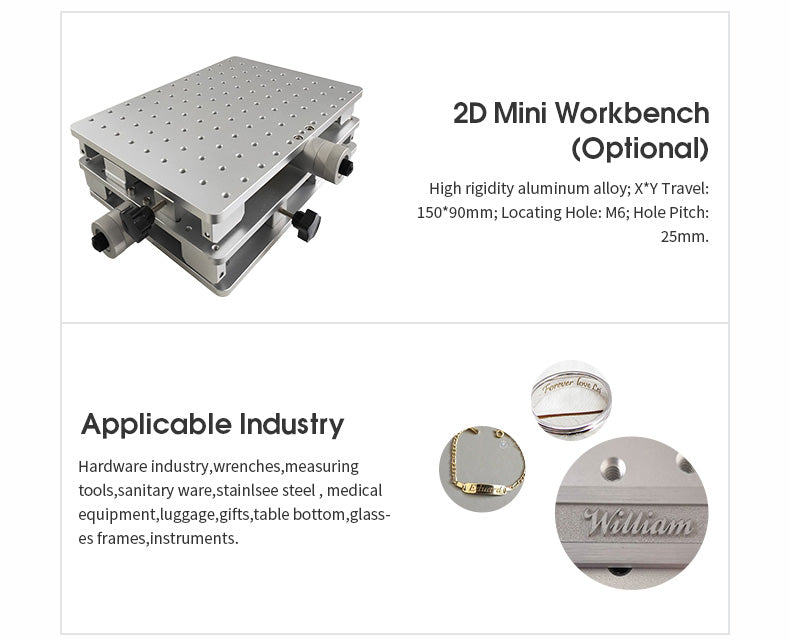

Applicable Industry:Hardware Industry,Wrenches,Measuring Tools,Jewelry,Stainlsee Steel,Luggagegifts,Table Bottom, Glasses Frames.

Warranty and Delivery

• 2 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Air to Door Around 5 to 10 Days. No Import Duty for American Customers.
• Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video.
•
