Robotic Laser Welding Workstation Six-Axis CNC Laser Welding Machine workstation 1500W/2000W/3000Wwith Expandable Worktable
Robotic Laser Welding Workstation Six-Axis CNC Laser Welding Machine workstation 1500W/2000W/3000Wwith Expandable Worktable
US Import Duty Included.Free Shipping to your door 7-10Days
Couldn't load pickup availability

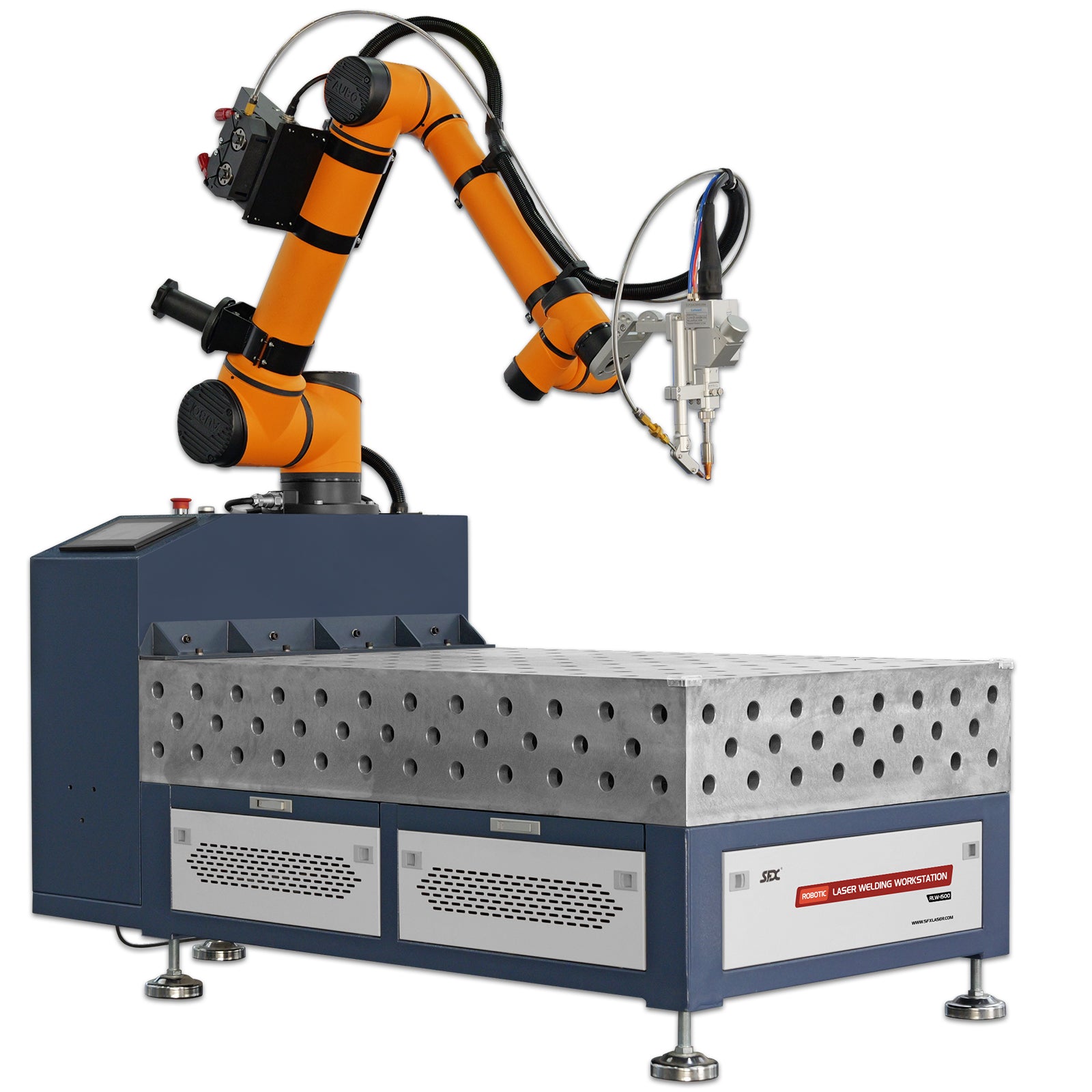

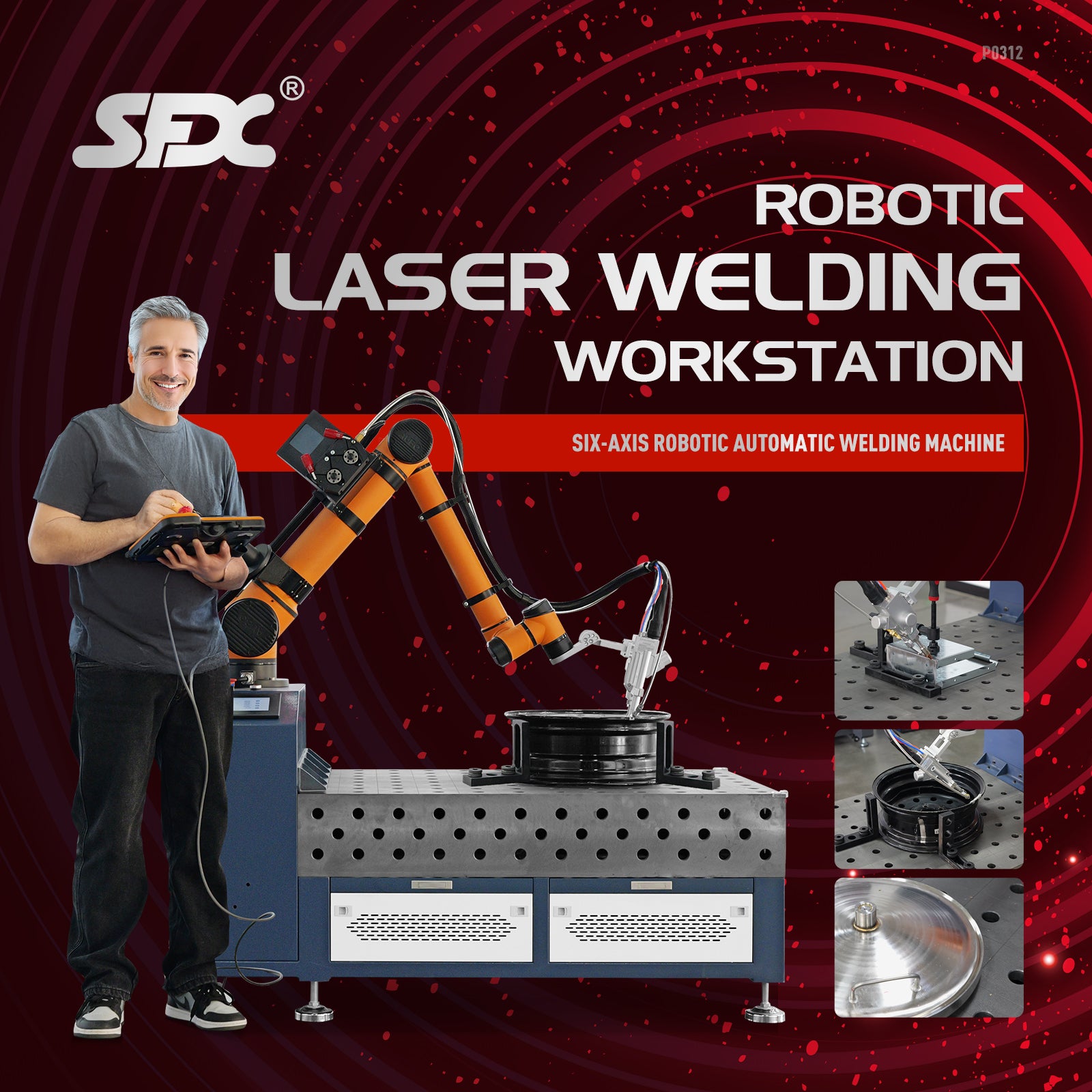

Introducing our Six-Axis Robotic Laser Welding Workstation, the ideal solution for precision welding tasks. This automated laser welding workstation delivers high flexibility and unmatched precision, capable of handling complex welding tasks on a variety of materials, including stainless steel, aluminum, mold steel, and more. It offers repeat positioning accuracy of up to ±0.03mm, ensuring consistent, high-quality welds with every operation.

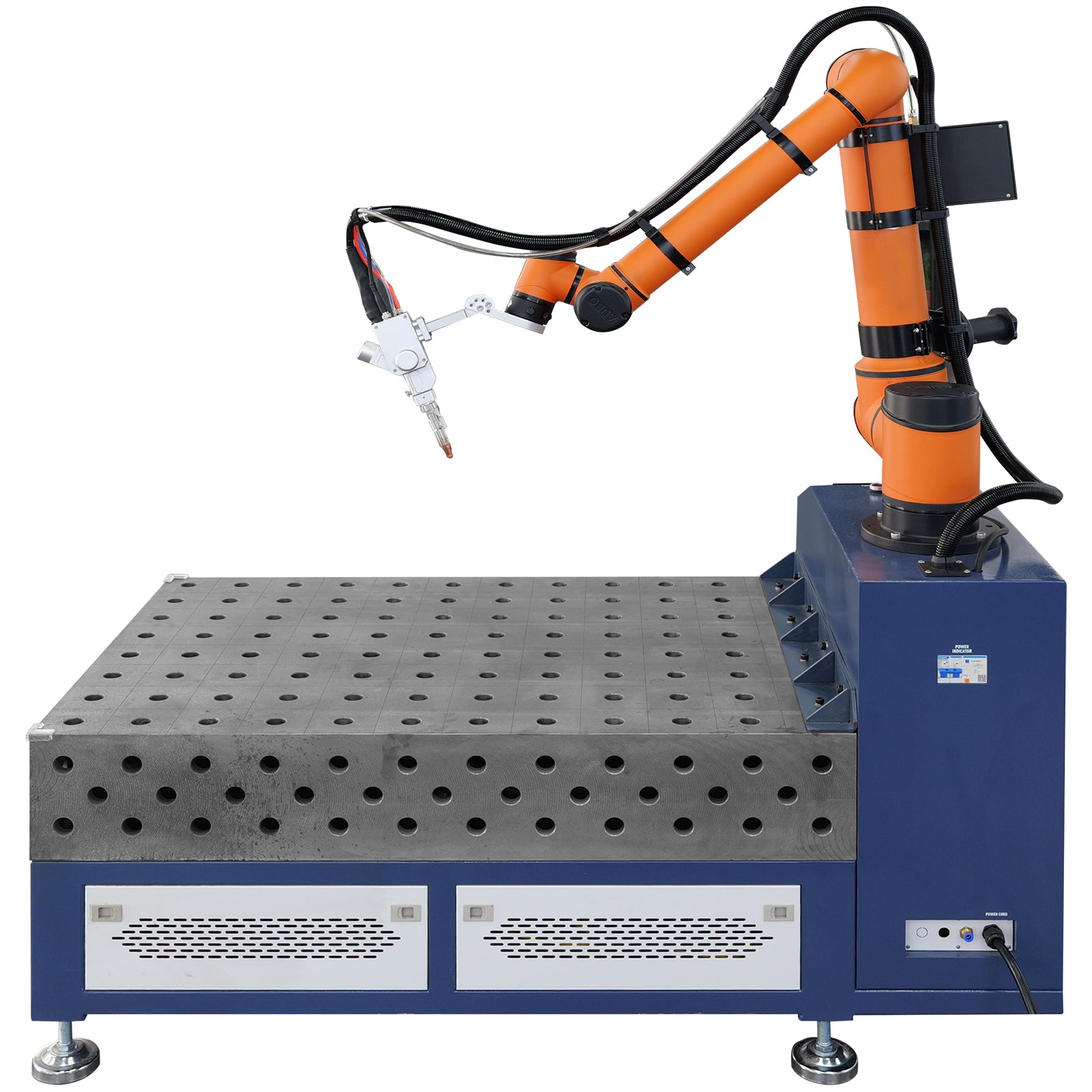

The expandable worktable, which extends up to a 1.3-meter radius, provides a stable platform for welding large parts, while the dual swing welding head guarantees precise seam positioning and superior welding accuracy. Our intuitive drag-and-teach programming feature makes it easy for operators to manually adjust the welding path or set it via the graphical interface.
This machine is perfect for a range of industries, including automotive, hardware, kitchenware, and metalworking, and it offers reliable, energy-efficient performance for long-term use.
Key Features

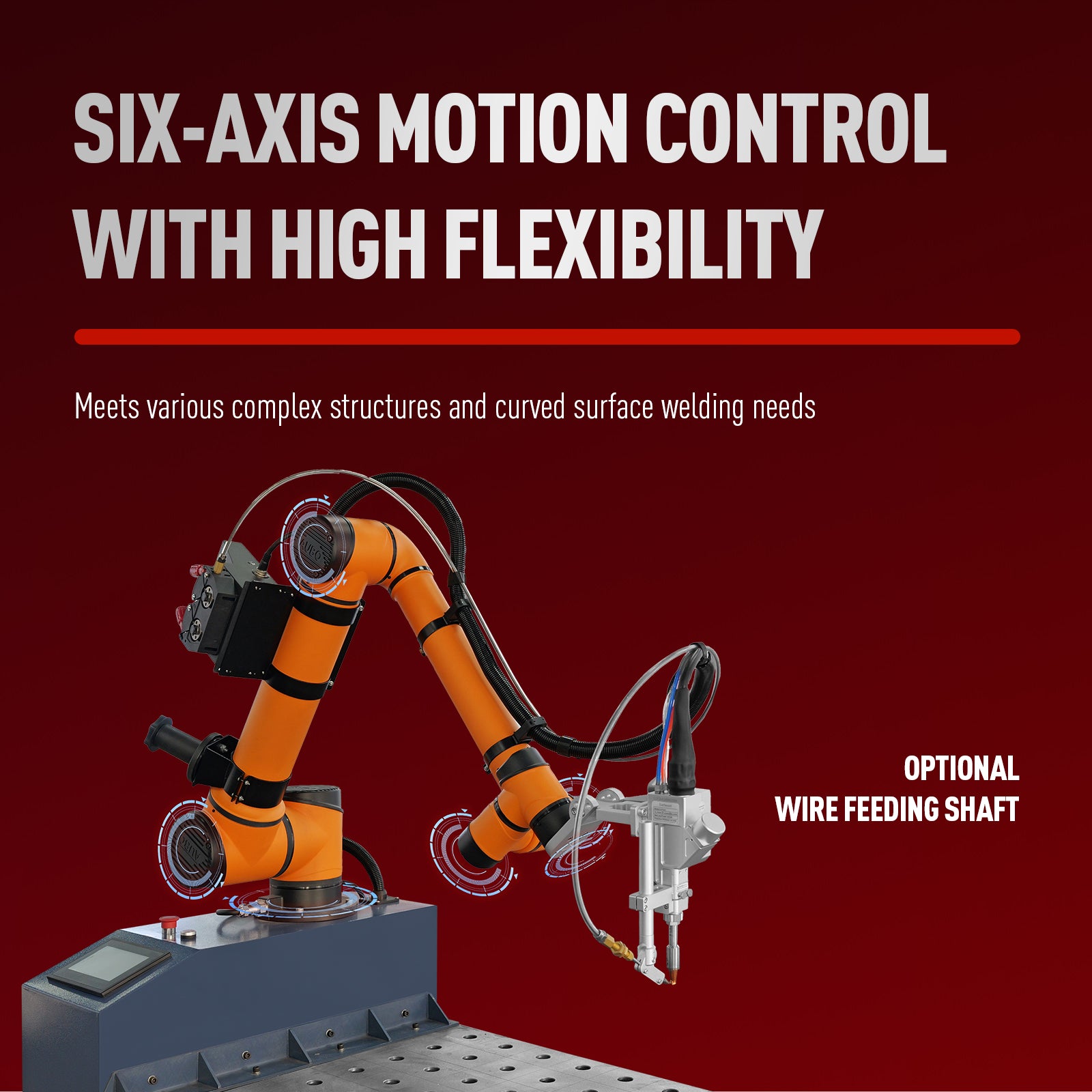

- Six-Axis Motion Control: Offers unmatched flexibility for various welding applications

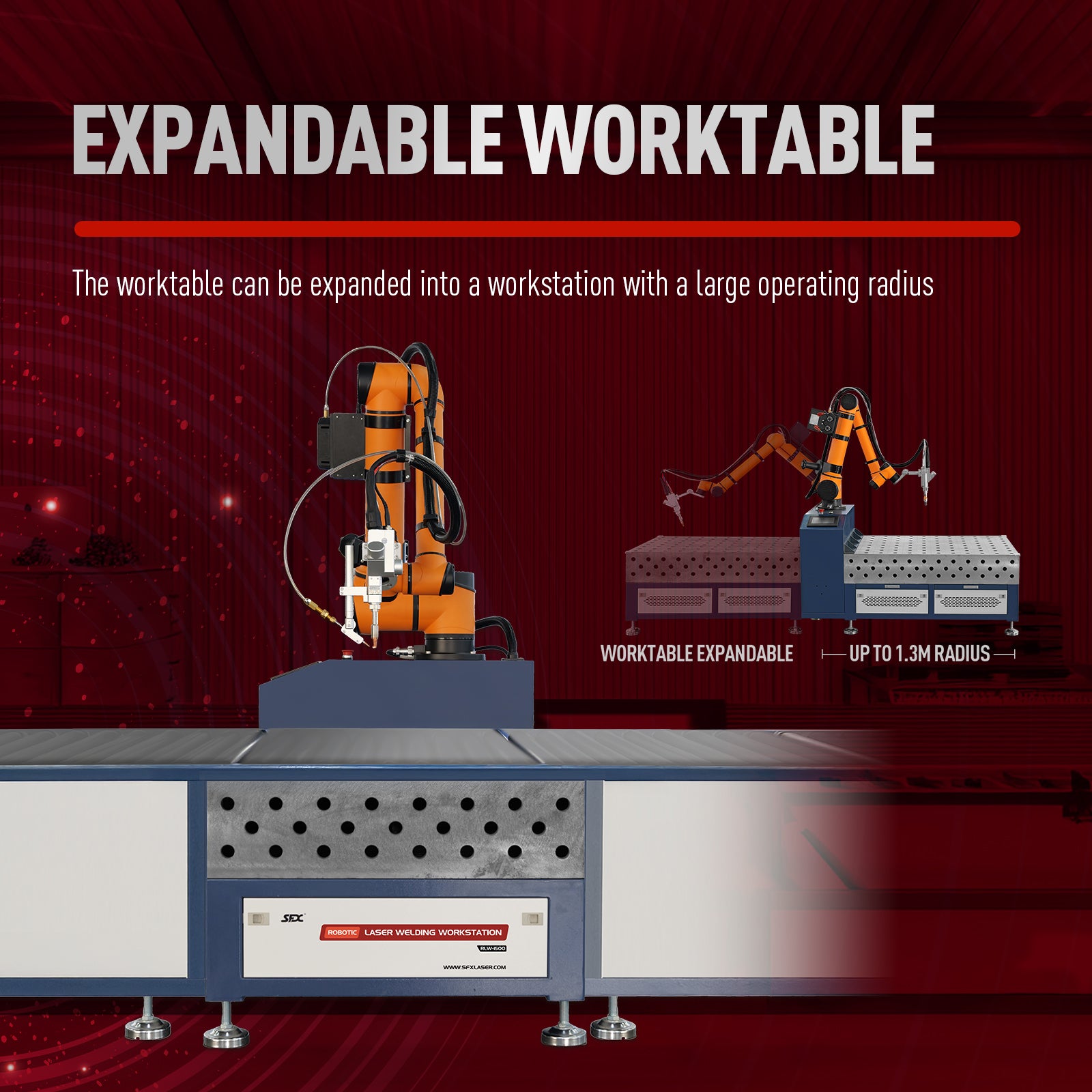

- Expandable Worktable: Provides up to a 1.3-meter radius for larger parts

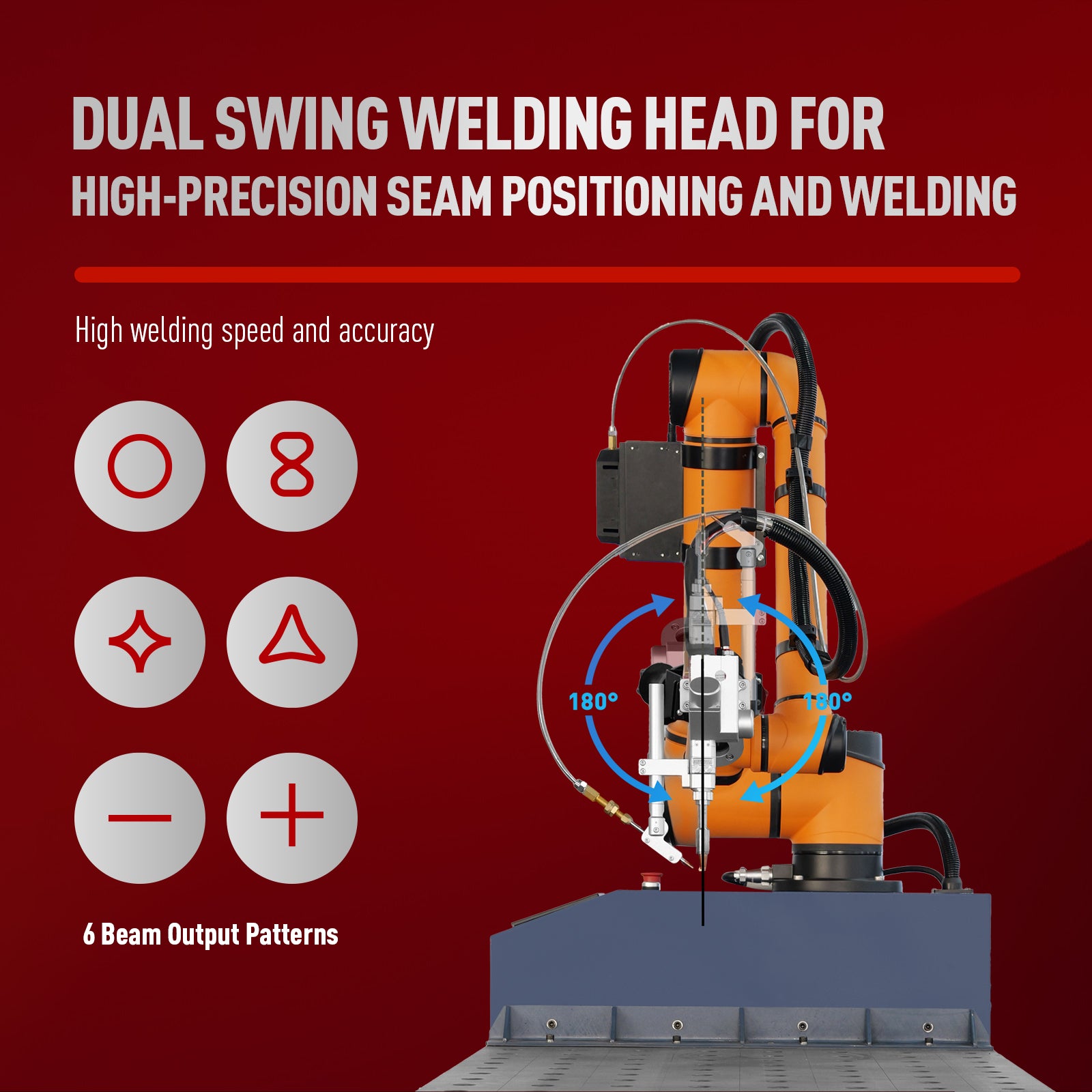

- High Precision Welding: Dual swing welding head for accurate seam positioning
- Repeat Positioning Accuracy: ±0.03mm for consistent, high-quality welds

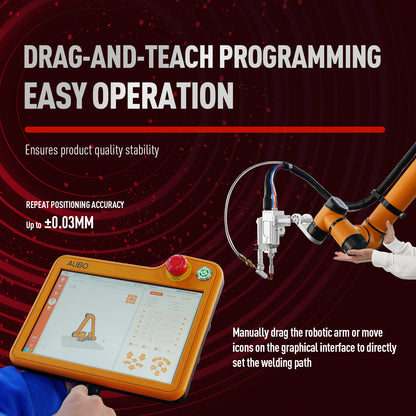

- Intuitive Programming: Drag-and-teach functionality for easy operation

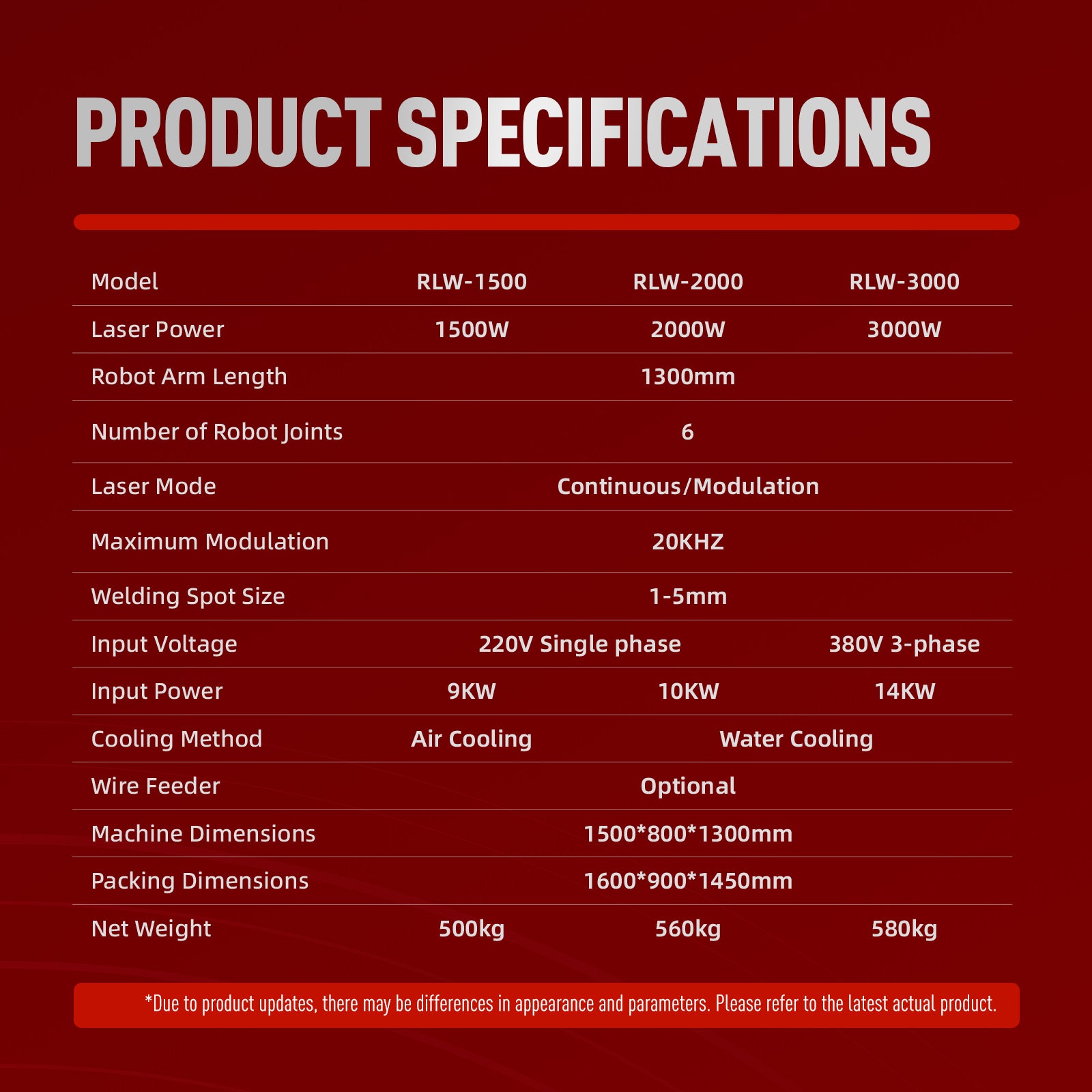

Product Specifications
- Model: RLW-1500, RLW-2000, RLW-3000
- Laser Power: 1500W / 2000W / 3000W
- Robot Arm Length: 1300mm
- Number of Robot Joints: 6
- Laser Mode: Continuous/Modulation
- Welding Spot Size: 1-5mm
- Cooling Method: Air (RLW-1500), Water (RLW-2000, RLW-3000)
- Machine Dimensions: 1500*800*1300mm
- Net Weight: 500kg (RLW-1500), 560kg (RLW-2000), 580kg (RLW-3000)
Warranty
- 1 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
- After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
- Free Shipping by Sea&Truck to Door Around 35 to 50 Days. No Import Duty for American Customers.
- Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video
