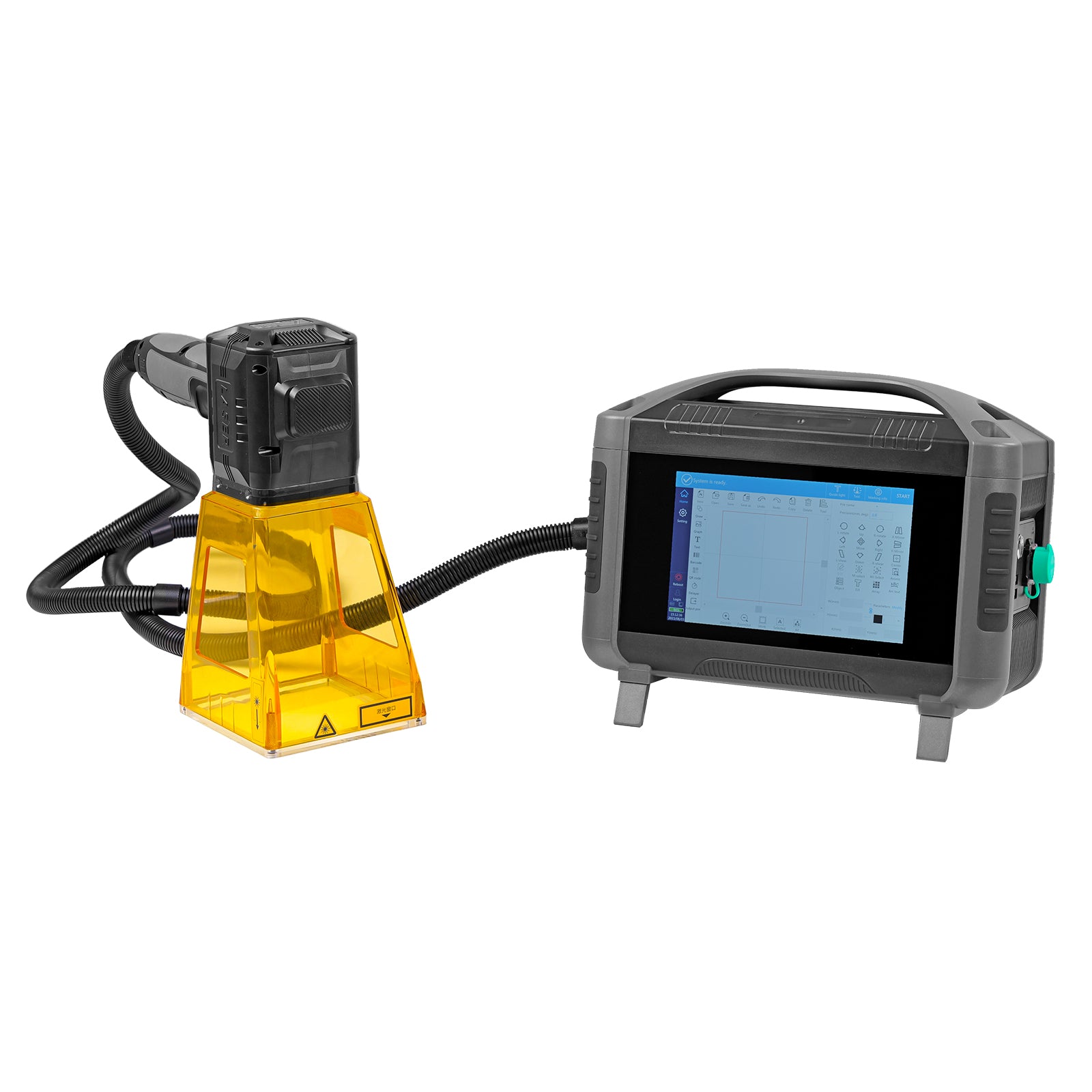

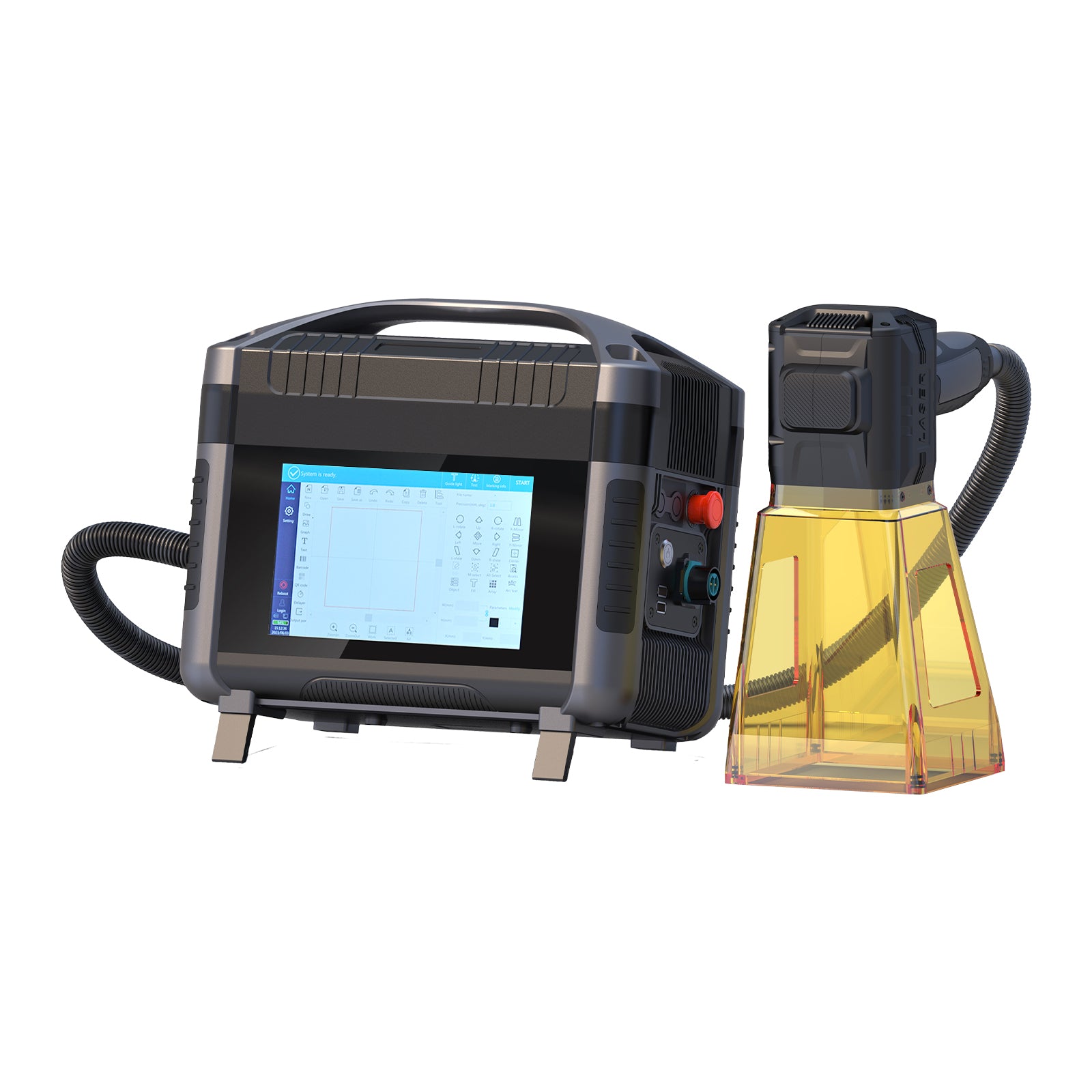

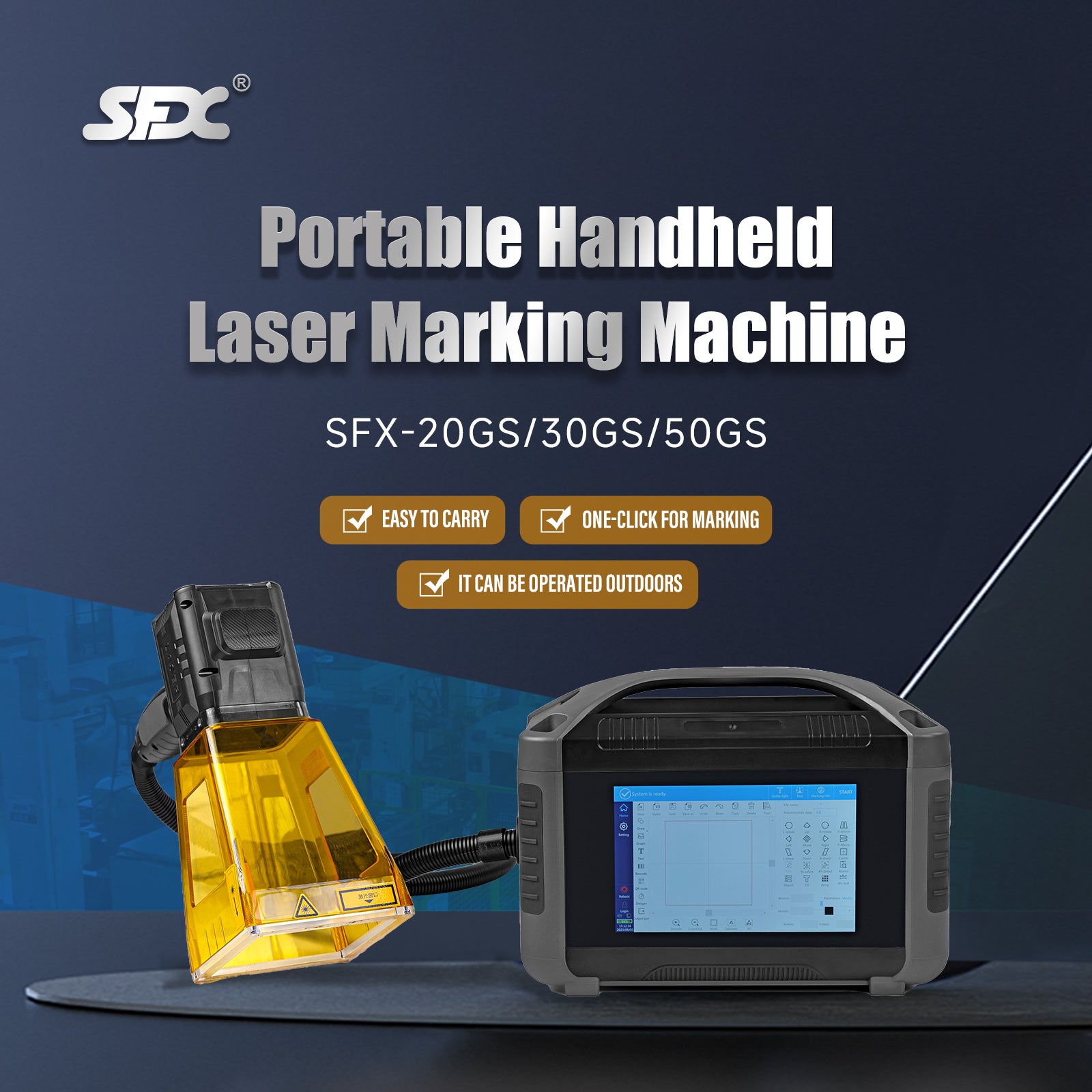

Fiber Laser Engraver Portable Handheld Laser Marking Machine 20W 30W 50W Engraving 70/100mm Linux System 8 Core Professor Laser Engraving Machine for Metal and Non-Metal

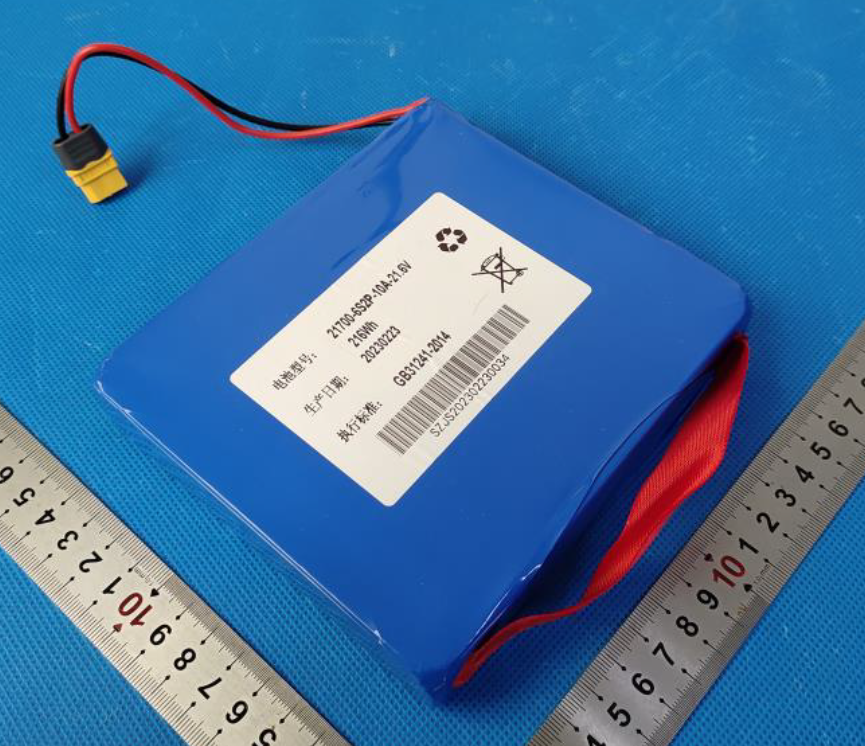

Notice The 369USD is Only for Battery,not include the Portable Laser Marking Machine

Advantages for Portable Fiber Laser Engraver

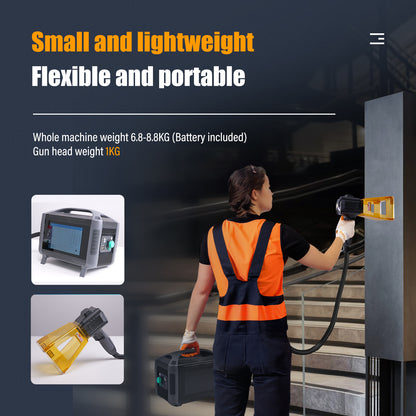

• Small and Lightweight. Easy to Carry, One-click for Marking, can be Operated Outdoors. Whole machine weight 6.8KG(Battery included), Gun head weight 1KG.

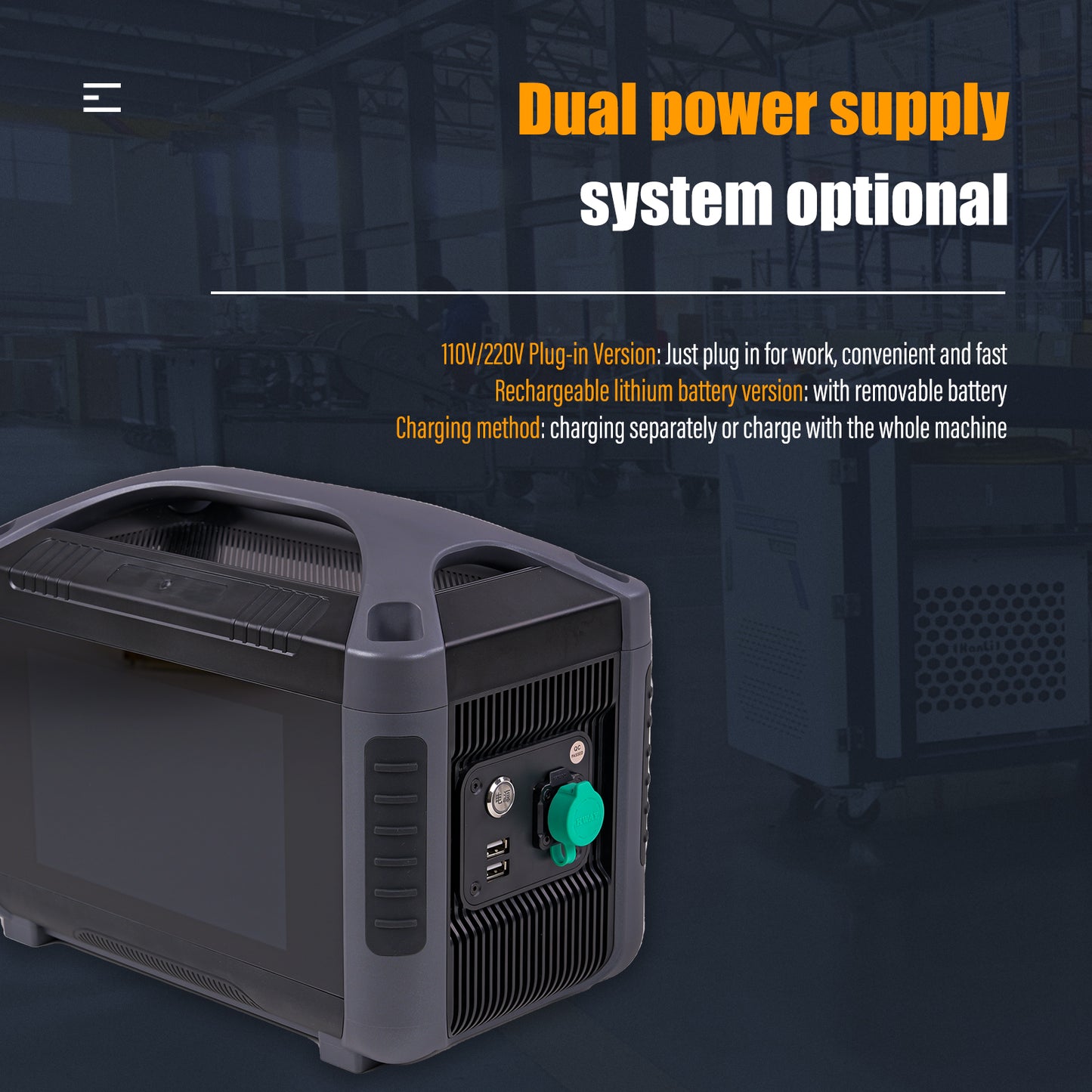

• Dual Power Supply System Optional.
• 110V/220V Plug-in Version: Just plug in for work, convenient and fast
• Rechargeable Lithium Battery Version: with removable battery
• Charging Method: charging separately or charge with the whole machine
• MAX Laser Source, Red-light Pointer. Achieve fast focusing and high-precision marking.
• Linux system with 8-core processor, High security level, stable performance and fast response.

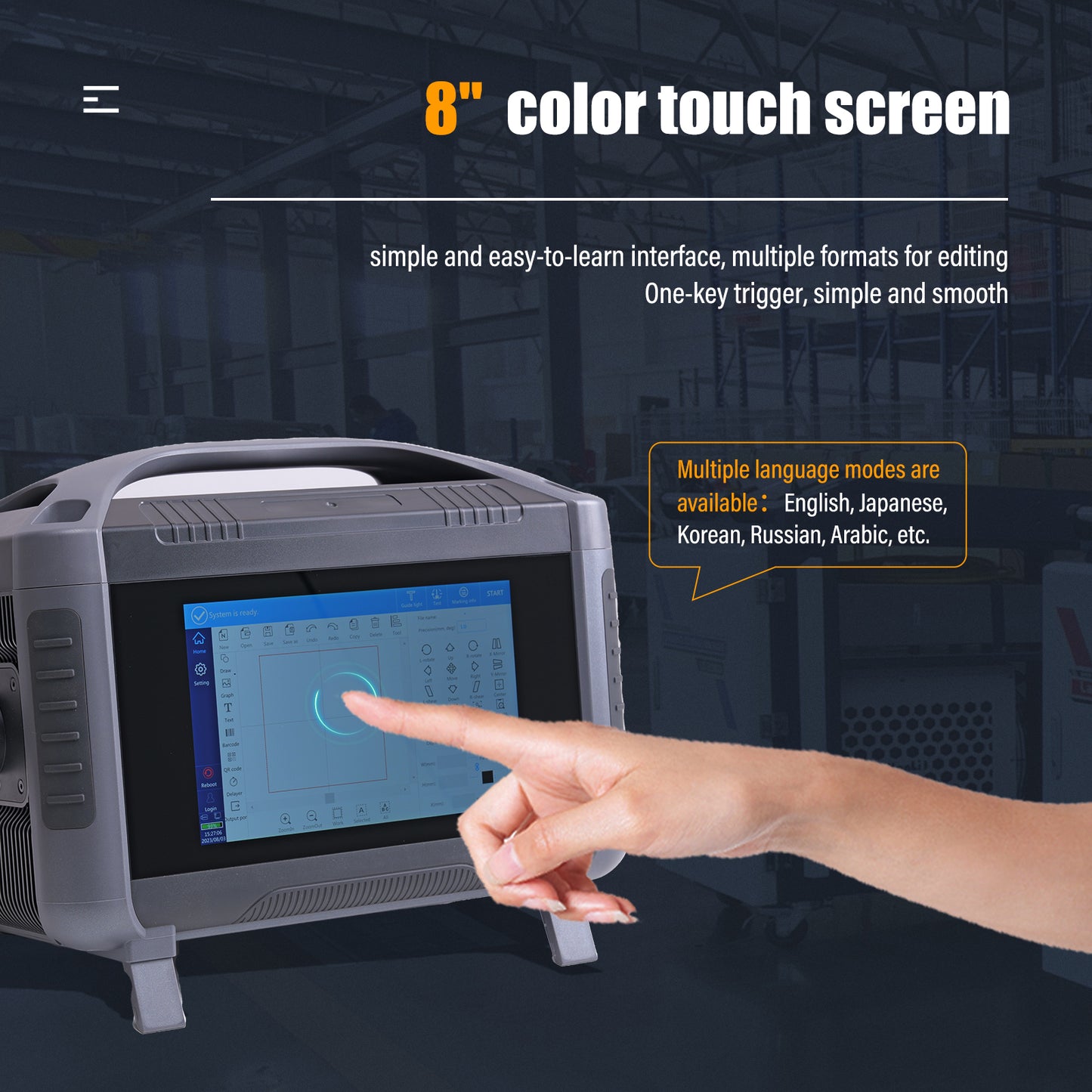

• 8-inch color touch screen, simple and easy-to-learn interface, and multiple formats for editing. One-key trigger, simple and smooth.
• Multiple language modes are available: English, Japanese, Korean, Russian, Arabic, etc.
• Third-party authoritative certification(CE, UN38.3, MSDS), Quality assurance.

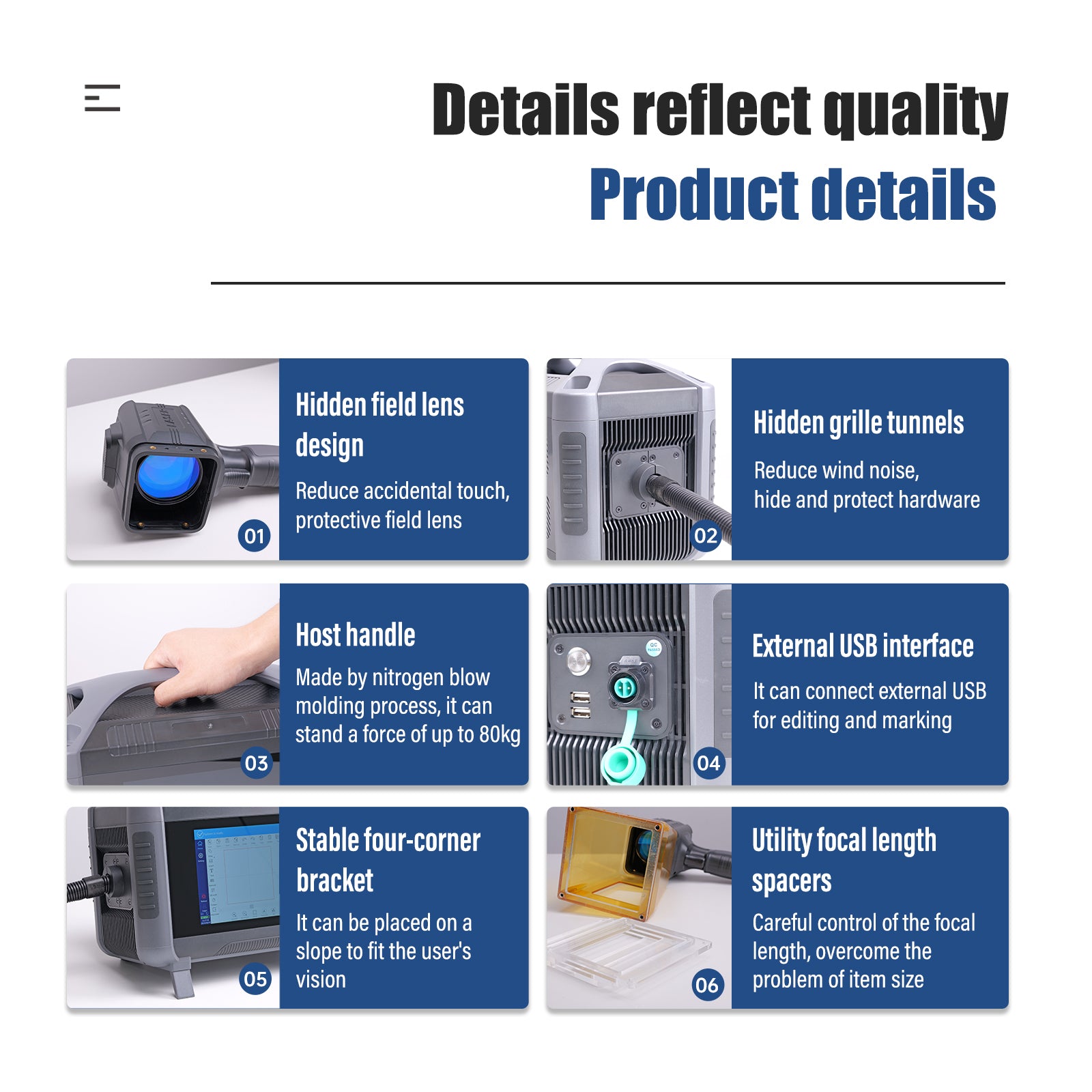

• Hidden Field Lens Design Reduce Accident Touch,Protective Field Lens.
• Hidden Grille Tunnels,Reduce wind noise,hide and protective hardware.
• Stable four-corner bracket can be placed on a slope to fit users vision.

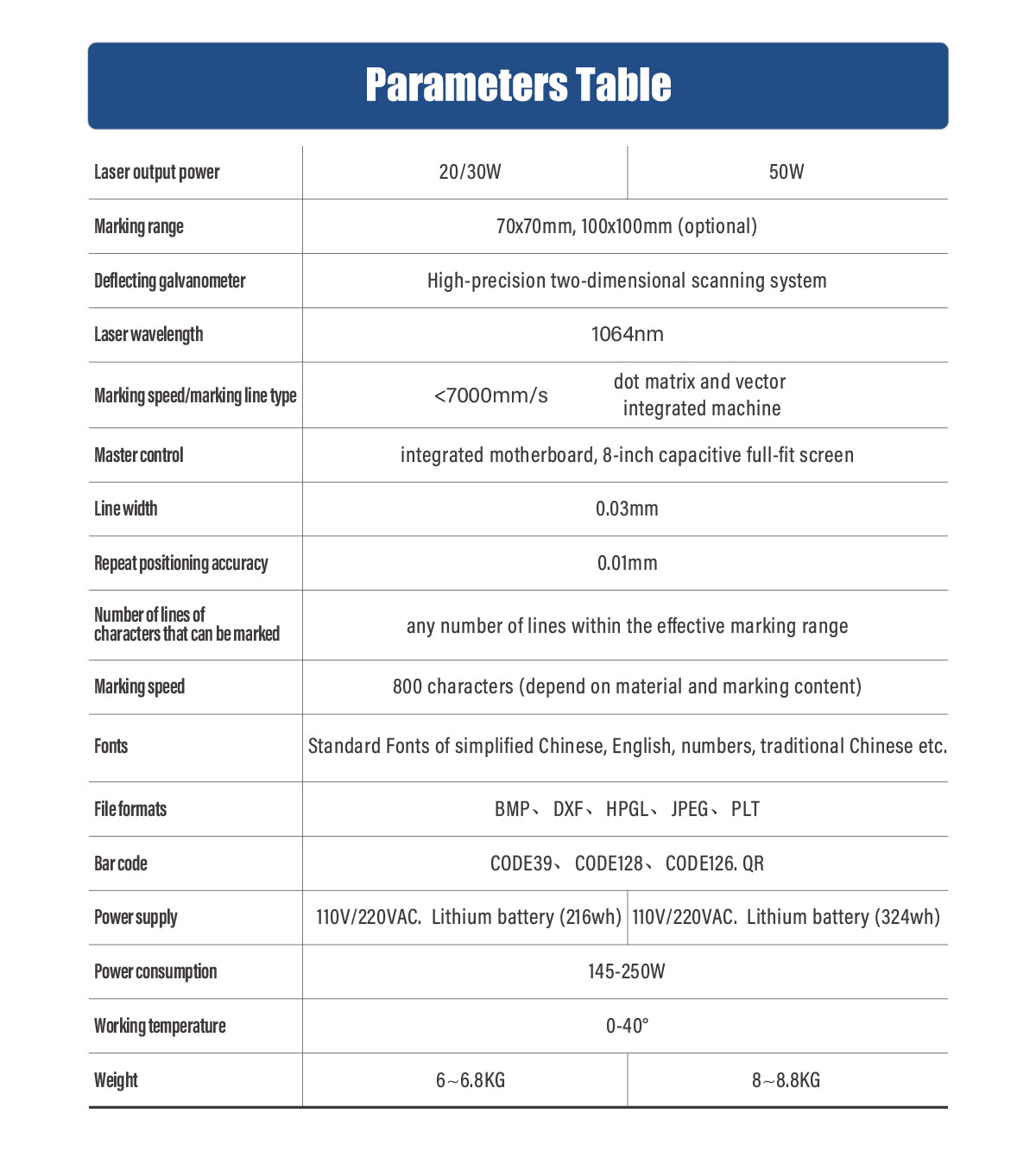

Parameter

• Laser output power:20/30/50W
• Marking range: 70x70mm, 100x100mm (optional)
• Deflecting galvanometer: High-precision two-dimensional scanning system
• Laser wavelength 1064nm ,focus lens: 130mm
• Line width:0.03mm
• Repeat positioning accuracy:0.01mm
• Marking speed:800 characters (depends on material and marking content)
• Power supply: 110V/220VAC.  Lithium battery (216wh)
• Power Consumption 145-250W
• Working Temperature 0-40℃
• Weight:6-6.8KG
• Marking speed/marking line type: <7000mm/s     dot matrix and vector integrated machine
• Master control: integrated motherboard, 8-inch capacitive full-fit screen
• Number of lines of characters that can be marked: any number of lines within the effective marking range
• Fonts: Standard Fonts of simplified Chinese, English, numbers, traditional Chinese etc.
• File formats: BMP, DXF, HPGL, JPEG, PLT
• Bar code: CODE39, CODE128, CODE126, QR

Features:
[Portable and Efficient]This portable laser marking machine boasts a 20/30/50W power output, 100x100mm marking range, high-precision two-dimensional scanning system, and 1064nm laser wavelength. Its compact design allows for easy outdoor operation, making it ideal for various marking applications.
[Superior Quality and Certification] Third-party certifications including CE, UN38.3, and MSDS ensure quality and safety. With a lightweight build and dual power source options (110V/220V plug-in version or battery-powered), this machine offers unmatched flexibility and convenience.
[Advanced Features and User-Friendly Interface]Equipped with cutting-edge technology, this machine features a powerful Linux system,8-core processor, quick focusing capabilities, and a high-resolution 8-inch color touchscreen. The intuitive interface and various editing formats make it simple for users to operate and create precise markings.
[Precision Engineering and Durable Construction]The hidden optical lens design reduces the risk of accidental contact, while the stable mainframe handle can withstand up to 80KG of force. Additional features like the practical focal length spacer enhance the overall user experience and ensure consistent marking quality.
[Versatile Applications and Compatibility]Suitable for a wide range of materials including metals (gold, silver, copper, steel) and non-metals (paper, plastic, glass, leather), this machine can create custom markings such as logos, barcodes, QR codes, text, and patterns in various fonts and formats. Ideal for personalized branding, industrial marking, and other applications requiring precise and permanent markings.
Warranty and Delivery

• 1 Year Warranty for the Whole Machine,2 Years Warranty for the Laser Source. CE & FDA Certificate.
• After Sales Center in NY, US. Offer Remote Assistance for Operation Issues, Lifetime Online Technical Support.
• Free Shipping by Air to Door Around 5 to 10 Days. No Import Duty for American Customers.
• Remote technical pre-sales and after-sales service.Provide free sample processing service,which can cut according to the customers drawing,and provide video.
