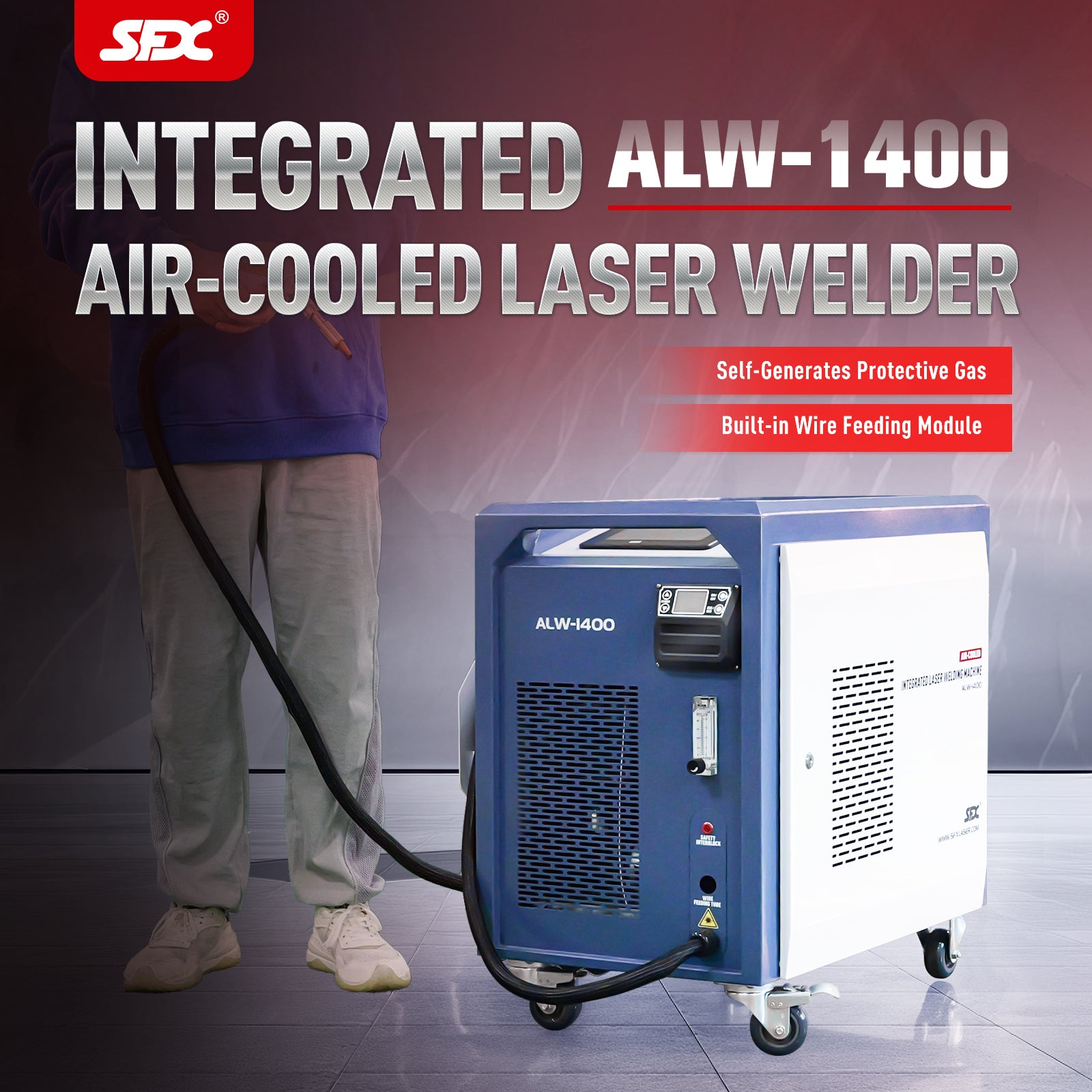

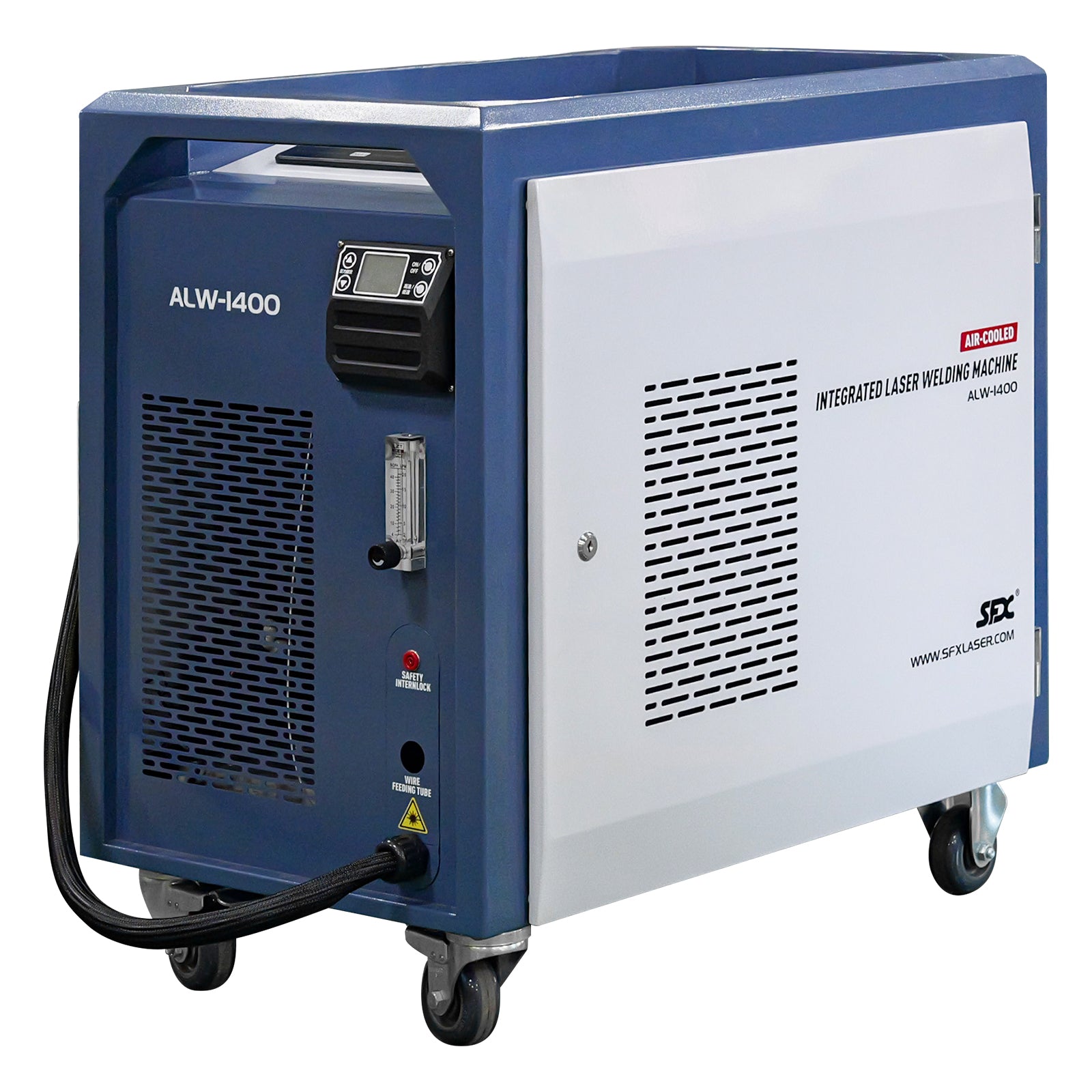

1400W Integrated Air-Cooled Laser Welding Machine No External Gas Required Built-in Auto Wire Feeder Air Cooled Handheld Laser Welder for Aluminum, Stainless Steel, Copper

The Revolutionary All-in-One Laser Welding Solution: Powerful, Portable, Hassle-Free. Meet the SFX ALW-1400, a game-changing 1400W integrated air-cooled laser welder. This 3-in-1 system combines the laser welder, wire feeder, and protective gas generator into a single unit, eliminating the need for external gas cylinders, water tanks, or complex peripherals. Engineered for fast, high-quality welds on reflective metals like aluminum, copper, and stainless steel, it operates 4-10 times faster than traditional methods. It's the ultimate tool for workshops, repair shops, and manufacturers who demand efficiency and precision.

Parameters

• Model: ALW-1400
• Laser Power: 1400W
• Input Voltage: 220V±10%, 50/60Hz, 20A
• Machine Dimensions: 850*550*750mm
• Machine Weight: 94kg
• Welding Gun Weight: 650g
• Welding Swing Width: 0-5mm
• Applicable Wire Diameter: 0.8, 1.0, 1.2, 1.6mm
• Working Modes: Continuous / Pulse / Modulation / Linear / Timing

Features:

【Lightning-Fast Welding with Superior Quality】

1. 4-10X Faster than Traditional Welding: High-brightness fiber and excellent beam quality enable rapid welding, dramatically increasing your productivity.
2. Deep Penetration, Superior Strength: Powerful metal penetration achieves up to 4.5mm on one side and 9.0mm on both sides for stainless steel.
3.  Minimal Heat-Affected Zone (HAZ): Precise energy control significantly reduces workpiece distortion and discoloration, saving hours of post-weld finishing.

【Intelligent Air Cooling & Robust Safety】

1. No Water Chiller Needed: Advanced 3D phase-change cooling and an intelligent temperature-controlled fan system ensure consistent power output during long welding sessions, with low noise operation.
2. 12 Severe Tests & Multiple Protections: Built for peace of mind with an emergency stop button, real-time optical path monitoring, overheating protection, anti-interference circuits, and safety interlock systems.
3. Wide Operating Temperature Range: Functions reliably in environments from -10°C to 40°C, fearless of severe cold or heat.

【Conquers Reflective Material Challenges 】Optical-Grade Anti-High Reflection Technology: Specifically optimized for welding highly reflective materials like aluminum and copper. This breakthrough reduces equipment failures by ~40% and minimizes weld defects compared to standard lasers, extending service life.

【Integrated Plug & Play Design】

1. 3 Machines in 1: A truly integrated body housing the laser welder, wire feeder, and gas generator. Compact footprint (0.37m³) for easy mobility.

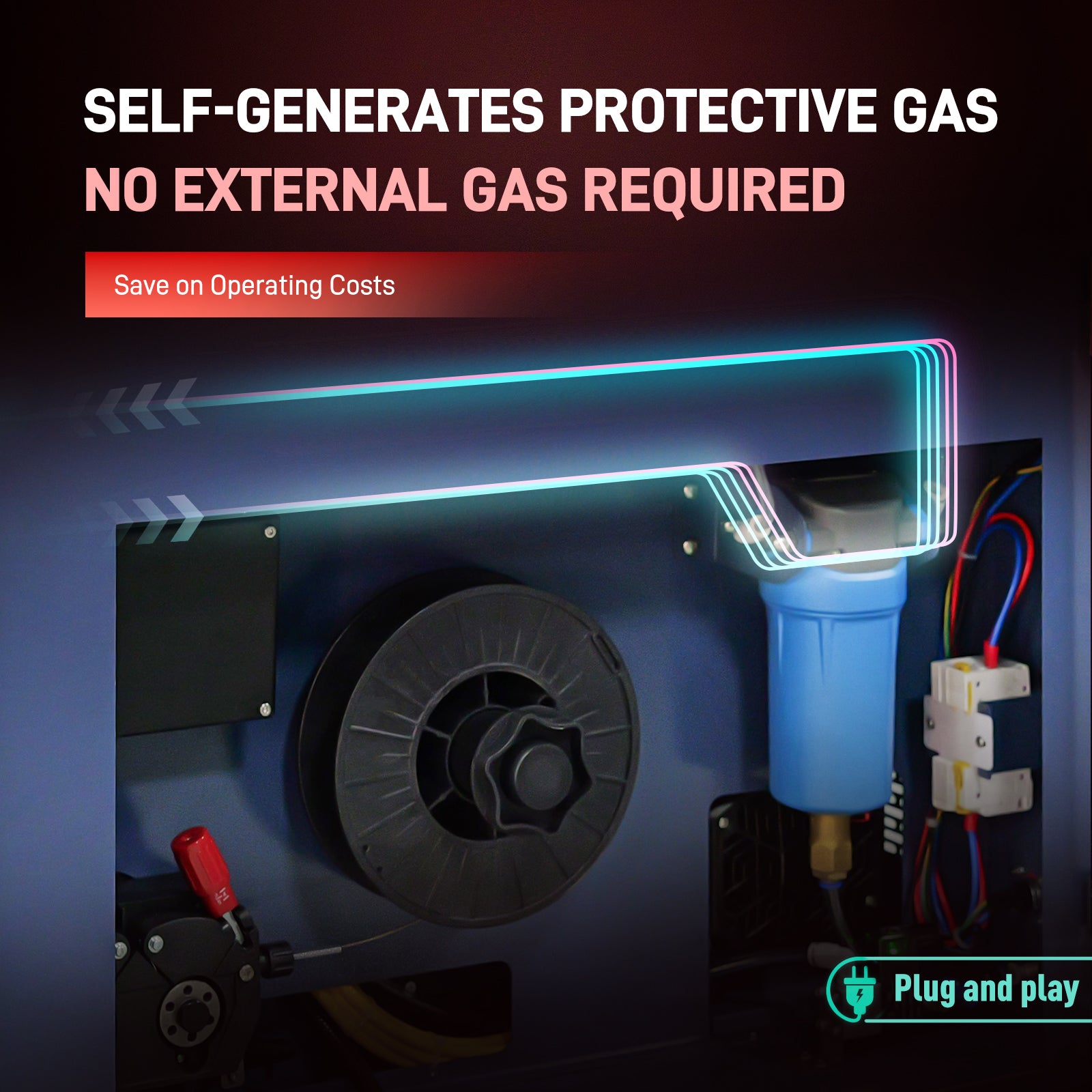

2. Self-Generates Protective Gas: No need for expensive external argon gas tanks, slashing operating costs and safety hazards. True "Plug and Play" operation.
3. Built-In Wire Feeding Module: Supports 0.8-1.6mm welding wire, streamlining the entire welding process.

【Smart, User-Friendly & Versatile】

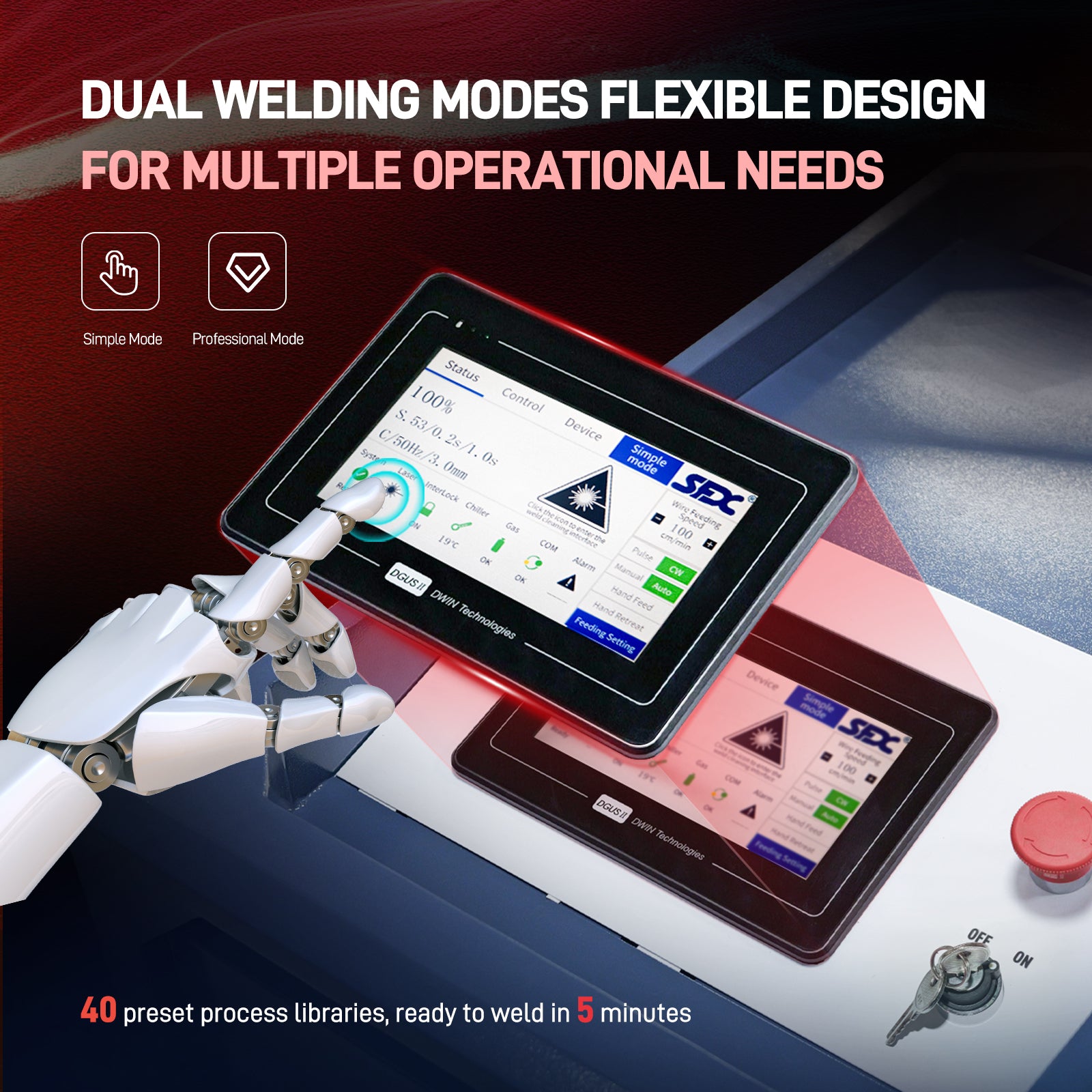

1. Dual Welding Modes: Features both "Simple Mode" for beginners and "Professional Mode" for experts, with 40 preset process libraries for various materials and joint types—be ready to weld in 5 minutes.

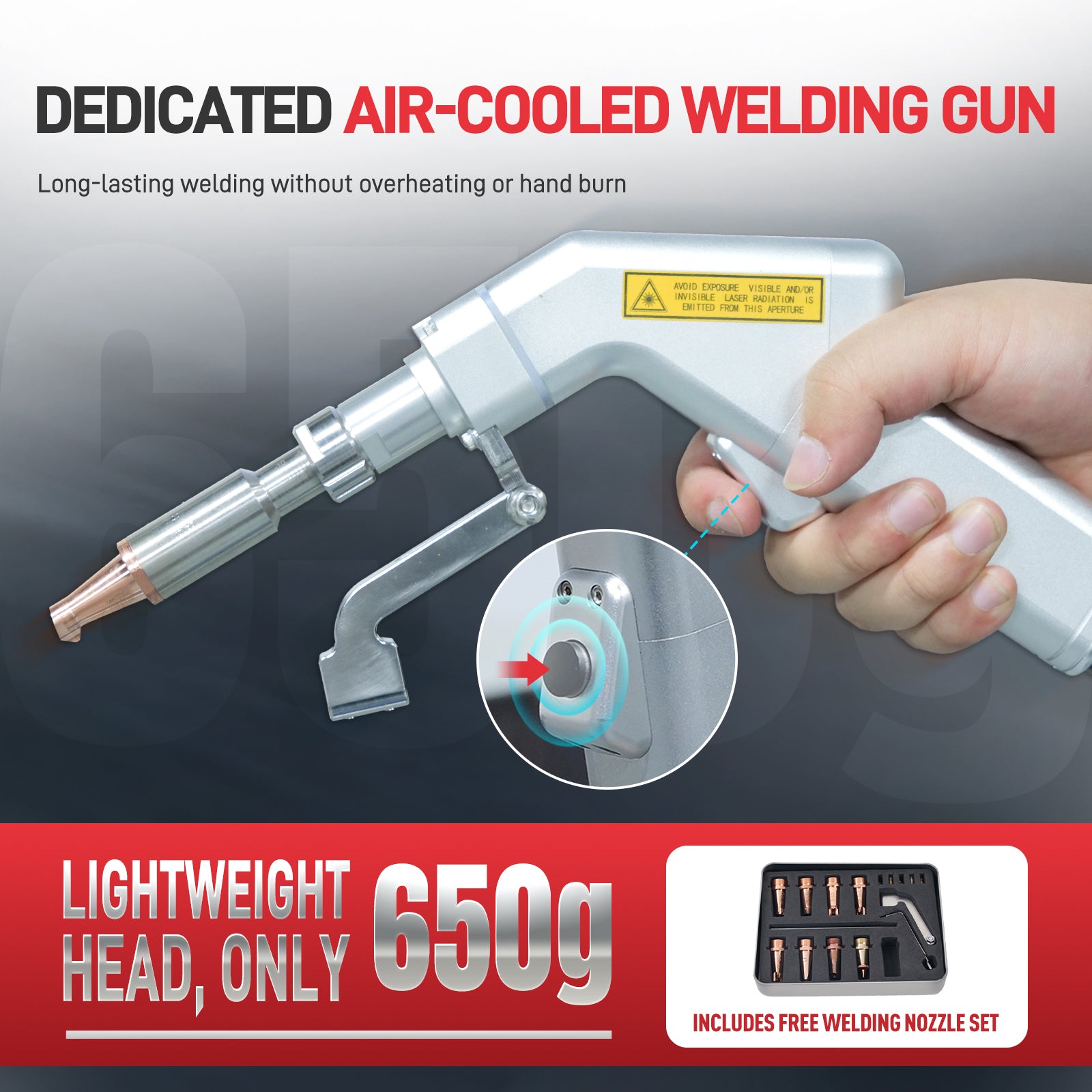

2. Dedicated Air-Cooled Welding Gun: Lightweight (only 650g) and ergonomic, designed for long sessions without overheating or hand fatigue. Includes a free nozzle set.
3. One-Click Switch to Seam Cleaning: Seamlessly switch between welding and cleaning modes to effortlessly remove oxidation tint (heat discoloration), restoring metal's natural finish for a perfect look.
4. Supports Multi-Angle & Multi-Material Welding: Excellently handles butt, fillet, and spot welding on a wide range of materials and positions.

Application

Ideal Applications & Materials Widely used in hardware, building materials, kitchenware, aerospace, automotive, signage, and other industries. Perfect for: Stainless Steel, Carbon Steel, Galvanized Sheet, Aluminum, Brass, Purple Copper Widely used in hardware, building materials, kitchenware, aerospace,automobile, and other industries, suitable for a variety of materials.
